Front Wings of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Front Wings

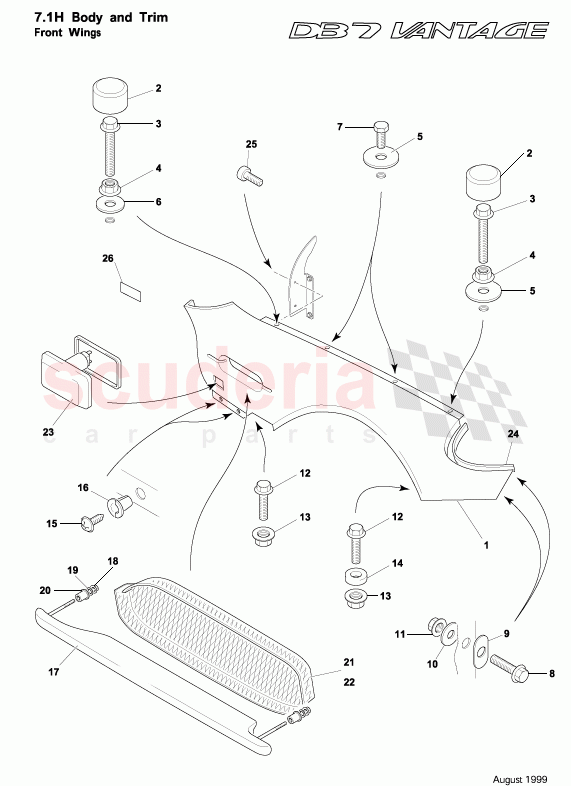

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6282396	BRACKET SUPPORT REAR WING RH	Enquire	To Order
	6282397	BRACKET SUPPORT REAR WING LH	Enquire	To Order
	62140064AA	ASSEMBLY FRONT WING RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R126410183	SUPPORT ASSY- BONNET BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699125	SCREW M6 x 30 HEX 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697516PK	NUT-M6 HEX BLK (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697811	WASHER M6 PLAIN LARGE OD S/LESS BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697728	SCREW-S/STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697118	SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782038	WASHER 11/16in.od x 1/4in.id x 0.080in.t	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697622	WASHER .20 PLAIN .20 X .75 OD X .04 T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697636	M5 x 20 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6282400	SPACER-WING APRON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697488	SCREW No8 x 16 FLANGED AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697487	NUT INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882427	FINISHER GRILLE WING RH	Enquire	To Order
	7882428	FINISHER GRILLE WING LH	Enquire	To Order
	78125000AB	FINISHER GRILLE WING RH	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697295	NUT M4 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697617	WASHER M4 PLAIN FORM C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697673	RAWLNUT M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	78140068AA	FRONT WING MESH GRILLE RH	Enquire	To Order
	78140069AA	FRONT WING MESH GRILLE LH	Enquire	To Order
	78125386AA	MESH GRILLE WING RH - GT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	704690	ADHESIVE-TEROSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781222	SIDE REPEATER FLASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123984AA	HEADLAMP APERTURE FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	78140462AA	FOAM STRIP - FRONT WING TO SILL RH	Enquire	To Order
	78140463AA	FOAM STRIP FRONT WING TO SILL	Enquire	To Order
	7883155	BRACKET ASSY CLOSING LOWER RH	Enquire	To Order

...and 9 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6282396	BRACKET SUPPORT REAR WING RH	6282396 BRACKET SUPPORT REAR WING RH Part of front wing	-	1	Enquire
1	6282397	BRACKET SUPPORT REAR WING LH	6282397 BRACKET SUPPORT REAR WING LH Part of front wing	-	1	Enquire
1	62140064AA	ASSEMBLY FRONT WING RH	62140064AA ASSEMBLY FRONT WING RH Zagato/DBAR1	-	1	Enquire
1	62140065AA	ASSEMBLY FRONT WING LH	62140065AA ASSEMBLY FRONT WING LH Zagato/DBAR1	-	1	Enquire
1	62122662AB	FRONT WING ASSY RH	62122662AB FRONT WING ASSY RH	-	1	Enquire
1	62122663AB	FRONT WING ASSY LH	62122663AB FRONT WING ASSY LH	-	1	Enquire
2	1R126410183	SUPPORT ASSY- BONNET BUMPER	1R126410183 SUPPORT ASSY- BONNET BUMPER	-	4	Enquire
3	699125	SCREW M6 x 30 HEX 8.8	699125 SCREW M6 x 30 HEX 8.8	-	4	Enquire
4	697516PK	NUT-M6 HEX BLK (10)	697516PK NUT-M6 HEX BLK (10)	-	4	Enquire
5	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	2	Enquire
6	697811	WASHER M6 PLAIN LARGE OD S/LESS BLK	697811 WASHER M6 PLAIN LARGE OD S/LESS BLK	-	2	Enquire
7	697728	SCREW-S/STEEL	697728 SCREW-S/STEEL	-	8	Enquire
8	697118	SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	697118 SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	-	4	Enquire
9	3782038	WASHER 11/16in.od x 1/4in.id x 0.080in.t	3782038 WASHER 11/16in.od x 1/4in.id x 0.080in.t	-	4	Enquire
10	697622	WASHER .20 PLAIN .20 X .75 OD X .04 T	697622 WASHER .20 PLAIN .20 X .75 OD X .04 T	-	4	Enquire
11	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	4	Enquire
12	697636	M5 x 20 FLG HD	697636 M5 x 20 FLG HD	-	2	Enquire
13	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	10	Enquire
14	6282400	SPACER-WING APRON	6282400 SPACER-WING APRON	-	10	Enquire
15	697488	SCREW No8 x 16 FLANGED AB S.T.	697488 SCREW No8 x 16 FLANGED AB S.T.	-	4	Enquire
16	697487	NUT INSERT	697487 NUT INSERT	-	4	Enquire
17	7882427	FINISHER GRILLE WING RH	7882427 FINISHER GRILLE WING RH Up to (V) 303447	-	1	Enquire
17	7882428	FINISHER GRILLE WING LH	7882428 FINISHER GRILLE WING LH Up to (V) 303447	-	1	Enquire
17	78125000AB	FINISHER GRILLE WING RH	78125000AB FINISHER GRILLE WING RH From (V) 303448	-	1	Enquire
17	78125001AB	FINISHER GRILLE WING LH	78125001AB FINISHER GRILLE WING LH From (V) 303448	-	1	Enquire
17	78140070AB	Finisher, wing grille - RH	78140070AB Finisher, wing grille - RH Zagato/DBAR1	-	1	Enquire
17	78140071AB	Finisher, wing grille - LH	78140071AB Finisher, wing grille - LH Zagato/DBAR1	-	1	Enquire
17	78140093AA	ZAGATO Z BADGE	78140093AA ZAGATO Z BADGE Zagato/DBAR1	-	2	Enquire
17	78140688AA	Push on fix, Z badge	78140688AA Push on fix, Z badge Zagato/DBAR1	-	4	Enquire
17	696680	TAPE SELF ADHESIVE 35x50M	696680 TAPE SELF ADHESIVE 35x50M Zagato/DBAR1	-	-	Enquire
18	697295	NUT M4 HEX	697295 NUT M4 HEX	-	4	Enquire
19	697617	WASHER M4 PLAIN FORM C	697617 WASHER M4 PLAIN FORM C	-	4	Enquire
20	697673	RAWLNUT M5	697673 RAWLNUT M5	-	4	Enquire
21	78140068AA	FRONT WING MESH GRILLE RH	78140068AA FRONT WING MESH GRILLE RH Zagato/DBAR1	-	1	Enquire
21	78140069AA	FRONT WING MESH GRILLE LH	78140069AA FRONT WING MESH GRILLE LH Zagato/DBAR1	-	1	Enquire
21	78125386AA	MESH GRILLE WING RH - GT	78125386AA MESH GRILLE WING RH - GT GT	-	1	Enquire
21	78125387AA	MESH GRILLE WING LH - GT	78125387AA MESH GRILLE WING LH - GT GT	-	1	Enquire
21	78121468AA	MESH GRILLE WING RH	78121468AA MESH GRILLE WING RH	-	1	Enquire
21	78121469AA	MESH GRILLE WING LH	78121469AA MESH GRILLE WING LH	-	1	Enquire
22	704690	ADHESIVE-TEROSTAT	704690 ADHESIVE-TEROSTAT	-	-	Enquire
23	3781222	SIDE REPEATER FLASHER	3781222 SIDE REPEATER FLASHER	-	1	Enquire
24	37123984AA	HEADLAMP APERTURE FOAM	37123984AA HEADLAMP APERTURE FOAM	-	2	Enquire
25	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	4	Enquire
26	78140462AA	FOAM STRIP - FRONT WING TO SILL RH	78140462AA FOAM STRIP - FRONT WING TO SILL RH Zagato/DBAR1	-	1	Enquire
26	78140463AA	FOAM STRIP FRONT WING TO SILL	78140463AA FOAM STRIP FRONT WING TO SILL Zagato/DBAR1	-	1	Enquire
26	7883155	BRACKET ASSY CLOSING LOWER RH	7883155 BRACKET ASSY CLOSING LOWER RH	-	1	Enquire
26	7883156	BRACKET ASSY CLOSING LOWER LH	7883156 BRACKET ASSY CLOSING LOWER LH	-	1	Enquire
26	78125113AA	FRONT WING MOUNTING WASHER 20.5MM	78125113AA FRONT WING MOUNTING WASHER 20.5MM	-	2	Enquire
26	78125114AA	FRONT WING MOUNTING WASHER 18.5MM	78125114AA FRONT WING MOUNTING WASHER 18.5MM	-	2	Enquire
26	1R126410183	SUPPORT ASSY- BONNET BUMPER	1R126410183 SUPPORT ASSY- BONNET BUMPER	-	2	Enquire
26	3285306	Seal, Radiator Upper	3285306 Seal, Radiator Upper	-	2	Enquire
26	78123930AA	SUPPORT RUBBER - FINISHER GRILLE-WING	78123930AA SUPPORT RUBBER - FINISHER GRILLE-WING	-	8	Enquire
26	697811	WASHER M6 PLAIN LARGE OD S/LESS BLK	697811 WASHER M6 PLAIN LARGE OD S/LESS BLK	-	8	Enquire
26	78124938AA	Mounting washer, front fender	78124938AA Mounting washer, front fender	-	8	Enquire
26	698988	SCREW M6x20-HEX HEAD BLACK	698988 SCREW M6x20-HEX HEAD BLACK	-	8	Enquire
