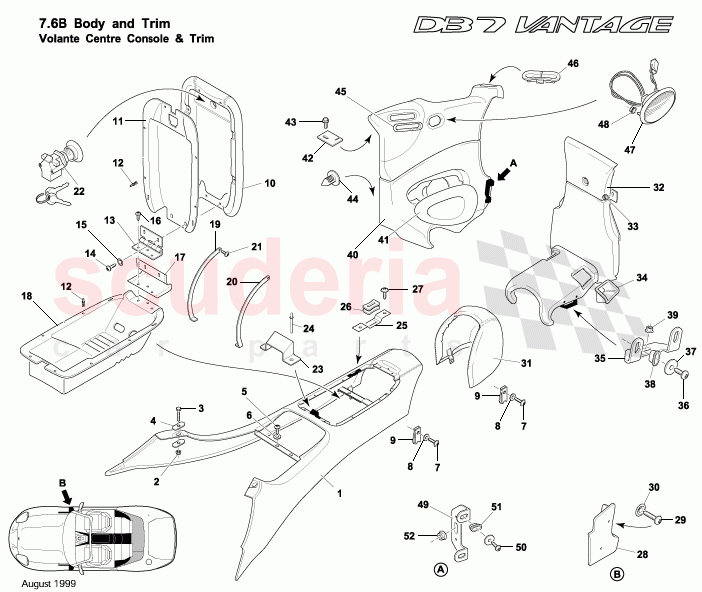

Aston Martin DB7 Vantage - Volante Centre Console and Trim

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80121181AAW	FRONT CONSOLE ASSY TRIMMED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697470	NUT M5 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697512	SCREW M5 x 20 HEX HD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697439	WASHER M5 LARGE OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697572	SCREW No12 x 5/8in PAN HEAD `B' S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697439	WASHER M5 LARGE OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697495	SCREW No8 x 13 FLANGED AB S.T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697566	WASHER M5 LARGE OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697565	Spire Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111570AAW	ARMREST LID ASSEMBLY TRIMMED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8384346	LINER-ARMREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83110949AA	RIVET-EXPANSION TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382792	HINGE CONSOLE AREST FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697581	SCREW M5 x 14 REC PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697583	WASHER 0.50in OD x 0.19inIDx 0.048t BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697582	SCREW No10 PAN HD AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83124080AAW	Cover assy, hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123774AA	CD STOWAGE-FRONT CUBBY BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382795	LINK CHECK LID FT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382796	LINK CHECK LID FT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697449	SCREW No8 x 13 S T FLANGED AB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80140564AA	Locking ring, armrest top (chrome)	Enquire	To Order
	8090153	LOCKING RING- ARMREST TOP	Enquire	To Order
	6982296	LOCK ASSY GLOVEBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383794	BRACKET-LATCH/STRIKR MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697580	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383486	BRACKET-BUSH CHECK LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8384701	GROMMET-GLOVEBOX CHECKARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123921AA	Buffer, glovebox	Enquire	To Order
	697498PK	SCREW-No6x13 FLG(10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123486AAW	FINISHER ASSY-LOWER A POST-RH	Enquire	To Order
	83123487AAW	FINISHER ASSY-LOWER A POST LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697624	SCREW No8 x 25 RSD CSK HEAD BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699115	WASHER CUP No 8 BLACK ZINC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111909BAW	PANEL EXTENSION COMP ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123123BAW	CONSOLE ASSY COMPLETE REAR-FED	Enquire	To Order
	8383797	CONSOLE ASSY COMP REAR	Enquire	To Order
	80125156BAW	Console, rear - complete assembly std ICE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8384599	RECEPTACLE SEAT BELT RR RH	Enquire	To Order
	697679	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8384600	RECEPTACLE SEAT BELT RR LH	Enquire	To Order
	8382840	RECEPTACLE RR S/BELT RH	Enquire	To Order
	8382841	RECEPTACLE RR S/BELT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8385539	BRKT-RR QTR TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697630	SCREW No.8 x 5/8in PAN HEAD AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782038	WASHER 11/16in.od x 1/4in.id x 0.080in.t	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697571	NUT LOKUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697679	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83125202BAW	Panel, rear quarter, trimmed, RH	Enquire	To Order
	83125203BAW	Panel, rear quarter, trimmed, LH	Enquire	To Order
	83123272BAW	PANEL REAR QUARTER TRIMMED ASSY RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8383742	BOLSTER COMPLETE ASY RH	Enquire	To Order
	8383743	BOLSTER COMP ASSY LH	Enquire	To Order
	8385900	SPKR GRILLE REAR RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8385540	BRKT-RR QTR UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697304	SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697648	Fastener, Fir Tree	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8090364	ESCUTCHEON-SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695823	BEZEL - SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697290	PUSH ON FIXER-M3	Enquire	To Order
	3781231	LAMP - INTERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699118	NUT M3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8385541	BRKT-RR QTR RH	Enquire	To Order
	8385542	BRKT-RR QTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697468	SCREW/WASHER No8 x19 PAN HD AB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697571	NUT LOKUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123990AAW	Finisher assy, lower A post, RH Wilton Carpet opt	Enquire	To Order
	83123991AAW	Finisher assy, lower A post, LH Wilton Carpet opt	Enquire	To Order
	697679	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80121181AAW	FRONT CONSOLE ASSY TRIMMED	80121181AAW FRONT CONSOLE ASSY TRIMMED	-	1	Enquire
2	697470	NUT M5 NYLOC	697470 NUT M5 NYLOC Console to facia	-	2	Enquire
3	697512	SCREW M5 x 20 HEX HD 8.8	697512 SCREW M5 x 20 HEX HD 8.8 Console to facia	-	2	Enquire
4	697439	WASHER M5 LARGE OD	697439 WASHER M5 LARGE OD Console to facia	-	4	Enquire
5	697572	SCREW No12 x 5/8in PAN HEAD `B' S.T.	697572 SCREW No12 x 5/8in PAN HEAD `B' S.T. Console to facia	-	2	Enquire
6	697439	WASHER M5 LARGE OD	697439 WASHER M5 LARGE OD Console to facia	-	2	Enquire
7	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T Console to facia	-	2	Enquire
8	697566	WASHER M5 LARGE OD	697566 WASHER M5 LARGE OD Console to facia	-	2	Enquire
9	697565	Spire Nut	697565 Spire Nut Console to floor	-	2	Enquire
10	83111570AAW	ARMREST LID ASSEMBLY TRIMMED	83111570AAW ARMREST LID ASSEMBLY TRIMMED	-	1	Enquire
11	8384346	LINER-ARMREST	8384346 LINER-ARMREST	-	1	Enquire
12	83110949AA	RIVET-EXPANSION TYPE	83110949AA RIVET-EXPANSION TYPE	-	12	Enquire
13	8382792	HINGE CONSOLE AREST FRONT	8382792 HINGE CONSOLE AREST FRONT	-	1	Enquire
14	697581	SCREW M5 x 14 REC PAN	697581 SCREW M5 x 14 REC PAN	-	2	Enquire
15	697583	WASHER 0.50in OD x 0.19inIDx 0.048t BLACK	697583 WASHER 0.50in OD x 0.19inIDx 0.048t BLACK	-	5	Enquire
16	697582	SCREW No10 PAN HD AB S.T.	697582 SCREW No10 PAN HD AB S.T.	-	3	Enquire
17	83124080AAW	Cover assy, hinge	83124080AAW Cover assy, hinge	-	1	Enquire
18	80123774AA	CD STOWAGE-FRONT CUBBY BOX	80123774AA CD STOWAGE-FRONT CUBBY BOX	-	1	Enquire
19	8382795	LINK CHECK LID FT RH	8382795 LINK CHECK LID FT RH	-	1	Enquire
20	8382796	LINK CHECK LID FT LH	8382796 LINK CHECK LID FT LH	-	1	Enquire
21	697449	SCREW No8 x 13 S T FLANGED AB	697449 SCREW No8 x 13 S T FLANGED AB	-	2	Enquire
22	80140564AA	Locking ring, armrest top (chrome)	80140564AA Locking ring, armrest top (chrome) Zagato	-	1	Enquire
22	8090153	LOCKING RING- ARMREST TOP	8090153 LOCKING RING- ARMREST TOP	-	1	Enquire
22	6982296	LOCK ASSY GLOVEBOX	6982296 LOCK ASSY GLOVEBOX	-	1	Enquire
23	8383794	BRACKET-LATCH/STRIKR MTG	8383794 BRACKET-LATCH/STRIKR MTG	-	1	Enquire
24	697580	RIVET	697580 RIVET	-	2	Enquire
25	8383486	BRACKET-BUSH CHECK LINK	8383486 BRACKET-BUSH CHECK LINK	-	2	Enquire
26	8384701	GROMMET-GLOVEBOX CHECKARM	8384701 GROMMET-GLOVEBOX CHECKARM	-	2	Enquire
27	80123921AA	Buffer, glovebox	80123921AA Buffer, glovebox	-	1	Enquire
27	697498PK	SCREW-No6x13 FLG(10)	697498PK SCREW-No6x13 FLG(10)	-	4	Enquire
28	83123486AAW	FINISHER ASSY-LOWER A POST-RH	83123486AAW FINISHER ASSY-LOWER A POST-RH	-	1	Enquire
28	83123487AAW	FINISHER ASSY-LOWER A POST LH	83123487AAW FINISHER ASSY-LOWER A POST LH	-	1	Enquire
29	697624	SCREW No8 x 25 RSD CSK HEAD BLACK	697624 SCREW No8 x 25 RSD CSK HEAD BLACK	-	4	Enquire
30	699115	WASHER CUP No 8 BLACK ZINC	699115 WASHER CUP No 8 BLACK ZINC	-	4	Enquire
31	83111909BAW	PANEL EXTENSION COMP ASSY	83111909BAW PANEL EXTENSION COMP ASSY	-	1	Enquire
32	80123123BAW	CONSOLE ASSY COMPLETE REAR-FED	80123123BAW CONSOLE ASSY COMPLETE REAR-FED USA Up to (V) 303447	-	1	Enquire
32	8383797	CONSOLE ASSY COMP REAR	8383797 CONSOLE ASSY COMP REAR USA Up to (V) 303447	-	1	Enquire
32	80125156BAW	Console, rear - complete assembly std ICE	80125156BAW Console, rear - complete assembly std ICE USA From (V) 303448	-	1	Enquire
32	80123814BAW	CONSOLE ASSY COMPLETE REAR -NON FED	80123814BAW CONSOLE ASSY COMPLETE REAR -NON FED Non USA	-	1	Enquire
33	8384599	RECEPTACLE SEAT BELT RR RH	8384599 RECEPTACLE SEAT BELT RR RH Non USA	-	1	Enquire
33	697679	NUT	697679 NUT	-	4	Enquire
34	8384600	RECEPTACLE SEAT BELT RR LH	8384600 RECEPTACLE SEAT BELT RR LH Non USA	-	1	Enquire
34	8382840	RECEPTACLE RR S/BELT RH	8382840 RECEPTACLE RR S/BELT RH USA	-	1	Enquire
34	8382841	RECEPTACLE RR S/BELT LH	8382841 RECEPTACLE RR S/BELT LH USA	-	1	Enquire
35	8385539	BRKT-RR QTR TRIM	8385539 BRKT-RR QTR TRIM	-	2	Enquire
36	697630	SCREW No.8 x 5/8in PAN HEAD AB S.T.	697630 SCREW No.8 x 5/8in PAN HEAD AB S.T.	-	4	Enquire
37	3782038	WASHER 11/16in.od x 1/4in.id x 0.080in.t	3782038 WASHER 11/16in.od x 1/4in.id x 0.080in.t	-	4	Enquire
38	697571	NUT LOKUT	697571 NUT LOKUT	-	4	Enquire
39	697679	NUT	697679 NUT	-	2	Enquire
40	83125202BAW	Panel, rear quarter, trimmed, RH	83125202BAW Panel, rear quarter, trimmed, RH USA From (V) 303448	-	1	Enquire
40	83125203BAW	Panel, rear quarter, trimmed, LH	83125203BAW Panel, rear quarter, trimmed, LH USA From (V) 303448	-	1	Enquire
40	83123272BAW	PANEL REAR QUARTER TRIMMED ASSY RH	83123272BAW PANEL REAR QUARTER TRIMMED ASSY RH ROW	-	1	Enquire
40	83123273BAW	PANEL REAR QUARTER TRIMMED ASSY LH	83123273BAW PANEL REAR QUARTER TRIMMED ASSY LH ROW	-	1	Enquire
41	8383742	BOLSTER COMPLETE ASY RH	8383742 BOLSTER COMPLETE ASY RH	-	1	Enquire
41	8383743	BOLSTER COMP ASSY LH	8383743 BOLSTER COMP ASSY LH	-	1	Enquire
41	8385900	SPKR GRILLE REAR RH	8385900 SPKR GRILLE REAR RH	-	1	Enquire
41	8385901	SPKR GRILLE REAR LH	8385901 SPKR GRILLE REAR LH	-	1	Enquire
42	8385540	BRKT-RR QTR UPPER	8385540 BRKT-RR QTR UPPER	-	2	Enquire
43	697304	SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8	697304 SCREW M5 x 10 HEX FLANGE HEAD GRADE 8.8	-	2	Enquire
44	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree	-	2	Enquire
45	8090364	ESCUTCHEON-SEAT BELT	8090364 ESCUTCHEON-SEAT BELT	-	2	Enquire
46	695823	BEZEL - SEAT BELT	695823 BEZEL - SEAT BELT	-	2	Enquire
47	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3 Interior lamp fixing	-	4	Enquire
47	3781231	LAMP - INTERIOR	3781231 LAMP - INTERIOR	-	2	Enquire
48	699118	NUT M3	699118 NUT M3	-	6	Enquire
49	8385541	BRKT-RR QTR RH	8385541 BRKT-RR QTR RH	-	2	Enquire
49	8385542	BRKT-RR QTR LH	8385542 BRKT-RR QTR LH	-	2	Enquire
50	697468	SCREW/WASHER No8 x19 PAN HD AB	697468 SCREW/WASHER No8 x19 PAN HD AB	-	4	Enquire
51	697571	NUT LOKUT	697571 NUT LOKUT	-	4	Enquire
52	83123990AAW	Finisher assy, lower A post, RH Wilton Carpet opt	83123990AAW Finisher assy, lower A post, RH Wilton Carpet opt	-	1	Enquire
52	83123991AAW	Finisher assy, lower A post, LH Wilton Carpet opt	83123991AAW Finisher assy, lower A post, LH Wilton Carpet opt	-	1	Enquire
52	697679	NUT	697679 NUT	-	2	Enquire
