Fuel Flap Mechanism of Aston Martin Aston Martin DB7 Vantage

View All

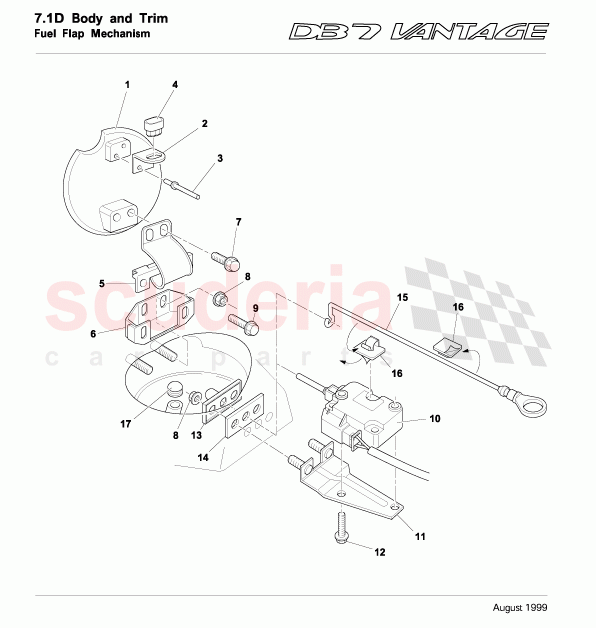

Aston Martin DB7 Vantage - Fuel Flap Mechanism

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6884088	FUEL FILLER FLAP ASY	Enquire	To Order
	68140667AAW	Fuel filler flap assy, painted	Enquire	To Order
	68140351AA	FLAP FUEL FILLER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6882384	BRACKET-FUEL FILLER LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697483	RIVET BLIND 2.4 DIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6882376	BUSH - ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6890419	HINGE-FUEL FILLER LID	Enquire	To Order
	6882381	Hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6882380	MOUNTING BRACKET - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697481	SCREW M5 x 20 HEX FLANGE P.C 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782375	ACTUATOR-FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6882377	ASSY ACTUATOR MTG BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697482	SCREW M4 x 20 PAN HEAD THREAD FORM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6882378	SUPPORT PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6882379	SEAL - SUPPORT PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6882383	MANUAL RELEASE- ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697478	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68123374AA	WATER DEFLECTOR	Enquire	To Order
	6882382	GROMMET - BUMPSTOP - FUEL FILLER	Enquire	To Order
	3485992	FILTER-DRAIN TUBE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6884088	FUEL FILLER FLAP ASY	6884088 FUEL FILLER FLAP ASY Volante	-	1	Enquire
1	68140667AAW	Fuel filler flap assy, painted	68140667AAW Fuel filler flap assy, painted Zagato	-	1	Enquire
1	68140351AA	FLAP FUEL FILLER	68140351AA FLAP FUEL FILLER Zagato	-	1	Enquire
1	68150145AAW	Fuel filler flap assy, painted	68150145AAW Fuel filler flap assy, painted DBAR1	-	1	Enquire
1	6882374	FUEL FILLER FLAP ASY	6882374 FUEL FILLER FLAP ASY Coupe	-	1	Enquire
1	68150112AA	FUEL FILLER FLAP	68150112AA FUEL FILLER FLAP DBAR1	-	1	Enquire
2	6882384	BRACKET-FUEL FILLER LOCKING	6882384 BRACKET-FUEL FILLER LOCKING	-	1	Enquire
3	697483	RIVET BLIND 2.4 DIA	697483 RIVET BLIND 2.4 DIA	-	2	Enquire
4	6882376	BUSH - ACTUATOR	6882376 BUSH - ACTUATOR	-	1	Enquire
5	6890419	HINGE-FUEL FILLER LID	6890419 HINGE-FUEL FILLER LID Volante	-	1	Enquire
5	6882381	Hinge	6882381 Hinge Coupe	-	1	Enquire
6	6882380	MOUNTING BRACKET - HINGE	6882380 MOUNTING BRACKET - HINGE Not Volante	-	1	Enquire
7	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
8	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	4	Enquire
9	697481	SCREW M5 x 20 HEX FLANGE P.C 8.8	697481 SCREW M5 x 20 HEX FLANGE P.C 8.8	-	2	Enquire
10	3782375	ACTUATOR-FUEL FILLER	3782375 ACTUATOR-FUEL FILLER	-	1	Enquire
11	6882377	ASSY ACTUATOR MTG BRACKET	6882377 ASSY ACTUATOR MTG BRACKET	-	1	Enquire
12	697482	SCREW M4 x 20 PAN HEAD THREAD FORM	697482 SCREW M4 x 20 PAN HEAD THREAD FORM	-	2	Enquire
13	6882378	SUPPORT PLATE	6882378 SUPPORT PLATE	-	1	Enquire
14	6882379	SEAL - SUPPORT PLATE	6882379 SEAL - SUPPORT PLATE	-	1	Enquire
15	6882383	MANUAL RELEASE- ACTUATOR	6882383 MANUAL RELEASE- ACTUATOR If fitted	-	1	Enquire
16	697478	CLIP	697478 CLIP	-	2	Enquire
17	68123374AA	WATER DEFLECTOR	68123374AA WATER DEFLECTOR	-	1	Enquire
17	6882382	GROMMET - BUMPSTOP - FUEL FILLER	6882382 GROMMET - BUMPSTOP - FUEL FILLER	-	2	Enquire
17	3485992	FILTER-DRAIN TUBE	3485992 FILTER-DRAIN TUBE	-	2	Enquire
