Coupe Upper Trim and Roof Lining of Aston Martin Aston Martin DB7 Vantage

View All

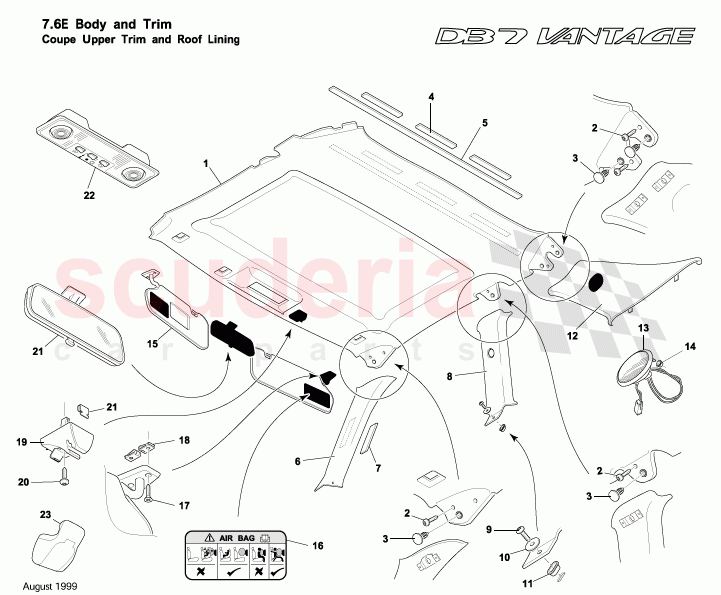

Aston Martin DB7 Vantage - Coupe Upper Trim and Roof Lining

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80125229AA	Headlining, federal	Enquire	To Order
	83124929AA	60 PSI ENERGY ABSORPTION PAD	Enquire	To Order
	83124927AA	130 PSI ENERGY ABSORPTION PAD	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697645	SCREW-SELF DRILLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697648	Fastener, Fir Tree	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83124912AAW	COMP ASSY FINISHER A POST COUPE RHS	Enquire	To Order
	83124913AAW	A POST COUPE LHS	Enquire	To Order
	83150180AAW	A post upper assy, complete, RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8382823	FINISHER ASSY B POST RH	Enquire	To Order
	8382824	FINISHER ASSY B POST LH	Enquire	To Order
	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83124916AAW	Finisher assy, B post - RH	Enquire	To Order
	83124917AAW	Finisher assy, B post - LH	Enquire	To Order
	83125214AAW	Finisher assy, B post - RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697570	SCREW No8 x 19 FLANGE HEAD BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697466	WASHER M5 PLAIN FM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697571	NUT LOKUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382828	ASSY COMP C PILLAR TRIMMED RH	Enquire	To Order
	8382829	ASSY COMP C PILLAR TRIMMED LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781231	LAMP - INTERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697290	PUSH ON FIXER-M3	Enquire	To Order
	92002	RHD DRIVERS SUNVISOR MAIN ASSY	Enquire	To Order
	92000	LHD DRIVERS SUNVISOR MAIN ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92001	RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	Enquire	To Order
	91999	LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9790425	AIRBAG WARNING LABEL	Enquire	To Order
	9790423	AIRBAG WARNING LABEL ENGLISH	Enquire	To Order
	9790434	AIRBAG WARNING LABEL FRENCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6280000806	SCREW No8 x 3/4 PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699230	SPRING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382812B	HOOK-SUNVISOR-BEIGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699138	SCREW-SELF TAPP ZINC CLEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8026337	ADHESIVE PADS	Enquire	To Order
	8082833	MIRROR ASSY RR VIEW INTERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697289	WASHER-QUICK RELEASE FASTENER	Enquire	To Order
	8381811B	STUD ASSY-BEIGE	Enquire	To Order
	8384159B	LIGHT-MAP/ROOF BEIGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697645	SCREW-SELF DRILLING	Enquire	To Order
	1R12834074AAW	COAT HOOK - TRIMMED	Enquire	To Order
	697682	Lokut Nut	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80125229AA	Headlining, federal	80125229AA Headlining, federal USA From (V) 303448	-	1	Enquire
1	83124929AA	60 PSI ENERGY ABSORPTION PAD	83124929AA 60 PSI ENERGY ABSORPTION PAD USA From (V) 303448	-	2	Enquire
1	83124927AA	130 PSI ENERGY ABSORPTION PAD	83124927AA 130 PSI ENERGY ABSORPTION PAD USA From (V) 303448	-	4	Enquire
1	83124152AAW	COMPLETE ASSY - ROOF PANEL TRIM	83124152AAW COMPLETE ASSY - ROOF PANEL TRIM Up to (V) 302252	-	1	Enquire
1	83124253AA	ROOF BASE PANEL	83124253AA ROOF BASE PANEL Up to (V) 302252	-	1	Enquire
1	83124152AAW	COMPLETE ASSY - ROOF PANEL TRIM	83124152AAW COMPLETE ASSY - ROOF PANEL TRIM From (V) 302253	-	1	Enquire
1	83124253AA	ROOF BASE PANEL	83124253AA ROOF BASE PANEL From (V) 302253	-	1	Enquire
2	697645	SCREW-SELF DRILLING	697645 SCREW-SELF DRILLING	-	10	Enquire
3	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree	-	8	Enquire
4	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	8383387 VELCRO DUAL-LOCK SJ3551 (100mm)	-	2	Enquire
5	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	8383387 VELCRO DUAL-LOCK SJ3551 (100mm)	-	1	Enquire
6	83124912AAW	COMP ASSY FINISHER A POST COUPE RHS	83124912AAW COMP ASSY FINISHER A POST COUPE RHS USA From (V) 303448	-	1	Enquire
6	83124913AAW	A POST COUPE LHS	83124913AAW A POST COUPE LHS USA From (V) 303448	-	1	Enquire
6	83150180AAW	A post upper assy, complete, RH	83150180AAW A post upper assy, complete, RH DBAR1	-	1	Enquire
6	83150181AAW	A post upper assy, complete, LH	83150181AAW A post upper assy, complete, LH DBAR1	-	1	Enquire
6	8382831	COMP ASSY FINISHER A POST RH	8382831 COMP ASSY FINISHER A POST RH ROW	-	1	Enquire
6	8382832	COMP ASSY FINISHER A POST LH	8382832 COMP ASSY FINISHER A POST LH ROW	-	1	Enquire
7	8382823	FINISHER ASSY B POST RH	8382823 FINISHER ASSY B POST RH Up to (V) 303447	-	1	Enquire
7	8382824	FINISHER ASSY B POST LH	8382824 FINISHER ASSY B POST LH Up to (V) 303447	-	1	Enquire
7	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	8383387 VELCRO DUAL-LOCK SJ3551 (100mm)	-	2	Enquire
8	83124916AAW	Finisher assy, B post - RH	83124916AAW Finisher assy, B post - RH USA From (V) 303448	-	1	Enquire
8	83124917AAW	Finisher assy, B post - LH	83124917AAW Finisher assy, B post - LH USA From (V) 303448	-	1	Enquire
8	83125214AAW	Finisher assy, B post - RH	83125214AAW Finisher assy, B post - RH From (V) 303448	-	1	Enquire
8	83125213AAW	Finisher assy, B post - LH	83125213AAW Finisher assy, B post - LH From (V) 303448	-	1	Enquire
9	697570	SCREW No8 x 19 FLANGE HEAD BLACK	697570 SCREW No8 x 19 FLANGE HEAD BLACK	-	2	Enquire
10	697466	WASHER M5 PLAIN FM A	697466 WASHER M5 PLAIN FM A	-	2	Enquire
11	697571	NUT LOKUT	697571 NUT LOKUT	-	2	Enquire
12	8382828	ASSY COMP C PILLAR TRIMMED RH	8382828 ASSY COMP C PILLAR TRIMMED RH	-	1	Enquire
12	8382829	ASSY COMP C PILLAR TRIMMED LH	8382829 ASSY COMP C PILLAR TRIMMED LH	-	1	Enquire
13	3781231	LAMP - INTERIOR	3781231 LAMP - INTERIOR	-	2	Enquire
14	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3 Interior lamp fixing	-	4	Enquire
14	92002	RHD DRIVERS SUNVISOR MAIN ASSY	92002 RHD DRIVERS SUNVISOR MAIN ASSY RHD	-	1	Enquire
14	92000	LHD DRIVERS SUNVISOR MAIN ASSY	92000 LHD DRIVERS SUNVISOR MAIN ASSY LHD	-	1	Enquire
15	92001	RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	92001 RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED) RHD	-	1	Enquire
15	91999	LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	91999 LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED) LHD	-	1	Enquire
16	9790425	AIRBAG WARNING LABEL	9790425 AIRBAG WARNING LABEL USA/CDN only	-	2	Enquire
16	9790423	AIRBAG WARNING LABEL ENGLISH	9790423 AIRBAG WARNING LABEL ENGLISH USA/CDN only	-	2	Enquire
16	9790434	AIRBAG WARNING LABEL FRENCH	9790434 AIRBAG WARNING LABEL FRENCH CDN only	-	2	Enquire
16	9790424	AIRBAG WARNING LABEL FRENCH	9790424 AIRBAG WARNING LABEL FRENCH CDN only	-	2	Enquire
17	6280000806	SCREW No8 x 3/4 PAN	6280000806 SCREW No8 x 3/4 PAN	-	4	Enquire
18	699230	SPRING CLIP	699230 SPRING CLIP	-	4	Enquire
19	8382812B	HOOK-SUNVISOR-BEIGE	8382812B HOOK-SUNVISOR-BEIGE	-	2	Enquire
20	699138	SCREW-SELF TAPP ZINC CLEAR	699138 SCREW-SELF TAPP ZINC CLEAR	-	4	Enquire
21	8026337	ADHESIVE PADS	8026337 ADHESIVE PADS Cut to shape	-	1	Enquire
21	8082833	MIRROR ASSY RR VIEW INTERIOR	8082833 MIRROR ASSY RR VIEW INTERIOR	-	1	Enquire
22	697289	WASHER-QUICK RELEASE FASTENER	697289 WASHER-QUICK RELEASE FASTENER Coupe	-	1	Enquire
22	8381811B	STUD ASSY-BEIGE	8381811B STUD ASSY-BEIGE Coupe	-	1	Enquire
22	8384159B	LIGHT-MAP/ROOF BEIGE	8384159B LIGHT-MAP/ROOF BEIGE	-	1	Enquire
23	697645	SCREW-SELF DRILLING	697645 SCREW-SELF DRILLING From (V) 303448	-	1	Enquire
23	1R12834074AAW	COAT HOOK - TRIMMED	1R12834074AAW COAT HOOK - TRIMMED From (V) 303448	-	2	Enquire
23	697682	Lokut Nut	697682 Lokut Nut From (V) 303448	-	2	Enquire
23	83150048AA	Header rail assy, complete	83150048AA Header rail assy, complete DBAR1	-	1	Enquire
23	83125592AAW	Finisher assy, lower A post, RH	83125592AAW Finisher assy, lower A post, RH GT	-	1	Enquire
23	83125593AAW	Finisher assy, lower A post, LH	83125593AAW Finisher assy, lower A post, LH GT	-	1	Enquire
23	83125590AAW	Lower B post assy, RH	83125590AAW Lower B post assy, RH GT	-	1	Enquire
23	83125591AAW	Lower B post assy, LH	83125591AAW Lower B post assy, LH GT	-	1	Enquire
