Volante Roof and Upper Trim of Aston Martin Aston Martin DB7 Vantage

View All

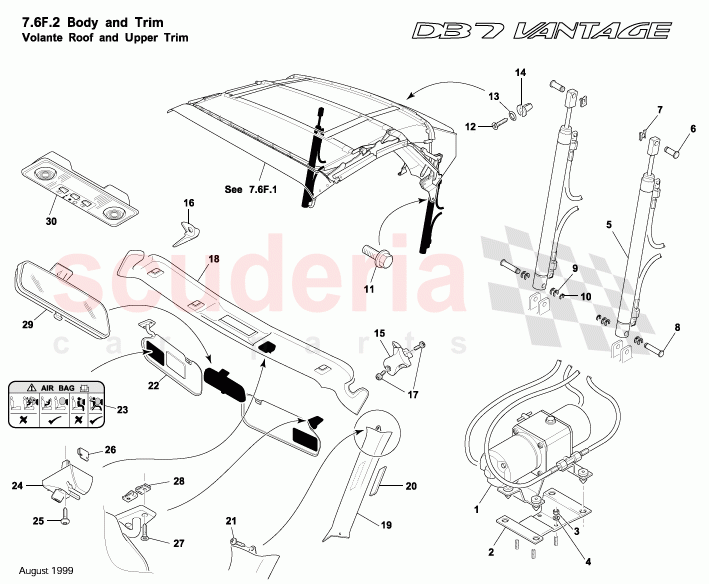

Aston Martin DB7 Vantage - Volante Roof and Upper Trim

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9384381	HOOD LIFT PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33121998AA	MOUTING BRACKET HYDRAULIC PUMP	Enquire	To Order
	9384387	HOOD PUMP FILLER PLUG	Enquire	To Order
	9384388	HOOD PUMP RESERVOIR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697335	NUT M6 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9384383	HOSE-2200mm TO UPPER RH CYLINDER PORT	Enquire	To Order
	9384384	HOSE-2200mm TO LOWER RH CYLINDER PORT	Enquire	To Order
	9384385	HOSE-3000mm TO UPPER LH CYLINDER PORT	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9384382	HOOD LIFT CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389511	PIN CLEVIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389510	CLIP PUSH ON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9383985	PIN - HOOD CYLINDER FIX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9383984	LOCK WASHER HOOD CYLINDER FIX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9383983	CLIP - HOOD CYLINDER FIX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703200	SCREW M10x25 HEX FLG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699121	SCREW-SELF TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699122	CUP WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697487	NUT INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389652	LATCH ROOF LCKNG RH	Enquire	To Order
	9389653	LATCH ROOF LCKNG LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123810BA	CUP-HOOD LOCATING PIN RH	Enquire	To Order
	83123811BA	CUP-HOOD LOCATING PIN LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389601	SCREW TORX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383754	ASSY COMPLETE HEADER TRIMMED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83124914BAW	Finisher assy, 'A' post complete RH	Enquire	To Order
	83124915BAW	Finisher assy, 'A' post complete LH	Enquire	To Order
	83140120AAW	'A' post upper assy, complete RH	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697551	SCREW S.F.	Enquire	To Order
	92002	RHD DRIVERS SUNVISOR MAIN ASSY	Enquire	To Order
	92000	LHD DRIVERS SUNVISOR MAIN ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92001	RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	Enquire	To Order
	91999	LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9790425	AIRBAG WARNING LABEL	Enquire	To Order
	9790423	AIRBAG WARNING LABEL ENGLISH	Enquire	To Order
	9790434	AIRBAG WARNING LABEL FRENCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8382812B	HOOK-SUNVISOR-BEIGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699138	SCREW-SELF TAPP ZINC CLEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6280000806	SCREW No8 x 3/4 PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697532	Nut Spring U Type 8x(2.0-2.8)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8026337	ADHESIVE PADS	Enquire	To Order

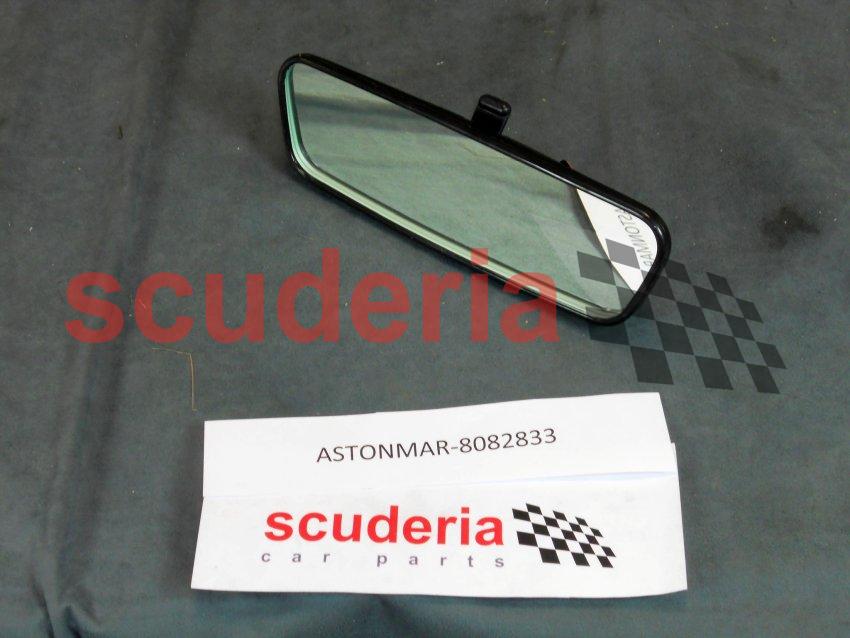

	8082833	MIRROR ASSY RR VIEW INTERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8384823	SNAPSAC	Enquire	To Order
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order
	697495	SCREW No8 x 13 FLANGED AB S.T	Enquire	To Order

...and 6 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9384381	HOOD LIFT PUMP	9384381 HOOD LIFT PUMP	-	1	Enquire
2	33121998AA	MOUTING BRACKET HYDRAULIC PUMP	33121998AA MOUTING BRACKET HYDRAULIC PUMP	-	1	Enquire
2	9384387	HOOD PUMP FILLER PLUG	9384387 HOOD PUMP FILLER PLUG	-	1	Enquire
2	9384388	HOOD PUMP RESERVOIR KIT	9384388 HOOD PUMP RESERVOIR KIT	-	1	Enquire
3	697335	NUT M6 HEX	697335 NUT M6 HEX	-	2	Enquire
4	9384383	HOSE-2200mm TO UPPER RH CYLINDER PORT	9384383 HOSE-2200mm TO UPPER RH CYLINDER PORT To upper RH cylinder port	-	1	Enquire
4	9384384	HOSE-2200mm TO LOWER RH CYLINDER PORT	9384384 HOSE-2200mm TO LOWER RH CYLINDER PORT To lower RH cylinder port	-	1	Enquire
4	9384385	HOSE-3000mm TO UPPER LH CYLINDER PORT	9384385 HOSE-3000mm TO UPPER LH CYLINDER PORT To upper LH cylinder port	-	1	Enquire
4	9384386	HOSE-3000mm TO LOWER LH CYLINDER PORT	9384386 HOSE-3000mm TO LOWER LH CYLINDER PORT To lower LH cylinder port	-	1	Enquire
4	703128	WASHER LOCK M6	703128 WASHER LOCK M6	-	2	Enquire
4	9362417	Mounting spacer	9362417 Mounting spacer	-	4	Enquire
4	9362418	Mounting foot	9362418 Mounting foot	-	4	Enquire
5	9384382	HOOD LIFT CYLINDER	9384382 HOOD LIFT CYLINDER	-	2	Enquire
6	9389511	PIN CLEVIS	9389511 PIN CLEVIS Lift cyl top fixing	-	2	Enquire
7	9389510	CLIP PUSH ON	9389510 CLIP PUSH ON Lift cyl top fixing	-	2	Enquire
8	9383985	PIN - HOOD CYLINDER FIX	9383985 PIN - HOOD CYLINDER FIX Lift cyl lower fixing	-	2	Enquire
9	9383984	LOCK WASHER HOOD CYLINDER FIX	9383984 LOCK WASHER HOOD CYLINDER FIX Lift cyl lower fixing	-	2	Enquire
10	9383983	CLIP - HOOD CYLINDER FIX	9383983 CLIP - HOOD CYLINDER FIX Lift cyl lower fixing	-	4	Enquire
11	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE Main roof fixing	-	6	Enquire
12	699121	SCREW-SELF TAPPING	699121 SCREW-SELF TAPPING	-	8	Enquire
13	699122	CUP WASHER	699122 CUP WASHER	-	8	Enquire
14	697487	NUT INSERT	697487 NUT INSERT	-	8	Enquire
15	9389652	LATCH ROOF LCKNG RH	9389652 LATCH ROOF LCKNG RH	-	1	Enquire
15	9389653	LATCH ROOF LCKNG LH	9389653 LATCH ROOF LCKNG LH	-	1	Enquire
16	83123810BA	CUP-HOOD LOCATING PIN RH	83123810BA CUP-HOOD LOCATING PIN RH	-	1	Enquire
16	83123811BA	CUP-HOOD LOCATING PIN LH	83123811BA CUP-HOOD LOCATING PIN LH	-	1	Enquire
17	9389601	SCREW TORX DRIVE	9389601 SCREW TORX DRIVE Fixing lower latch	-	4	Enquire
18	8383754	ASSY COMPLETE HEADER TRIMMED	8383754 ASSY COMPLETE HEADER TRIMMED	-	1	Enquire
19	83124914BAW	Finisher assy, 'A' post complete RH	83124914BAW Finisher assy, 'A' post complete RH USA From (V) 303448	-	1	Enquire
19	83124915BAW	Finisher assy, 'A' post complete LH	83124915BAW Finisher assy, 'A' post complete LH USA From (V) 303448	-	1	Enquire
19	83140120AAW	'A' post upper assy, complete RH	83140120AAW 'A' post upper assy, complete RH Zagato	-	1	Enquire
19	83140121AAW	'A' post upper assy, complete LH	83140121AAW 'A' post upper assy, complete LH Zagato	-	1	Enquire
19	83140126AAW	Trim panel, 'A' post upper, RH	83140126AAW Trim panel, 'A' post upper, RH Zagato	-	1	Enquire
19	83140127AAW	Trim panel, 'A' post upper, LH	83140127AAW Trim panel, 'A' post upper, LH Zagato	-	1	Enquire
19	8383752	COMP ASSY FINISHER `A POST RH	8383752 COMP ASSY FINISHER `A POST RH ROW	-	1	Enquire
19	8383753	COMP ASSY FINISHER `A POST LH	8383753 COMP ASSY FINISHER `A POST LH ROW	-	1	Enquire
20	8383387	VELCRO DUAL-LOCK SJ3551 (100mm)	8383387 VELCRO DUAL-LOCK SJ3551 (100mm)	-	2	Enquire
21	697551	SCREW S.F.	697551 SCREW S.F. Header finisher to body	-	2	Enquire
21	92002	RHD DRIVERS SUNVISOR MAIN ASSY	92002 RHD DRIVERS SUNVISOR MAIN ASSY RHD	-	1	Enquire
21	92000	LHD DRIVERS SUNVISOR MAIN ASSY	92000 LHD DRIVERS SUNVISOR MAIN ASSY LHD	-	1	Enquire
22	92001	RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	92001 RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED) RHD	-	1	Enquire
22	91999	LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)	91999 LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED) LHD	-	1	Enquire
23	9790425	AIRBAG WARNING LABEL	9790425 AIRBAG WARNING LABEL USA/CDN only	-	2	Enquire
23	9790423	AIRBAG WARNING LABEL ENGLISH	9790423 AIRBAG WARNING LABEL ENGLISH USA/CDN only	-	2	Enquire
23	9790434	AIRBAG WARNING LABEL FRENCH	9790434 AIRBAG WARNING LABEL FRENCH CDN only	-	2	Enquire
23	9790424	AIRBAG WARNING LABEL FRENCH	9790424 AIRBAG WARNING LABEL FRENCH CDN only	-	2	Enquire
24	8382812B	HOOK-SUNVISOR-BEIGE	8382812B HOOK-SUNVISOR-BEIGE	-	2	Enquire
25	699138	SCREW-SELF TAPP ZINC CLEAR	699138 SCREW-SELF TAPP ZINC CLEAR	-	4	Enquire
26	6280000806	SCREW No8 x 3/4 PAN	6280000806 SCREW No8 x 3/4 PAN	-	4	Enquire
27	697532	Nut Spring U Type 8x(2.0-2.8)	697532 Nut Spring U Type 8x(2.0-2.8)	-	4	Enquire
28	8026337	ADHESIVE PADS	8026337 ADHESIVE PADS Cut to shape	-	1	Enquire
28	8082833	MIRROR ASSY RR VIEW INTERIOR	8082833 MIRROR ASSY RR VIEW INTERIOR	-	1	Enquire
29	8384823	SNAPSAC	8384823 SNAPSAC Zagato	-	13	Enquire
29	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Zagato	-	2	Enquire
29	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T Zagato	-	2	Enquire
29	697645	SCREW-SELF DRILLING	697645 SCREW-SELF DRILLING Zagato	-	4	Enquire
29	697468	SCREW/WASHER No8 x19 PAN HD AB	697468 SCREW/WASHER No8 x19 PAN HD AB Zagato	-	5	Enquire

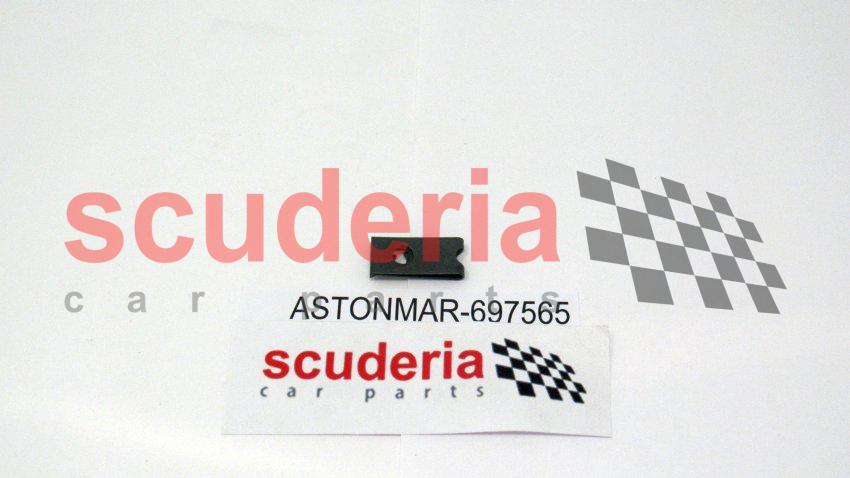

29	697565	Spire Nut	697565 Spire Nut Zagato	-	5	Enquire
29	93100442	ASSY STOWAGE BAG HOOD ENVELOPE - BLK	93100442 ASSY STOWAGE BAG HOOD ENVELOPE - BLK	-	1	Enquire
29	8384159B	LIGHT-MAP/ROOF BEIGE	8384159B LIGHT-MAP/ROOF BEIGE	-	1	Enquire
29	9384583	HOOD STOWAGE ENVELOPE VARIOUS COLOUR/MAT.	9384583 HOOD STOWAGE ENVELOPE VARIOUS COLOUR/MAT.	-	1	Enquire
