Doors

Find Your Part

Aston Martin DB7 Vantage - Doors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6580770 Plate, drop glass - lower Enquire To Order
Photo Part No Description Price (each) Stock
6580771 PANEL-LATCH REINF DOOR RH $71.23 To Order
6580772 PANEL-LATCH REINF DOOR LH $25.98 To Order
Photo Part No Description Price (each) Stock
6580773 BRKT-GLASS CHANNEL FRONT RH $15.17 To Order
6580774 BRKT-GLASS CHANNEL FRONT LH $15.17 To Order
Photo Part No Description Price (each) Stock
6580775 BRKT-GLASS CHANNEL REAR RH $6.86 To Order
6580776 BRKT-GLASS CHANNEL REAR LH $6.86 To Order
Photo Part No Description Price (each) Stock
65121956AA Panel, door inner - RH Enquire To Order
65121957AA Panel, door inner - LH Enquire To Order
Photo Part No Description Price (each) Stock
6580779 BRACKET-DOOR TRIM SUPPORT $6.19 To Order
Photo Part No Description Price (each) Stock
6580780 ASSY-BRACKET SUPPORT BIN DOOR TRIM $6.13 To Order
Photo Part No Description Price (each) Stock
6580781 BRKT-SUPPORT INTERIOR LOCK $15.67 To Order
Photo Part No Description Price (each) Stock
6580782 PANEL SUPPORT-SIDE INTRUSION BEAM RH $9.77 To Order
6580783 PANEL SUPPORT-SIDE INTRUSION BEAM LH $9.77 To Order
Photo Part No Description Price (each) Stock
6580784 PANEL-DOOR HINGE REINF RH $55.32 To Order
6580785 PANEL-DOOR HINGE REINF LH $52.11 To Order
Photo Part No Description Price (each) Stock
6580786 Spacer, lower door hinge Enquire To Order
Photo Part No Description Price (each) Stock
6580787 Spacer, upper door hinge - RH Enquire To Order
6580788 Spacer, upper door hinge - LH Enquire To Order
Photo Part No Description Price (each) Stock
6580789 STUD ASSY-CLOSURE SIDE INTRUSION BEAM RH $149.67 To Order
6580790 STUD ASSY-CLOSURE SIDE INTRUSION BEAM LH $149.67 To Order
Photo Part No Description Price (each) Stock
6580791 BRKT-REGULATOR MTG $6.35 To Order
Photo Part No Description Price (each) Stock
6580792 ASSY-BRACKET DOOR INTERIOR LOCK $8.18 To Order
Photo Part No Description Price (each) Stock
6580793 PANEL-DOOR BEAM INNER RH $124.55 To Order
6580794 PANEL-DOOR BEAM INNER LH $395.91 To Order
Photo Part No Description Price (each) Stock
6580801 REINF PLTE SIDE INTRUSION BEAM $18.38 To Order
Photo Part No Description Price (each) Stock
6582786 WASHER PLATE HINGE DOOR LOWER $18.88 To Order
Photo Part No Description Price (each) Stock
6582787 WASHER PLATE DOOR HINGE UPPER $7.99 To Order
Photo Part No Description Price (each) Stock
65124499AA Shim, upper hinge Enquire To Order
65124500AA Shim, lower hinge Enquire To Order
Photo Part No Description Price (each) Stock
65140078AA PANEL DOOR OUTER RH $5,013.55 To Order
65140079AA PANEL DOOR OUTER LH $5,013.55 To Order
65121898AA ASSY DOOR OUTER RH DB7 VANTAGE $342.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
699222 HINGE PIN LOWER $20.63 To Order
Photo Part No Description Price (each) Stock
699223 HINGE PIN UPPER $15.07 To Order
6584355 DOOR HINGE CIRCLIP $1.32 To Order
65124871AA Bush, door hinge Enquire To Order
View All

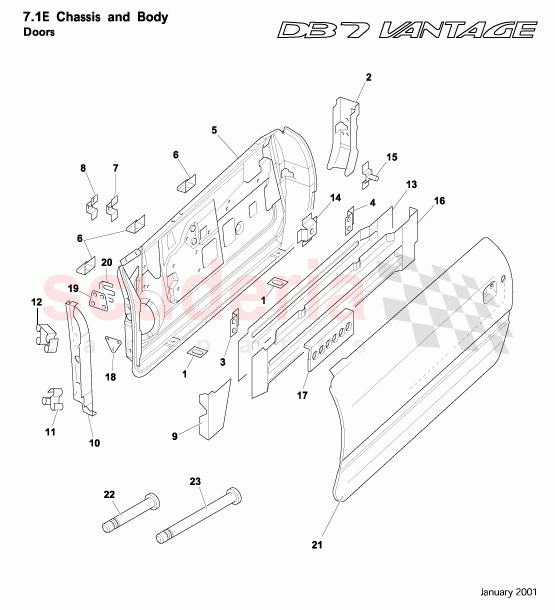

Doors of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 65140074AA
ASSEMBLY DOOR SHELL RH
Zagato/DBAR1 		$9,850.25 1
- 65140075AA
ASSEMBLY DOOR SHELL LH
Zagato/DBAR1 		$9,850.25 1
- 65125118AA
Door shell assy - RH (spares)
Alternative 		- 1 Enquire
- 65125119AA
Door shell assy - LH (spares)
Alternative 		- 1 Enquire
- 65121892AA
ASSEMBLY DOOR SHELL RH 		$3,622.49 1
- 65121893AA
ASSY DOOR COMP LH 		$3,622.49 1
1 6580770
Plate, drop glass - lower 		- 2 Enquire
2 6580771
PANEL-LATCH REINF DOOR RH 		$71.23 1
2 6580772
PANEL-LATCH REINF DOOR LH 		$25.98 1
3 6580773
BRKT-GLASS CHANNEL FRONT RH 		$15.17 1
3 6580774
BRKT-GLASS CHANNEL FRONT LH 		$15.17 1
4 6580775
BRKT-GLASS CHANNEL REAR RH 		$6.86 1
4 6580776
BRKT-GLASS CHANNEL REAR LH 		$6.86 1
5 65121956AA
Panel, door inner - RH 		- 1 Enquire
5 65121957AA
Panel, door inner - LH 		- 1 Enquire
6 6580779
BRACKET-DOOR TRIM SUPPORT 		$6.19 3
7 6580780
ASSY-BRACKET SUPPORT BIN DOOR TRIM 		$6.13 1
8 6580781
BRKT-SUPPORT INTERIOR LOCK 		$15.67 1
9 6580782
PANEL SUPPORT-SIDE INTRUSION BEAM RH 		$9.77 1
9 6580783
PANEL SUPPORT-SIDE INTRUSION BEAM LH 		$9.77 1
10 6580784
PANEL-DOOR HINGE REINF RH 		$55.32 1
10 6580785
PANEL-DOOR HINGE REINF LH 		$52.11 1
11 6580786
Spacer, lower door hinge 		- 1 Enquire
12 6580787
Spacer, upper door hinge - RH 		- 1 Enquire
12 6580788
Spacer, upper door hinge - LH 		- 1 Enquire
13 6580789
STUD ASSY-CLOSURE SIDE INTRUSION BEAM RH 		$149.67 1
13 6580790
STUD ASSY-CLOSURE SIDE INTRUSION BEAM LH 		$149.67 1
14 6580791
BRKT-REGULATOR MTG 		$6.35 1
15 6580792
ASSY-BRACKET DOOR INTERIOR LOCK 		$8.18 1
16 6580793
PANEL-DOOR BEAM INNER RH 		$124.55 1
16 6580794
PANEL-DOOR BEAM INNER LH 		$395.91 1
17 6580801
REINF PLTE SIDE INTRUSION BEAM 		$18.38 2
18 6582786
WASHER PLATE HINGE DOOR LOWER 		$18.88 2
19 6582787
WASHER PLATE DOOR HINGE UPPER 		$7.99 2
20 65124499AA
Shim, upper hinge 		- 2 Enquire
20 65124500AA
Shim, lower hinge 		- 2 Enquire
21 65140078AA
PANEL DOOR OUTER RH
Zagato/DBAR1 		$5,013.55 1
21 65140079AA
PANEL DOOR OUTER LH
Zagato/DBAR1 		$5,013.55 1
21 65121898AA
ASSY DOOR OUTER RH DB7 VANTAGE 		$342.64 1
21 65121899AA
ASSY DOOR OUTER LH DB7 VANTAGE 		$693.76 1
22 699222
HINGE PIN LOWER 		$20.63 2
23 699223
HINGE PIN UPPER 		$15.07 2
23 6584355
DOOR HINGE CIRCLIP 		$1.32 4
23 65124871AA
Bush, door hinge 		- 8 Enquire
