Find Your Part

Glass of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Glass

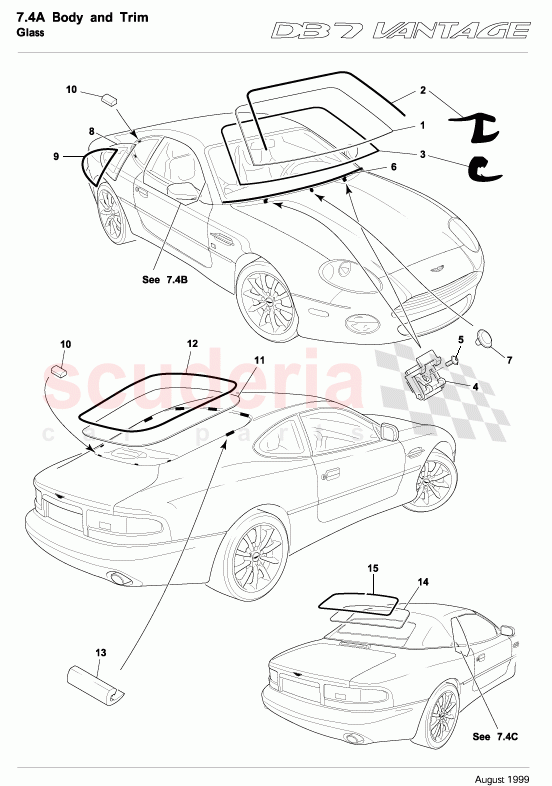

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7681323	WINDSCREEN-TINTED HEATED	Enquire	To Order
	76124526AA	HEATED GLASS WINDSCR EEN 1430X880X5MM	Enquire	To Order
	7690348	WINDSCREEN - NON HEATED 1470x740x3mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	77140660AA	Finisher, windscreen glass	Enquire	To Order
	7882628	FINISHER-WINDSCREEN GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782629	DAM RETENTION MASTIC W/S 2255 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882630	CLIP-WINDSCREEN SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697618	SCREW No8 x 3/8 PAN HEAD AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983367	FOAM STRIP-1445 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7682639	SPACER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7681895	GLASS REAR QUARTER RH	Enquire	To Order
	7681896	GLASS REAR QUARTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7883213	FINISHER -GLASS REAR QTR	Enquire	To Order
	7883214	FINISHER -GLASS REAR QTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7785254	RETENTION DAM-45 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	76111706AA	GLASS BACKLIGHT - CHMSL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882631	FINISHER-BACKLIGHT GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389502	Backlight assembly - volante	Enquire	To Order
	7785254	RETENTION DAM-45 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389504	GLASS BACK-LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7690254	ASSY-COMP RR QTR GLASS RH	Enquire	To Order
	7690253	ASSY-COMP RR QTR GLASS LH	Enquire	To Order
	77140056AB	REAR WINDSCREEN SEAL	Enquire	To Order

...and 6 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7681323	WINDSCREEN-TINTED HEATED	7681323 WINDSCREEN-TINTED HEATED Up to (V) 302252	-	1	Enquire
1	76124526AA	HEATED GLASS WINDSCR EEN 1430X880X5MM	76124526AA HEATED GLASS WINDSCR EEN 1430X880X5MM From (V) 302253	-	1	Enquire
1	7690348	WINDSCREEN - NON HEATED 1470x740x3mm	7690348 WINDSCREEN - NON HEATED 1470x740x3mm	-	1	Enquire
2	77140660AA	Finisher, windscreen glass	77140660AA Finisher, windscreen glass Zagato/DBAR1	-	1	Enquire
2	7882628	FINISHER-WINDSCREEN GLASS	7882628 FINISHER-WINDSCREEN GLASS	-	1	Enquire
3	7782629	DAM RETENTION MASTIC W/S 2255 mm	7782629 DAM RETENTION MASTIC W/S 2255 mm	-	1	Enquire
4	7882630	CLIP-WINDSCREEN SUPPORT	7882630 CLIP-WINDSCREEN SUPPORT	-	2	Enquire
5	697618	SCREW No8 x 3/8 PAN HEAD AB S.T.	697618 SCREW No8 x 3/8 PAN HEAD AB S.T.	-	2	Enquire
6	6983367	FOAM STRIP-1445 mm	6983367 FOAM STRIP-1445 mm	-	1	Enquire
7	7682639	SPACER BUTTON	7682639 SPACER BUTTON	-	1	Enquire
8	7681895	GLASS REAR QUARTER RH	7681895 GLASS REAR QUARTER RH Coupe	-	1	Enquire
8	7681896	GLASS REAR QUARTER LH	7681896 GLASS REAR QUARTER LH Coupe	-	1	Enquire
9	7883213	FINISHER -GLASS REAR QTR	7883213 FINISHER -GLASS REAR QTR	-	1	Enquire
9	7883214	FINISHER -GLASS REAR QTR	7883214 FINISHER -GLASS REAR QTR	-	1	Enquire
10	7785254	RETENTION DAM-45 mm	7785254 RETENTION DAM-45 mm Coupe	-	6	Enquire
11	76111706AA	GLASS BACKLIGHT - CHMSL	76111706AA GLASS BACKLIGHT - CHMSL With CHMSL	-	1	Enquire
12	7882631	FINISHER-BACKLIGHT GLASS	7882631 FINISHER-BACKLIGHT GLASS	-	1	Enquire
13	9389502	Backlight assembly - volante	9389502 Backlight assembly - volante	-	1	Enquire
13	7785254	RETENTION DAM-45 mm	7785254 RETENTION DAM-45 mm	-	5	Enquire
14	9389504	GLASS BACK-LIGHT	9389504 GLASS BACK-LIGHT	-	1	Enquire
15	7690254	ASSY-COMP RR QTR GLASS RH	7690254 ASSY-COMP RR QTR GLASS RH Volante	-	1	Enquire
15	7690253	ASSY-COMP RR QTR GLASS LH	7690253 ASSY-COMP RR QTR GLASS LH Volante	-	1	Enquire
15	77140056AB	REAR WINDSCREEN SEAL	77140056AB REAR WINDSCREEN SEAL Zagato	-	1	Enquire
15	77140054AA	REAR QUARTER GLASS SEAL RH	77140054AA REAR QUARTER GLASS SEAL RH Zagato	-	1	Enquire
15	77140055AA	REAR QUARTER GLASS SEAL LH	77140055AA REAR QUARTER GLASS SEAL LH Zagato	-	1	Enquire
15	76140060AA	REAR QUARTER GLASS RH	76140060AA REAR QUARTER GLASS RH Zagato	-	1	Enquire
15	76140061AA	REAR QUARTER GLASS LH	76140061AA REAR QUARTER GLASS LH Zagato	-	1	Enquire
15	76140062AA	REAR WINDSCREEN	76140062AA REAR WINDSCREEN Zagato	-	1	Enquire
15	7761541	SEAL STRIP-RR SCREEN	7761541 SEAL STRIP-RR SCREEN	-	1	Enquire
