Door Latch Mechanism of Aston Martin Aston Martin DB7 Vantage

View All

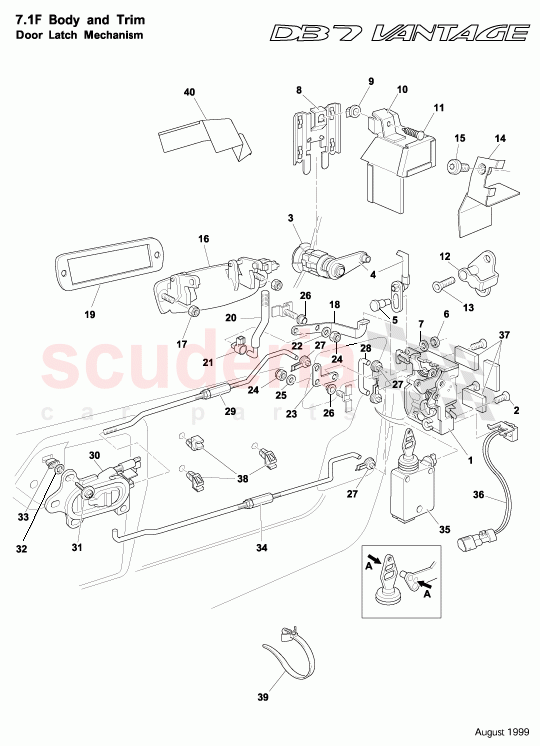

Aston Martin DB7 Vantage - Door Latch Mechanism

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6582263	LATCH ASSY DOOR RH	Enquire	To Order
	6582264	LATCH ASSY DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697471	SCREW M6 x 16 SKT HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582268	PAD DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582272N	LOCK ASSY-DOOR RH	Enquire	To Order
	6582273N	LOCK ASSY-DOOR LH	Enquire	To Order
	78124239AA	Door lock assy, complete - RH	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6582283	PIVOT LOCK LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697290	PUSH ON FIXER-M3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692054	WASHER M4 PLAIN MED MILD STEEL ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582288	CLIP DOOR LOCK RETENTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582291	NUT EXPANDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3381094	Strip, Edge Protection, 65mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697582	SCREW No10 PAN HD AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37122621AB	LOCK SET	Enquire	To Order
	4R12656217AAN	KEY ASSY-TO NUMBER	Enquire	To Order
	4R12656217AAB	KEY ASSY-BLANK	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	698692	M8 X 23 CSK TORX SCREW 10.9 UTS ZINC & YELLOW COATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6584399	SHIELD-LOCK LINKAGE RH	Enquire	To Order
	6584400	SHIELD-LOCK LINKAGE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699236	PAN HEAD SCREW TORX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582269	Door Handle Outer RH	Enquire	To Order
	6582270	Door Handle Outer LH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	699127	NUT M6 NYLOC THIN -T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65123360AC	BELLCRANK RH	Enquire	To Order
	65123361AC	BELLCRANK LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582271	GASKET-HANDLE OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	To Order
	6582267	LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582287	CLIP-LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697466	WASHER M5 PLAIN FM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582277	BELLCRANK I/S HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697470	NUT M5 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697466	WASHER M5 PLAIN FM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582284	BUSH PIVOT BELLCRANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697469	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582285	LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582278	LINK ASSY RH	Enquire	To Order
	6582279	LINK ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582274	HANDLE ASSY INNER RH	Enquire	To Order
	6582275	HANDLE ASSY INNER LH	Enquire	To Order
	65124174AB	INTERIOR DOOR HANDLE RHS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	Enquire	To Order
	697468	SCREW/WASHER No8 x19 PAN HD AB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882424	WASHER SPACING 2 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697571	NUT LOKUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582280	LINK ASSY RH	Enquire	To Order
	6582281	LINK ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782282	ACTUATOR-DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7783351	SEAL-EDGE CHANNEL 35mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6582286	CLIP - LINKAGE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697398	TIESTRAP-RELEASEABLE 4.6 x 165	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	78140424AA	Door lock linkage assy, RHD	Enquire	To Order
	78140425AA	Door lock linkage assy, LHD	Enquire	To Order
	78140421AA	Drop link, door handle, RH	Enquire	To Order

...and 9 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6582263	LATCH ASSY DOOR RH	6582263 LATCH ASSY DOOR RH	-	1	Enquire
1	6582264	LATCH ASSY DOOR LH	6582264 LATCH ASSY DOOR LH	-	1	Enquire
2	697471	SCREW M6 x 16 SKT HD	697471 SCREW M6 x 16 SKT HD	-	6	Enquire
3	6582268	PAD DOOR LOCK	6582268 PAD DOOR LOCK	-	2	Enquire
4	6582272N	LOCK ASSY-DOOR RH	6582272N LOCK ASSY-DOOR RH Up to (V) 302252	-	1	Enquire
4	6582273N	LOCK ASSY-DOOR LH	6582273N LOCK ASSY-DOOR LH Up to (V) 302252	-	1	Enquire
4	78124239AA	Door lock assy, complete - RH	78124239AA Door lock assy, complete - RH From (V) 302253	-	1	Enquire
4	78124240AA	Door lock assy, complete - LH	78124240AA Door lock assy, complete - LH From (V) 302253	-	1	Enquire
4	1R12655388AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED	1R12655388AAW HANDLE DOOR EXTERIOR CHROME FLAP RH RHD - PAINTED Zagato/DBAR1	-	1	Enquire
4	1R12655389AAW	HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED	1R12655389AAW HANDLE DOOR EXTERIOR CHROME FLAP LH RHD - PAINTED Zagato/DBAR1	-	1	Enquire
4	1R12655386AAW	HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED	1R12655386AAW HANDLE DOOR EXTERIOR CHROME FLAP RH LHD - PAINTED Zagato/DBAR1	-	1	Enquire
4	1R12655387AAW	Handle, door exterior, chrome flap, painted LH LHD	1R12655387AAW Handle, door exterior, chrome flap, painted LH LHD Zagato/DBAR1	-	1	Enquire
4	1R12652124AAW	Handle, door exterior, RH painted RHD	1R12652124AAW Handle, door exterior, RH painted RHD Zagato/DBAR1	-	1	Enquire
4	1R12652125AAW	Handle, door exterior, LH painted RHD	1R12652125AAW Handle, door exterior, LH painted RHD Zagato/DBAR1	-	1	Enquire
4	1R12652122AAW	Handle, door exterior, RH painted LHD	1R12652122AAW Handle, door exterior, RH painted LHD Zagato/DBAR1	-	1	Enquire
4	1R12652123AAW	Handle, door exterior, LH painted LHD	1R12652123AAW Handle, door exterior, LH painted LHD Zagato/DBAR1	-	1	Enquire
4	1R12652124AA	HANDLE DOOR EXTERIOR RH RHD	1R12652124AA HANDLE DOOR EXTERIOR RH RHD Zagato/DBAR1	-	1	Enquire
4	1R12652125AA	HANDLE DOOR EXTERIOR LH RHD	1R12652125AA HANDLE DOOR EXTERIOR LH RHD Zagato/DBAR1	-	1	Enquire
4	1R12652122AA	HANDLE DOOR EXTERIOR RH LHD	1R12652122AA HANDLE DOOR EXTERIOR RH LHD Zagato/DBAR1	-	1	Enquire
4	1R12652123AA	HANDLE DOOR EXTERIOR LH LHD	1R12652123AA HANDLE DOOR EXTERIOR LH LHD Zagato/DBAR1	-	1	Enquire
5	6582283	PIVOT LOCK LINK	6582283 PIVOT LOCK LINK	-	2	Enquire
6	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3	-	2	Enquire
7	692054	WASHER M4 PLAIN MED MILD STEEL ZINC PLT	692054 WASHER M4 PLAIN MED MILD STEEL ZINC PLT	-	2	Enquire
8	6582288	CLIP DOOR LOCK RETENTION	6582288 CLIP DOOR LOCK RETENTION	-	2	Enquire
9	6582291	NUT EXPANDING	6582291 NUT EXPANDING	-	2	Enquire
10	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm	-	1	Enquire
11	697582	SCREW No10 PAN HD AB S.T.	697582 SCREW No10 PAN HD AB S.T.	-	2	Enquire
12	37122621AB	LOCK SET	37122621AB LOCK SET Up to (V) 302252	-	1	Enquire
12	4R12656217AAN	KEY ASSY-TO NUMBER	4R12656217AAN KEY ASSY-TO NUMBER Up to (V) 302252	-	2	Enquire
12	4R12656217AAB	KEY ASSY-BLANK	4R12656217AAB KEY ASSY-BLANK Up to (V) 302252	-	2	Enquire
12	78124171AA	LOCK SET	78124171AA LOCK SET From (V) 302253	-	1	Enquire
12	4R12656217AAN	KEY ASSY-TO NUMBER	4R12656217AAN KEY ASSY-TO NUMBER From (V) 302253	-	2	Enquire
12	78124243AA	CHROME KEY LOCK SURROUND	78124243AA CHROME KEY LOCK SURROUND From (V) 302253	-	2	Enquire
12	80123156AAN	LOCK-TRUNK LID S/ORD	80123156AAN LOCK-TRUNK LID S/ORD	-	1	Enquire
12	2582297	BARREL LOCK IGNITION	2582297 BARREL LOCK IGNITION	-	1	Enquire
12	6982296	LOCK ASSY GLOVEBOX	6982296 LOCK ASSY GLOVEBOX	-	1	Enquire
12	65111702AA	STRIKER ASSY DOOR LOCK	65111702AA STRIKER ASSY DOOR LOCK	-	2	Enquire
13	698692	M8 X 23 CSK TORX SCREW 10.9 UTS ZINC & YELLOW COATED	698692 M8 X 23 CSK TORX SCREW 10.9 UTS ZINC & YELLOW COATED	-	4	Enquire
14	6584399	SHIELD-LOCK LINKAGE RH	6584399 SHIELD-LOCK LINKAGE RH	-	2	Enquire
14	6584400	SHIELD-LOCK LINKAGE LH	6584400 SHIELD-LOCK LINKAGE LH	-	2	Enquire
15	699236	PAN HEAD SCREW TORX DRIVE	699236 PAN HEAD SCREW TORX DRIVE	-	2	Enquire
16	6582269	Door Handle Outer RH	6582269 Door Handle Outer RH	-	1	Enquire
16	6582270	Door Handle Outer LH ARRIVING SOON	6582270 Door Handle Outer LH ARRIVING SOON	-	1	Enquire
17	699127	NUT M6 NYLOC THIN -T	699127 NUT M6 NYLOC THIN -T	-	4	Enquire
18	65123360AC	BELLCRANK RH	65123360AC BELLCRANK RH	-	1	Enquire
18	65123361AC	BELLCRANK LH	65123361AC BELLCRANK LH	-	1	Enquire
19	6582271	GASKET-HANDLE OUTER	6582271 GASKET-HANDLE OUTER	-	2	Enquire
20	697286	Washer M6 Large OD	697286 Washer M6 Large OD Zagato	-	2	Enquire
20	6582267	LINK	6582267 LINK	-	2	Enquire
21	6582287	CLIP-LINKAGE	6582287 CLIP-LINKAGE	-	2	Enquire
22	697466	WASHER M5 PLAIN FM A	697466 WASHER M5 PLAIN FM A	-	4	Enquire
23	6582277	BELLCRANK I/S HANDLE	6582277 BELLCRANK I/S HANDLE	-	2	Enquire
24	697470	NUT M5 NYLOC	697470 NUT M5 NYLOC	-	4	Enquire
25	697466	WASHER M5 PLAIN FM A	697466 WASHER M5 PLAIN FM A	-	4	Enquire
26	6582284	BUSH PIVOT BELLCRANK	6582284 BUSH PIVOT BELLCRANK	-	4	Enquire
27	697469	CLIP	697469 CLIP	-	8	Enquire
28	6582285	LINK	6582285 LINK	-	2	Enquire
29	6582278	LINK ASSY RH	6582278 LINK ASSY RH	-	1	Enquire
29	6582279	LINK ASSY LH	6582279 LINK ASSY LH	-	1	Enquire
30	6582274	HANDLE ASSY INNER RH	6582274 HANDLE ASSY INNER RH Up to (V) 302252	-	1	Enquire
30	6582275	HANDLE ASSY INNER LH	6582275 HANDLE ASSY INNER LH Up to (V) 302252	-	1	Enquire
30	65124174AB	INTERIOR DOOR HANDLE RHS	65124174AB INTERIOR DOOR HANDLE RHS From (V) 302253	-	1	Enquire
30	65124173AB	INTERIOR DOOR HANDLE LHS	65124173AB INTERIOR DOOR HANDLE LHS From (V) 302253	-	1	Enquire
31	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE Zagato	-	6	Enquire
31	697468	SCREW/WASHER No8 x19 PAN HD AB	697468 SCREW/WASHER No8 x19 PAN HD AB	-	6	Enquire
32	7882424	WASHER SPACING 2 mm	7882424 WASHER SPACING 2 mm	-	12	Enquire
33	697571	NUT LOKUT	697571 NUT LOKUT	-	6	Enquire
34	6582280	LINK ASSY RH	6582280 LINK ASSY RH	-	1	Enquire
34	6582281	LINK ASSY LH	6582281 LINK ASSY LH	-	1	Enquire
35	3782282	ACTUATOR-DOOR LOCK	3782282 ACTUATOR-DOOR LOCK	-	2	Enquire
37	7783351	SEAL-EDGE CHANNEL 35mm	7783351 SEAL-EDGE CHANNEL 35mm Cut to length	-	6	Enquire
38	6582286	CLIP - LINKAGE GUIDE	6582286 CLIP - LINKAGE GUIDE	-	6	Enquire
39	697398	TIESTRAP-RELEASEABLE 4.6 x 165	697398 TIESTRAP-RELEASEABLE 4.6 x 165	-	-	Enquire
40	78140424AA	Door lock linkage assy, RHD	78140424AA Door lock linkage assy, RHD Zagato/DBAR1	-	1	Enquire
40	78140425AA	Door lock linkage assy, LHD	78140425AA Door lock linkage assy, LHD Zagato/DBAR1	-	1	Enquire
40	78140421AA	Drop link, door handle, RH	78140421AA Drop link, door handle, RH Zagato/DBAR1	-	1	Enquire
40	78140422AA	Drop link, door handle, LH	78140422AA Drop link, door handle, LH Zagato/DBAR1	-	1	Enquire
40	699641	CIRCLIP	699641 CIRCLIP Zagato/DBAR1	-	1	Enquire
40	4180153	BUFFER	4180153 BUFFER On B post	-	2	Enquire
40	78140406AA	Lock set, RHD	78140406AA Lock set, RHD Zagato	-	1	Enquire
40	78140407AA	Lock set, LHD	78140407AA Lock set, LHD Zagato	-	1	Enquire
40	78150082AA	LOCK SET RHD	78150082AA LOCK SET RHD DBAR1	-	1	Enquire
40	78150083AB	LOCK SET LHD	78150083AB LOCK SET LHD DBAR1	-	1	Enquire
40	6584397	SHIELD ASY-DOOR LOCK RH	6584397 SHIELD ASY-DOOR LOCK RH	-	1	Enquire
40	6584398	SHIELD ASY-DOOR LOCK LH	6584398 SHIELD ASY-DOOR LOCK LH	-	1	Enquire
