Front Bumper and Apron of Aston Martin Aston Martin DB7 Vantage

View All

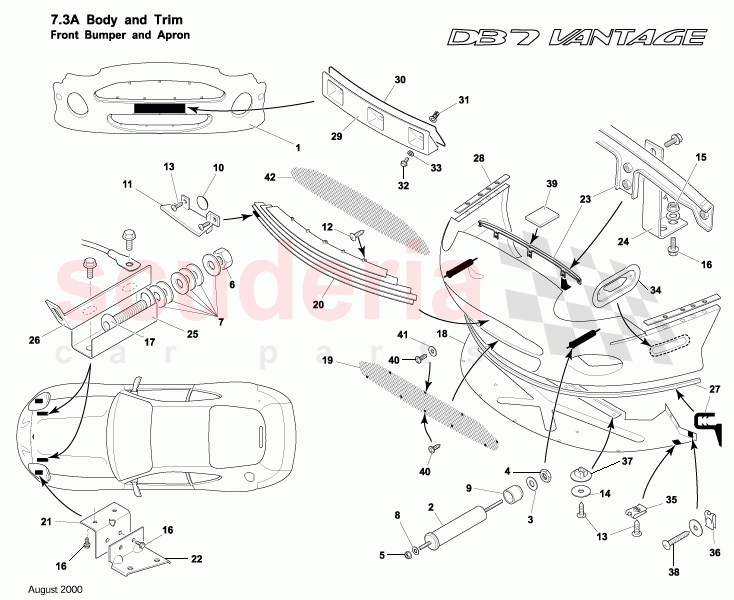

Aston Martin DB7 Vantage - Front Bumper and Apron

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	72140085AA	Skin, front bumper, Euro	Enquire	To Order
	72140083AA	Front bumper, Euro	Enquire	To Order
	72140084AA	Foam, front bumper	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	72122138AD	STRUT ASSY BUMPER FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40122434AA	WASHER - STRUT ASSY	Enquire	To Order
	72123369AA	SPACER 3mm	Enquire	To Order
	40122936AA	Washer, special, black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699001	NUT NYLOC M14 (THIN) x 2 PITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697696	NUT M12 HEX BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697322	NUT M10 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697258	WASHER M10 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7284772	WASHER PLAIN LRG M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7282566	BUSH-BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698706	FLEXI-CAP BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	71122278AA	FRONT GRILLE UPPER (REMOVABLE SECTION)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697498PK	SCREW-No6x13 FLG(10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697524PK	Screw No8 x 25 FLANGE PACK (20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697528PK	Washer-M5 Large OD Pack of 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697516PK	NUT-M6 HEX BLK (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order
	72123618AA	SPHERICAL SEATING WASHER - CONCAVE	Enquire	To Order
	72123619AA	SPHERICAL SEATING WASHER - CONVEX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697722	BOLT M10 x 35 BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	71140108AA	FRONT GRILLE SECTION - TOWING EYE	Enquire	To Order
	78140106AB	Panel, undertray front	Enquire	To Order
	71140107AA	FRONT GRILLE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	697495	SCREW No8 x 13 FLANGED AB S.T	Enquire	To Order
	697528PK	Washer-M5 Large OD Pack of 20	Enquire	To Order
	71121433AA	GRILLE RADIATOR - LOWER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	71121434AA	ASSY - FRONT GRILLE UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72122120AA	BRACKET SIDE LWR RH	Enquire	To Order
	72122122AA	BRACKET SIDE UPPER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72122121AA	BRACKET SIDE LWR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6182535	RAIL ASSY SUPPORT FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72122883AA	BRACKET RAIL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72123142AB	BUMPER SUPPORT BRKT RH	Enquire	To Order
	7284365	ASSY BRKT-BUMPER SUPPORT RR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72123143AB	BUMPER SUPPORT BRKT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782538	SEAL-APRON LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782542	FOAM STRIP FRONT APRON RH	Enquire	To Order
	7782543	FOAM STRIP FRONT APRON LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7882545	HOUSING NO. PLATE FRONT	Enquire	To Order
	72121789AA	HOUSING ASSY REG PLATE FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782546	SEAL-NUMBER PLATE HOUSING-790mm lg	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697530PK	INSERT-THREADED (5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697531	SCREW-M6x25 HEX (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786315	S/MARKR MLDG CARKT(4	Enquire	To Order
	697286	Washer M6 Large OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786315	S/MARKR MLDG CARKT(4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697532	Nut Spring U Type 8x(2.0-2.8)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697565	Spire Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697682	Lokut Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697497PK	Screw-No8x19 FLG(20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697478	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697591	SCREW No8 x 9.5 FLANGED AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697528PK	Washer-M5 Large OD Pack of 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	71124967AA	ASSY - FRONT GRILLE UPPER	Enquire	To Order
	72140086AA	BRACKET - FRONT BUMPER - SIDE LOWER RH	Enquire	To Order
	72140087AA	BRACKET - FRONT BUMPER - SIDE LOWER LH	Enquire	To Order

...and 26 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	72140085AA	Skin, front bumper, Euro	72140085AA Skin, front bumper, Euro Zagato/DBAR1	-	1	Enquire
1	72140083AA	Front bumper, Euro	72140083AA Front bumper, Euro Zagato/DBAR1	-	1	Enquire
1	72140084AA	Foam, front bumper	72140084AA Foam, front bumper Zagato/DBAR1	-	1	Enquire
1	72121396AC	PANEL FRONT APRON - FED	72121396AC PANEL FRONT APRON - FED Federal	-	1	Enquire
1	72150085AA	Skin, front bumper, Federal	72150085AA Skin, front bumper, Federal DBAR1	-	1	Enquire
1	72150084AA	Front bumper, Federal	72150084AA Front bumper, Federal DBAR1	-	1	Enquire
1	72121446AC	PANEL FRONT APRON - EURO	72121446AC PANEL FRONT APRON - EURO Euro	-	1	Enquire
1	72121808AC	ASSY - FOAM FRONT BUMPER	72121808AC ASSY - FOAM FRONT BUMPER	-	1	Enquire
2	72122138AD	STRUT ASSY BUMPER FRONT	72122138AD STRUT ASSY BUMPER FRONT	-	2	Enquire
3	40122434AA	WASHER - STRUT ASSY	40122434AA WASHER - STRUT ASSY	-	2	Enquire
3	72123369AA	SPACER 3mm	72123369AA SPACER 3mm	-	2	Enquire
3	40122936AA	Washer, special, black	40122936AA Washer, special, black	-	6	Enquire
4	699001	NUT NYLOC M14 (THIN) x 2 PITCH	699001 NUT NYLOC M14 (THIN) x 2 PITCH	-	2	Enquire
5	697696	NUT M12 HEX BLACK	697696 NUT M12 HEX BLACK	-	2	Enquire
6	697322	NUT M10 HEX	697322 NUT M10 HEX	-	2	Enquire
7	697258	WASHER M10 PLAIN FORM A	697258 WASHER M10 PLAIN FORM A	-	2	Enquire
8	7284772	WASHER PLAIN LRG M12	7284772 WASHER PLAIN LRG M12	-	2	Enquire
9	7282566	BUSH-BUMPER MOUNTING	7282566 BUSH-BUMPER MOUNTING	-	2	Enquire
10	698706	FLEXI-CAP BLACK	698706 FLEXI-CAP BLACK	-	2	Enquire
11	71122278AA	FRONT GRILLE UPPER (REMOVABLE SECTION)	71122278AA FRONT GRILLE UPPER (REMOVABLE SECTION)	-	1	Enquire
12	697498PK	SCREW-No6x13 FLG(10)	697498PK SCREW-No6x13 FLG(10)	-	7	Enquire
13	697524PK	Screw No8 x 25 FLANGE PACK (20)	697524PK Screw No8 x 25 FLANGE PACK (20)	-	15	Enquire
14	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20	-	2	Enquire
15	697516PK	NUT-M6 HEX BLK (10)	697516PK NUT-M6 HEX BLK (10)	-	6	Enquire
16	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	18	Enquire
16	72123618AA	SPHERICAL SEATING WASHER - CONCAVE	72123618AA SPHERICAL SEATING WASHER - CONCAVE	-	2	Enquire
16	72123619AA	SPHERICAL SEATING WASHER - CONVEX	72123619AA SPHERICAL SEATING WASHER - CONVEX	-	2	Enquire
16	697114	SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8	697114 SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8	-	2	Enquire
17	697722	BOLT M10 x 35 BUTTON HEAD	697722 BOLT M10 x 35 BUTTON HEAD	-	2	Enquire
18	71140108AA	FRONT GRILLE SECTION - TOWING EYE	71140108AA FRONT GRILLE SECTION - TOWING EYE Zagato/DBAR1	-	1	Enquire
18	78140106AB	Panel, undertray front	78140106AB Panel, undertray front Zagato/DBAR1	-	1	Enquire
18	71140107AA	FRONT GRILLE	71140107AA FRONT GRILLE Zagato/DBAR1	-	1	Enquire
18	72125046AA	UNDERTRAY - GT	72125046AA UNDERTRAY - GT GT	-	1	Enquire
18	72121465AC	PANEL UNDERTRAY FRONT	72121465AC PANEL UNDERTRAY FRONT	-	1	Enquire
19	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T For use with stainless lower grille	-	9	Enquire
19	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20 For use with stainless lower grille	-	9	Enquire
19	71121433AA	GRILLE RADIATOR - LOWER	71121433AA GRILLE RADIATOR - LOWER Up to (V) 400779	-	1	Enquire
19	71121433AA	GRILLE RADIATOR - LOWER	71121433AA GRILLE RADIATOR - LOWER From (V) 400780	-	1	Enquire
19	71123999AA	GRILLE RADIATOR STAINLESS LOWER FRNT	71123999AA GRILLE RADIATOR STAINLESS LOWER FRNT Optional	-	1	Enquire
19	71125571AA	GT FRONT GRILLE LOWER	71125571AA GT FRONT GRILLE LOWER GT	-	1	Enquire
20	71121434AA	ASSY - FRONT GRILLE UPPER	71121434AA ASSY - FRONT GRILLE UPPER	-	1	Enquire
21	72122120AA	BRACKET SIDE LWR RH	72122120AA BRACKET SIDE LWR RH	-	1	Enquire
21	72122122AA	BRACKET SIDE UPPER ASSY	72122122AA BRACKET SIDE UPPER ASSY	-	2	Enquire
22	72122121AA	BRACKET SIDE LWR LH	72122121AA BRACKET SIDE LWR LH	-	1	Enquire
23	6182535	RAIL ASSY SUPPORT FRONT	6182535 RAIL ASSY SUPPORT FRONT	-	1	Enquire
24	72122883AA	BRACKET RAIL SUPPORT	72122883AA BRACKET RAIL SUPPORT	-	3	Enquire
25	72123142AB	BUMPER SUPPORT BRKT RH	72123142AB BUMPER SUPPORT BRKT RH	-	1	Enquire
25	7284365	ASSY BRKT-BUMPER SUPPORT RR	7284365 ASSY BRKT-BUMPER SUPPORT RR	-	2	Enquire
26	72123143AB	BUMPER SUPPORT BRKT LH	72123143AB BUMPER SUPPORT BRKT LH	-	1	Enquire
27	7782538	SEAL-APRON LOWER	7782538 SEAL-APRON LOWER	-	1	Enquire
28	7782542	FOAM STRIP FRONT APRON RH	7782542 FOAM STRIP FRONT APRON RH	-	1	Enquire
28	7782543	FOAM STRIP FRONT APRON LH	7782543 FOAM STRIP FRONT APRON LH	-	1	Enquire
29	7882545	HOUSING NO. PLATE FRONT	7882545 HOUSING NO. PLATE FRONT Not USA/J	-	1	Enquire
29	72121789AA	HOUSING ASSY REG PLATE FRONT	72121789AA HOUSING ASSY REG PLATE FRONT Japan	-	1	Enquire
30	7782546	SEAL-NUMBER PLATE HOUSING-790mm lg	7782546 SEAL-NUMBER PLATE HOUSING-790mm lg	-	1	Enquire
31	697530PK	INSERT-THREADED (5)	697530PK INSERT-THREADED (5) Not USA/J	-	3	Enquire
32	697531	SCREW-M6x25 HEX (10)	697531 SCREW-M6x25 HEX (10)	-	3	Enquire
33	3786315	S/MARKR MLDG CARKT(4	3786315 S/MARKR MLDG CARKT(4	-	1	Enquire
33	697286	Washer M6 Large OD	697286 Washer M6 Large OD	-	3	Enquire
34	3786315	S/MARKR MLDG CARKT(4	3786315 S/MARKR MLDG CARKT(4	-	1	Enquire
35	697532	Nut Spring U Type 8x(2.0-2.8)	697532 Nut Spring U Type 8x(2.0-2.8)	-	9	Enquire
36	697565	Spire Nut	697565 Spire Nut	-	6	Enquire
37	697682	Lokut Nut	697682 Lokut Nut	-	2	Enquire
38	697497PK	Screw-No8x19 FLG(20)	697497PK Screw-No8x19 FLG(20)	-	2	Enquire
39	697478	CLIP	697478 CLIP	-	2	Enquire
40	697591	SCREW No8 x 9.5 FLANGED AB S.T.	697591 SCREW No8 x 9.5 FLANGED AB S.T.	-	9	Enquire
41	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20	-	5	Enquire
42	71124967AA	ASSY - FRONT GRILLE UPPER	71124967AA ASSY - FRONT GRILLE UPPER From (V) 303448	-	1	Enquire
42	72140086AA	BRACKET - FRONT BUMPER - SIDE LOWER RH	72140086AA BRACKET - FRONT BUMPER - SIDE LOWER RH Zagato/DBAR1	-	1	Enquire
42	72140087AA	BRACKET - FRONT BUMPER - SIDE LOWER LH	72140087AA BRACKET - FRONT BUMPER - SIDE LOWER LH Zagato/DBAR1	-	1	Enquire
42	78140461AA	Foam strip, front bumper to wing	78140461AA Foam strip, front bumper to wing Zagato/DBAR1	-	2	Enquire
42	71124489AA	ASSY UPPER GRILLE AND BRACKET CLIPS	71124489AA ASSY UPPER GRILLE AND BRACKET CLIPS Optional	-	1	Enquire
42	71124227AA	GRILLE RADIATOR STAINLESS UPPER FRONT	71124227AA GRILLE RADIATOR STAINLESS UPPER FRONT Optional	-	1	Enquire
42	699882	M4 x 40 STAYBLACK SCREW	699882 M4 x 40 STAYBLACK SCREW Optional	-	3	Enquire
42	78140346AA	FRONT NUMBER PLATE MOUNTING - SWISS	78140346AA FRONT NUMBER PLATE MOUNTING - SWISS Zagato	-	1	Enquire
42	78140345AA	FRONT NUMBER PLATE MOUNTING - EURO	78140345AA FRONT NUMBER PLATE MOUNTING - EURO Zagato	-	1	Enquire
42	7881469	BADGE ASSY - ASTON MARTIN	7881469 BADGE ASSY - ASTON MARTIN Zagato	-	1	Enquire
42	78125248AA	GT BADGE ASSY	78125248AA GT BADGE ASSY Manual	-	1	Enquire
42	697570	SCREW No8 x 19 FLANGE HEAD BLACK	697570 SCREW No8 x 19 FLANGE HEAD BLACK Zagato	-	10	Enquire
42	697570	SCREW No8 x 19 FLANGE HEAD BLACK	697570 SCREW No8 x 19 FLANGE HEAD BLACK Zagato	-	4	Enquire
42	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20 Zagato	-	4	Enquire
42	697565	Spire Nut	697565 Spire Nut Zagato	-	4	Enquire
42	697468	SCREW/WASHER No8 x19 PAN HD AB	697468 SCREW/WASHER No8 x19 PAN HD AB Zagato	-	7	Enquire
42	697570	SCREW No8 x 19 FLANGE HEAD BLACK	697570 SCREW No8 x 19 FLANGE HEAD BLACK Zagato	-	7	Enquire
42	78150154AA	ASSEMBLY FRONT NUMBER PLATE PLINTH - FEDERAL	78150154AA ASSEMBLY FRONT NUMBER PLATE PLINTH - FEDERAL DBAR1	-	1	Enquire
42	697468	SCREW/WASHER No8 x19 PAN HD AB	697468 SCREW/WASHER No8 x19 PAN HD AB DBAR1	-	4	Enquire
42	697565	Spire Nut	697565 Spire Nut DBAR1	-	4	Enquire
42	697570	SCREW No8 x 19 FLANGE HEAD BLACK	697570 SCREW No8 x 19 FLANGE HEAD BLACK DBAR1	-	6	Enquire
42	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20 DBAR1	-	6	Enquire
42	78125568AA	GTA BADGE ASSY	78125568AA GTA BADGE ASSY Auto	-	1	Enquire
42	71125565AB	GT GRILLE OUTER & MESH ASSY	71125565AB GT GRILLE OUTER & MESH ASSY GT	-	1	Enquire
42	71125708AA	ASSY GT GRILLE INNER FRAME	71125708AA ASSY GT GRILLE INNER FRAME GT	-	1	Enquire
42	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk GT	-	4	Enquire
42	697498PK	SCREW-No6x13 FLG(10)	697498PK SCREW-No6x13 FLG(10) GT	-	7	Enquire
42	71125571AA	GT FRONT GRILLE LOWER	71125571AA GT FRONT GRILLE LOWER	-	1	Enquire
42	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3	-	2	Enquire
