Aston Martin DB7 Vantage - Coupe Trunk Casing and Mats

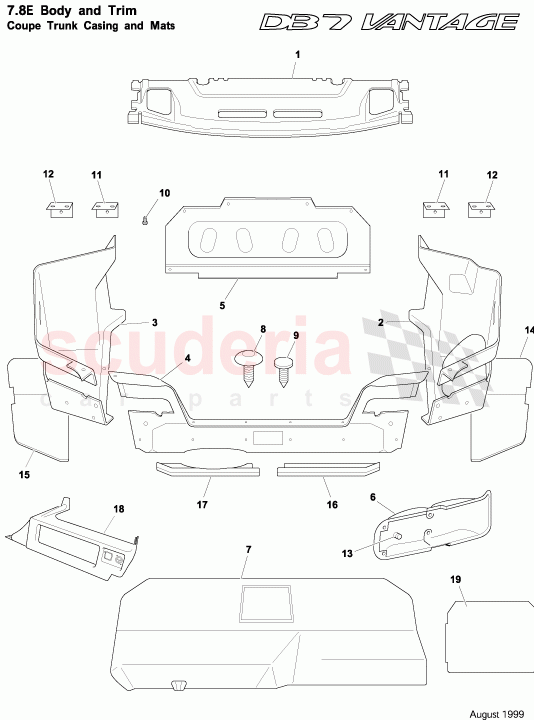

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83111301AAW	CARPET ASSY - PARCEL SHELF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111288AAW	CARPET ASSY - TRUNK SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111289AAW	CARPET ASSY - TRUNK SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111294ABW	CARPET ASSY - TRUNK FLOOR REAR	Enquire	To Order
	83122459ABW	CARPET ASSY - TRUNK FLOOR REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123791AAW	CARPET ASSY-REAR PANEL TRUNK	Enquire	To Order
	83123528AAW	Carpet assy, trunk rear panel Premium ICE	Enquire	To Order
	83123791ACW	Carpet assy, trunk rear panel Premium ICE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83111300AAW	TRIM PANEL ASSY - TAIL LAMP RH	Enquire	To Order
	83111299AAW	TRIM PANEL ASSY - TAIL LAMP LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123509AAW	COVER ASSY-SPARE WHEEL WELL	Enquire	To Order
	83123841AA	LOAD FLOOR - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582503PK	FIRTREE FASTENER(20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83110940AA	FIRTREE BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382618	BRACKET - PNL SUPPT INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382619	BRACKET - PNL SUPPT OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697552	RETAINER M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582614	Underlay, carpet - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582615	UNDERLAY - CARPET REAR RH	Enquire	To Order
	8582616	UNDERLAY - CARPET REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123985AA	H/LAMP APERTURE FOAM	Enquire	To Order
	83122457AA	UNDERLAY PACKER - REAR CARPET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80124251AA	CD AUTOCHANGER COVER ASSY	Enquire	To Order
	80124084AA	Cover, CD autochanger	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83150210AAW	Carpet assy boot panel, rear	Enquire	To Order
	83150207AAW	Carpet assy boot floor, rear	Enquire	To Order
	83150208AAW	RH SIDE CARPET BOOT ASSY	Enquire	To Order

...and 16 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83111301AAW	CARPET ASSY - PARCEL SHELF	83111301AAW CARPET ASSY - PARCEL SHELF	-	1	Enquire
2	83111288AAW	CARPET ASSY - TRUNK SIDE RH	83111288AAW CARPET ASSY - TRUNK SIDE RH	-	1	Enquire
3	83111289AAW	CARPET ASSY - TRUNK SIDE LH	83111289AAW CARPET ASSY - TRUNK SIDE LH	-	1	Enquire
4	83111294ABW	CARPET ASSY - TRUNK FLOOR REAR	83111294ABW CARPET ASSY - TRUNK FLOOR REAR Non spare wheel	-	1	Enquire
4	83122459ABW	CARPET ASSY - TRUNK FLOOR REAR	83122459ABW CARPET ASSY - TRUNK FLOOR REAR Spare wheel	-	1	Enquire
5	83123791AAW	CARPET ASSY-REAR PANEL TRUNK	83123791AAW CARPET ASSY-REAR PANEL TRUNK From (V) 300556 Up to (V) 302252	-	1	Enquire
5	83123528AAW	Carpet assy, trunk rear panel Premium ICE	83123528AAW Carpet assy, trunk rear panel Premium ICE Up to (V) 300555	-	1	Enquire
5	83123791ACW	Carpet assy, trunk rear panel Premium ICE	83123791ACW Carpet assy, trunk rear panel Premium ICE From (V) 302253	-	1	Enquire
5	83111298AAW	CARPET ASSY - REAR PANEL TRUNK	83111298AAW CARPET ASSY - REAR PANEL TRUNK	-	1	Enquire
6	83111300AAW	TRIM PANEL ASSY - TAIL LAMP RH	83111300AAW TRIM PANEL ASSY - TAIL LAMP RH	-	1	Enquire
6	83111299AAW	TRIM PANEL ASSY - TAIL LAMP LH	83111299AAW TRIM PANEL ASSY - TAIL LAMP LH	-	1	Enquire
7	83123509AAW	COVER ASSY-SPARE WHEEL WELL	83123509AAW COVER ASSY-SPARE WHEEL WELL Up to (V) 301000	-	1	Enquire
7	83123841AA	LOAD FLOOR - BOOT	83123841AA LOAD FLOOR - BOOT From (V) 301001	-	1	Enquire
8	8582503PK	FIRTREE FASTENER(20)	8582503PK FIRTREE FASTENER(20) Trim to body	-	33	Enquire
9	83110940AA	FIRTREE BUTTON	83110940AA FIRTREE BUTTON Trim to body	-	16	Enquire
10	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 Trim to body	-	8	Enquire
11	8382618	BRACKET - PNL SUPPT INNER	8382618 BRACKET - PNL SUPPT INNER	-	2	Enquire
12	8382619	BRACKET - PNL SUPPT OUTER	8382619 BRACKET - PNL SUPPT OUTER	-	2	Enquire
13	697552	RETAINER M5	697552 RETAINER M5 Light covers	-	8	Enquire
14	8582613	UNDERLAY - CARPET RH	8582613 UNDERLAY - CARPET RH	-	1	Enquire
15	8582614	Underlay, carpet - LH	8582614 Underlay, carpet - LH	-	1	Enquire
16	8582615	UNDERLAY - CARPET REAR RH	8582615 UNDERLAY - CARPET REAR RH Up to (V) 301000	-	1	Enquire
16	8582616	UNDERLAY - CARPET REAR LH	8582616 UNDERLAY - CARPET REAR LH From (V) 301001	-	2	Enquire
17	37123985AA	H/LAMP APERTURE FOAM	37123985AA H/LAMP APERTURE FOAM Boot lid harness retention	-	1	Enquire
17	83122457AA	UNDERLAY PACKER - REAR CARPET LH	83122457AA UNDERLAY PACKER - REAR CARPET LH	-	1	Enquire
18	80124251AA	CD AUTOCHANGER COVER ASSY	80124251AA CD AUTOCHANGER COVER ASSY From (V) 302253	-	1	Enquire
18	80124084AA	Cover, CD autochanger	80124084AA Cover, CD autochanger From (V) 302253	-	1	Enquire
19	83150210AAW	Carpet assy boot panel, rear	83150210AAW Carpet assy boot panel, rear DBAR1	-	1	Enquire
19	83150207AAW	Carpet assy boot floor, rear	83150207AAW Carpet assy boot floor, rear DBAR1	-	1	Enquire
19	83150208AAW	RH SIDE CARPET BOOT ASSY	83150208AAW RH SIDE CARPET BOOT ASSY DBAR1	-	1	Enquire
19	83150209AAW	LH SIDE CARPET BOOT ASSY	83150209AAW LH SIDE CARPET BOOT ASSY DBAR1	-	1	Enquire
19	83150162AA	Underlay, rear carpet, RH	83150162AA Underlay, rear carpet, RH DBAR1	-	1	Enquire
19	83150163AA	Underlay, rear carpet, LH	83150163AA Underlay, rear carpet, LH DBAR1	-	1	Enquire
19	697520	RETAINER WASHER-DZUS	697520 RETAINER WASHER-DZUS DBAR1	-	1	Enquire
19	83150267AAW	Boot floor assy	83150267AAW Boot floor assy DBAR1	-	1	Enquire
19	83150238AA	Boot liner mat	83150238AA Boot liner mat DBAR1	-	1	Enquire
19	699914	DZUS FASTENER 376 126 191 (26MM LONG)	699914 DZUS FASTENER 376 126 191 (26MM LONG) DBAR1	-	1	Enquire
19	83150211AAW	Leather lamp cover assy, rear	83150211AAW Leather lamp cover assy, rear DBAR1	-	2	Enquire
19	3484293	PAD-LOCATION	3484293 PAD-LOCATION DBAR1	-	2	Enquire
19	697658	SCREW	697658 SCREW DBAR1	-	5	Enquire
19	83123927AA	BOOT LINER - MAT 450X540X2MM	83123927AA BOOT LINER - MAT 450X540X2MM	-	1	Enquire
19	AA608045	Screw, flg, No 8 x 1/2"	AA608045 Screw, flg, No 8 x 1/2"	-	2	Enquire
19	697669	FASTENER RECEPTACLE DZUS 336 200 190	697669 FASTENER RECEPTACLE DZUS 336 200 190	-	2	Enquire
19	83123514AA	Catch, fastener	83123514AA Catch, fastener	-	2	Enquire
19	697520	RETAINER WASHER-DZUS	697520 RETAINER WASHER-DZUS	-	2	Enquire
19	699216	RIVET-PLASTIC EXPANSION	699216 RIVET-PLASTIC EXPANSION	-	5	Enquire
