Rear Bumper (Federal) of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Rear Bumper (Federal)

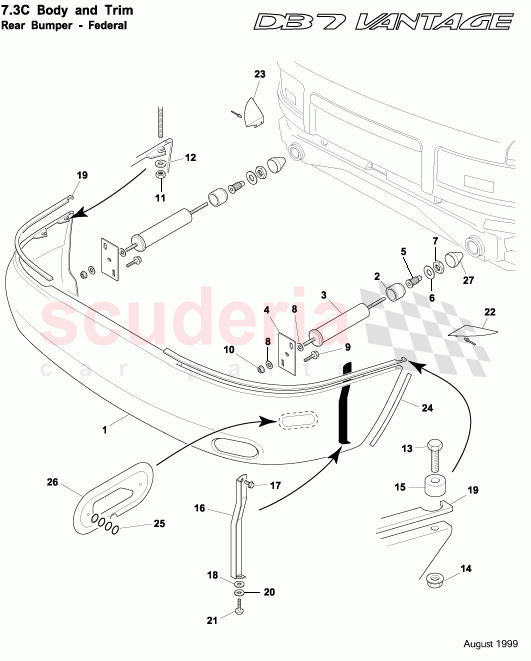

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	72150092AA	ASSEMBLY REAR BUMPER - FED	Enquire	To Order
	72121441AA	REAR BUMPER COMPLETE ASSY FEDERAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7282566	BUSH-BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72111688AA	STRUT ASSY BUMPER REAR FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72125126AA	PLATE SUPPORT BEAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7284680	INSERT THREADED - STRUT MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697536	WASHER M24 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697535	NUT M24 HEX THIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697215	WASHER 1/2in PLAIN ZINC PL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697734	SCREW-FLANGE HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697696	NUT M12 HEX BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697141PK	NUT-M8 NYLOC(PACK 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697516PK	NUT-M6 HEX BLK (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7282573	SPACER BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72121490AA	STAY SIDE SUPPORT REAR APRON RH	Enquire	To Order
	72121491AA	STAY SIDE SUPPORT REAR APRON LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697501	WASHER-SCREW RETAIN RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7782572	FOAM STRIP REAR BUMPER 1030x15x5mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697485	WASHER M6 PLAIN FORM C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697507PK	SCREW-M6x16 BTNHD(10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7282564	MOULDING INFILL REAR BUMPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7282565	MOULDING INFILL REAR BUMPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7890059	PROTECTION STRIP- REAR BUMPER RH USA	Enquire	To Order
	7890060	PROTECTION STRIP- REAR BUMPER LH USA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697501	WASHER-SCREW RETAIN RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786315	S/MARKR MLDG CARKT(4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7290100	COVER-REAR BUMPER FIXINGS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	72150092AA	ASSEMBLY REAR BUMPER - FED	72150092AA ASSEMBLY REAR BUMPER - FED DBAR1	-	1	Enquire
1	72121441AA	REAR BUMPER COMPLETE ASSY FEDERAL	72121441AA REAR BUMPER COMPLETE ASSY FEDERAL	-	1	Enquire
2	7282566	BUSH-BUMPER MOUNTING	7282566 BUSH-BUMPER MOUNTING	-	2	Enquire
3	72111688AA	STRUT ASSY BUMPER REAR FED	72111688AA STRUT ASSY BUMPER REAR FED	-	2	Enquire
4	72125126AA	PLATE SUPPORT BEAM	72125126AA PLATE SUPPORT BEAM	-	2	Enquire
5	7284680	INSERT THREADED - STRUT MOUNTING	7284680 INSERT THREADED - STRUT MOUNTING	-	2	Enquire
6	697536	WASHER M24 PLAIN FORM A	697536 WASHER M24 PLAIN FORM A	-	2	Enquire
7	697535	NUT M24 HEX THIN	697535 NUT M24 HEX THIN	-	2	Enquire
8	697215	WASHER 1/2in PLAIN ZINC PL	697215 WASHER 1/2in PLAIN ZINC PL	-	4	Enquire
9	697734	SCREW-FLANGE HEAD	697734 SCREW-FLANGE HEAD	-	4	Enquire
10	697696	NUT M12 HEX BLACK	697696 NUT M12 HEX BLACK	-	2	Enquire
11	697141PK	NUT-M8 NYLOC(PACK 10	697141PK NUT-M8 NYLOC(PACK 10	-	4	Enquire
12	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	-	2	Enquire
13	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
14	697516PK	NUT-M6 HEX BLK (10)	697516PK NUT-M6 HEX BLK (10)	-	4	Enquire
15	7282573	SPACER BUMPER	7282573 SPACER BUMPER	-	8	Enquire
16	72121490AA	STAY SIDE SUPPORT REAR APRON RH	72121490AA STAY SIDE SUPPORT REAR APRON RH	-	1	Enquire
16	72121491AA	STAY SIDE SUPPORT REAR APRON LH	72121491AA STAY SIDE SUPPORT REAR APRON LH	-	1	Enquire
17	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
18	697501	WASHER-SCREW RETAIN RUBBER	697501 WASHER-SCREW RETAIN RUBBER	-	2	Enquire
19	7782572	FOAM STRIP REAR BUMPER 1030x15x5mm	7782572 FOAM STRIP REAR BUMPER 1030x15x5mm	-	2	Enquire
20	697485	WASHER M6 PLAIN FORM C	697485 WASHER M6 PLAIN FORM C	-	2	Enquire
21	697507PK	SCREW-M6x16 BTNHD(10	697507PK SCREW-M6x16 BTNHD(10	-	2	Enquire
22	7282564	MOULDING INFILL REAR BUMPER RH	7282564 MOULDING INFILL REAR BUMPER RH Early cars	-	1	Enquire
23	7282565	MOULDING INFILL REAR BUMPER LH	7282565 MOULDING INFILL REAR BUMPER LH Early cars	-	1	Enquire
24	7890059	PROTECTION STRIP- REAR BUMPER RH USA	7890059 PROTECTION STRIP- REAR BUMPER RH USA Clear plastic	-	1	Enquire
24	7890060	PROTECTION STRIP- REAR BUMPER LH USA	7890060 PROTECTION STRIP- REAR BUMPER LH USA Clear plastic	-	1	Enquire
25	697501	WASHER-SCREW RETAIN RUBBER	697501 WASHER-SCREW RETAIN RUBBER	-	8	Enquire
26	3786315	S/MARKR MLDG CARKT(4	3786315 S/MARKR MLDG CARKT(4	-	1	Enquire
27	7290100	COVER-REAR BUMPER FIXINGS	7290100 COVER-REAR BUMPER FIXINGS	-	2	Enquire
