Find Your Part

Front Bumper Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Front Bumper Assembly

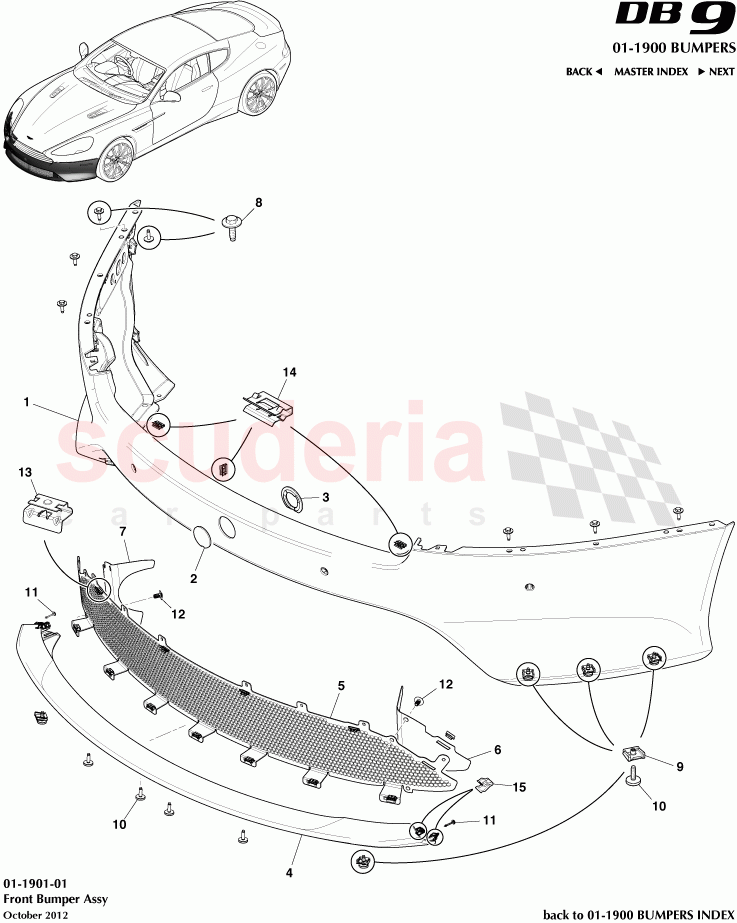

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG4317D957CA	Bumper Cover Assy, Front PDC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317C832BA	Front Bumper Cover Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317C832CB	Cover Front Bumper Cap Assy Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4317626AB	FRONT LOWER SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG438156AC	Mesh, Lower Front Grille, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4317E811AA	Blanking Panel, Lower Mesh LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4317E810AA	Blanking Panel, Lower Mesh RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43504691AA	Screw ST 4.5X25 Washer - 6 Lobe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DG4317D957DA	Bumper Cover Assy, Front PDC	DG4317D957DA Bumper Cover Assy, Front PDC Federal	-	1	Enquire
-	DG4317D957AA	Bumper Cover Assy, Front	DG4317D957AA Bumper Cover Assy, Front ROW	-	1	Enquire
-	DG4317D957BA	Bumper Cover Assy, Front	DG4317D957BA Bumper Cover Assy, Front Federal	-	1	Enquire
-	DG4317626BA	Spoiler, Front Lower	DG4317626BA Spoiler, Front Lower Carbon Fibre	-	1	Enquire
-	CG438156BD	MESH LWR FRT GRILLE	CG438156BD MESH LWR FRT GRILLE	-	1	Enquire
-	CG438156CA	Mesh, Lower Front Grille, Magnum Silver	CG438156CA Mesh, Lower Front Grille, Magnum Silver 14.5MY	-	1	Enquire
1	DG4317D957CA	Bumper Cover Assy, Front PDC	DG4317D957CA Bumper Cover Assy, Front PDC ROW	-	1	Enquire
2	4G4317C832BA	Front Bumper Cover Cap	4G4317C832BA Front Bumper Cover Cap Federal	-	1	Enquire
3	4G4317C832CB	Cover Front Bumper Cap Assy Rear	4G4317C832CB Cover Front Bumper Cap Assy Rear Federal	-	1	Enquire
4	CG4317626AB	FRONT LOWER SPOILER	CG4317626AB FRONT LOWER SPOILER Graphite	-	1	Enquire
5	CG438156AC	Mesh, Lower Front Grille, Black	CG438156AC Mesh, Lower Front Grille, Black	-	1	Enquire
6	CG4317E811AA	Blanking Panel, Lower Mesh LH	CG4317E811AA Blanking Panel, Lower Mesh LH	-	1	Enquire
7	CG4317E810AA	Blanking Panel, Lower Mesh RH	CG4317E810AA Blanking Panel, Lower Mesh RH	-	1	Enquire
8	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10)	-	8	Enquire
9	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 10 Per Pack ARRIVING SOON	-	8	Enquire
10	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) 20 Per Pack	-	8	Enquire
11	CG43504691AA	Screw ST 4.5X25 Washer - 6 Lobe	CG43504691AA Screw ST 4.5X25 Washer - 6 Lobe	-	2	Enquire
13	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) 10 Per Pack	-	13	Enquire
14	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	4G438191AAPK Clip Bumper Grille (Pack Of 10) 10 Per Pack	-	2	Enquire
15	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	4	Enquire
