Find Your Part

View All

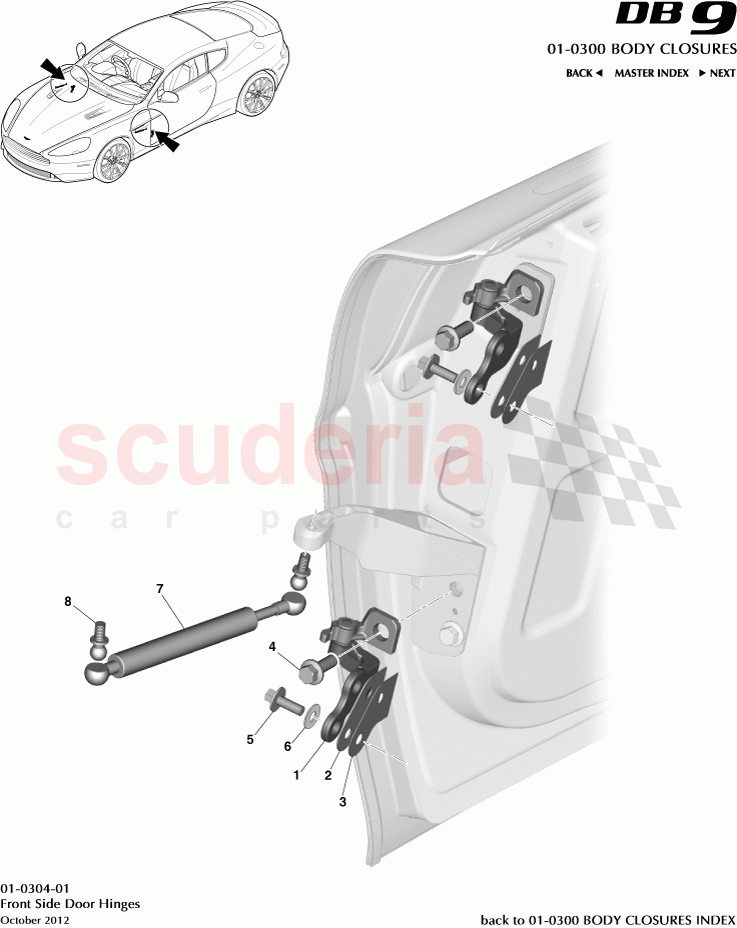

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G436510055	HINGE FRONT DOOR RH	$34.98	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3322817AA	Shim, Door Hinge, 1.2mm	$32.68	To Order

Photo	Part No	Description	Price (each)	Stock
	DD3322816AA	Shim, Door Hinge, 0.6mm	$32.68	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	$24.19	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43201262AA	Screw/Washer, M8 x 25	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4332692BA	M8X25 STEEL WASHER	$1.50	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4323504AB	Stay Front Door	$40.20	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	1R12640101AA	Ball Stud	$5.94	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	4G436510056	Hinge Assy, Front Door, LH	4G436510056 Hinge Assy, Front Door, LH	$34.98	2
1	4G436510055	HINGE FRONT DOOR RH	4G436510055 HINGE FRONT DOOR RH	$34.98	2
2	DD3322817AA	Shim, Door Hinge, 1.2mm	DD3322817AA Shim, Door Hinge, 1.2mm	$32.68	8
3	DD3322816AA	Shim, Door Hinge, 0.6mm	DD3322816AA Shim, Door Hinge, 0.6mm	$32.68	8
4	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	$24.19	4
5	DG43201262AA	Screw/Washer, M8 x 25	DG43201262AA Screw/Washer, M8 x 25	$2.94	8
6	AG4332692BA	M8X25 STEEL WASHER	AG4332692BA M8X25 STEEL WASHER	$1.50	4
7	4G4323504AB	Stay Front Door ARRIVING SOON	4G4323504AB Stay Front Door ARRIVING SOON	$40.20	2
8	1R12640101AA	Ball Stud	1R12640101AA Ball Stud	$5.94	4
