Bonnet Latching System of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Bonnet Latching System

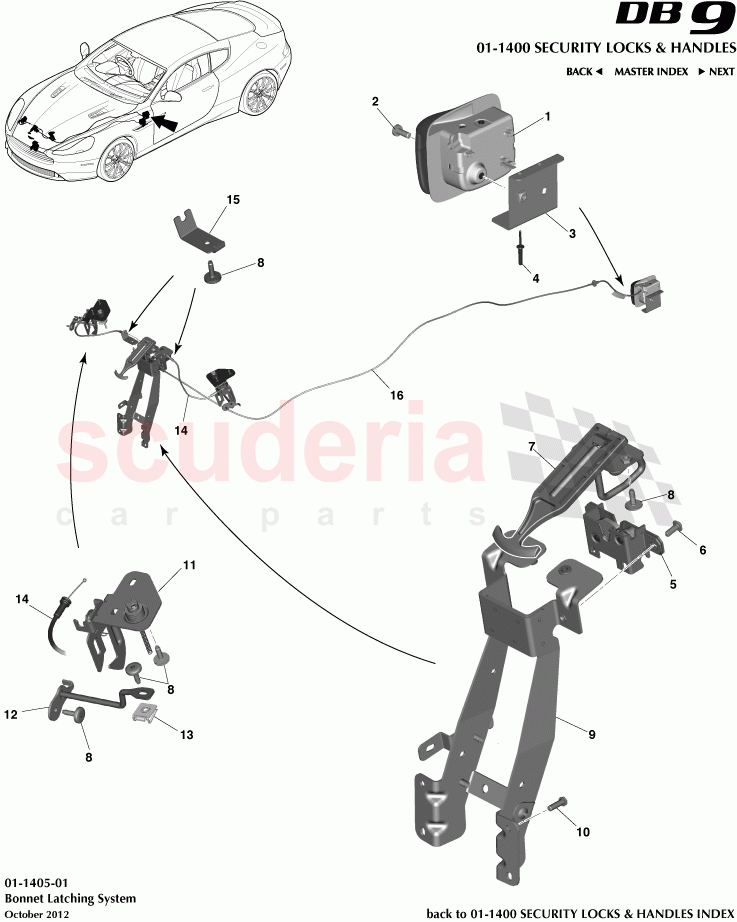

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G436411062	Lever, Bonnet Release	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316C730AB	Bracket, Hood Release Handle Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436410063	Bonnet Latch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

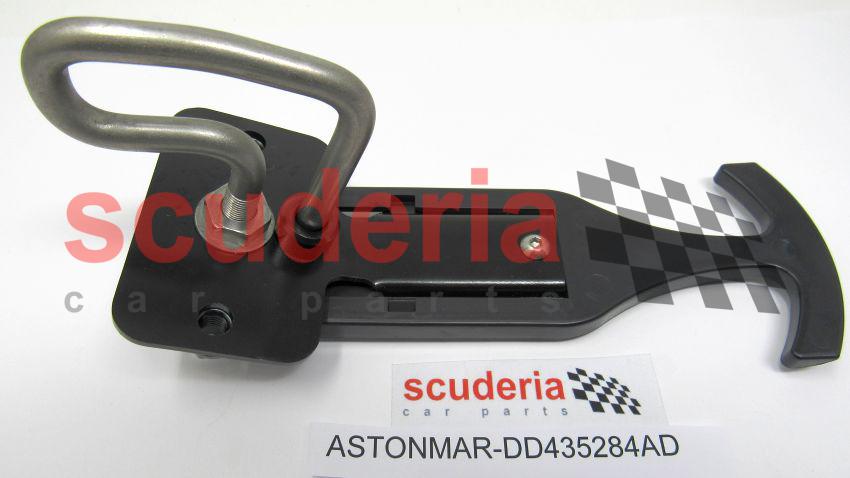

	DD435284AD	Striker, Primary With Secondary Release Handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD333804AA	Bracket, Hood Latch Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

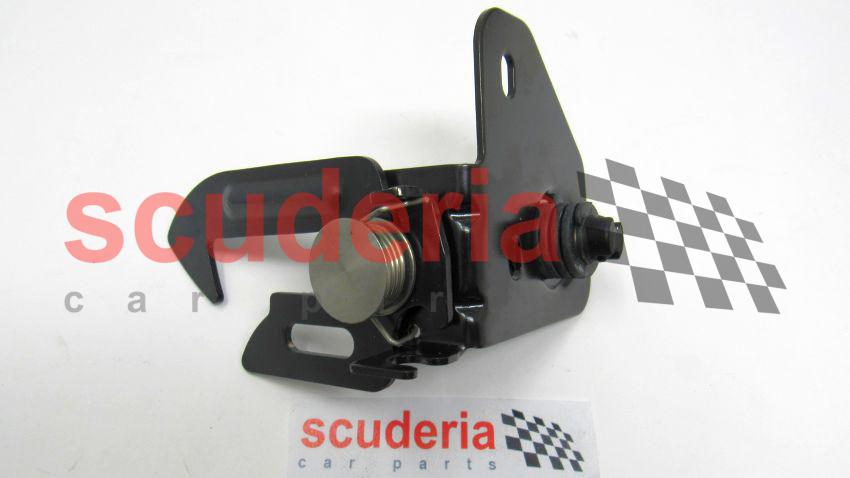

	DD4316B769AD	LATCH ASY HOOD SE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD4316A945AA	Striker Bar, Secondary Latch, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	DD43405C45AD	Cable, Secondary Latch Release	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4316K662AB	BRACKET SEC REL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4316C656AC	CABLE ASSY HOOD LATC	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

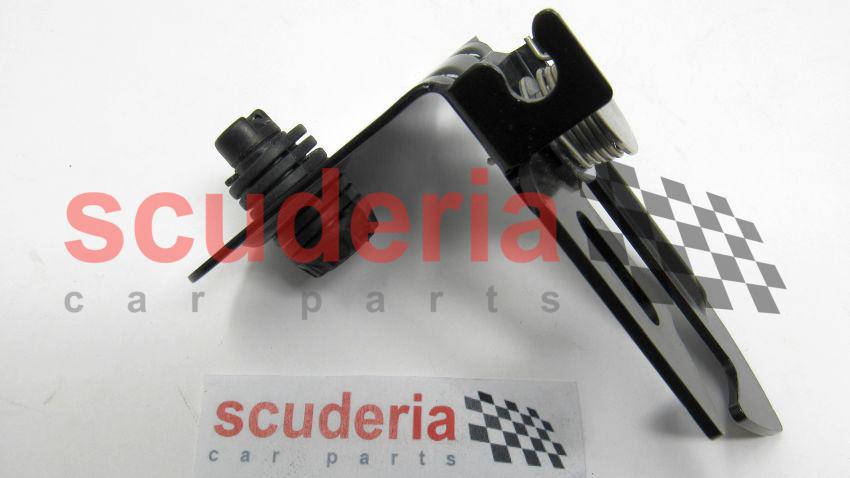

-	DD4316B768AD	LATCH ASY HOD SEC LH	DD4316B768AD LATCH ASY HOD SEC LH	-	1	Enquire
-	DD4316A944AA	Striker Bar, Secondary Latch, LH	DD4316A944AA Striker Bar, Secondary Latch, LH	-	1	Enquire
1	9G436411062	Lever, Bonnet Release	9G436411062 Lever, Bonnet Release	-	1	Enquire
2	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	1	Enquire
3	4G4316C730AB	Bracket, Hood Release Handle Mounting	4G4316C730AB Bracket, Hood Release Handle Mounting	-	1	Enquire
4	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20)	-	3	Enquire
5	4G436410063	Bonnet Latch	4G436410063 Bonnet Latch	-	1	Enquire
6	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	2	Enquire
7	DD435284AD	Striker, Primary With Secondary Release Handle	DD435284AD Striker, Primary With Secondary Release Handle	-	1	Enquire
8	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) 20 Per Pack	-	12	Enquire
9	CD333804AA	Bracket, Hood Latch Mounting	CD333804AA Bracket, Hood Latch Mounting	-	1	Enquire
10	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
11	DD4316B769AD	LATCH ASY HOOD SE RH	DD4316B769AD LATCH ASY HOOD SE RH	-	1	Enquire
12	DD4316A945AA	Striker Bar, Secondary Latch, RH	DD4316A945AA Striker Bar, Secondary Latch, RH	-	1	Enquire
13	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 10 Per Pack ARRIVING SOON	-	2	Enquire
14	DD43405C45AD	Cable, Secondary Latch Release	DD43405C45AD Cable, Secondary Latch Release	-	1	Enquire
15	DG4316K662AB	BRACKET SEC REL	DG4316K662AB BRACKET SEC REL	-	2	Enquire
16	AD4316C656AC	CABLE ASSY HOOD LATC	AD4316C656AC CABLE ASSY HOOD LATC	-	1	Enquire
