Aston Martin DB9 (2013-2016) - Body Ancillary Parts, VOLANTE (Page 1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4311262BA Reinforcement Assembly, Floor Pan Front Enquire To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
GODG43111K36AC Tunnel Reinforcement, Front Enquire To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder Enquire To Order
Photo Part No Description Price (each) Stock
GODG431660AA Spacer, Tunnel Reinforcement, Front Enquire To Order
Photo Part No Description Price (each) Stock
CD33106160AA Stud, M6, Threaded Enquire To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre Enquire To Order
Photo Part No Description Price (each) Stock
FD33L17C857AB SHIELD-RR BMPR OPG Enquire To Order
Photo Part No Description Price (each) Stock
700229 Bolt, M8 x 35, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
DG435340AA Bracket, ECU Mounting, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG435341AA Bracket, ECU Mounting, LH Enquire To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
DD43V17N800BA Crash Can, Bumper Front Enquire To Order
Photo Part No Description Price (each) Stock
704495 Screw, M8 x 35, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
DG4313068AC PNL HD/LP MTNG RH Enquire To Order
Photo Part No Description Price (each) Stock
DG4313069AC PNL HD/LP MNTG LH Enquire To Order
Photo Part No Description Price (each) Stock
4G436367912AD NUT PLT ASY FRT CRSH Enquire To Order
Photo Part No Description Price (each) Stock
DG43043B19AA Tube, Passenger Air Bag Initiator, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG43043B20AA Tube, Passenger Air Bag Initiator, LH Enquire To Order
Photo Part No Description Price (each) Stock
GOED33108A86AB BRKT FRT CS BRA RH Enquire To Order
Photo Part No Description Price (each) Stock
GOED33108A87AD Bracket, Front Cross Brace, LH Enquire To Order
Photo Part No Description Price (each) Stock
DD43108A75CA Cross Brace, Front Enquire To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive Enquire To Order
Photo Part No Description Price (each) Stock
DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
DG43F27A06AA Plate, Mounting Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud Enquire To Order
Photo Part No Description Price (each) Stock
DG4318178BA Bracket, Gas Damper Mounting Enquire To Order
Photo Part No Description Price (each) Stock
701567 Screw, M6 x 16 Enquire To Order
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket Enquire To Order
Photo Part No Description Price (each) Stock
9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG4316A681AA Reinforcement, Hood Hinge on Body, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG4316A682AA Reinforcement, Hood Hinge on Body, LH Enquire To Order
View All

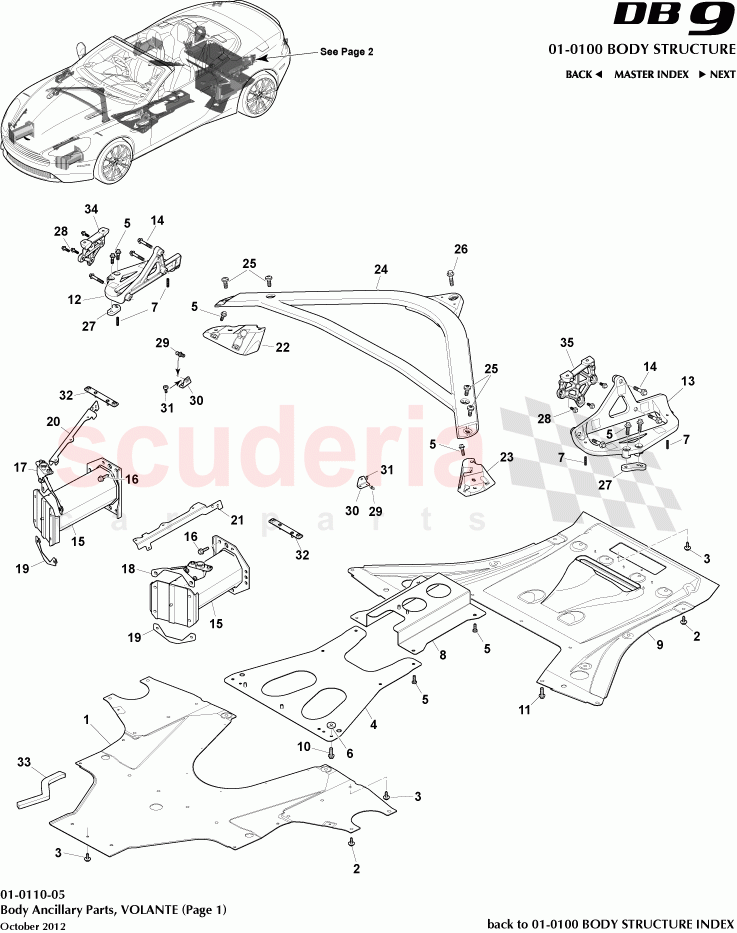

Body Ancillary Parts, VOLANTE (Page 1) of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G4328115AA
Baffle, Quarter Panel At Wheel, Housing Upper, LH 		- 1 Enquire
1 9G4311262BA
Reinforcement Assembly, Floor Pan Front 		- 1 Enquire
2 703268
Screw and Washer, M8 x 21 		- 31 Enquire
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack 		- 5 Enquire
4 GODG43111K36AC
Tunnel Reinforcement, Front 		- 1 Enquire
5 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 20 Enquire
6 GODG431660AA
Spacer, Tunnel Reinforcement, Front 		- 2 Enquire
7 CD33106160AA
Stud, M6, Threaded 		- 4 Enquire
8 4G43111K37AE
Tunnel Reinforcement, Centre 		- 1 Enquire
9 FD33L17C857AB
SHIELD-RR BMPR OPG 		- 1 Enquire
10 700229
Bolt, M8 x 35, Hex Flange Head 		- 2 Enquire
11 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) 		- 2 Enquire
12 DG435340AA
Bracket, ECU Mounting, RH 		- 1 Enquire
13 DG435341AA
Bracket, ECU Mounting, LH 		- 1 Enquire
14 703194
BOLT M8x45 HEX FLNG CHROME FREE 		- 12 Enquire
15 DD43V17N800BA
Crash Can, Bumper Front
Structural Cat. A Only 		- 2 Enquire
16 704495
Screw, M8 x 35, Hex Flange Head
6 per crash can 		- 12 Enquire
17 DG4313068AC
PNL HD/LP MTNG RH 		- 1 Enquire
18 DG4313069AC
PNL HD/LP MNTG LH 		- 1 Enquire
19 4G436367912AD
NUT PLT ASY FRT CRSH 		- 2 Enquire
20 DG43043B19AA
Tube, Passenger Air Bag Initiator, RH 		- 1 Enquire
21 DG43043B20AA
Tube, Passenger Air Bag Initiator, LH 		- 1 Enquire
22 GOED33108A86AB
BRKT FRT CS BRA RH 		- 1 Enquire
23 GOED33108A87AD
Bracket, Front Cross Brace, LH 		- 1 Enquire
24 DD43108A75CA
Cross Brace, Front 		- 1 Enquire
25 702209
Bolt, M10 x 25, Torque Drive 		- 4 Enquire
26 DG4300512AA
Screw (Taptite), M10 x 40 Hex Flange Head 		- 1 Enquire
27 DG43F27A06AA
Plate, Mounting 		- 2 Enquire
28 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 6 Enquire
29 1R12640101AA
Ball Stud 		- 2 Enquire
30 DG4318178BA
Bracket, Gas Damper Mounting 		- 2 Enquire
31 701567
Screw, M6 x 16 		- 4 Enquire
32 8G43199901AA
Nutplate, M6 Headlamp Bracket 		- 2 Enquire
33 9G4328114AA
Baffle, Quarter Panel At Wheel, Housing Upper, RH 		- 1 Enquire
34 DG4316A681AA
Reinforcement, Hood Hinge on Body, RH 		- 1 Enquire
35 DG4316A682AA
Reinforcement, Hood Hinge on Body, LH 		- 1 Enquire
