Rear Frame Sub System

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Rear Frame Sub System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD335R003AD Subframe Assy, Rear Enquire To Order
Photo Part No Description Price (each) Stock
703146 BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
703148 BOLT M14x230 HEX FLANGE CONE CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
4G432210209 RR TRANSAXLE X MEMBR Enquire To Order
View All

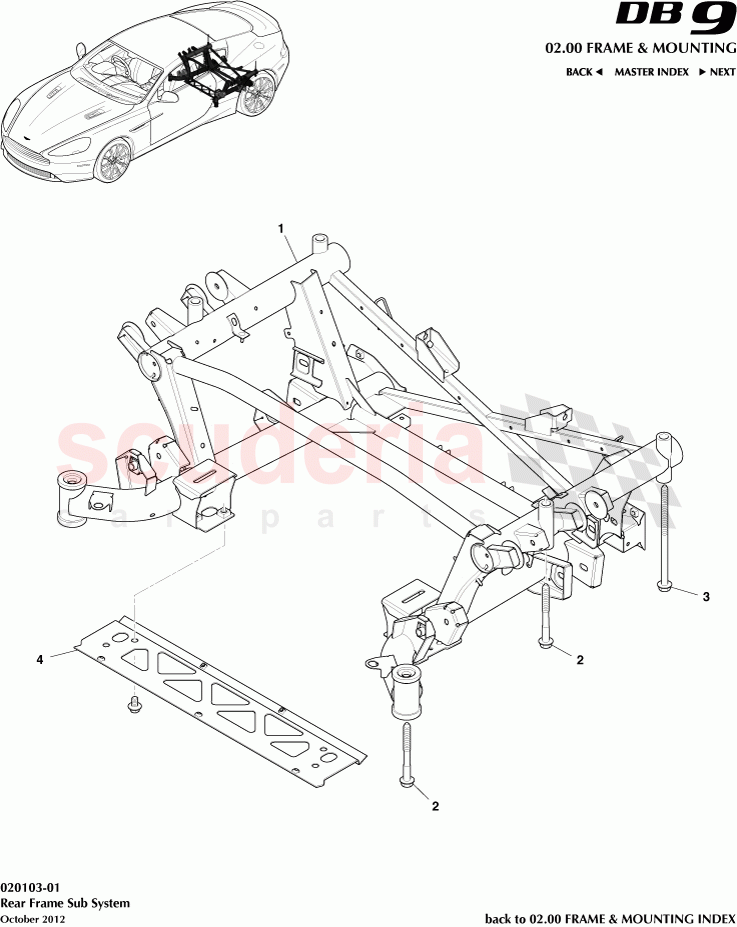

Rear Frame Sub System of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD335R003AD
Subframe Assy, Rear 		- 1 Enquire
2 703146
BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE 		- 4 Enquire
3 703148
BOLT M14x230 HEX FLANGE CONE CHROME FREE 		- 2 Enquire
4 4G432210209
RR TRANSAXLE X MEMBR 		- 1 Enquire
