Underbody, Rear, COUPE of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Underbody, Rear, COUPE

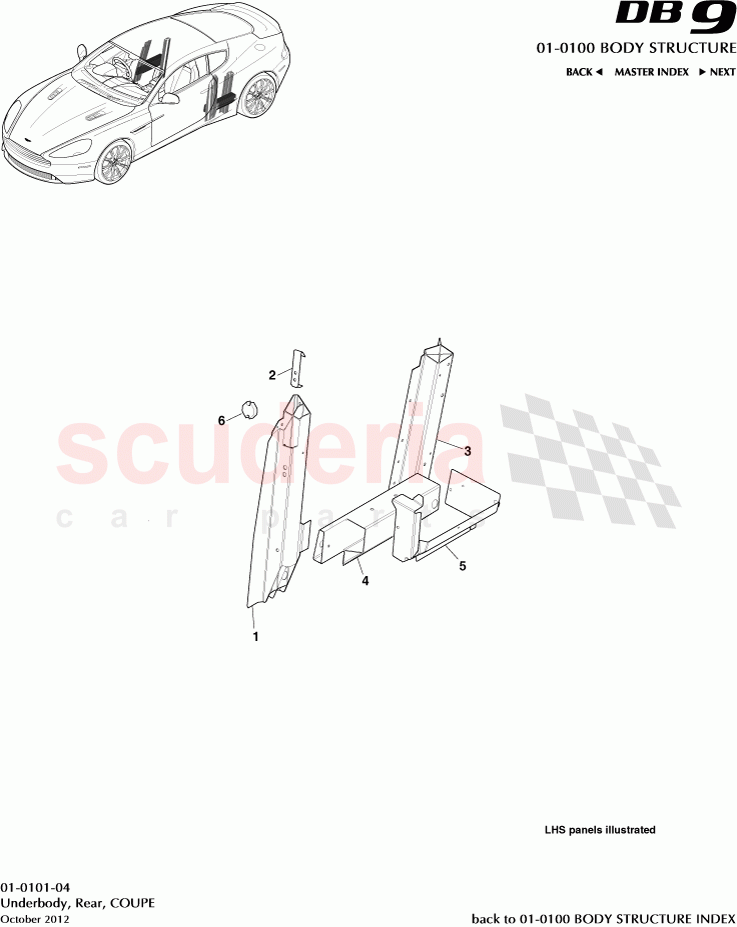

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG43C24313AD	Pillar, Centre Body, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43393126AA	Nutplate Assembly, Striker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4324315BA	Pillar, Centre Body, Outer Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43101D07AA	Extension Member, Rear Floor Side Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P08G43C20415AC	Reinforcement, Door Opening Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F16346BB	SPACER LATCH STRIKER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DG43C24312AD	Pillar, Centre Body, RH	DG43C24312AD Pillar, Centre Body, RH Structural. Cat A Only	-	1	Enquire
-	GODG4324314BA	Pillar, Centre Body, Outer Rear, RH	GODG4324314BA Pillar, Centre Body, Outer Rear, RH Structural. Cat A Only	-	1	Enquire
-	DG43101D06AA	Extension Member, Rear Floor Side Lower, RH	DG43101D06AA Extension Member, Rear Floor Side Lower, RH Structural. Cat A Only	-	1	Enquire
-	P08G43C20414AC	Reinforcement, Door Opening Rear, RH	P08G43C20414AC Reinforcement, Door Opening Rear, RH Structural. Cat A Only	-	1	Enquire
-	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER 10.5mm Thick	-	A/R	Enquire
-	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER 9.5mm Thick	-	A/R	Enquire
-	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER 8.5mm Thick	-	A/R	Enquire
-	AD43F16350BA	Spacer, Latch striker	AD43F16350BA Spacer, Latch striker 7.5mm Thick	-	A/R	Enquire
-	AD43F16351BB	Spacer, Latch Striker	AD43F16351BB Spacer, Latch Striker 6.5mm Thick	-	A/R	Enquire
-	DG43F16352BB	Spacer, Latch Striker	DG43F16352BB Spacer, Latch Striker 5.5mm Thick	-	A/R	Enquire
-	DG43F16353BB	Spacer, Latch Striker	DG43F16353BB Spacer, Latch Striker 4.5mm Thick	-	A/R	Enquire
1	DG43C24313AD	Pillar, Centre Body, LH	DG43C24313AD Pillar, Centre Body, LH Structural. Cat A Only	-	1	Enquire
2	DG43393126AA	Nutplate Assembly, Striker	DG43393126AA Nutplate Assembly, Striker Structural. Cat A Only	-	2	Enquire
3	GODG4324315BA	Pillar, Centre Body, Outer Rear, LH	GODG4324315BA Pillar, Centre Body, Outer Rear, LH Structural. Cat A Only	-	1	Enquire
4	DG43101D07AA	Extension Member, Rear Floor Side Lower, LH	DG43101D07AA Extension Member, Rear Floor Side Lower, LH Structural. Cat A Only	-	1	Enquire
5	P08G43C20415AC	Reinforcement, Door Opening Rear, LH	P08G43C20415AC Reinforcement, Door Opening Rear, LH Structural. Cat A Only	-	1	Enquire
6	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER 11.5mm Thick	-	A/R	Enquire
