Name: Front Wing Assembly
Rating: 5.0 (1 reviews)

View All

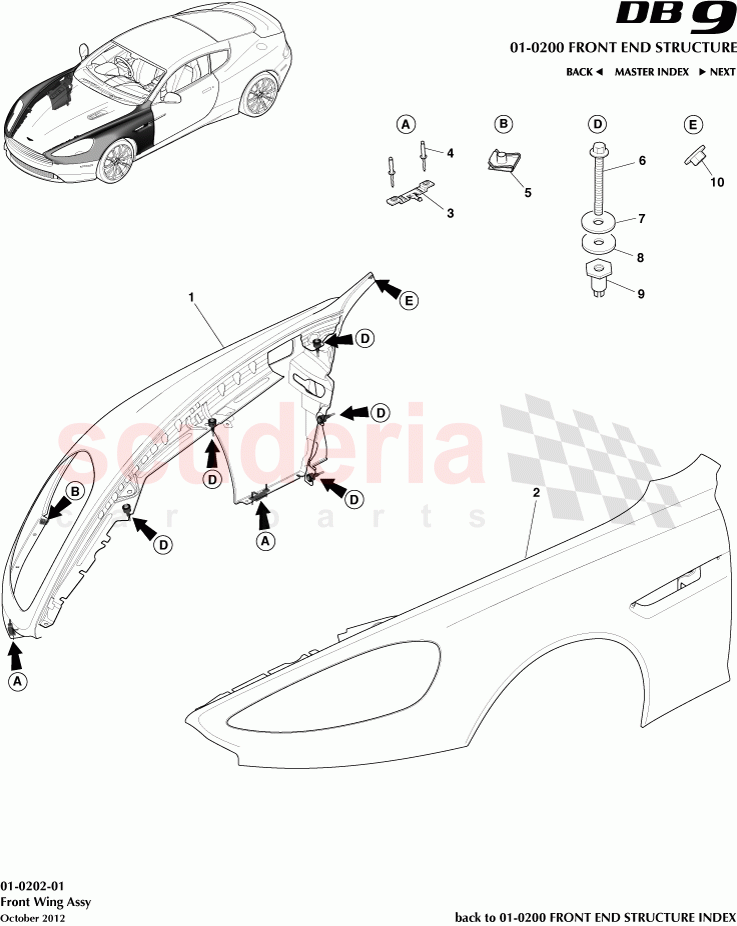

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

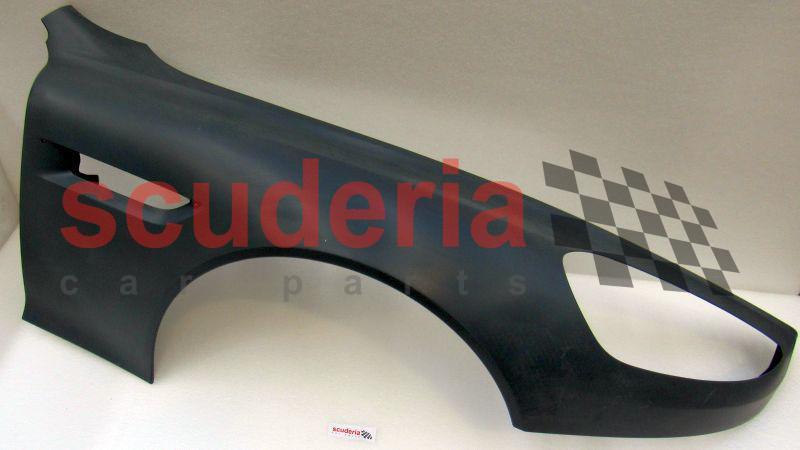

	DG4316005AD	Panel Assembly, Front Fender, RH	$6,159.55	To Order

Photo	Part No	Description	Price (each)	Stock

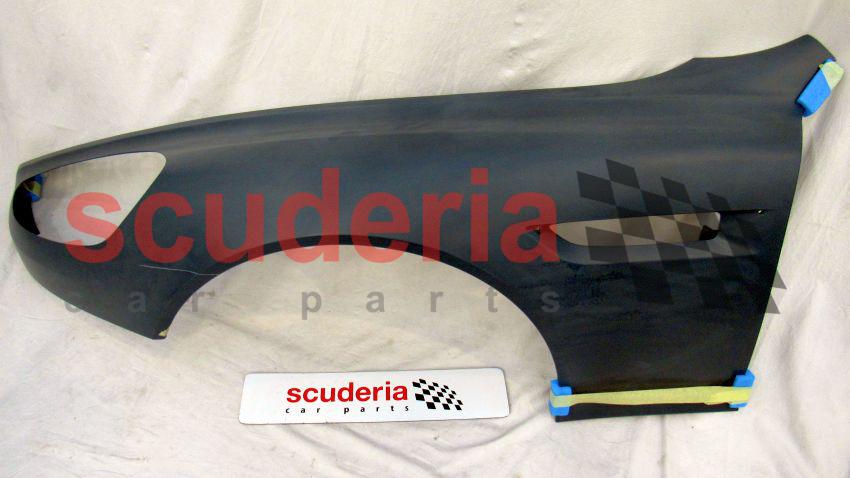

	DG4316006AD	Panel Assembly, Front Fender, LH	$6,159.55	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43023A50BBPK	External Fender Clip (Pack of 5)	$35.89	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	$11.36	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	To Order

Photo	Part No	Description	Price (each)	Stock
	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	$7.92	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43106258AA	Washer 6.0 I/D 24 O/D X 2.5 THK	$5.49	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435435AD	Spacer, Fender	$1.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	$20.25	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	$0.50	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	DG4316005AD	Panel Assembly, Front Fender, RH	DG4316005AD Panel Assembly, Front Fender, RH	$6,159.55	1
2	DG4316006AD	Panel Assembly, Front Fender, LH	DG4316006AD Panel Assembly, Front Fender, LH	$6,159.55	1
3	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5) 2 per Wing	$35.89	4
4	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20) 4 per Wing	$11.36	8
5	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 1 per Wing	$10.29	2
6	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	703196PK BOLT M6 x 55 HEX FLANGE HEAD (PACK 10) 5 per Wing	$7.92	10
7	CG43106258AA	Washer 6.0 I/D 24 O/D X 2.5 THK	CG43106258AA Washer 6.0 I/D 24 O/D X 2.5 THK 6 per Wing	$5.49	12
8	4G435435AD	Spacer, Fender	4G435435AD Spacer, Fender 2 per Wing	$1.84	4
9	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	4G43E826280BAPK Nut M6- Flexax Tolerance (Pack of 5) 5 per Wing	$20.25	10
10	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB 1 per Wing	$0.50	2
