Aston Martin DB9 (2013-2016) - Rear Wheel Arch Liners

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CG4354279D22AC Wheelarch Liner Assy, Rear, RH Enquire To Order
CG4354279D22AC Wheelarch Liner Assy, Rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
CG4354279D23AC Wheelarch Liner Assy, Rear, LH Enquire To Order
CG4354279D23AC Wheelarch Liner Assy, Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
View All

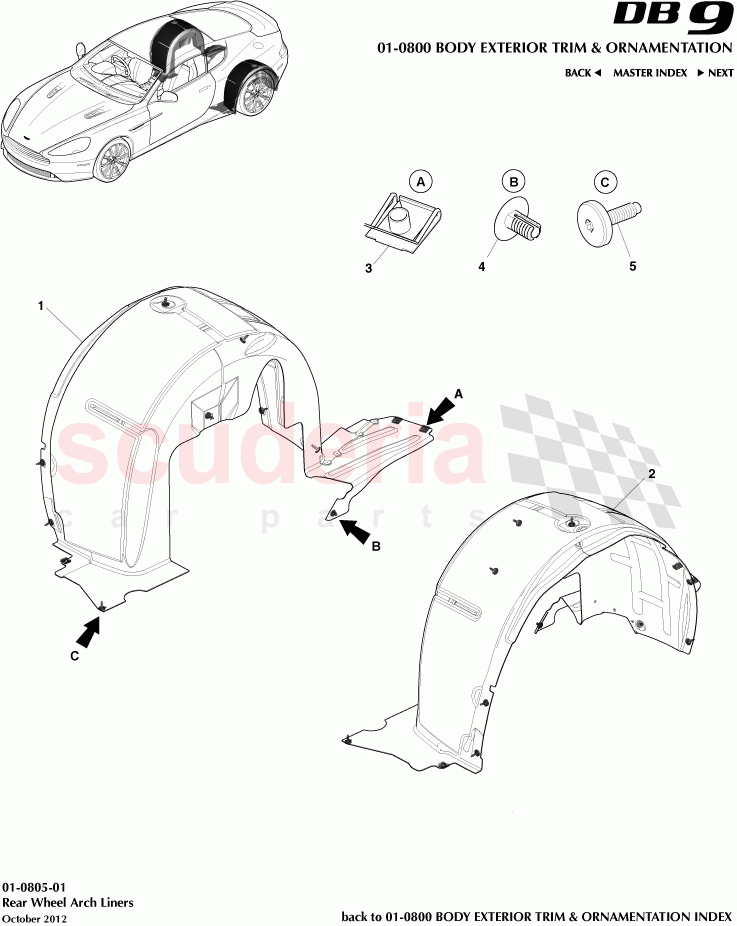

Rear Wheel Arch Liners of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CG4354279D22AC
Wheelarch Liner Assy, Rear, RH
Up to December 2013 		- 1 Enquire
1 CG4354279D22AC
Wheelarch Liner Assy, Rear, RH
From December 2013 		- 1 Enquire
2 CG4354279D23AC
Wheelarch Liner Assy, Rear, LH
Up to December 2013 		- 1 Enquire
2 CG4354279D23AC
Wheelarch Liner Assy, Rear, LH
From December 2013 		- 1 Enquire
3 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
3 per liner
ARRIVING SOON 		- 6 Enquire
4 1R12642790AAPK
Scrivet 8mm DIA PNL 3-10mm (Pack of 5)
1 per liner 		- 2 Enquire
5 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
18 Screws For Coupe 		- 21 Enquire
