Grille Opening Panel of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Grille Opening Panel

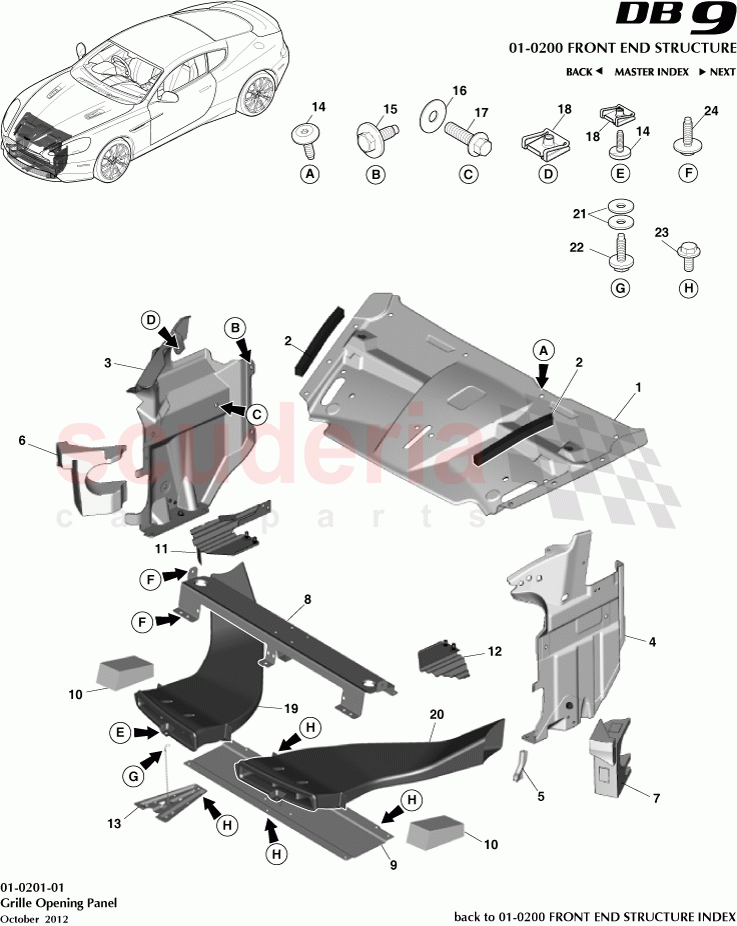

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

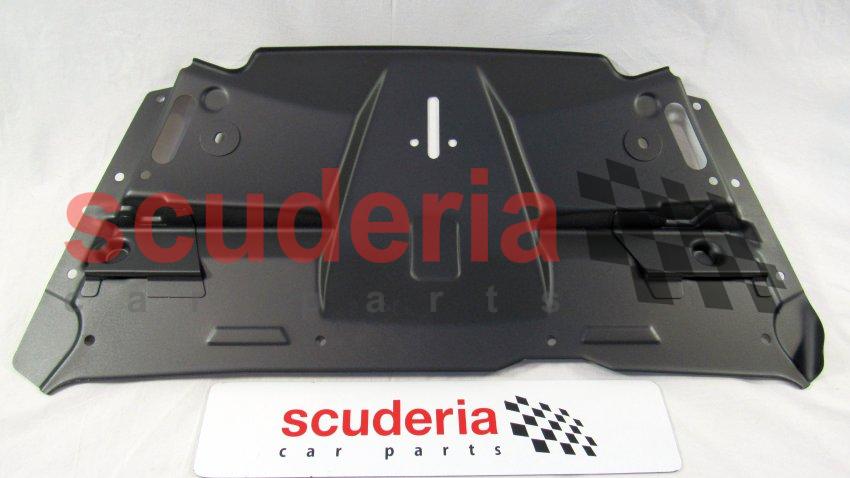

	DG438136BC	GRL ASSY RAD CTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43403D62AA	Seal, Upper Panel, Air Vent	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43F01990AC	Panel, Air Vent, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43F01991AB	PNL VEN AIR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L41041AA	Edge Strip, Black 2 x 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43334610AA	Foam, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43334611AA	Foam, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG438052AA	Cover Assembly, Radiator Support Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G432943751AB	Beam, Radiator Support Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3342761AA	Foam Pad, Cover Assy Radiator Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4330908AB	Stiffener, Chin RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4330907AB	Stiffener, Chin LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4338B30AC	CENTRE CHAIN STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703139	Screw/Washer M8x20 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697452	Washer, M8 x 24 x 1.8, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	8D332D207AB	DCT BRK CNTR COOL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332D206AB	DCT BRK CNTR COOL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200020135PK	Screw, M6 x 16, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	DG438136BC	GRL ASSY RAD CTR	DG438136BC GRL ASSY RAD CTR	-	1	Enquire
2	CG43403D62AA	Seal, Upper Panel, Air Vent	CG43403D62AA Seal, Upper Panel, Air Vent	-	2	Enquire
3	DG43F01990AC	Panel, Air Vent, RH	DG43F01990AC Panel, Air Vent, RH	-	1	Enquire
4	FD43F01991AB	PNL VEN AIR LH	FD43F01991AB PNL VEN AIR LH	-	1	Enquire
5	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40	-	1	Enquire
6	DG43334610AA	Foam, RH	DG43334610AA Foam, RH	-	1	Enquire
7	DG43334611AA	Foam, LH	DG43334611AA Foam, LH	-	1	Enquire
8	DG438052AA	Cover Assembly, Radiator Support Lower	DG438052AA Cover Assembly, Radiator Support Lower	-	1	Enquire
9	8G432943751AB	Beam, Radiator Support Lower	8G432943751AB Beam, Radiator Support Lower	-	1	Enquire
10	8D3342761AA	Foam Pad, Cover Assy Radiator Support	8D3342761AA Foam Pad, Cover Assy Radiator Support	-	2	Enquire
11	DG4330908AB	Stiffener, Chin RH	DG4330908AB Stiffener, Chin RH	-	1	Enquire
12	DG4330907AB	Stiffener, Chin LH	DG4330907AB Stiffener, Chin LH	-	1	Enquire
13	DG4338B30AC	CENTRE CHAIN STRAP	DG4338B30AC CENTRE CHAIN STRAP	-	1	Enquire
14	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	14	Enquire
15	703139	Screw/Washer M8x20 Chrome Free	703139 Screw/Washer M8x20 Chrome Free	-	4	Enquire
16	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black	-	4	Enquire
17	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	4	Enquire
18	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	4	Enquire
19	8D332D207AB	DCT BRK CNTR COOL LH	8D332D207AB DCT BRK CNTR COOL LH	-	1	Enquire
20	8D332D206AB	DCT BRK CNTR COOL RH	8D332D206AB DCT BRK CNTR COOL RH	-	1	Enquire
21	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	2	Enquire
22	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	1	Enquire
23	200020135PK	Screw, M6 x 16, Flange Hex Head	200020135PK Screw, M6 x 16, Flange Hex Head	-	11	Enquire
24	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	6	Enquire
