Folding Hood Assembly, Volante

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Folding Hood Assembly, VOLANTE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4370351AA CANOPY COVER CG BLACK KIT Enquire To Order
Photo Part No Description Price (each) Stock
9G4370352AB Inner Lining, Obsidian Black Enquire To Order
Photo Part No Description Price (each) Stock
4G43L51210AB FRT SL SPR PRT ASY K Enquire To Order
Photo Part No Description Price (each) Stock
4G43L51221AA MIDDLE SEAL SPARE PART RH ASSY KID Enquire To Order
Photo Part No Description Price (each) Stock
4G43L51220AA MIDDLE SEAL SPARE PART LH ASSY KIT Enquire To Order
Photo Part No Description Price (each) Stock
4G43L51230AB RR SL SPR PRT ASY KT Enquire To Order
Photo Part No Description Price (each) Stock
9G439G803AA Hydraulic Pump Assy, Includes All Cylinders & Hoses Enquire To Order
Photo Part No Description Price (each) Stock
4G433710686 Harness, Roof Hydraulics, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43L51240AA CONVERTIBLE ROOF LATCH MOTOR KIT Enquire IN STOCK
Photo Part No Description Price (each) Stock
4G431001991AA Nut & Washer, M5 Enquire To Order
Photo Part No Description Price (each) Stock
4G43L51270AA FULLY AUTOMOTIVE LATCHING RH KIT Enquire To Order
Photo Part No Description Price (each) Stock
4G4369832AA HEXAGON NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
4G431003920AA Screw, Self Cutting Enquire To Order
Photo Part No Description Price (each) Stock
4G43765010BA STRIKER HEADER RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43765013AF LATCH BRKT HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) Enquire IN STOCK
Photo Part No Description Price (each) Stock
4G431012524AA Flex Shaft, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G431012525AA Flex Shaft, LH Enquire To Order
Photo Part No Description Price (each) Stock
4G439310614 HEADER TRIM KIT DB9 VOLANTE-IVORY Enquire To Order
Photo Part No Description Price (each) Stock
ED3316C954AA Anti-Rattle Pad Enquire To Order
View All

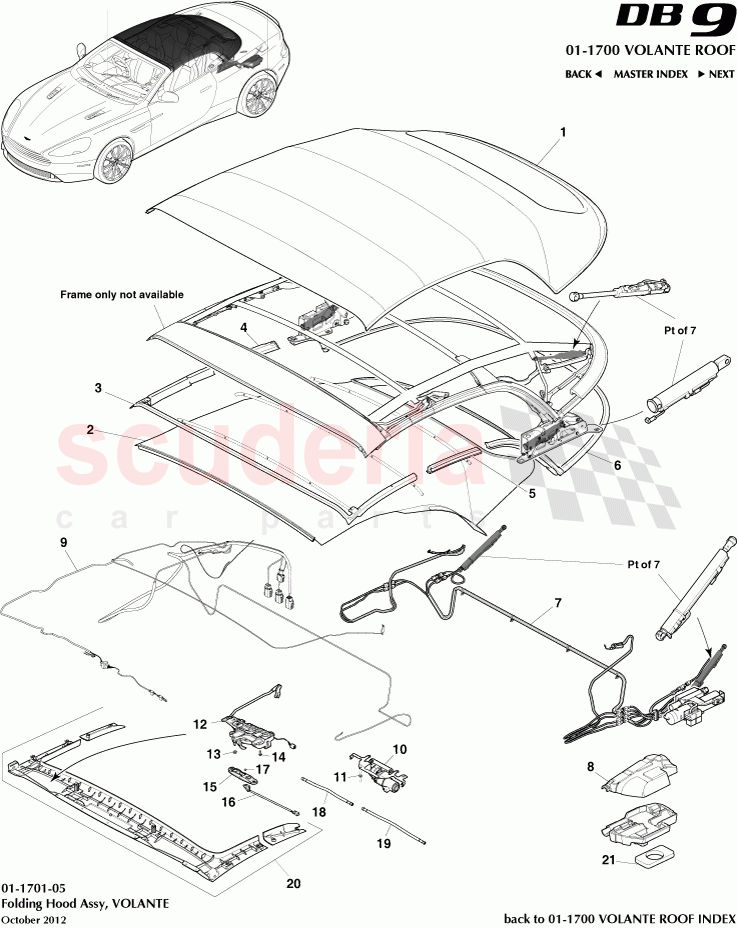

Folding Hood Assembly, VOLANTE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G4376501B00BF
Top Assembly Folding, Complete 		- 1 Enquire
- ED3376501B00CA
TOP ASSY FOLDING
14.5MY 		- 1 Enquire
- ED3376501B10CA
TOP ASSY FOLDING
14.5MY 		- 1 Enquire
- 9G4370351BA
Canopy Cover Kit, Atlantic Blue 		- 1 Enquire
- 9G4370351CA
CANOPY COVER CG JAVA KIT 		- 1 Enquire
- 9G4370351DA
CANOPY COVER CG WESTMINSTER GREEN KIT 		- 1 Enquire
- 9G4370351EA
CANOPY COVER CG TITAN GREY KIT 		- 1 Enquire
- 9G4370351FA
CANOPY COVER CG BURGUNDY KIT 		- 1 Enquire
- 9G4370351GA
CANOPY COVER CG SINGED BROWN KIT 		- 1 Enquire
- 9G4370352BB
INNER LINING CG IVORY 		- 1 Enquire
- 9G4370352CB
INNER LINING CG MOON SHADOW 		- 1 Enquire
- 9G4370352DB
INNER LINING CG TAILORS GREY 		- 1 Enquire
- 9G4370352EB
Inner Lining, New Light Tan 		- 1 Enquire
- 4G433710685
Harness, Roof Hydraulics, LH 		- 1 Enquire
- 4G43L51260AA
FULLY AUTOMATIC LATCHING LH KIT 		- 1 Enquire
- 4G43765011BA
STRIKER HEADER LH 		- 1 Enquire
- 4G439310615
HEADER TRIM KIT DB9 VOLANTE MOONSHADOW 		- 1 Enquire
- 4G439310616
HEADER TRIM KIT DB9 VOLANTE TAILORS GREY 		- 1 Enquire
- 4G439310617
HEADER TRIM KIT DB9 VOLANTE-BLACK 		- 1 Enquire
- 4G4350639AC
MAIN HYDRAULIC CYLINDER LEFT HAND
IN STOCK 		- 1 Enquire
- 4G4350638AB
MAIN HYDRAULIC CYLINDER RIGHT HAND
IN STOCK 		- 1 Enquire
- 4G43539A79AA
Cylinder, Tension Bow, LH 		- 1 Enquire
- 4G43539A78AA
Cylinder, Tension Bow, RH 		- 1 Enquire
- 9G4353391AB
Hydraulic Hose, Main Cylinder, LH
Ram Side 		- 1 Enquire
- 9G4353390AB
HYDRAULIC MAIN CYLINDER RIGHT HAND
Ram Side 		- 1 Enquire
- 4G431003889AA
Screw, Trim Cover Bracket 		- 16 Enquire
- 4G431004048AA
Screw, M6, Pan Head
1 Per Latch 		- 2 Enquire
- 4G431004355AA
SELF CUTTING SCREW FH 		- 8 Enquire
- 4G431005038AAPK
SPRING CLIP-PK OF 4 		- 4 Enquire
- 4G431013271AAPK
SCREW-PIVOT HOOK (8) 		- 2 Enquire
- 4G431016033AA
Screw, Self Cutting 		- 8 Enquire
- 4G4310D916AA
Control Strap, NSS part of tension belt 		- 2 Enquire
- 4G4350641AA
OVER CENTER PIN 		- 2 Enquire
- 4G43515A50AA
Bracket, Trim Cover 		- 8 Enquire
- 4G4368326AA
Screw, M5, Trim Cover 		- 4 Enquire
- 4G4374480AA
Rivet, Blind 		- 8 Enquire
- 4G4375999AA
SHIM WASHER SEAL CARRIER 		- 6 Enquire
- 4G43A502D41AA
TENSION CABLE CG 		- 2 Enquire
- 9G43F502D41AA
Belt, Tension CG LH, includes control strap 		- 1 Enquire
- 9G43F502D42AA
Belt, Tension CG RH, includes control strap 		- 1 Enquire
- 4G4356051AA
Hole Cover Plug, Black 		- 1 Enquire
- 4G4356051BA
Hole Cover Plug, Ivory 		- 1 Enquire
- 4G4356051CA
Hole Cover Plug, Moon Shadow 		- 1 Enquire
- 4G4356051DA
Hole Cover Plug, Tailor Grey 		- 1 Enquire
1 9G4370351AA
CANOPY COVER CG BLACK KIT 		- 1 Enquire
2 9G4370352AB
Inner Lining, Obsidian Black 		- 1 Enquire
3 4G43L51210AB
FRT SL SPR PRT ASY K 		- 1 Enquire
4 4G43L51221AA
MIDDLE SEAL SPARE PART RH ASSY KID 		- 1 Enquire
5 4G43L51220AA
MIDDLE SEAL SPARE PART LH ASSY KIT 		- 1 Enquire
6 4G43L51230AB
RR SL SPR PRT ASY KT 		- 1 Enquire
7 9G439G803AA
Hydraulic Pump Assy, Includes All Cylinders & Hoses 		- 1 Enquire
9 4G433710686
Harness, Roof Hydraulics, RH 		- 1 Enquire
10 4G43L51240AA
CONVERTIBLE ROOF LATCH MOTOR KIT
IN STOCK 		- 1 Enquire
11 4G431001991AA
Nut & Washer, M5
Latch Motor 		- 4 Enquire
12 4G43L51270AA
FULLY AUTOMOTIVE LATCHING RH KIT 		- 1 Enquire
13 4G4369832AA
HEXAGON NUT M6
3 Per Latch 		- 6 Enquire
14 4G431003920AA
Screw, Self Cutting
1 Per Latch 		- 2 Enquire
15 4G43765010BA
STRIKER HEADER RH 		- 1 Enquire
16 4G43765013AF
LATCH BRKT HARNESS
Sensor, RH Only 		- 1 Enquire
17 4G4380899AA
SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)
1 Per Striker
IN STOCK 		- 2 Enquire
18 4G431012524AA
Flex Shaft, RH 		- 1 Enquire
19 4G431012525AA
Flex Shaft, LH 		- 1 Enquire
20 4G439310614
HEADER TRIM KIT DB9 VOLANTE-IVORY 		- 1 Enquire
21 ED3316C954AA
Anti-Rattle Pad 		- 1 Enquire
