Aston Martin DB9 (2013-2016) - Underbody

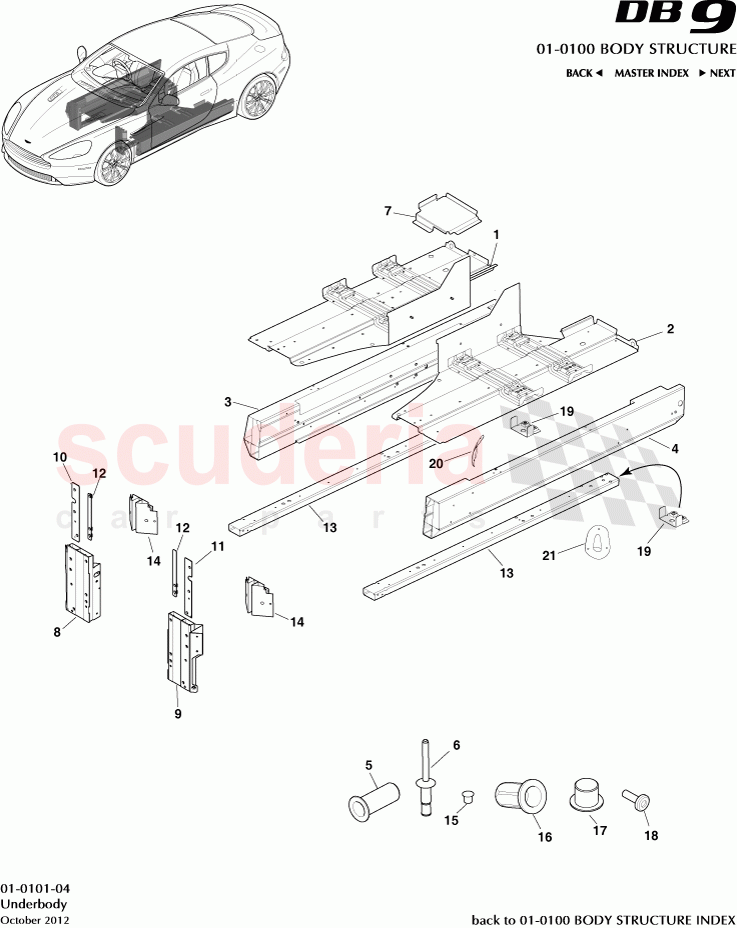

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG43C10116AD	Member, Floor Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C10117AD	Member, Floor Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4310120AA	Member, Floor, Side Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F001K28AA	Bracket, tunnel upper inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333800AA	Rivnut, 7/16UNF hex flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43434K12AB	Nut Plate M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD3314N200AA	Panel, Infill Side Tunnel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOCD3314N201AA	Panel, Infill Side Tunnel, LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DG43L10116AD	Member, Floor Side, RH	DG43L10116AD Member, Floor Side, RH Volante. Structural. Cat A Only	-	1	Enquire
-	DG43L10117AD	Member, Floor Side, LH	DG43L10117AD Member, Floor Side, LH Volante. Structural. Cat A Only	-	1	Enquire
3	DG43C10116AD	Member, Floor Side, RH	DG43C10116AD Member, Floor Side, RH Coupe. Structural. Cat A Only	-	1	Enquire
4	DG43C10117AD	Member, Floor Side, LH	DG43C10117AD Member, Floor Side, LH Coupe. Structural. Cat A Only	-	1	Enquire
5	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	-	4	Enquire
6	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	A/R	Enquire
7	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH Structural. Cat A Only	-	1	Enquire
8	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural. Cat A Only	-	1	Enquire
9	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural. Cat A Only	-	1	Enquire
10	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural. Cat A Only	-	1	Enquire
11	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural. Cat A Only	-	1	Enquire
12	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural. Cat A Only	-	2	Enquire
13	DG4310120AA	Member, Floor, Side Front	DG4310120AA Member, Floor, Side Front Structural. Cat A Only	-	2	Enquire
14	GOAG33F001K28AA	Bracket, tunnel upper inner	GOAG33F001K28AA Bracket, tunnel upper inner Structural. Cat A Only	-	2	Enquire
15	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm	-	A/R	Enquire
16	6G3333800AA	Rivnut, 7/16UNF hex flange	6G3333800AA Rivnut, 7/16UNF hex flange	-	4	Enquire
17	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic	-	2	Enquire
18	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	6	Enquire
19	4G43434K12AB	Nut Plate M10	4G43434K12AB Nut Plate M10	-	2	Enquire
20	GOCD3314N200AA	Panel, Infill Side Tunnel, RH	GOCD3314N200AA Panel, Infill Side Tunnel, RH	-	1	Enquire
21	GOCD3314N201AA	Panel, Infill Side Tunnel, LH	GOCD3314N201AA Panel, Infill Side Tunnel, LH	-	1	Enquire
