Heat Insulation Vehicle Fit of Aston Martin Aston Martin DB9 (2013-2016)

View All

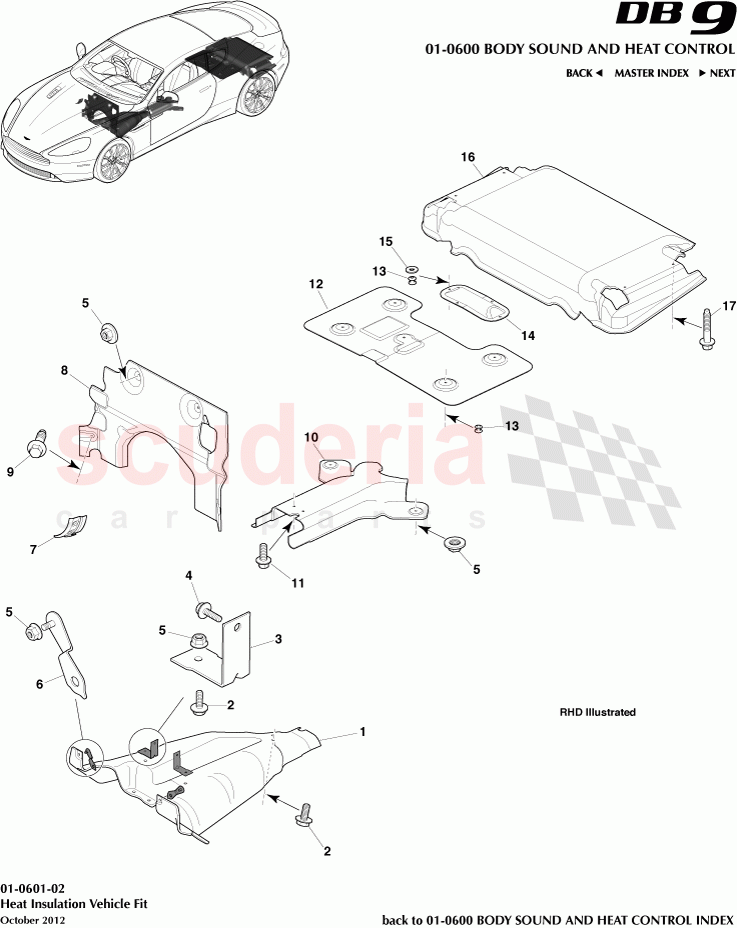

Aston Martin DB9 (2013-2016) - Heat Insulation Vehicle Fit

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG4311398AB	Heat Shield-Deflector, Front Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962CD	HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962GA	Bracket, Heat Deflector Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432B485AC	HEATSHIELD - BRAKE BOOSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43017A16BG	HEATSHIELD - FRONT BULKHEAD - RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434A380AE	HEATSHIELD - TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A032AG	Heat Shield, Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W710409S300	Rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B184AB	Heat Shield, Fuel Tank, Auxiliary	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG435290AB	Heat Shield, Rear Silencer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G43017A16AG	HEATSHIELD - FRONT BULKHEAD - LHD	4G43017A16AG HEATSHIELD - FRONT BULKHEAD - LHD LHD	-	1	Enquire
-	4G4346660AA	Foam Block, Parcel Shelf	4G4346660AA Foam Block, Parcel Shelf	-	4	Enquire
1	DG4311398AB	Heat Shield-Deflector, Front Floor	DG4311398AB Heat Shield-Deflector, Front Floor	-	1	Enquire
2	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	6	Enquire
3	4G433962CD	HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET	4G433962CD HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET	-	2	Enquire
4	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	2	Enquire
5	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	8	Enquire
6	4G433962GA	Bracket, Heat Deflector Support	4G433962GA Bracket, Heat Deflector Support	-	2	Enquire
7	4G432B485AC	HEATSHIELD - BRAKE BOOSTER	4G432B485AC HEATSHIELD - BRAKE BOOSTER	-	1	Enquire
8	4G43017A16BG	HEATSHIELD - FRONT BULKHEAD - RHD	4G43017A16BG HEATSHIELD - FRONT BULKHEAD - RHD RHD	-	1	Enquire
9	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	2	Enquire
10	4G434A380AE	HEATSHIELD - TUNNEL	4G434A380AE HEATSHIELD - TUNNEL	-	1	Enquire
11	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
12	4G439A032AG	Heat Shield, Fuel Tank	4G439A032AG Heat Shield, Fuel Tank	-	1	Enquire
13	W710409S300	Rivet	W710409S300 Rivet	-	9	Enquire
14	4G439B184AB	Heat Shield, Fuel Tank, Auxiliary	4G439B184AB Heat Shield, Fuel Tank, Auxiliary	-	1	Enquire
16	CG435290AB	Heat Shield, Rear Silencer	CG435290AB Heat Shield, Rear Silencer	-	1	Enquire
17	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE	-	4	Enquire
