Front Bumper Structures Fed

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Front Bumper Structures FED

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG4317757CA Bumper Beam Assembly, Front Enquire To Order
Photo Part No Description Price (each) Stock
703155 SCREW/WASHER M8x25 CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
DG4317E898BA Isolator, Front Bumper Outboard Lower Enquire To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind Enquire To Order
Photo Part No Description Price (each) Stock
DG4317765AC Bracket, Front Bumper Outer RH Enquire To Order
Photo Part No Description Price (each) Stock
DG4317766AC Bracket, Front Bumper Outer LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
DG4317E952BA Over Rider, Central, Front Bumper Enquire To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind Enquire To Order
Photo Part No Description Price (each) Stock
DG4317764AA Bracket, Front Bumper inner Enquire To Order
Photo Part No Description Price (each) Stock
704075 Screw M6 x 25 Hex Flange Enquire To Order
Photo Part No Description Price (each) Stock
DG4317752AB Bracket, Bumper Beam Front Enquire To Order
Photo Part No Description Price (each) Stock
DG4317E936BB Insert, Front Bumper Isolator, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG4317E937BB Insert, Front Bumper Isolator, LH Enquire To Order
Photo Part No Description Price (each) Stock
CD333804AC Bracket, Bonnet Latch Mounting Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
DG4317K906AA Plug & Grip, 15mm Enquire To Order
View All

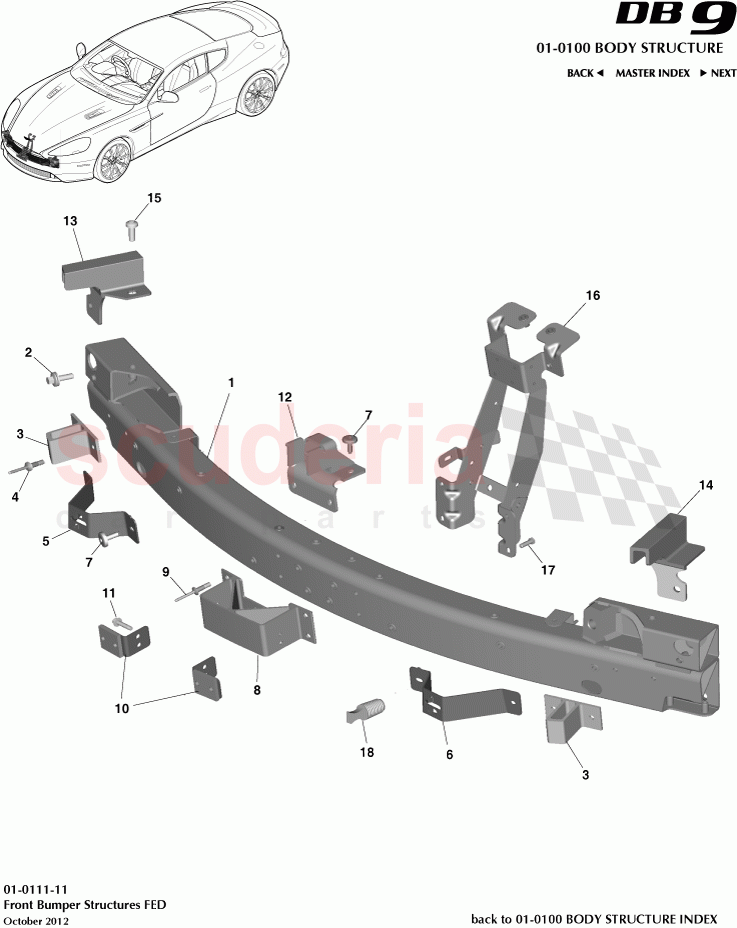

Front Bumper Structures FED of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 DG4317757CA
Bumper Beam Assembly, Front 		- 1 Enquire
2 703155
SCREW/WASHER M8x25 CHROME FREE 		- 6 Enquire
3 DG4317E898BA
Isolator, Front Bumper Outboard Lower 		- 2 Enquire
4 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		- 4 Enquire
5 DG4317765AC
Bracket, Front Bumper Outer RH 		- 1 Enquire
6 DG4317766AC
Bracket, Front Bumper Outer LH 		- 1 Enquire
7 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack 		- 8 Enquire
8 DG4317E952BA
Over Rider, Central, Front Bumper 		- 2 Enquire
9 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		- 4 Enquire
10 DG4317764AA
Bracket, Front Bumper inner 		- 2 Enquire
11 704075
Screw M6 x 25 Hex Flange 		- 4 Enquire
12 DG4317752AB
Bracket, Bumper Beam Front 		- 1 Enquire
13 DG4317E936BB
Insert, Front Bumper Isolator, RH 		- 1 Enquire
14 DG4317E937BB
Insert, Front Bumper Isolator, LH 		- 1 Enquire
16 CD333804AC
Bracket, Bonnet Latch Mounting
ARRIVING SOON 		- 1 Enquire
17 703265
Screw, M6 x 16, Hex Flange Head 		- 4 Enquire
18 DG4317K906AA
Plug & Grip, 15mm 		- 1 Enquire
