Rear Bumper Assembly

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Rear Bumper Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3317K835CL Bumper Cover Assy, Rear PDC Enquire To Order
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
704383 Clip, Edge Enquire To Order
Photo Part No Description Price (each) Stock
703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping Enquire To Order
Photo Part No Description Price (each) Stock
701656 RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head Enquire To Order
Photo Part No Description Price (each) Stock
4G4317B681AH BUMPER MOUNTING BRACKET - CENTRE Enquire To Order
Photo Part No Description Price (each) Stock
4G4317B930AA Bracket, Bumper Mounting, Outer Enquire To Order
Photo Part No Description Price (each) Stock
4G4317B681BA Dual lock, Rear Bumper Bracket Enquire To Order
Photo Part No Description Price (each) Stock
CG4317E955AF DIFFUSER REAR Enquire To Order
Photo Part No Description Price (each) Stock
CG4301950AA Mesh, Rear Centre Enquire To Order
Photo Part No Description Price (each) Stock
4G437810814 Fastener Assembly, 6.2x3, 5.8, Push In Enquire To Order
Photo Part No Description Price (each) Stock
CG4333612AC DIFFUSER PR ASSY Enquire To Order
Photo Part No Description Price (each) Stock
11R12642790AAPK Scrivet, 8mm Enquire To Order
Photo Part No Description Price (each) Stock
6G437210059 RET.FRT.BMP.MLDG Enquire To Order
Photo Part No Description Price (each) Stock
4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
8D333710004 Bracket, Park Aid Sensor Inner Enquire To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
CG4301949AA MESH REAR LOWER LH DIFFUSER Enquire To Order
Photo Part No Description Price (each) Stock
CG4301948AA MESH REAR LOWER RH DIFFUSER Enquire To Order
Photo Part No Description Price (each) Stock
4G4313A566BA REAR REFLEX REFLECTOR Enquire To Order
Photo Part No Description Price (each) Stock
4G4313A565BA Rear Reflex Reflector Enquire To Order
Photo Part No Description Price (each) Stock
4G4383000BB Nut - Speed M5 Enquire To Order
Photo Part No Description Price (each) Stock
AG435K238AC Finisher, Exhaust Enquire To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 Enquire To Order
Photo Part No Description Price (each) Stock
6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
707617 Screw, M4 Self Tapping Enquire To Order
Photo Part No Description Price (each) Stock
6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) Enquire To Order
View All

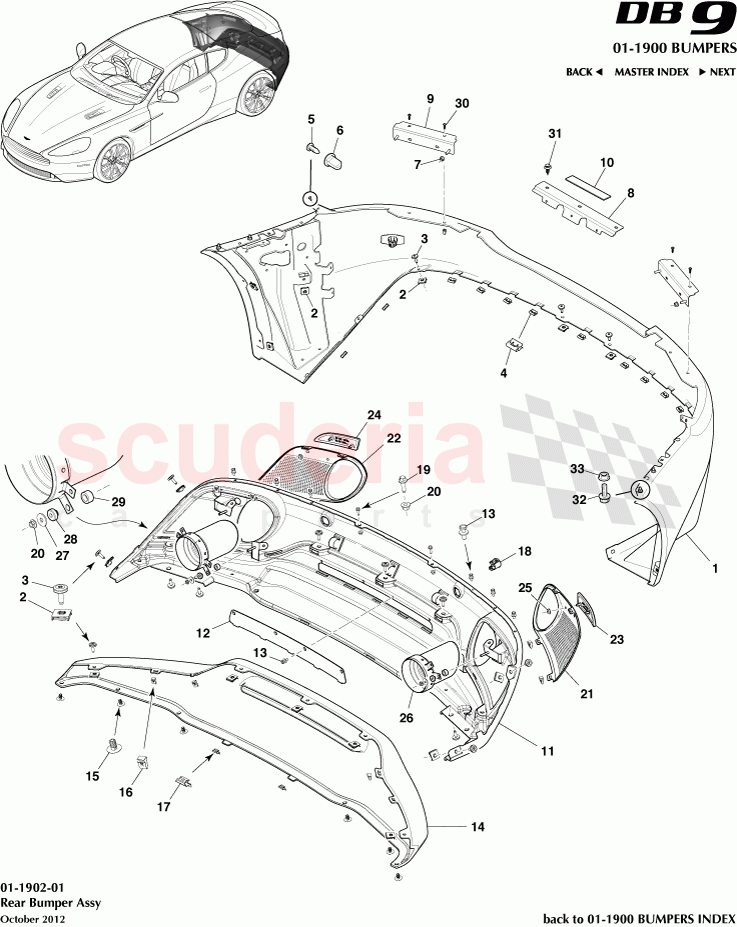

Rear Bumper Assembly of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3317K835DL
Bumper Cover Assy, Rear PDC
FED 		- 1 Enquire
- DG4317E955BA
Diffuser Assembly, Rear
Carbon Fibre 		- 1 Enquire
1 8D3317K835CL
Bumper Cover Assy, Rear PDC
ROW 		- 1 Enquire
2 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
ARRIVING SOON 		- 15 Enquire
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack 		- 17 Enquire
4 704383
Clip, Edge 		- 16 Enquire
5 703104
Screw 4.8x1.59x19 04.8 Chrome Free Self Taping 		- 2 Enquire
6 701656
RETAINER
10 Per Pack 		- 6 Enquire
7 702944
Nut, M6, Hex Flanged Head 		- 8 Enquire
8 4G4317B681AH
BUMPER MOUNTING BRACKET - CENTRE 		- 1 Enquire
9 4G4317B930AA
Bracket, Bumper Mounting, Outer 		- 2 Enquire
10 4G4317B681BA
Dual lock, Rear Bumper Bracket 		- 1 Enquire
11 CG4317E955AF
DIFFUSER REAR
Graphite 		- 1 Enquire
12 CG4301950AA
Mesh, Rear Centre 		- 1 Enquire
13 4G437810814
Fastener Assembly, 6.2x3, 5.8, Push In 		- 10 Enquire
14 CG4333612AC
DIFFUSER PR ASSY 		- 1 Enquire
15 11R12642790AAPK
Scrivet, 8mm
5 Per Pack 		- 6 Enquire
16 6G437210059
RET.FRT.BMP.MLDG 		- 12 Enquire
17 4G4317F773ABPK
Retainer Grille to Front Bumper (Pack of 10)
10 Per Pack 		- 2 Enquire
18 8D333710004
Bracket, Park Aid Sensor Inner 		- 2 Enquire
19 703026
Screw, M5 x 16, Hex Flange Head 		- 2 Enquire
20 702295
Nut, M5, Hex Flange Head 		- 2 Enquire
21 CG4301949AA
MESH REAR LOWER LH DIFFUSER 		- 1 Enquire
22 CG4301948AA
MESH REAR LOWER RH DIFFUSER 		- 1 Enquire
23 4G4313A566BA
REAR REFLEX REFLECTOR 		- 1 Enquire
24 4G4313A565BA
Rear Reflex Reflector 		- 1 Enquire
25 4G4383000BB
Nut - Speed M5 		- 4 Enquire
26 AG435K238AC
Finisher, Exhaust 		- 2 Enquire
27 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
20 Per Pack 		- 4 Enquire
28 6G335K239BAPK
SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)
10 Per Pack 		- 4 Enquire
29 6G335K239CAPK
SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)
10 Per Pack 		- 4 Enquire
30 707617
Screw, M4 Self Tapping 		- 4 Enquire
31 6G335K239CAPK
SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) 		- 2 Enquire
