Body Dash and Cowl of Aston Martin Aston Martin DB9 (2013-2016)

View All

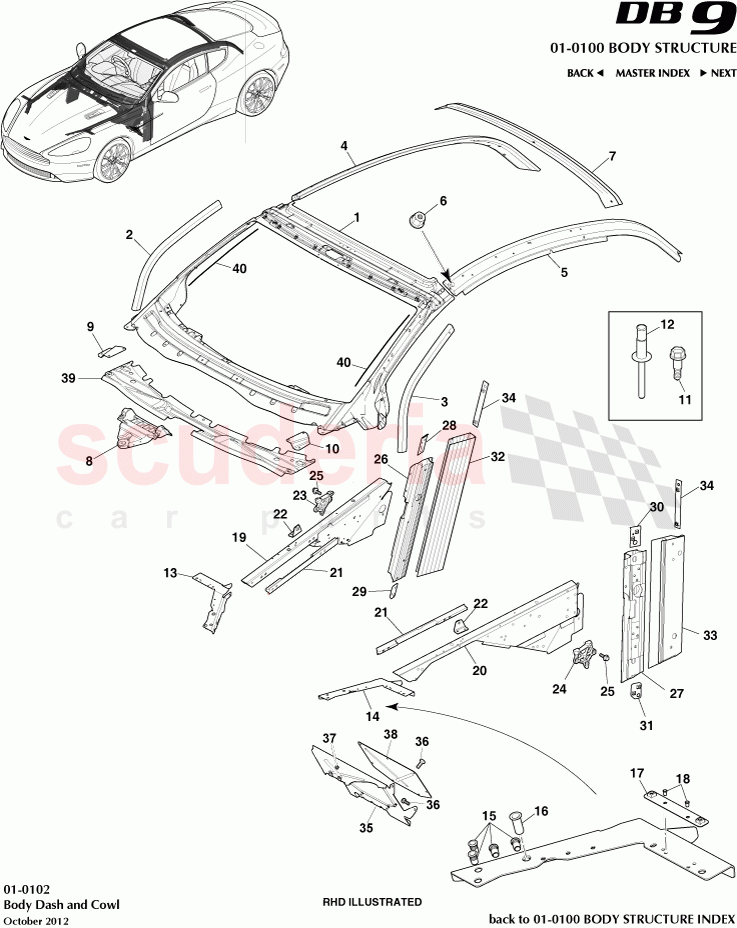

Aston Martin DB9 (2013-2016) - Body Dash and Cowl

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DG43C03014AF	Frame Assembly, Windshield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOGG33F02526AA	REINF FRT BDY PLR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02527AB	Reinforced front body pillar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C513A07BA	REINF RF SD RL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43C513A08BA	REINF RF SD RL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4390907AA	Barrel Nut, M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43C42220BA	Frame, Back Window, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODD4371023AE	Cowl, Reinforcement Casting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4319414AA	Adaptor, Plenum Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4319415AA	Adaptor, Plenum Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4316430AA	Reinforcement, Hood Striker Plate, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4316431AA	Reinforcement, Hood Striker Plate, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43199901AA	Nutplate, M6 Headlamp Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD4316185AC	Extrusion, Front Wing LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DD4316184AC	Extrusion, Front Wing RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4317F790BA	Nutplate, Shotgun, M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4318178BA	Bracket, Gas Damper Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4316A681AA	Reinforcement, Hood Hinge on Body, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4316A682AA	Reinforcement, Hood Hinge on Body, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02660AB	Pillar, Front Body Lower Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02661AB	Pillar, Front Body Lower Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02662AB	Extrusion, Front Body Pillar Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02663AB	Extrusion, Front Body Pillar Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33486226AA	Nutplate, M8, IP beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111C61AE	Panel, Dummy Floor Front, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111B48AB	Panel, Dummy Floor Cover, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG43F292650AC	Plenum, Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG43C03014AB	Frame Assembly, Windshield	EG43C03014AB Frame Assembly, Windshield From 14MY. Structural. Cat A Only	-	1	Enquire
-	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD Structural. Cat A Only	-	1	Enquire
1	DG43C03014AF	Frame Assembly, Windshield	DG43C03014AF Frame Assembly, Windshield Up to 14MY. Structural. Cat A Only	-	1	Enquire
2	GOGG33F02526AA	REINF FRT BDY PLR	GOGG33F02526AA REINF FRT BDY PLR Structural. Cat A Only	-	1	Enquire
3	GOAG33F02527AB	Reinforced front body pillar, LH	GOAG33F02527AB Reinforced front body pillar, LH Structural. Cat A Only	-	1	Enquire
4	DG43C513A07BA	REINF RF SD RL RH	DG43C513A07BA REINF RF SD RL RH Structural. Cat A Only	-	1	Enquire
5	DG43C513A08BA	REINF RF SD RL LH	DG43C513A08BA REINF RF SD RL LH Structural. Cat A Only	-	1	Enquire
6	9G4390907AA	Barrel Nut, M6	9G4390907AA Barrel Nut, M6 1 per Rail	-	2	Enquire
7	GODG43C42220BA	Frame, Back Window, Upper	GODG43C42220BA Frame, Back Window, Upper Structural. Cat A Only	-	1	Enquire
8	GODD4371023AE	Cowl, Reinforcement Casting	GODD4371023AE Cowl, Reinforcement Casting Structural. Cat A Only	-	1	Enquire
9	GODG4319414AA	Adaptor, Plenum Lower, RH	GODG4319414AA Adaptor, Plenum Lower, RH Structural. Cat A Only	-	1	Enquire
10	GODG4319415AA	Adaptor, Plenum Lower, LH	GODG4319415AA Adaptor, Plenum Lower, LH Structural. Cat A Only	-	1	Enquire
11	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head	-	2	Enquire
12	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	A/R	Enquire
13	DG4316430AA	Reinforcement, Hood Striker Plate, RH	DG4316430AA Reinforcement, Hood Striker Plate, RH Structural. Cat A Only	-	1	Enquire
14	DG4316431AA	Reinforcement, Hood Striker Plate, LH	DG4316431AA Reinforcement, Hood Striker Plate, LH Structural. Cat A Only	-	1	Enquire
15	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni 4 per Striker Plate	-	8	Enquire
16	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni 2 per Striker Plate	-	4	Enquire
17	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket Structural. Cat A Only	-	2	Enquire
18	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET 2 per Nutplate	-	4	Enquire
19	DD4316185AC	Extrusion, Front Wing LH	DD4316185AC Extrusion, Front Wing LH Structural. Cat A Only	-	1	Enquire
20	DD4316184AC	Extrusion, Front Wing RH	DD4316184AC Extrusion, Front Wing RH Structural. Cat A Only	-	1	Enquire
21	GODG4317F790BA	Nutplate, Shotgun, M10	GODG4317F790BA Nutplate, Shotgun, M10 Structural. Cat A Only	-	2	Enquire
22	DG4318178BA	Bracket, Gas Damper Mounting	DG4318178BA Bracket, Gas Damper Mounting Structural. Cat A Only	-	2	Enquire
23	DG4316A681AA	Reinforcement, Hood Hinge on Body, RH	DG4316A681AA Reinforcement, Hood Hinge on Body, RH Structural. Cat A Only	-	1	Enquire
24	DG4316A682AA	Reinforcement, Hood Hinge on Body, LH	DG4316A682AA Reinforcement, Hood Hinge on Body, LH Structural. Cat A Only	-	1	Enquire
25	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	6	Enquire
26	GOAG33F02660AB	Pillar, Front Body Lower Front, RH	GOAG33F02660AB Pillar, Front Body Lower Front, RH Structural. Cat A Only	-	1	Enquire
27	GOAG33F02661AB	Pillar, Front Body Lower Front, LH	GOAG33F02661AB Pillar, Front Body Lower Front, LH Structural. Cat A Only	-	1	Enquire
28	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural. Cat A Only	-	1	Enquire
29	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH Structural. Cat A Only	-	1	Enquire
30	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural. Cat A Only	-	1	Enquire
31	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	6G3315111AA Nutplate, A Post Hinge, Upper, LH Structural. Cat A Only	-	1	Enquire
32	GOAG33F02662AB	Extrusion, Front Body Pillar Lower, RH	GOAG33F02662AB Extrusion, Front Body Pillar Lower, RH Structural. Cat A Only	-	1	Enquire
33	GOAG33F02663AB	Extrusion, Front Body Pillar Lower, LH	GOAG33F02663AB Extrusion, Front Body Pillar Lower, LH Structural. Cat A Only	-	1	Enquire
34	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural. Cat A Only	-	2	Enquire
35	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD Structural. Cat A Only	-	1	Enquire
36	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	12	Enquire
37	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	2	Enquire
38	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front Structural. Cat A Only	-	1	Enquire
39	GODG43F292650AC	Plenum, Lower	GODG43F292650AC Plenum, Lower Structural. Cat A Only	-	1	Enquire
40	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	-	2	Enquire
