Find Your Part

View All

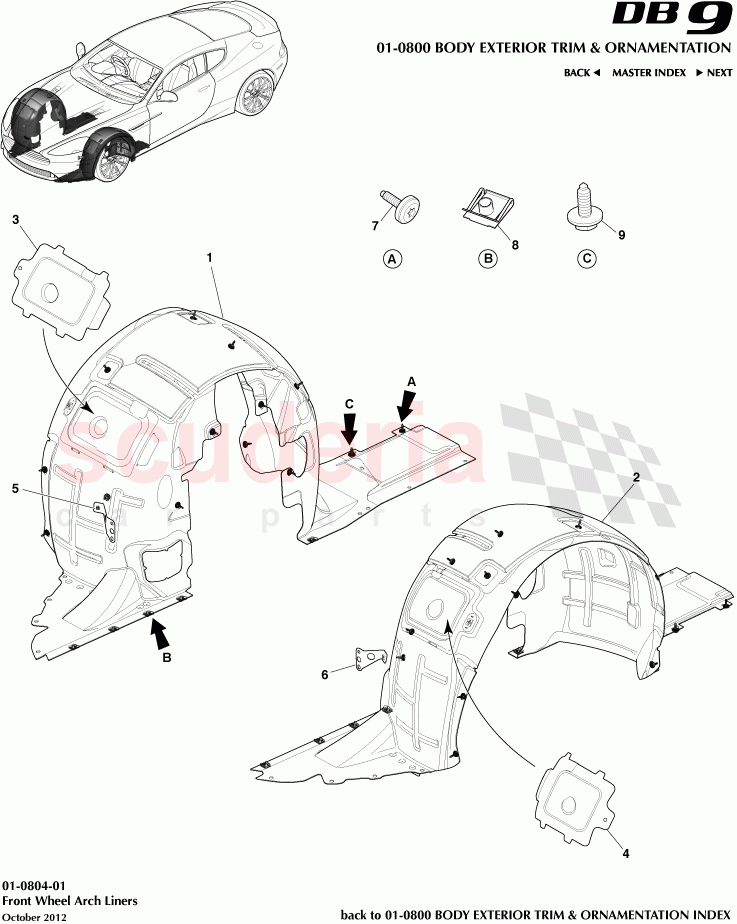

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG43166562AC	FRONT WHEEL ARCH LINER RH	$948.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG43166563AC	FRT W/ARCH LINER LH	$948.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33166572AA	Bracket, Front Wheel Arch Liner, RH	$42.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D33166573AA	Bracket, Front Wheel Arch Liner, LH	$42.09	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	$10.55	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CG43166562AC	FRONT WHEEL ARCH LINER RH IN STOCK	CG43166562AC FRONT WHEEL ARCH LINER RH IN STOCK	$948.59	1
2	CG43166563AC	FRT W/ARCH LINER LH IN STOCK	CG43166563AC FRT W/ARCH LINER LH IN STOCK	$948.59	1
3	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	Enquire
5	8D33166572AA	Bracket, Front Wheel Arch Liner, RH IN STOCK	8D33166572AA Bracket, Front Wheel Arch Liner, RH IN STOCK	$42.09	1
6	8D33166573AA	Bracket, Front Wheel Arch Liner, LH	8D33166573AA Bracket, Front Wheel Arch Liner, LH	$42.09	1
7	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) 12 per liner, 20 per pack IN STOCK	$21.68	24
8	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 5 per liner, 10 per pack IN STOCK	$10.29	10
9	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) 3 per liner	$10.55	6
