Wipers and Washers of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Wipers and Washers

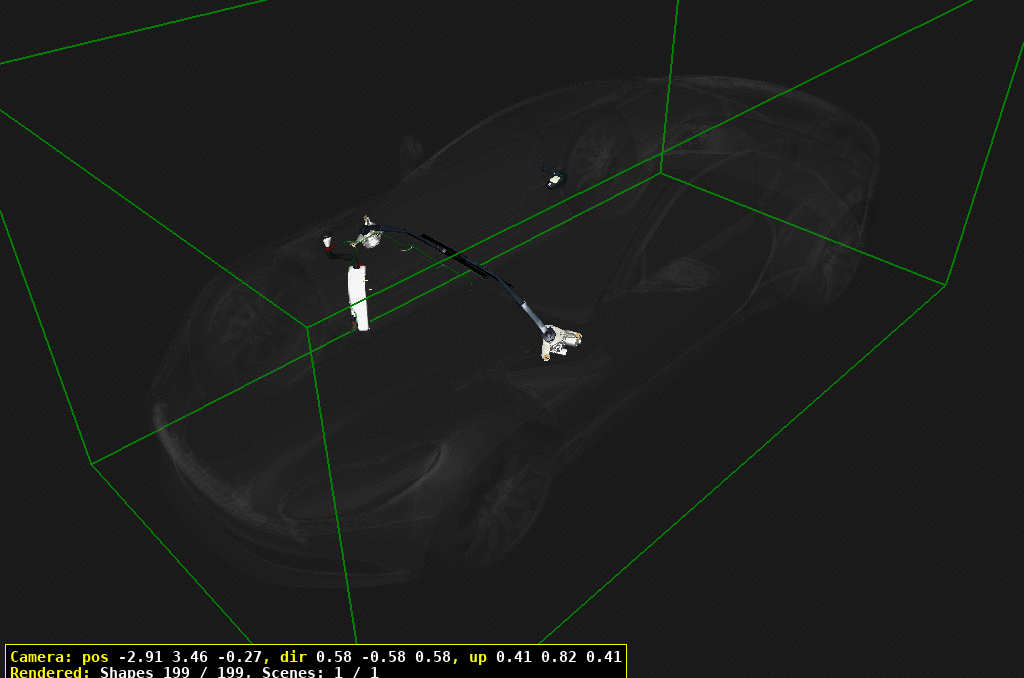

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
10	HY5317503AB	WPR MTR ASY LH	HY5317503AB WPR MTR ASY LH -> VIN L07234	-	1	Enquire
11	KY6317503AB	WPR MTR ASY LH	KY6317503AB WPR MTR ASY LH VIN L07235->	-	1	Enquire
20	HY5317504AB	WPR MTR ASY RH	HY5317504AB WPR MTR ASY RH -> VIN L07234	-	1	Enquire
21	KY6317504AB	WPR MTR ASY RH	KY6317504AB WPR MTR ASY RH VIN L07235->	-	1	Enquire
30	HY5317527AA	ARM ASY LHS	HY5317527AA ARM ASY LHS -> VIN L07234	-	1	Enquire
31	KY6317527AA	WIPER ARM ASY-LHS	KY6317527AA WIPER ARM ASY-LHS VIN L07235->	-	1	Enquire
40	HY5317526AA	ARM ASY RHS	HY5317526AA ARM ASY RHS -> VIN L07234	-	1	Enquire
41	KY6317526AA	WIPER ARM ASY-RHS	KY6317526AA WIPER ARM ASY-RHS VIN L07235->	-	1	Enquire
50	HY5317528AB	WIPER BLADE RH ARRIVING SOON	HY5317528AB WIPER BLADE RH -> VIN L07234 ARRIVING SOON	-	1	Enquire
51	KY633710029	WINDSCREEN WIPER BLADE RH/LH	KY633710029 WINDSCREEN WIPER BLADE RH/LH Pair, VIN L07235->	-	1	Enquire
60	HY5317529AB	WIPER BLADE LH ARRIVING SOON	HY5317529AB WIPER BLADE LH -> VIN L07234 ARRIVING SOON	-	1	Enquire
61	KY633710029	WINDSCREEN WIPER BLADE RH/LH	KY633710029 WINDSCREEN WIPER BLADE RH/LH Pair, VIN L07235->	-	1	Enquire
70	HY5317K451AA	SPINDLE CAP	HY5317K451AA SPINDLE CAP	-	2	Enquire
80	703160	NUT M10 HEX FLANGE CHROME FREE	703160 NUT M10 HEX FLANGE CHROME FREE	-	2	Enquire
90	707157	SCRW & WSHR-M6 x 30	707157 SCRW & WSHR-M6 x 30	-	6	Enquire
100	KY6317B424AA	WIPER ARM RESTRICTOR	KY6317B424AA WIPER ARM RESTRICTOR	-	2	Enquire
200	HY5317B612AC	WINDSCREEN WASHER TANK & MOTOR	HY5317B612AC WINDSCREEN WASHER TANK & MOTOR Includes items 210-240and Level Sensor	-	1	Enquire
210	HY537B671AA	WASHER PUMP & GROMMET	HY537B671AA WASHER PUMP & GROMMET	-	1	Enquire
220	HY538976AA	DOGA NON-RETRN VALVE	HY538976AA DOGA NON-RETRN VALVE	-	1	Enquire
230	HY538B533AA	WASHER PUMP CLIP	HY538B533AA WASHER PUMP CLIP	-	1	Enquire
240	HY5317A421AA	WASH TUBE BOTTLE SD	HY5317A421AA WASH TUBE BOTTLE SD	-	1	Enquire
250	702518	CLIP 8.0X11 PIPE EDGE STL	702518 CLIP 8.0X11 PIPE EDGE STL	-	1	Enquire
260	HY5317R605AA	TUB ASY W/S WSH LFSC	HY5317R605AA TUB ASY W/S WSH LFSC	-	1	Enquire
270	HY5317666AA	JET ASSY W/S WSHR	HY5317666AA JET ASSY W/S WSHR	-	3	Enquire
280	HY5313K175AA	WSHR FIL NECK ASY	HY5313K175AA WSHR FIL NECK ASY	-	1	Enquire
290	HY5314B473AA	PLASTIC HOSE CLIP	HY5314B473AA PLASTIC HOSE CLIP	-	1	Enquire
300	702839	SCREW & WASHER M6x20	702839 SCREW & WASHER M6x20	-	3	Enquire
400	HY53519A60BB	RAIN SENSOR COVER	HY53519A60BB RAIN SENSOR COVER RHD	-	1	Enquire
401	HY53519A60AB	RAIN SENSOR COVER	HY53519A60AB RAIN SENSOR COVER LHD	-	1	Enquire
410	HY53SE17D547AA	LIGHT/RAIN SENSOR	HY53SE17D547AA LIGHT/RAIN SENSOR	-	1	Enquire
420	702520	CLIP 8.5x16x1.7 TRIM	702520 CLIP 8.5x16x1.7 TRIM	-	2	Enquire
