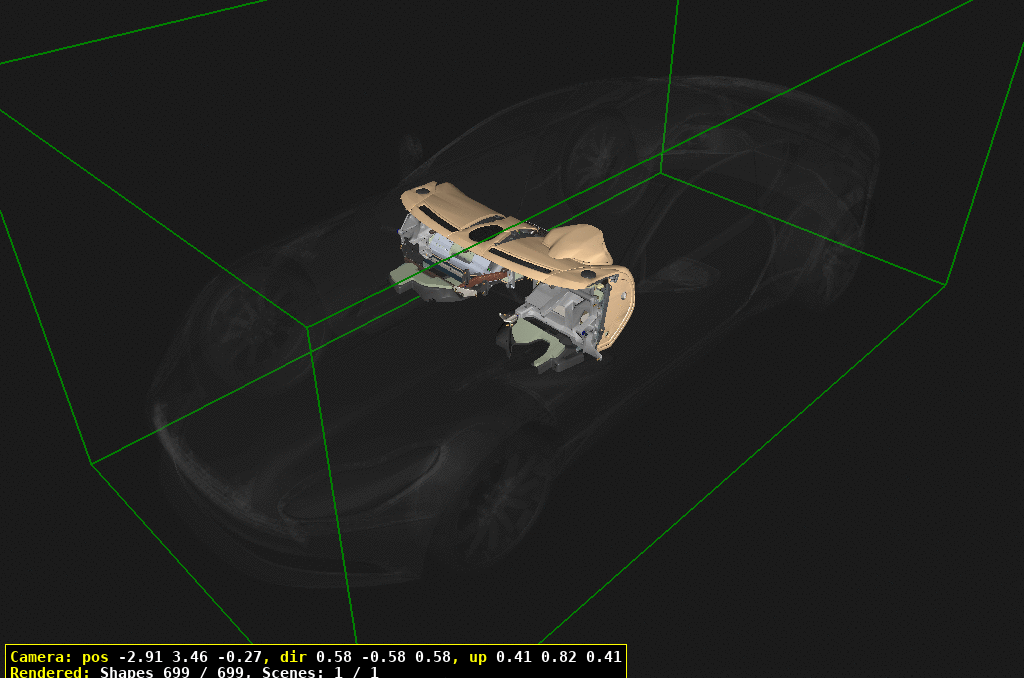

Aston Martin GT DB11 (2017-2023) - Instrument Panel - 22MY on

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	1	Enquire
20	HY53044B51DE	CRS CAR BEAM ASY LHD	HY53044B51DE CRS CAR BEAM ASY LHD LHD, includes item 280.See Service BulletinSB-01-1011	-	1	Enquire
21	HY53044B51CE	CRS CAR BEAM ASY RHD	HY53044B51CE CRS CAR BEAM ASY RHD RHD. See Service BulletinSB-01-1011	-	1	Enquire
40	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	8	Enquire
50	HY53043D45AB	HVAC UNIT SUPT BRKT	HY53043D45AB HVAC UNIT SUPT BRKT	-	1	Enquire
60	707126	BOLT-M8 x 50 HEX FLG	707126 BOLT-M8 x 50 HEX FLG	-	4	Enquire
70	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
80	703195	SCREW M8x40 FLG 8 CHROME FREE	703195 SCREW M8x40 FLG 8 CHROME FREE	-	2	Enquire
90	HY53N606544AA	BOLT M8X55	HY53N606544AA BOLT M8X55	-	2	Enquire
100	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	2	Enquire
110	HY536542BB	DRV END PNL BRKT LHD	HY536542BB DRV END PNL BRKT LHD LHD	-	1	Enquire
111	HY536542AB	DRV END PNL BRKT RHD	HY536542AB DRV END PNL BRKT RHD RHD	-	1	Enquire
120	HY5318K587BB	X-CAR BM PLNM BRACE	HY5318K587BB X-CAR BM PLNM BRACE LHD	-	1	Enquire
121	HY5318K587AB	X-CAR BM PLNM BRACE	HY5318K587AB X-CAR BM PLNM BRACE RHD	-	1	Enquire
130	6G33E826A80DA	M8 FLEXITOL ADJUSTER NUT	6G33E826A80DA M8 FLEXITOL ADJUSTER NUT	-	2	Enquire
140	HY53044J04AB	DRV ENR ABS BRKT	HY53044J04AB DRV ENR ABS BRKT	-	2	Enquire
150	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	-	8	Enquire
160	HY53042K50BA	TNL MNT BRKT LHS	HY53042K50BA TNL MNT BRKT LHS LHD.Includes item 180	-	1	Enquire
161	HY53042K50AA	TNL MNT BRKT RHS	HY53042K50AA TNL MNT BRKT RHS RHD.Includes item 180	-	1	Enquire
170	6G33E826A80DA	M8 FLEXITOL ADJUSTER NUT	6G33E826A80DA M8 FLEXITOL ADJUSTER NUT	-	1	Enquire
180	HY53042K51BB	TNL MNTG BRKT RHS	HY53042K51BB TNL MNTG BRKT RHS LHD.Includes item 200	-	1	Enquire
181	HY53042K51AB	TNL MNTG BRKT LHS	HY53042K51AB TNL MNTG BRKT LHS RHD.Includes item 200	-	1	Enquire
200	6G33E826A80DA	M8 FLEXITOL ADJUSTER NUT	6G33E826A80DA M8 FLEXITOL ADJUSTER NUT	-	1	Enquire
210	HY5318K529AB	HVAC MNTG PIN	HY5318K529AB HVAC MNTG PIN	-	1	Enquire
220	HY533114AB	HVAC PIN GASKET	HY533114AB HVAC PIN GASKET	-	2	Enquire
230	HY53C8A254AA	HVAC BLANKING PLATE	HY53C8A254AA HVAC BLANKING PLATE	-	1	Enquire
240	HY533F659AA	STR COL SUPT ADAPT	HY533F659AA STR COL SUPT ADAPT	-	1	Enquire
250	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
260	HY53E826A80AA	M8 FLEXITOL	HY53E826A80AA M8 FLEXITOL	-	2	Enquire
270	HY5318659AB	PLENUM IP LCTOR CUP	HY5318659AB PLENUM IP LCTOR CUP	-	3	Enquire
280	HY53204A45DB	PAS K/BG SPT BRK IN	HY53204A45DB PAS K/BG SPT BRK IN Federal, Passenger SideSee Service BulletinSB-01-1011	-	1	Enquire
300	NY5304791AAW	IP UPR MAIN ASSY LHD	NY5304791AAW IP UPR MAIN ASSY LHD LHD, Haircell, PremiumAudio	-	1	Enquire
301	NY5304791EAW	IP UPR MAIN ASSY LHD	NY5304791EAW IP UPR MAIN ASSY LHD LHD, Semi Aniline,Premium Audio	-	1	Enquire
303	NY5304790AAW	IP UPR MAIN ASSY RHD	NY5304790AAW IP UPR MAIN ASSY RHD RHD, Haircell, PremiumAudio	-	1	Enquire
304	NY5304790EAW	IP UPR MAIN ASSY RHD	NY5304790EAW IP UPR MAIN ASSY RHD RHD, Semi Aniline,Premium Audio	-	1	Enquire
306	NY5304793AAW	IP UPR MAIN ASSY LHD	NY5304793AAW IP UPR MAIN ASSY LHD LHD, Haircell, Base Audio	-	1	Enquire
307	SY8318C808AD	BASE AMPLIFIER	SY8318C808AD BASE AMPLIFIER LHD, Semi Aniline, BaseAudio	-	1	Enquire
309	SY7YC04632ABW	DRVR SD OTR UPR FRT	SY7YC04632ABW DRVR SD OTR UPR FRT RHD, Haircell, Base Audio	-	1	Enquire
310	NY5304792EAW	IP UPR MAIN ASSY RHD	NY5304792EAW IP UPR MAIN ASSY RHD RHD, Semi Aniline, BaseAudio	-	1	Enquire
320	13A5522CP	Longitudinal Crash Structure - Front - LH	13A5522CP Longitudinal Crash Structure - Front - LH Part 300-310 includesitems 330-420	$1,649.60	-
330	HY5348181AB	IP TOP PAD NVH INS R	HY5348181AB IP TOP PAD NVH INS R Premium Audio	-	1	Enquire
331	HY5348181BA	IP TOP PAD NVH INS L	HY5348181BA IP TOP PAD NVH INS L Base Audio	-	1	Enquire
340	HY5340412AA	SCREW 4.5X12 PAN TAP	HY5340412AA SCREW 4.5X12 PAN TAP	-	4	Enquire
350	HY5340412AA	SCREW 4.5X12 PAN TAP	HY5340412AA SCREW 4.5X12 PAN TAP	-	20	Enquire
360	HY5319643AA	FM SE HVAC DCT	HY5319643AA FM SE HVAC DCT	-	2	Enquire
370	HY5304432AB	WSCRN DFRST DCT RHS	HY5304432AB WSCRN DFRST DCT RHS	-	1	Enquire
380	HY5304433AB	WSCRN DFRST DCT LHS	HY5304433AB WSCRN DFRST DCT LHS	-	1	Enquire
390	HY53018W51AA	WSCRN DFST DCT INFL	HY53018W51AA WSCRN DFST DCT INFL	-	1	Enquire
400	HY53018W50AA	WSCRN DFST DCT INFL	HY53018W50AA WSCRN DFST DCT INFL	-	1	Enquire
410	HY530410AA	SCREW 3.5X12 PAN TAP	HY530410AA SCREW 3.5X12 PAN TAP	-	12	Enquire
420	HY53E603123AA	4X12 TRX PN HD DT PT	HY53E603123AA 4X12 TRX PN HD DT PT	-	10	Enquire
430	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	2	Enquire
440	HY5340412AA	SCREW 4.5X12 PAN TAP	HY5340412AA SCREW 4.5X12 PAN TAP	-	2	Enquire
450	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	4	Enquire
460	HY53044M26BA	IP UPR CTR SUPT BRKT	HY53044M26BA IP UPR CTR SUPT BRKT Plastic	-	1	Enquire
470	HY53V19E659BA	SIDE DEMIST DUCT SUP	HY53V19E659BA SIDE DEMIST DUCT SUP Plastic	-	1	Enquire
480	HY53V19E658BA	SIDE DEMIST DUCT SUP	HY53V19E658BA SIDE DEMIST DUCT SUP Plastic	-	1	Enquire
490	HY5318C490AA	WSCRN DFRST GRILLE	HY5318C490AA WSCRN DFRST GRILLE	-	2	Enquire
500	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	20	Enquire
510	707626	M6 J NUT	707626 M6 J NUT	-	2	Enquire
520	4G432K175AA	CLIP EXHAUST HT SHLD	4G432K175AA CLIP EXHAUST HT SHLD	-	1	Enquire
530	HY534073ABA	PASS A/BG DR CLMP	HY534073ABA PASS A/BG DR CLMP LHD	-	1	Enquire
531	HY534073AAA	PASS A/BG DR CLMP	HY534073AAA PASS A/BG DR CLMP RHD	-	1	Enquire
540	HY53E603123AA	4X12 TRX PN HD DT PT	HY53E603123AA 4X12 TRX PN HD DT PT	-	12	Enquire
550	HY53043C39AA	OTR REG BZL LH SCHR	HY53043C39AA OTR REG BZL LH SCHR Satin Chrome	-	1	Enquire
551	HY53043C39BA	OTR REG BZL LH DCHR	HY53043C39BA OTR REG BZL LH DCHR Dark Chrome	-	1	Enquire
552	KY63043C39EB	OTR REG BZL LH CARBO	KY63043C39EB OTR REG BZL LH CARBO Carbon	-	1	Enquire
560	JY53046B31AB	AIR REG LH OTR	JY53046B31AB AIR REG LH OTR	-	1	Enquire
570	JY53046B32AB	AIR REG ASSY CTR	JY53046B32AB AIR REG ASSY CTR	-	1	Enquire
580	JY53046B30AB	AIR REG RH OTR	JY53046B30AB AIR REG RH OTR	-	1	Enquire
590	HY5319F648AA	CTR STK REG BZL SCH	HY5319F648AA CTR STK REG BZL SCH Satin Chrome	-	1	Enquire
591	HY5319F648BA	CTR STK REG BZL DCH	HY5319F648BA CTR STK REG BZL DCH Dark Chrome	-	1	Enquire
592	KY7319F648BB	CTR STK REG BZL CARB	KY7319F648BB CTR STK REG BZL CARB Carbon	-	1	Enquire
600	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	8	Enquire
610	HY53C046A26BA	SPKR GRL CTR BLACK	HY53C046A26BA SPKR GRL CTR BLACK B&O	-	1	Enquire
611	HY53601B50BC	SPKR GRL IP CTR RR	HY53601B50BC SPKR GRL IP CTR RR Except B&O, Black	-	1	Enquire
612	HY53601B50DC	SPKR GRL IP CTR RR	HY53601B50DC SPKR GRL IP CTR RR Except B&O, Dark Chrome	-	1	Enquire
650	HY53043C38AA	OTR REG BZL RH SCHR	HY53043C38AA OTR REG BZL RH SCHR Satin Chrome	-	1	Enquire
651	HY53043C38BA	OTR REG BZL RH DCHR	HY53043C38BA OTR REG BZL RH DCHR Dark Chrome	-	1	Enquire
652	KY63043C38EB	OTR REG BZL RH CARBO	KY63043C38EB OTR REG BZL RH CARBO Carbon	-	1	Enquire
660	697564	Retainer, Push On	697564 Retainer, Push On	-	3	Enquire
670	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5	-	7	Enquire
680	HY53016C46BA	IP LWR CL DRV LHD	HY53016C46BA IP LWR CL DRV LHD LHD	-	1	Enquire
681	HY53016C46AA	IP LWR CL DRV RH RHD	HY53016C46AA IP LWR CL DRV RH RHD RHD	-	1	Enquire
690	HY53016C47BA	IP LWR CL PAS LHD	HY53016C47BA IP LWR CL PAS LHD LHD	-	1	Enquire
691	HY53016C47AA	IP LWR CL PAS RHD	HY53016C47AA IP LWR CL PAS RHD RHD	-	1	Enquire
700	702293	Screw, M6 x 12mm, Pan Head	702293 Screw, M6 x 12mm, Pan Head	-	5	Enquire
710	SY6YAS14C547AA	KEYLESS GO MOD BRKT	SY6YAS14C547AA KEYLESS GO MOD BRKT LHD, Haircell	-	1	Enquire
711	NY53044E38EAW	TNL SD DRV LWR LHD	NY53044E38EAW TNL SD DRV LWR LHD LHD, Semi Aniline	-	1	Enquire
712	KY9Y3A052AB	FR LWR W/BONE RH	KY9Y3A052AB FR LWR W/BONE RH RHD, Haircell	-	1	Enquire
713	NY53044E36EAW	TNL SD DRV LWR RHD	NY53044E36EAW TNL SD DRV LWR RHD RHD, Semi Aniline	-	1	Enquire
720	KY6360K51BA	PLT DRV KN PRTCT LHD	KY6360K51BA PLT DRV KN PRTCT LHD LHD, Driver	-	1	Enquire
721	HY5360K51AB	PLT DRV KN PRTCT	HY5360K51AB PLT DRV KN PRTCT RHD, Driver	-	1	Enquire
730	SY9Y10007BB	DRIVER DOOR OPEN SD	SY9Y10007BB DRIVER DOOR OPEN SD LHD, Haircell	-	1	Enquire
731	NY53044E39EAW	TNL SD PASS ASY LHD	NY53044E39EAW TNL SD PASS ASY LHD LHD, Semi Aniline	-	1	Enquire
732	SY9Y14630AB	DR HRN COUPE LHS	SY9Y14630AB DR HRN COUPE LHS RHD, Haircell	-	1	Enquire
733	NY53044E37EAW	TNL SD PASS ASY RHD	NY53044E37EAW TNL SD PASS ASY RHD RHD, Semi Aniline	-	1	Enquire
740	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	5	Enquire
760	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	8	Enquire
770	NY5304319AAW	IP ED PNL ASY SWTCH	NY5304319AAW IP ED PNL ASY SWTCH Haircell	-	1	Enquire
771	NY5304319EAW	IP ED PNL ASY SWTCH	NY5304319EAW IP ED PNL ASY SWTCH Semi Aniline	-	1	Enquire
772	TY7Y54279L22AB	RR W/ARCH LINER RH	TY7Y54279L22AB RR W/ARCH LINER RH Nappa PVC	-	1	Enquire
773	KY9Y3084AC	FR UPP W/BONE ASY RH	KY9Y3084AC FR UPP W/BONE ASY RH Haircell	-	1	Enquire
774	8521406170	RUBBER-WIPER LH	8521406170 RUBBER-WIPER LH Semi Aniline	-	1	Enquire
775	SY83278G14BB	FRONT BUMPER REINFOR	SY83278G14BB FRONT BUMPER REINFOR Nappa PVC	-	1	Enquire
776	708777	P/SMPL-AM RACING GRN	708777 P/SMPL-AM RACING GRN Haircell	-	1	Enquire
777	RY63C043C92CB	IP UPR BRW DRVR CRBN	RY63C043C92CB IP UPR BRW DRVR CRBN Semi Aniline	-	1	Enquire
778	1745123043	GASKET-EXH PIPE	1745123043 GASKET-EXH PIPE Nappa PVC	-	1	Enquire
780	NY5304318AAW	IP ED PNL ASY SW RHS	NY5304318AAW IP ED PNL ASY SW RHS Haircell	-	1	Enquire
781	NY5304318EAW	IP ED PNL ASY SW RHS	NY5304318EAW IP ED PNL ASY SW RHS Semi Aniline	-	1	Enquire
782	HY533N807AA	TRACK ROD END L/NUT	HY533N807AA TRACK ROD END L/NUT Nappa PVC	-	1	Enquire
783	RY6328111AB	NVH FENDER BFL LH	RY6328111AB NVH FENDER BFL LH Haircell	-	1	Enquire
784	RY6328110AB	NVH FENDER BFL RH	RY6328110AB NVH FENDER BFL RH Semi Aniline	-	1	Enquire
785	SY7Y973268AA	LBL-VECI SPORTS V8	SY7Y973268AA LBL-VECI SPORTS V8 Nappa PVC	-	1	Enquire
786	LY73973407AA	CERT VIN BCDE US	LY73973407AA CERT VIN BCDE US Haircell	-	1	Enquire
787	NY5304316EAW	IP END PNL ASY RHS	NY5304316EAW IP END PNL ASY RHS Semi Aniline	-	1	Enquire
788	SY83226A10AB	REL LVR CUP	SY83226A10AB REL LVR CUP Nappa PVC	-	1	Enquire
790	KY6360K52BA	PLT PSGR KN PRTR LHD	KY6360K52BA PLT PSGR KN PRTR LHD LHD, Passenger, RoW	-	1	Enquire
791	KY6360K52AA	PLT PSGR KN PRTR RHD	KY6360K52AA PLT PSGR KN PRTR RHD RHD, Passenger	-	1	Enquire
810	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
840	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	2	Enquire
850	MY8348783AD	PCKR FU/TNK LWR LH	MY8348783AD PCKR FU/TNK LWR LH LHD, Haircell, RoW	-	1	Enquire
851	NY53C043K94EAW	PASS SD LWR OTR PNL	NY53C043K94EAW PASS SD LWR OTR PNL LHD, Semi Aniline, RoW	-	1	Enquire
852	RY53973624CA	EMER BRKDWN LBL AUS	RY53973624CA EMER BRKDWN LBL AUS LHD, Haircell, Federal	-	1	Enquire
853	SY7Y020E47AB	LF SCRN END ASY LHS	SY7Y020E47AB LF SCRN END ASY LHS LHD, Semi Aniline,Federal	-	1	Enquire
854	NY53C043K93AAW	PAS SD LWR OTR RHD	NY53C043K93AAW PAS SD LWR OTR RHD RHD, Haircell, RoW	-	1	Enquire
855	NY53C043K93EAW	PAS SD LWR OTR RHD	NY53C043K93EAW PAS SD LWR OTR RHD RHD, Semi Aniline, RoW	-	1	Enquire
860	NY53044G71AAW	DRV SD LWR PNL LHD	NY53044G71AAW DRV SD LWR PNL LHD LHD, Haircell	-	1	Enquire
861	NY53044G71EAW	DRV SD LWR PNL LHD	NY53044G71EAW DRV SD LWR PNL LHD LHD, Semi Aniline	-	1	Enquire
863	NY53044G70AAW	DRV SD LWR PNL RHD	NY53044G70AAW DRV SD LWR PNL RHD RHD, Haircell	-	1	Enquire
864	709594PK	S/R PLT-DB12 S-AMERS	709594PK S/R PLT-DB12 S-AMERS RHD, Semi Aniline	-	1	Enquire
880	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	2	Enquire
890	HY5314002BA	KNEE BAG DEF BRKT	HY5314002BA KNEE BAG DEF BRKT LHD	-	1	Enquire
900	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5	-	1	Enquire
901	KY73844872AA	SCRIVET	KY73844872AA SCRIVET LHD, VIN M10252->	-	1	Enquire
920	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	2	Enquire
930	NY53046B74AAW	IP CTR UPR CLS PNL A	NY53046B74AAW IP CTR UPR CLS PNL A Haircell Leather	-	1	Enquire
931	SY9Y11466AA	OIL COOLER MNT BRAKT	SY9Y11466AA OIL COOLER MNT BRAKT Semi Aniline Leather	-	1	Enquire
932	SY9Y1508EA	SP TYR-FR 285/30R20	SY9Y1508EA SP TYR-FR 285/30R20 Nappa PVC	-	1	Enquire
940	HY5362552AA	HUSH PNL SUPRT BRKT	HY5362552AA HUSH PNL SUPRT BRKT	-	1	Enquire
941	JY5362552BA	HUSH PNL SUPRT BRKT	JY5362552BA HUSH PNL SUPRT BRKT 18.5MY-> LHD	-	1	Enquire
942	JY5362552AA	HUSH PNL SUPRT BRKT	JY5362552AA HUSH PNL SUPRT BRKT 18.5MY-> RHD	-	1	Enquire
950	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
960	HY5300390AA	FILL HUSH PNL PASS	HY5300390AA FILL HUSH PNL PASS	-	1	Enquire
970	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5	-	3	Enquire
990	HY5318C863CB	TWEETER SPK GRILL LH	HY5318C863CB TWEETER SPK GRILL LH Except B&O	-	1	Enquire
1000	HY5318C862CB	TWEETER SPKR GRILL R	HY5318C862CB TWEETER SPKR GRILL R Except B&O	-	1	Enquire
1010	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	11	Enquire
1020	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD	-	1	Enquire
1030	9D3341883AB	PLATE SWITCH BEZEL	9D3341883AB PLATE SWITCH BEZEL	-	1	Enquire
1100	NY53C04606AAW	IP CLSTR OPG BZL	NY53C04606AAW IP CLSTR OPG BZL Haircell Leather	-	1	Enquire
1101	NY53C04606EAW	IP CLSTR OPG BZL	NY53C04606EAW IP CLSTR OPG BZL Semi Aniline Leather	-	1	Enquire
1110	HY53E603123AA	4X12 TRX PN HD DT PT	HY53E603123AA 4X12 TRX PN HD DT PT	-	6	Enquire
1120	707612	SCREW-M4 x 12 PAN HD	707612 SCREW-M4 x 12 PAN HD	-	6	Enquire
1130	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	4	Enquire
1140	707139	SCREW-M3x6 PAN SK BT	707139 SCREW-M3x6 PAN SK BT	-	4	Enquire
1150	702289	SCREW M4x16 THREAD FORMING	702289 SCREW M4x16 THREAD FORMING	-	4	Enquire
1160	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	4	Enquire
1170	HY53045F44AA	CLUSTER JEW RING	HY53045F44AA CLUSTER JEW RING Satin Chrome	-	1	Enquire
1171	HY53045F44BA	CLUSTER JEW RING	HY53045F44BA CLUSTER JEW RING Dark Chrome	-	1	Enquire
1180	NY53045A02AAW	IP CLS BZL TP TR	NY53045A02AAW IP CLS BZL TP TR Haircell Leather	-	1	Enquire
1181	NY53045A02EAW	IP CLS BZL TP TR	NY53045A02EAW IP CLS BZL TP TR Semi Aniline Leather	-	1	Enquire
1190	HY53046B03AC	CLSTR HSNG INR MLDG	HY53046B03AC CLSTR HSNG INR MLDG	-	1	Enquire
1200	HY53046B02AC	CLSTR HSNG INR MLDG	HY53046B02AC CLSTR HSNG INR MLDG	-	1	Enquire
1210	HY53045F34AB	CLSTR JEW RNG OTR	HY53045F34AB CLSTR JEW RNG OTR	-	1	Enquire
1220	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	2	Enquire
