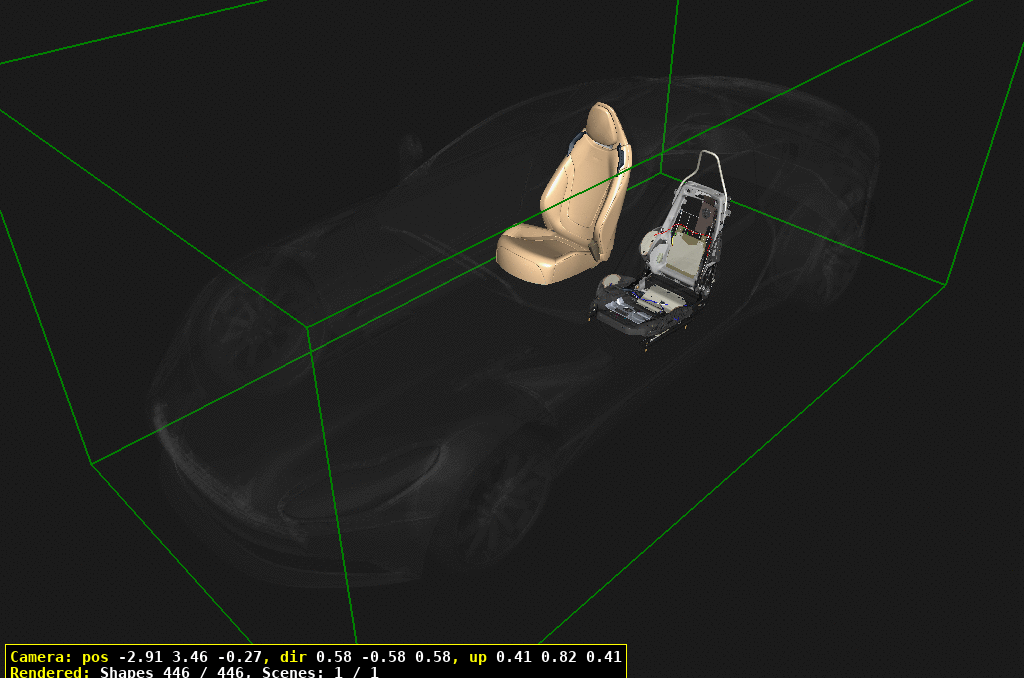

Seating of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Seating

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	13A5522CP	Longitudinal Crash Structure - Front - LH	13A5522CP Longitudinal Crash Structure - Front - LH	$1,649.60	-
2	HY5360008AAW	FRONT SEAT ASSY RH	HY5360008AAW FRONT SEAT ASSY RH Order with VIN	-	1	Enquire
3	HY5360009AAW	FRONT SEAT ASSY LH	HY5360009AAW FRONT SEAT ASSY LH Order with VIN	-	1	Enquire
20	HY534D9513AC	FM ASSY SQB	HY534D9513AC FM ASSY SQB	-	2	Enquire
22	KY634D9513BC	FM ASSY SQB	KY634D9513BC FM ASSY SQB Sports+ Seat	-	2	Enquire
30	HY539515AA	FM ASSY CUSHION	HY539515AA FM ASSY CUSHION -> 21MY	-	2	Enquire
31	HY539515AB	FM ASSY CUSHION	HY539515AB FM ASSY CUSHION 21MY->	-	2	Enquire
32	KY639515BC	FM ASSY CUSHION	KY639515BC FM ASSY CUSHION Sports+ Seat	-	2	Enquire
40	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET For OCS Service Kit,refer to Section 01-20	-	-	Enquire
50	HY5362152BCW	SLD ASY FT ST TG ASY	HY5362152BCW SLD ASY FT ST TG ASY LH, RH Seat	-	1	Enquire
51	HY5362153BCW	SLD ASY FT ST TG ASY	HY5362153BCW SLD ASY FT ST TG ASY RH, LH Seat	-	1	Enquire
60	HY5362152ACW	SLD ASY FT ST TG ASY	HY5362152ACW SLD ASY FT ST TG ASY RH, RH Seat	-	1	Enquire
61	HY5362153ACW	SLD ASY FT ST TG ASY	HY5362153ACW SLD ASY FT ST TG ASY LH, LH Seat	-	1	Enquire
70	HY5366914ACW	FRT ST BK/SHL INS AS	HY5366914ACW FRT ST BK/SHL INS AS Leather Trimmed	-	2	Enquire
71	KY53600E88PA	FRT ST BK PAINT	KY53600E88PA FRT ST BK PAINT Painted Piano Black	-	2	Enquire
72	708676	L/SMPL-BL HAZEMET-SA	708676 L/SMPL-BL HAZEMET-SA -> 19MY, Dark Ash Burl	-	2	Enquire
73	708675	L/SMPL-PHANTOM GRY-S	708675 L/SMPL-PHANTOM GRY-S -> 19MY, Carbon Cuprum	-	2	Enquire
74	SY9Y017A86AC	HUSH PNL LWR DRVR LH	SY9Y017A86AC HUSH PNL LWR DRVR LH LH, Carbon 2x2 Twill	-	1	Enquire
75	KY53600E88FC	FRT ST BK CAR 2X2 RH	KY53600E88FC FRT ST BK CAR 2X2 RH RH, Carbon 2x2 Twill	-	1	Enquire
76	708672	L/SAMPLE-ONYX BLK-SA	708672 L/SAMPLE-ONYX BLK-SA Alutex	-	2	Enquire
77	KY53600E88NC	FT ST BK CHP CAR SAT	KY53600E88NC FT ST BK CHP CAR SAT Chopped Carbon Satin	-	2	Enquire
78	KY53044J50BB	FR ST BK KT TAMOASH	KY53044J50BB FR ST BK KT TAMOASH Tamo Ash	-	1	Enquire
79	708667	TRIM SMPLE-COTE D AZ	708667 TRIM SMPLE-COTE D AZ -> 19.5MY, Tan Lacewood	-	1	Enquire
80	KY53044J50LB	FRT ST BK LIGHT ASH	KY53044J50LB FRT ST BK LIGHT ASH Light Ash Burl	-	1	Enquire
90	HY5366915AFW	FRT ST BK/SHL LWR AS	HY5366915AFW FRT ST BK/SHL LWR AS	-	2	Enquire
91	KY6366915AEW	FRT ST BK/SHL LWR AS	KY6366915AEW FRT ST BK/SHL LWR AS Sport+ Seat	-	2	Enquire
100	HY5362901AAW	CUSHION COVER ASSY	HY5362901AAW CUSHION COVER ASSY LH	-	1	Enquire
101	HY5362900AAW	CUSHION COVER ASSY	HY5362900AAW CUSHION COVER ASSY RH	-	1	Enquire
110	HY5364573AAW	SQUAB COVER ASSY LH	HY5364573AAW SQUAB COVER ASSY LH LH	-	1	Enquire
111	HY5364572AAW	SQUAB COVER ASSY RH	HY5364572AAW SQUAB COVER ASSY RH RH	-	1	Enquire
120	HY53612A94AAW	FRT ST HD RST SPPRT	HY53612A94AAW FRT ST HD RST SPPRT	-	2	Enquire
130	708663	TRIM SMPLE-BISON BRN	708663 TRIM SMPLE-BISON BRN	-	2	Enquire
131	708662	TRIM SMPLE-SAGE GRN	708662 TRIM SMPLE-SAGE GRN Sports+ Seat	-	2	Enquire
140	708651	TRIM SAMPLE-MOCHA	708651 TRIM SAMPLE-MOCHA	-	2	Enquire
150	HY5317C988AAW	VAL FRT ST INR RH	HY5317C988AAW VAL FRT ST INR RH RH Seat	-	1	Enquire
151	HY5317C989AAW	VAL FRT ST INR LH	HY5317C989AAW VAL FRT ST INR LH LH Seat	-	1	Enquire
160	HY53600C64AAW	VAL ASY CUSH RH	HY53600C64AAW VAL ASY CUSH RH RH, RH Seat	-	1	Enquire
161	HY53600C65AAW	VAL ASY CUSH LH	HY53600C65AAW VAL ASY CUSH LH LH, LH Seat	-	1	Enquire
170	HY5364344ACW	REAR BEZEL ASSY	HY5364344ACW REAR BEZEL ASSY	-	2	Enquire
180	HY5361186ACW	FRT ST FRT PNL UPR A	HY5361186ACW FRT ST FRT PNL UPR A	-	2	Enquire
190	HY53621A64ABW	FRT ST REL STRAP RH	HY53621A64ABW FRT ST REL STRAP RH	-	2	Enquire
200	HY53627A24AB	MLD FRT ST SHD RL RH	HY53627A24AB MLD FRT ST SHD RL RH LH	-	1	Enquire
201	HY53627A25AB	MLD FRT ST SHD RL LH	HY53627A25AB MLD FRT ST SHD RL LH RH	-	1	Enquire
220	HY5314D696AB	HTR PAD FRT ST SQB	HY5314D696AB HTR PAD FRT ST SQB	-	2	Enquire
221	KY6314D696AA	HTR PAD FRT ST SQB	KY6314D696AA HTR PAD FRT ST SQB Sports+ Seat	-	2	Enquire
230	HY5314D698AB	HTR PAD FRT ST CSHN	HY5314D698AB HTR PAD FRT ST CSHN	-	2	Enquire
240	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD per seat	-	6	Enquire
250	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE per seat	-	2	Enquire
260	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING per seat	-	2	Enquire
270	DD33487032AA	PUSH ON TRIM CLIP	DD33487032AA PUSH ON TRIM CLIP per seat	-	5	Enquire
280	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING per seat	-	3	Enquire
290	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 per seat	-	2	Enquire
300	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP per seat	-	2	Enquire
310	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING per seat	-	2	Enquire
320	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD per seat	-	2	Enquire
330	707146	SCREW-M5 x 16	707146 SCREW-M5 x 16 per seat	-	4	Enquire
340	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD per seat	-	11	Enquire
350	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING per seat	-	3	Enquire
360	707618	SCREW M6x20 TH/FORMG	707618 SCREW M6x20 TH/FORMG per seat	-	2	Enquire
370	DD33487032AA	PUSH ON TRIM CLIP	DD33487032AA PUSH ON TRIM CLIP per seat	-	8	Enquire
380	SY63120609UB	DUP OWN POL 25MY	SY63120609UB DUP OWN POL 25MY	-	2	Enquire
390	HY53644K79ACW	FLP ASY FRT ST BK BT	HY53644K79ACW FLP ASY FRT ST BK BT	-	1	Enquire
391	HY53644K79BAW	FLP ASY FRT ST BK BT	HY53644K79BAW FLP ASY FRT ST BK BT ISOfix, -> 19MY	-	1	Enquire
400	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH See Section 010501-10	-	1	Enquire
410	KY6363861AA	WINGS SUPT LH	KY6363861AA WINGS SUPT LH Sports+ Seat	-	1	Enquire
420	KY6363860AA	WNGS SPT RH SPT PLS	KY6363860AA WNGS SPT RH SPT PLS Sports+ Seat	-	1	Enquire
430	707121	SCREW-M5 x 12 T/FORM	707121 SCREW-M5 x 12 T/FORM Sports+ Seat	-	4	Enquire
440	HY53600B68AB	ST CLIM ASY CUSH	HY53600B68AB ST CLIM ASY CUSH Climate	-	1	Enquire
441	HY5363222AB	PAD FRT ST CSH	HY5363222AB PAD FRT ST CSH Heated	-	1	Enquire
450	HY53600B70AB	ST CLIM ASY SQUB	HY53600B70AB ST CLIM ASY SQUB Climate	-	1	Enquire
451	KY63600B70AA	ST CLIM ASY SQUB	KY63600B70AA ST CLIM ASY SQUB Climate, Sports+ Seat	-	1	Enquire
452	HY5364868AB	PAD FRT ST SQB	HY5364868AB PAD FRT ST SQB Heated	-	1	Enquire
453	KY6364868AA	PAD FRT ST SQB	KY6364868AA PAD FRT ST SQB Heated, Sports+ Seat	-	1	Enquire
500	707132	BOLT-M10 x40 HEX FLG	707132 BOLT-M10 x40 HEX FLG	-	8	Enquire
510	HY53608A15AF	FRT ST DVR ASY LH	HY53608A15AF FRT ST DVR ASY LH LH, LHD, Standard	-	1	Enquire
511	HY53608A15BC	FRT ST ASY ISO LH	HY53608A15BC FRT ST ASY ISO LH -> VIN L04738, LH, RHD,ISOfix	-	1	Enquire
512	HY53608A15BD	FRT ST ASY ISO LH	HY53608A15BD FRT ST ASY ISO LH VIN L04739-> 21MY, LH,RHD, ISOfix	-	1	Enquire
513	HY53608A15BF	FRT ST ASY ISO LH	HY53608A15BF FRT ST ASY ISO LH 22MY->, LH, RHD, ISOfix	-	1	Enquire
514	HY53608A15CB	FRT ST ASY PAS LH	HY53608A15CB FRT ST ASY PAS LH -> VIN L05162, LH, RHD,Standard	-	1	Enquire
515	HY53608A15CD	FRT ST ASY PAS LH	HY53608A15CD FRT ST ASY PAS LH VIN L05163->, 21MY, LH,RHD, Standard	-	1	Enquire
516	HY53608A15CF	FRT ST ASY PAS LH	HY53608A15CF FRT ST ASY PAS LH 22MY->, LH, RHD, Standard	-	1	Enquire
517	HY53608A15EE	FRT ST DVR ADJ BOL A	HY53608A15EE FRT ST DVR ADJ BOL A LH, LHD, AdjustableBolster	-	1	Enquire
518	HY53608A15FD	FRT ST ASY ISO ADJ B	HY53608A15FD FRT ST ASY ISO ADJ B -> 21MY, LH, RHD, ISOfix& Adjustable Bolster	-	1	Enquire
519	HY53608A15FF	FRT ST ASY ISO ADJ B	HY53608A15FF FRT ST ASY ISO ADJ B 22MY->, LH, RHD, ISOfix &Adjustable Bolster	-	1	Enquire
520	HY53608A15GC	FRT ST ASY PAS ADJ B	HY53608A15GC FRT ST ASY PAS ADJ B -> VIN L04851, LH, RHD,Adjustable Bolster	-	1	Enquire
521	HY53608A15GF	FRT ST ASY PAS ADJ B	HY53608A15GF FRT ST ASY PAS ADJ B VIN L04852->, LH, RHD,Adjustable Bolster	-	-	Enquire
550	HY53608A14AF	FRONT ST DRV ASY RH	HY53608A14AF FRONT ST DRV ASY RH RH, RHD, Standard	-	1	Enquire
551	HY53608A14BB	FRT ST ASY ISO RH	HY53608A14BB FRT ST ASY ISO RH -> VIN L01850, RH, LHD,ISOfix	-	1	Enquire
552	HY53608A14BC	FRT ST ASY ISO RH	HY53608A14BC FRT ST ASY ISO RH VIN L01851-> L05268, RH,LHD, ISOfix	-	1	Enquire
553	HY53608A14BD	FRT ST ASY ISO RH	HY53608A14BD FRT ST ASY ISO RH VIN L05269-> 21MY, RH,LHD, ISOfix	-	1	Enquire
554	HY53608A14BF	FRT ST ASY ISO RH	HY53608A14BF FRT ST ASY ISO RH 22MY->, RH, LHD, ISOfix	-	1	Enquire
555	HY53608A14CD	FRT ST ASY PAS RH	HY53608A14CD FRT ST ASY PAS RH -> 21MY, RH, LHD,Standard	-	1	Enquire
556	HY53608A14CF	FRT ST ASY PAS RH	HY53608A14CF FRT ST ASY PAS RH 22MY->, RH, LHD, Standard	-	1	Enquire
557	HY53608A14DC	FRT ST ASY TOP TEHR	HY53608A14DC FRT ST ASY TOP TEHR -> VIN L04689, RH, LHD,with Top Tether	-	1	Enquire
558	HY53608A14DE	FRT ST ASY TOP TEHR	HY53608A14DE FRT ST ASY TOP TEHR VIN L04690-> 21MY, RH,LHD, with Top Tether	-	1	Enquire
559	HY53608A14DF	FRT ST ASY TOP TEHR	HY53608A14DF FRT ST ASY TOP TEHR 22MY->, RH, LHD, with TopTether	-	1	Enquire
560	HY53608A14EC	FRT ST DVR ADJ BOL A	HY53608A14EC FRT ST DVR ADJ BOL A -> VIN L04847, RH, RHD,Adjustable Bolster	-	1	Enquire
561	HY53608A14EF	FRT ST DVR ADJ BOL A	HY53608A14EF FRT ST DVR ADJ BOL A VIN L04848->, RH, RHD,Adjustable Bolster	-	1	Enquire
562	HY53608A14FD	FRT ST ASY ISO ADJ B	HY53608A14FD FRT ST ASY ISO ADJ B -> 21MY, RH, LHD, ISOfix& Adjustable Bolster	-	1	Enquire
563	HY53608A14FF	FRT ST ASY ISO ADJ B	HY53608A14FF FRT ST ASY ISO ADJ B 22MY->, RH, LHD, ISOfix &Adjustable Bolster	-	1	Enquire
564	HY53608A14GF	FRT ST ASY PAS ADJ B	HY53608A14GF FRT ST ASY PAS ADJ B RH, LHD, AdjustableBolster	-	1	Enquire
565	HY53608A14HC	FRT ST ASY TOP TEHR	HY53608A14HC FRT ST ASY TOP TEHR -> VIN L05165, RH, LHD,with Top Tether &Adjustable Bolster	-	1	Enquire
566	HY53608A14HF	FRT ST ASY TOP TEHR	HY53608A14HF FRT ST ASY TOP TEHR VIN L05166->, RH, LHD,with Top Tether &Adjustable Bolster	-	1	Enquire
600	HY5314B684AB	WIR ASY FRT ST RH	HY5314B684AB WIR ASY FRT ST RH -> 21MY	-	1	Enquire
601	MY8314B684AA	WIR ASY FRT ST RH	MY8314B684AA WIR ASY FRT ST RH 21MY->	-	1	Enquire
602	HY5314B683AA	WIR ASY FRT ST LH	HY5314B683AA WIR ASY FRT ST LH -> 21MY	-	1	Enquire
603	MY8314B683AA	WIR ASY FRT ST LH	MY8314B683AA WIR ASY FRT ST LH 21MY->	-	1	Enquire
610	HY53629B01AA	ST TRK END CP FRT	HY53629B01AA ST TRK END CP FRT	-	3	Enquire
620	HY53629B03AA	ST TRK END CP RR	HY53629B03AA ST TRK END CP RR	-	1	Enquire
630	HY53XC471045AA	ECU BRACKET	HY53XC471045AA ECU BRACKET	-	2	Enquire
640	HY53SE14C249AA	DRIVER SEAT MODULE	HY53SE14C249AA DRIVER SEAT MODULE	-	1	Enquire
650	HY53SE14C249BA	PASS SEAT MODULE	HY53SE14C249BA PASS SEAT MODULE	-	1	Enquire
700	HY5363550AA	BLSTR BLDR FRT ST	HY5363550AA BLSTR BLDR FRT ST	-	1	Enquire
701	HY53603B16AA	BLDR ASY ST SQUB	HY53603B16AA BLDR ASY ST SQUB	-	1	Enquire
730	HY53631B86AB	FRONT SEAT SQUAB FAN	HY53631B86AB FRONT SEAT SQUAB FAN Climate	-	1	Enquire
740	HY538632AB	FRT ST CSHN FAN	HY538632AB FRT ST CSHN FAN Climate	-	1	Enquire
750	HY5314B426AA	SNS ST TCK PSN	HY5314B426AA SNS ST TCK PSN	-	1	Enquire
