Handles and Lock Mechanisms of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Handles and Lock Mechanisms

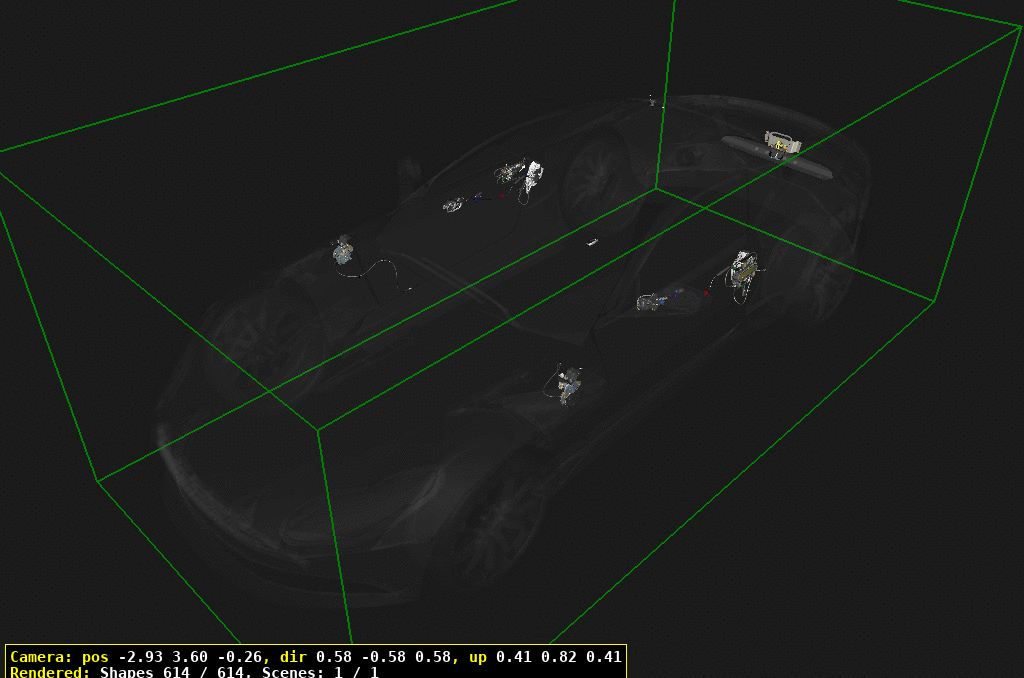

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	HY5316700AG	ASSY HOOD LATCH	HY5316700AG ASSY HOOD LATCH	-	2	Enquire
20	HY5316K689AB	STRIKER BONNET LH	HY5316K689AB STRIKER BONNET LH	-	1	Enquire
30	HY5316K688AA	STRIKER BONNET RH	HY5316K688AA STRIKER BONNET RH	-	1	Enquire
40	HY5352369AA	BONNET STRIK GUID LH	HY5352369AA BONNET STRIK GUID LH No Longer Serviced	-	1	Enquire
50	HY5352368AA	BONNET STRIK GUID RH	HY5352368AA BONNET STRIK GUID RH No Longer Serviced	-	1	Enquire
60	HY5311748AA	BRKT BON LATCH REINF	HY5311748AA BRKT BON LATCH REINF	-	2	Enquire
70	700610	SCREW M8x25 FLAT CSK PIL 10.9 IN STOCK	700610 SCREW M8x25 FLAT CSK PIL 10.9 IN STOCK	-	14	Enquire
80	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	-	4	Enquire
90	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking IN STOCK	-	6	Enquire
100	HY53F22050AF	LOCKSET	HY53F22050AF LOCKSET Includes Item 111	-	1	Enquire
110	HY53654024AC	EMR KEY BLADE	HY53654024AC EMR KEY BLADE -> VIN M11910	-	1	Enquire
111	MY83654024AB	EMR KEY BLADE	MY83654024AB EMR KEY BLADE VIN M11911->	-	1	Enquire
120	HY53226A14AB	BZL INT HNDL	HY53226A14AB BZL INT HNDL -> VIN L03176, Chrome	-	2	Enquire
121	JY53226A14BA	BZL INT HNDL	JY53226A14BA BZL INT HNDL VIN L03177->, SatinSilver	-	2	Enquire
122	JY53226A14CA	BZL INT HNDL	JY53226A14CA BZL INT HNDL VIN L03179->, Dark Chrome	-	2	Enquire
130	HY5322615AG	HND MCH DR IN FRT LH	HY5322615AG HND MCH DR IN FRT LH -> VIN L08716, SatinSilver	-	1	Enquire
131	HY5322615AH	HND MCH DR IN FRT LH	HY5322615AH HND MCH DR IN FRT LH VIN L08718->, SatinSilver	-	1	Enquire
132	HY5322615BG	HND MC DR IN FRT DRK	HY5322615BG HND MC DR IN FRT DRK -> VIN L08716, DarkChrome	-	1	Enquire
133	HY5322615BH	HND MC DR FRT INT	HY5322615BH HND MC DR FRT INT VIN L08718->, Dark Chrome	-	1	Enquire
134	HY5322615CG	HND MC DR IN FRT CHM	HY5322615CG HND MC DR IN FRT CHM Champagne	-	1	Enquire
140	HY5322614AH	HND MCH DR IN FRT RH	HY5322614AH HND MCH DR IN FRT RH Satin Silver	-	1	Enquire
141	HY5322614BG	HND MC DR IN FRT DK	HY5322614BG HND MC DR IN FRT DK VIN -> L08716, DarkChrome	-	1	Enquire
142	HY5322614BH	HND MC DR IN FRT DK	HY5322614BH HND MC DR IN FRT DK VIN L08718->, Dark Chrome	-	1	Enquire
143	HY5322614CG	HND MC DR IN FRT CHM	HY5322614CG HND MC DR IN FRT CHM Champagne	-	1	Enquire
150	HY5321813AD	LATCH ASSY FRT DOOR	HY5321813AD LATCH ASSY FRT DOOR Includes Item 171	-	1	Enquire
160	HY5321812AD	LATCH ASSY FRT DOOR	HY5321812AD LATCH ASSY FRT DOOR Includes Item 171	-	1	Enquire
170	HY53F218A01AA	CABLE INT HNDL REL	HY53F218A01AA CABLE INT HNDL REL -> VIN L04974	-	2	Enquire
171	HY53F218A01AB	CABLE INT HNDL REL	HY53F218A01AB CABLE INT HNDL REL VIN L04975->	-	2	Enquire
180	HY53F16346AA	DOOR STRIKER SHIM	HY53F16346AA DOOR STRIKER SHIM 1mm.	-	A/R	Enquire
190	HY5321982AB	STRIKER DOOR	HY5321982AB STRIKER DOOR	-	2	Enquire
200	HY53278H42AA	DOOR STRIKER SEAL	HY53278H42AA DOOR STRIKER SEAL -> VIN L05566	-	2	Enquire
210	HY53226A29AE	HNDLE DR EXT FRT LH	HY53226A29AE HNDLE DR EXT FRT LH	-	1	Enquire
220	HY53226A28AF	HNDLE DR EXT FRT RH	HY53226A28AF HNDLE DR EXT FRT RH	-	1	Enquire
230	SY9Y9142DA	HTS BRKT	SY9Y9142DA HTS BRKT	-	2	Enquire
231	CD3322405AC	Handle Blade Assy, LH	CD3322405AC Handle Blade Assy, LH Carbon	-	1	Enquire
232	CD3322404AC	Handle Blade Assy, RH	CD3322404AC Handle Blade Assy, RH Carbon	-	1	Enquire
240	4G43224A68AA	Pivot Pin, Outside Handle IN STOCK	4G43224A68AA Pivot Pin, Outside Handle IN STOCK	-	2	Enquire
250	4G43224A72AH	DUMMY LIGHT LENS IN STOCK	4G43224A72AH DUMMY LIGHT LENS IN STOCK	-	2	Enquire
260	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10) IN STOCK	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) Pack of 10. Standard Trim IN STOCK	-	6	Enquire
270	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	-	6	Enquire
280	HY53A17N409AA	NUT M5 THUMB	HY53A17N409AA NUT M5 THUMB	-	6	Enquire
290	GG43AA0231AA	SCW M8X34 CSK FLAT	GG43AA0231AA SCW M8X34 CSK FLAT	-	4	Enquire
300	707004	BOLT & WSHR M6x16 HX	707004 BOLT & WSHR M6x16 HX	-	2	Enquire
310	22AA797GP	ASSY BRKT RR FENDER FRT RH	22AA797GP ASSY BRKT RR FENDER FRT RH See Section 191200-10	-	-	Enquire
320	704443	Clip, Plastic, 5 x 6.5 x 2 IN STOCK	704443 Clip, Plastic, 5 x 6.5 x 2 IN STOCK	-	2	Enquire
330	6G33239600AA	CLIP CABLE 5.2 SEALD	6G33239600AA CLIP CABLE 5.2 SEALD	-	2	Enquire
340	703149	SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	703149 SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	-	6	Enquire
350	703612	Nut & Washer, M6, HVAC to XCB IN STOCK	703612 Nut & Washer, M6, HVAC to XCB IN STOCK	-	6	Enquire
410	707624	BOLT-M8 x 14	707624 BOLT-M8 x 14	-	5	Enquire
430	6G436710237	Handle, Emergency Release, Deck Lid Latch	6G436710237 Handle, Emergency Release, Deck Lid Latch	-	1	Enquire
440	700610	SCREW M8x25 FLAT CSK PIL 10.9 IN STOCK	700610 SCREW M8x25 FLAT CSK PIL 10.9 IN STOCK	-	1	Enquire
450	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	4	Enquire
460	HY53F442A66AG	POWER LATCH	HY53F442A66AG POWER LATCH	-	1	Enquire
480	HY5311028AA	22MM BLK DMD BDY PG	HY5311028AA 22MM BLK DMD BDY PG	-	6	Enquire
490	HY5342626BD	EXT RR STRIKER BLACK	HY5342626BD EXT RR STRIKER BLACK Coupe, Black	-	1	Enquire
491	KY5342626BA	EXT RR STRIKER BLACK	KY5342626BA EXT RR STRIKER BLACK Volante, Black	-	1	Enquire
500	6G436710235	Striker, Deck Lid Latch	6G436710235 Striker, Deck Lid Latch	-	1	Enquire
510	KY5344462AB	DCKLD LTCH MTG BRKT	KY5344462AB DCKLD LTCH MTG BRKT Volante	-	1	Enquire
520	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head Volante IN STOCK	-	4	Enquire
600	HY539N287AB	FU FIL LPP TAPPET IN STOCK	HY539N287AB FU FIL LPP TAPPET IN STOCK	-	1	Enquire
610	HY539E917AB	FUEL FILLER MECH IN STOCK	HY539E917AB FUEL FILLER MECH IN STOCK	-	1	Enquire
620	HY5370312AA	FU FIL EMER REL	HY5370312AA FU FIL EMER REL	-	1	Enquire
