Interior Trim - Doors of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

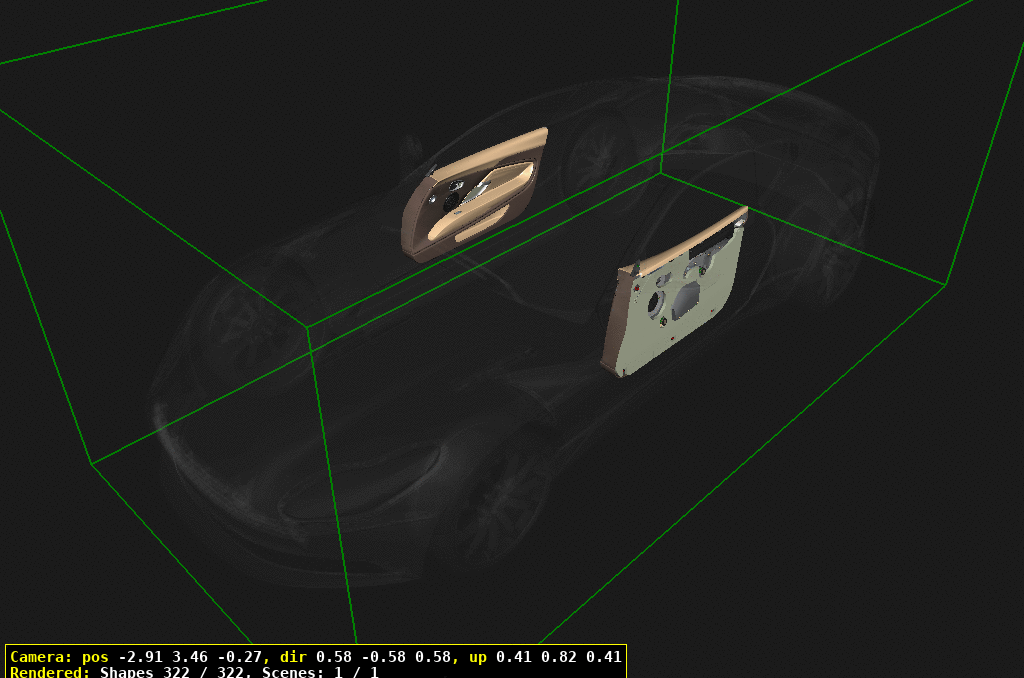

Aston Martin GT DB11 (2017-2023) - Interior Trim - Doors

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
10	HY5323943ANW	PNL ASY FRT DR TR LH	HY5323943ANW PNL ASY FRT DR TR LH -> 22MY, Coupe	-	1	Enquire
11	KY5323943AFW	PNL ASY FRT DR TR LH	KY5323943AFW PNL ASY FRT DR TR LH -> 22MY, Volante	-	1	Enquire
12	NY5323943AAW	PNL ASY FRT DR TR LH	NY5323943AAW PNL ASY FRT DR TR LH 22MY->, Coupe	-	1	Enquire
13	NY5323943BAW	PNL ASY FRT DR TR LH	NY5323943BAW PNL ASY FRT DR TR LH 22MY->, Volante	-	1	Enquire
14	HY5323942ANW	PNL ASY FRT DR TR RH	HY5323942ANW PNL ASY FRT DR TR RH -> 22MY, Coupe	-	1	Enquire
15	KY5323942AFW	PNL ASY FRT DR TR RH	KY5323942AFW PNL ASY FRT DR TR RH -> 22MY, Volante	-	1	Enquire
16	NY5323942AAW	PNL ASY FRT DR TR RH	NY5323942AAW PNL ASY FRT DR TR RH 22MY->, Coupe	-	1	Enquire
17	NY5323942BAW	PNL ASY FRT DR TR RH	NY5323942BAW PNL ASY FRT DR TR RH 22MY->, Volante	-	1	Enquire
20	SY9Y5A745AB	SUSP ROCKER LH	SY9Y5A745AB SUSP ROCKER LH	-	1	Enquire
30	HY53237B60AA	SIDE IMP BLCK RH	HY53237B60AA SIDE IMP BLCK RH	-	1	Enquire
40	707786	SCREW-M5 x 12 PN BLK	707786 SCREW-M5 x 12 PN BLK Black	-	1	Enquire
50	HY53208A30AA	RET DR TR MLDG	HY53208A30AA RET DR TR MLDG	-	3	Enquire
60	708852	P/SMPL-MINK SILVER	708852 P/SMPL-MINK SILVER	-	1	Enquire
70	708848	P/SMPL-MENDIP BLUE	708848 P/SMPL-MENDIP BLUE	-	1	Enquire
80	HY53202W08AB	SEAL MLDG FRT DR	HY53202W08AB SEAL MLDG FRT DR	-	3	Enquire
90	HY53222A04AB	CLP FR WDO FRT	HY53222A04AB CLP FR WDO FRT	-	1	Enquire
100	HY5301B43AD	NVH DOOR TRIM LH	HY5301B43AD NVH DOOR TRIM LH	-	1	Enquire
110	HY5301B42AD	NVH DOOR TRIM RH	HY5301B42AD NVH DOOR TRIM RH	-	1	Enquire
130	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD	-	38	Enquire
150	708847	P/SMPL-MARRON BLACK	708847 P/SMPL-MARRON BLACK Long	-	1	Enquire
160	HY53237A02AA	RET DR TR PNL	HY53237A02AA RET DR TR PNL	-	3	Enquire
170	HY53237A60AA	RET DR TRIM FIN	HY53237A60AA RET DR TRIM FIN	-	4	Enquire
180	708846	P/SMPL-MALHAM WHITE	708846 P/SMPL-MALHAM WHITE	-	2	Enquire
190	708844	P/SMPL-MADAGASCAR OR	708844 P/SMPL-MADAGASCAR OR -> VIN L03176, Chrome	-	1	Enquire
191	JY53226A14BA	BZL INT HNDL	JY53226A14BA BZL INT HNDL VIN L03177->, SatinSilver	-	1	Enquire
192	JY53226A14CA	BZL INT HNDL	JY53226A14CA BZL INT HNDL VIN L03177->, Dark Chrome	-	1	Enquire
200	707786	SCREW-M5 x 12 PN BLK	707786 SCREW-M5 x 12 PN BLK	-	2	Enquire
210	HY5324207AA	DR TRM DR PL FNSH LH	HY5324207AA DR TRM DR PL FNSH LH LH, Silver	-	1	Enquire
211	HY5324207BA	DR TRM DR PL FNSH LH	HY5324207BA DR TRM DR PL FNSH LH LH, Dark Chrome	-	1	Enquire
212	HY5324207CA	DR TRM DR PL FNSH LH	HY5324207CA DR TRM DR PL FNSH LH LH, Champagne	-	1	Enquire
216	HY5324206AA	DR TRM DR PL FNSR RH	HY5324206AA DR TRM DR PL FNSR RH RH, Silver	-	1	Enquire
217	HY5324206BA	DR TRM DR PL FNSR RH	HY5324206BA DR TRM DR PL FNSR RH RH, Dark Chrome	-	1	Enquire
218	HY5324206CA	DR TRM DR PL FNSR RH	HY5324206CA DR TRM DR PL FNSR RH RH, Champagne	-	1	Enquire
220	4G43AN103011AA	FXG PUSH ON	4G43AN103011AA FXG PUSH ON	-	3	Enquire
230	HY530503AA	NUT SLF THD	HY530503AA NUT SLF THD For standard speakers	-	3	Enquire
240	HY53226A10AA	REL LVR CUP ASSY	HY53226A10AA REL LVR CUP ASSY Leather Trimmed	-	1	Enquire
241	HY53226A10BA	REL LVR CUP	HY53226A10BA REL LVR CUP Grained Plastic	-	1	Enquire
250	HY53226A38AA	REL LVR CAP ASSY	HY53226A38AA REL LVR CAP ASSY Leather Trimmed	-	1	Enquire
251	HY53226A38BA	REL LVR CAP	HY53226A38BA REL LVR CAP Grained Plastic	-	1	Enquire
260	HY5324105AC	DR TRM DR PULL LH	HY5324105AC DR TRM DR PULL LH -> 22MY	-	1	Enquire
261	NY5324105AAW	DR TRM DR PULL LH	NY5324105AAW DR TRM DR PULL LH 22MY->	-	1	Enquire
262	HY5324104AC	DR TRM DR PULL RH	HY5324104AC DR TRM DR PULL RH -> 22MY	-	1	Enquire
263	NY5324104AAW	DR TRM DR PULL RH	NY5324104AAW DR TRM DR PULL RH 22MY->	-	1	Enquire
270	HY5318978AB	FRT DR TRM SPKR GRL	HY5318978AB FRT DR TRM SPKR GRL B&O, Silver	-	1	Enquire
271	HY5318978BB	FRNT DR TRM GRL	HY5318978BB FRNT DR TRM GRL B&O, Black	-	1	Enquire
272	HY5340A580AC	FRT DR TRM SPK GRIL	HY5340A580AC FRT DR TRM SPK GRIL -> 18.5MY, Standard /Premium Audio, Iridium	-	1	Enquire
273	HY5340A580CC	FRT DOR TRIM SPKR GR	HY5340A580CC FRT DOR TRIM SPKR GR 18.5MY->, Standard /Premium Audio, SatinSilver	-	1	Enquire
274	HY5340A580BC	FRT DR TRM SPK GRIL	HY5340A580BC FRT DR TRM SPK GRIL Standard / Premium Audio,Black	-	1	Enquire
275	HY5340A580DC	FRT DOR TRIM SPKR GR	HY5340A580DC FRT DOR TRIM SPKR GR Standard / Premium Audio,Dark Chrome	-	1	Enquire
280	HY5320161AL	DR TRM ASSY	HY5320161AL DR TRM ASSY -> 22MY, Coupe, Includesitem 350	-	1	Enquire
281	NY5320161AAW	DR TRM ASSY	NY5320161AAW DR TRM ASSY 22MY->, Coupe, Includesitem 351	-	1	Enquire
282	KY5320161AE	DR TRM ASSY	KY5320161AE DR TRM ASSY -> 22MY, Volante,Includes item 350	-	1	Enquire
283	NY5320161BAW	DR TRM ASSY	NY5320161BAW DR TRM ASSY 22MY->, Volante, Includesitem 351	-	1	Enquire
284	HY5320160AL	DR TRM ASSY	HY5320160AL DR TRM ASSY -> 22MY, Coupe, Includesitem 340	-	1	Enquire
285	NY5320160AAW	DR TRM ASSY	NY5320160AAW DR TRM ASSY 22MY->, Coupe, Includesitem 341	-	1	Enquire
286	KY5320160AE	DR TRM ASSY	KY5320160AE DR TRM ASSY -> 22MY, Volante,Includes item 340	-	1	Enquire
287	NY5320160BAW	DR TRM ASSY	NY5320160BAW DR TRM ASSY 22MY->, Volante, Includesitem 341	-	1	Enquire
290	HY5324002BG	PSGR ASY PAD ARST RH	HY5324002BG PSGR ASY PAD ARST RH -> 22MY, RH/LHD	-	1	Enquire
291	HY5324002FG	PSNGR ASY PAD ARST R	HY5324002FG PSNGR ASY PAD ARST R -> 22MY, RH/LHD, Brogue	-	1	Enquire
292	HY5324002AG	ASY PAD A/RST RH DRV	HY5324002AG ASY PAD A/RST RH DRV -> 22MY, RH/RHD	-	1	Enquire
293	HY5324002EG	DRIVE ASY PAD ARST R	HY5324002EG DRIVE ASY PAD ARST R -> 22MY, RH/RHD, Brogue	-	1	Enquire
294	HY5324003AG	ASY PAD A/RST LH DRV	HY5324003AG ASY PAD A/RST LH DRV -> 22MY, LH/LHD	-	1	Enquire
295	HY5324003EG	DRVR ASY AREST LH	HY5324003EG DRVR ASY AREST LH -> 22MY, LH/LHD, Brogue	-	1	Enquire
296	708843	P/SMPL-KOPI BRONZE	708843 P/SMPL-KOPI BRONZE -> 22MY, LH/RHD	-	1	Enquire
297	HY5324003FG	PSNGR ASY AREST RHD	HY5324003FG PSNGR ASY AREST RHD -> 22MY, LH/RHD, Brogue	-	1	Enquire
298	NY5324002AAW	ASY PAD A/RST RH DRV	NY5324002AAW ASY PAD A/RST RH DRV 22MY->, RH/RHD	-	1	Enquire
299	NY5324002BAW	ASY PAD A/RST RH PAS	NY5324002BAW ASY PAD A/RST RH PAS 22MY->, RH/LHD	-	-	Enquire
300	NY5324003AAW	ASY PAD A/RST LH DRV	NY5324003AAW ASY PAD A/RST LH DRV 22MY->, LH/LHD	-	1	Enquire
301	NY5324003BAW	ASY PAD A/RST LH PAS	NY5324003BAW ASY PAD A/RST LH PAS 22MY->, LH/RHD	-	-	Enquire
310	HY53202A14AD	FRT DR AIR VEN DC RH	HY53202A14AD FRT DR AIR VEN DC RH RH	-	1	Enquire
320	HY53202A15AD	FRT DR AIR VEN DC LH	HY53202A15AD FRT DR AIR VEN DC LH LH	-	1	Enquire
330	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD Air Duct to Door Board	-	3	Enquire
340	HY5323718AD	DR POCKET ASY RH	HY5323718AD DR POCKET ASY RH -> 22MY	-	1	Enquire
341	NY5323718AAW	DR POCKET ASY RH	NY5323718AAW DR POCKET ASY RH 22MY->	-	1	Enquire
350	HY5323719AD	DR POCKET ASY LH	HY5323719AD DR POCKET ASY LH -> 22MY	-	1	Enquire
351	NY5323719AAW	DR POCKET ASY LH	NY5323719AAW DR POCKET ASY LH 22MY->	-	1	Enquire
360	707145	SCREW M5 x 12 PAN HD	707145 SCREW M5 x 12 PAN HD Door Pocket to Door Board	-	7	Enquire
370	HY53NTC7314AA	NUT NYLON HX FL	HY53NTC7314AA NUT NYLON HX FL For B&O speakers	-	3	Enquire
380	HY53C237898AA	BZL DR TRM	HY53C237898AA BZL DR TRM	-	1	Enquire
400	HY538710051	PAIR FRT DR VNRS	HY538710051 PAIR FRT DR VNRS -> 19MY, Gloss ChoppedCarbon	-	1	Enquire
401	HY538710061	PAIR FRT DR VNRS	HY538710061 PAIR FRT DR VNRS Satin Chopped Carbon	-	1	Enquire
403	HY538710074	PAIR FRT DR VNRS	HY538710074 PAIR FRT DR VNRS Light Ash Burl	-	1	Enquire
404	HY538710125	PAIR FRT DR VNRS	HY538710125 PAIR FRT DR VNRS -> 19MY, Dark Ash Burl	-	1	Enquire
405	HY538710128	PAIR FRT DR VNRS	HY538710128 PAIR FRT DR VNRS -> 19MY, Lacewood Satin	-	1	Enquire
406	HY538710129	PR FRT DR VNRS-P/BL	HY538710129 PR FRT DR VNRS-P/BL Piano Black	-	1	Enquire
411	HY53202D12BD	VNR FRT DR RH OPN PR	HY53202D12BD VNR FRT DR RH OPN PR Tamo Ash	-	1	Enquire
413	HY53202D12FD	VNR FRT DR RH TWILL	HY53202D12FD VNR FRT DR RH TWILL Twill Carbon	-	1	Enquire
414	HY53202D12KD	VNR FRT DR RH SATIN	HY53202D12KD VNR FRT DR RH SATIN -> 19MY, Cuprum Carbon	-	1	Enquire
417	KY5323864ABW	VNR FRT DR RH LTHR	KY5323864ABW VNR FRT DR RH LTHR 19MY-> 22MY, CaithnessLeather	-	1	Enquire
418	KY5323864EBW	VNR FRT DR LH LTHR	KY5323864EBW VNR FRT DR LH LTHR 19MY-> 22MY, BalmoralLeather	-	1	Enquire
419	NY5323864AAW	VNR FRT DR RH LTHR	NY5323864AAW VNR FRT DR RH LTHR 22MY->, Leather	-	1	Enquire
431	HY53202D13BD	VNR FRT DR LH OPN PR	HY53202D13BD VNR FRT DR LH OPN PR Tamo Ash	-	1	Enquire
433	HY53202D13FD	VNR FRT DR LH TWILL	HY53202D13FD VNR FRT DR LH TWILL Twill Carbon	-	1	Enquire
434	HY53202D13KD	VNR FRT DR LH SATIN	HY53202D13KD VNR FRT DR LH SATIN -> 19MY, Cuprum Carbon	-	1	Enquire
437	KY5323865ABW	VNR FRT DR LH LTHR	KY5323865ABW VNR FRT DR LH LTHR 19MY-> 22MY, CaithnessLeather	-	1	Enquire
438	KY5323865EBW	VNR FRT DR LH LTHR	KY5323865EBW VNR FRT DR LH LTHR 19MY-> 22MY, BalmoralLeather	-	1	Enquire
439	NY5323865AAW	VNR FRT DR LH LTHR	NY5323865AAW VNR FRT DR LH LTHR 22MY->, Leather	-	1	Enquire
440	HY53238A39AD	BRKT DR TR PNL LH	HY53238A39AD BRKT DR TR PNL LH	-	1	Enquire
450	HY53238A38AD	BRKT DR TR PNL RH	HY53238A38AD BRKT DR TR PNL RH	-	1	Enquire
460	HY5321211AB	TP RLL END CAP ASY L	HY5321211AB TP RLL END CAP ASY L -> 22MY	-	1	Enquire
461	NY5321211AAW	TP RLL END CAP ASY L	NY5321211AAW TP RLL END CAP ASY L 22MY->	-	1	Enquire
470	HY5321210AB	TP RLL END CAP ASY R	HY5321210AB TP RLL END CAP ASY R -> 22MY	-	1	Enquire
471	NY5321210AAW	TP RLL END CAP ASY R	NY5321210AAW TP RLL END CAP ASY R 22MY->	-	1	Enquire
