Glass and Regulators - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Glass and Regulators - Coupe

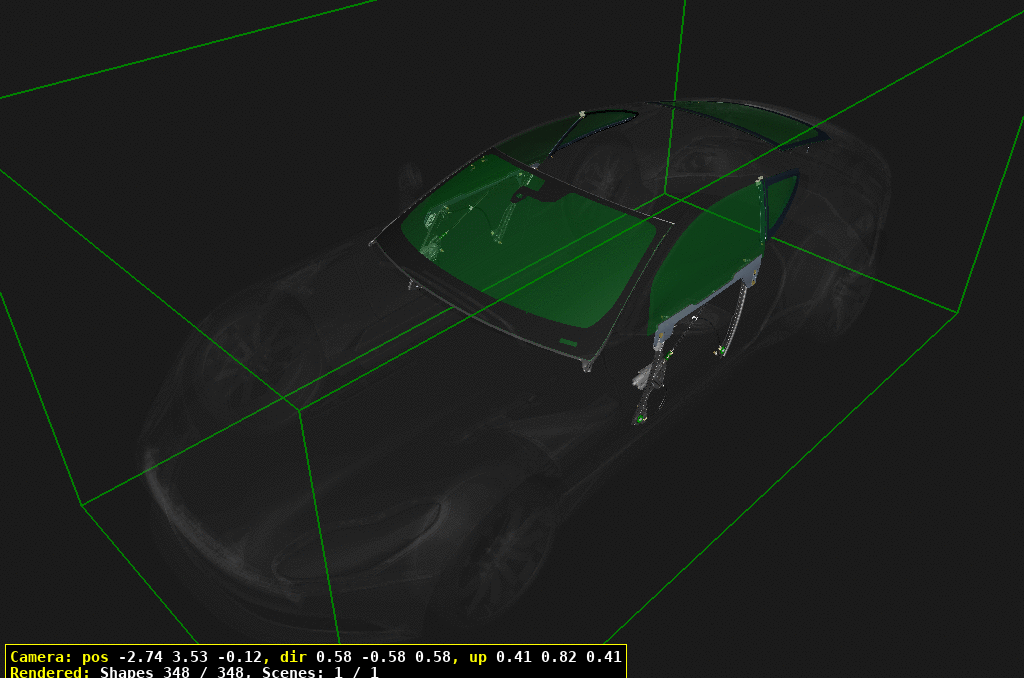

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	HY5303804BB	FRT GLASS LHD	HY5303804BB FRT GLASS LHD LHD, RoW	-	1	Enquire
21	HY5303804BC	WINDSCREEN LHD	HY5303804BC WINDSCREEN LHD LHD, Japan, 18.5MY->	-	1	Enquire
22	HY5303804AB	FRT GLASS RHD	HY5303804AB FRT GLASS RHD RHD, RoW	-	1	Enquire
23	HY5303804AC	FRT GLASS RHD	HY5303804AC FRT GLASS RHD RHD, Japan, 18.5MY->	-	1	Enquire
30	HY5303296AB	WEATHER STRIPS FRONT GLASS	HY5303296AB WEATHER STRIPS FRONT GLASS Does not include item 60.Order separately	-	1	Enquire
40	4G4303836ABPK	Bumpon Black GTI (Pack of 10)	4G4303836ABPK Bumpon Black GTI (Pack of 10) Pack of 10	-	6	Enquire
50	HY53030A44AA	W/STRP EXT FR W/SHLD	HY53030A44AA W/STRP EXT FR W/SHLD	-	1	Enquire
60	6G33C03102AP1A04	Foam Strip Front WindShield - V8 Coupe	6G33C03102AP1A04 Foam Strip Front WindShield - V8 Coupe	-	1	Enquire
100	HY5342004AB	GLASS ASSY BK WINDOW	HY5342004AB GLASS ASSY BK WINDOW Less Seals	-	1	Enquire
101	LY53F42006AA	GLASS BACK WINDOW	LY53F42006AA GLASS BACK WINDOW Privacy Glass	-	1	Enquire
110	HY537710041	FINISHER-TOP & SIDES	HY537710041 FINISHER-TOP & SIDES	-	1	Enquire
120	HY537710042	FINISHER-LOWER	HY537710042 FINISHER-LOWER	-	1	Enquire
130	4G4303836ABPK	Bumpon Black GTI (Pack of 10)	4G4303836ABPK Bumpon Black GTI (Pack of 10) Pack of 10	-	4	Enquire
200	HY53F21411AB	GLASS ASY FRT DR LH	HY53F21411AB GLASS ASY FRT DR LH	-	1	Enquire
201	HY53F21410AB	GLASS ASY FRT DR RH	HY53F21410AB GLASS ASY FRT DR RH	-	1	Enquire
299	SY63120609KB	DUP OWN POR 25MY	SY63120609KB DUP OWN POR 25MY Quarter Window LaminatedGlass is no longeravailable.If replacingLaminated with Toughened,please change both sides.	-	-	Enquire
300	HY53N29751BA	GLS ASY QTR WDW LH	HY53N29751BA GLS ASY QTR WDW LH Toughened, LH	-	1	Enquire
301	LY53N29751AA	GLS ASY QTR WDW LH P	LY53N29751AA GLS ASY QTR WDW LH P Privacy Glass, Toughened,LH	-	1	Enquire
310	HY53N29750BA	GLS ASY QTR WDW RH	HY53N29750BA GLS ASY QTR WDW RH Toughened, RH	-	1	Enquire
311	LY53N29750AA	GLS ASY QTR WDW RH P	LY53N29750AA GLS ASY QTR WDW RH P Privacy Glass, Toughened,RH	-	1	Enquire
320	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
330	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	6G3346058AA Screw, M5 x 10 Pan Head Flange Torx	-	2	Enquire
340	XR8TF03836AA	Bumpon, 11.1 x 5 MM	XR8TF03836AA Bumpon, 11.1 x 5 MM	-	2	Enquire
350	HY5380A225AA	GASKET FOAM	HY5380A225AA GASKET FOAM	-	2	Enquire
360	4G4303836ABPK	Bumpon Black GTI (Pack of 10)	4G4303836ABPK Bumpon Black GTI (Pack of 10) Pack of 10	-	2	Enquire
370	HY53512A0AA	FIN W/STRP RR QTR GL	HY53512A0AA FIN W/STRP RR QTR GL	-	2	Enquire
400	HY53F23201AE	FRT WDW REG ASY LH	HY53F23201AE FRT WDW REG ASY LH	-	1	Enquire
410	HY53F23200AF	FRONT WINDOW REGULATOR RH	HY53F23200AF FRONT WINDOW REGULATOR RH	-	1	Enquire
420	703216PK	NUT M8 HEXAGON FLANGED (PACK OF 10)	703216PK NUT M8 HEXAGON FLANGED (PACK OF 10) Pack of 10	-	10	Enquire
