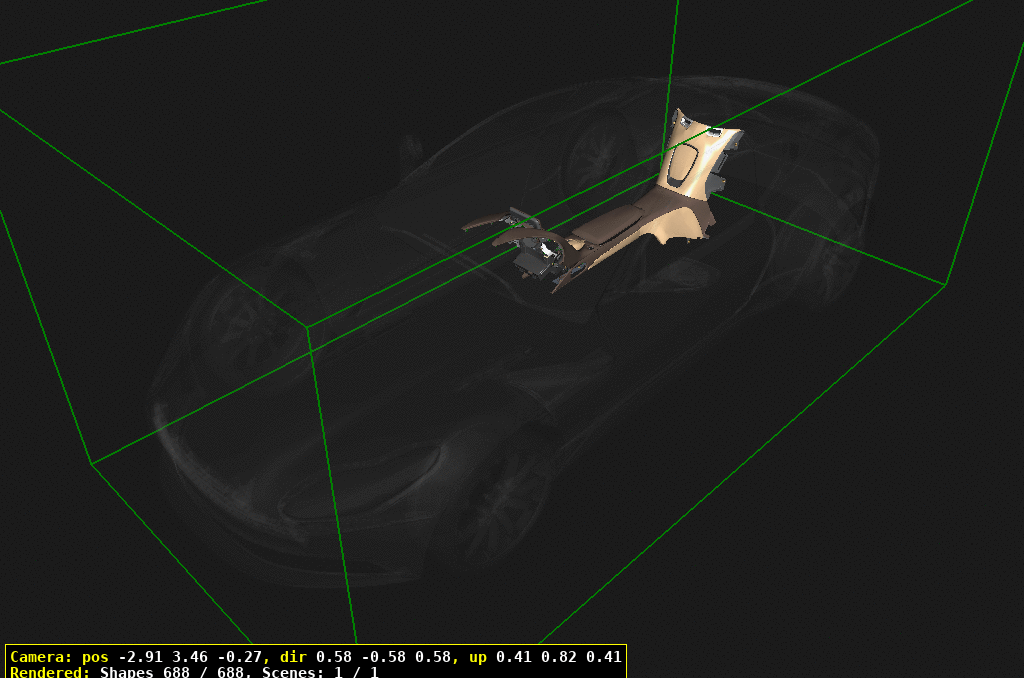

Aston Martin GT DB11 (2017-2023) - Centre Console - to 22MY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	HY5324405BDW	MID IP CTR STK SWTCH	HY5324405BDW MID IP CTR STK SWTCH Caithness Leather	-	1	Enquire
21	HY5324405FDW	MID IP CTR STK SWITC	HY5324405FDW MID IP CTR STK SWITC Balmoral Leather	-	1	Enquire
22	HY5324405UDW	MID IP CTR STK SWTCH	HY5324405UDW MID IP CTR STK SWTCH Strathmore Leather	-	1	Enquire
23	HY5324405ADW	MID IP CENTRE STACK	HY5324405ADW MID IP CENTRE STACK Caithness Leather	-	1	Enquire
24	HY5324405EDW	MID IP CENTRE STACK	HY5324405EDW MID IP CENTRE STACK Balmoral Leather	-	1	Enquire
25	HY5324405TDW	MID IP CENTRE STACK	HY5324405TDW MID IP CENTRE STACK Strathmore Leather	-	1	Enquire
30	HY5324404BDW	MID IP CENT STACK RH	HY5324404BDW MID IP CENT STACK RH Caithness Leather	-	1	Enquire
31	HY5324404FDW	MID IP CENT STACK RH	HY5324404FDW MID IP CENT STACK RH Balmoral Leather	-	1	Enquire
32	HY5324404UDW	MID IP CENT STACK RH	HY5324404UDW MID IP CENT STACK RH Strathmore Leather	-	1	Enquire
33	HY5324404ADW	MID IP CENTRE STACK	HY5324404ADW MID IP CENTRE STACK Caithness Leather	-	1	Enquire
34	HY5324404EDW	MID IP CENTRE STACK	HY5324404EDW MID IP CENTRE STACK Balmoral Leather	-	1	Enquire
35	HY5324404TDW	MID IP CENTRE STACK	HY5324404TDW MID IP CENTRE STACK Strathmore Leather	-	1	Enquire
40	707165	TRIM FASTENER	707165 TRIM FASTENER	-	12	Enquire
50	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	8	Enquire
60	HY538710034	PAIR CTR STK VNR	HY538710034 PAIR CTR STK VNR Satin Chopped Carbon	-	1	Enquire
61	HY538710050	PAIR CTR STK VNR	HY538710050 PAIR CTR STK VNR -> 19MY, Gloss ChoppedCarbon	-	1	Enquire
62	HY53044J51EA	IP VNR KIT TAMO ASH	HY53044J51EA IP VNR KIT TAMO ASH Tamo Ash, Matched Pair	-	1	Enquire
63	HY53044J51FA	IP VNR KIT TAN LWOOD	HY53044J51FA IP VNR KIT TAN LWOOD -> 19MY, Tan Lacewood,Matched Pair	-	1	Enquire
64	HY53044J51HA	IP VNR KIT DARK ASH	HY53044J51HA IP VNR KIT DARK ASH -> 19MY, Dark Ash Burl,Matched Pair	-	1	Enquire
65	HY53044J51JA	IP VNR KIT LIGHT ASH	HY53044J51JA IP VNR KIT LIGHT ASH Light Ash Burl, MatchedPair	-	1	Enquire
69	KY53044L81AAW	CTR STK VNR LHS ASY	KY53044L81AAW CTR STK VNR LHS ASY Leather Wrapped	-	1	Enquire
70	HY53045J11AC	CTR STK VNR LHS	HY53045J11AC CTR STK VNR LHS Piano Black	-	1	Enquire
71	HY53045J11CC	CTR STK VNR LHS	HY53045J11CC CTR STK VNR LHS -> 19MY, Cuprum Carbon,Satin	-	1	Enquire
75	HY53045J11BC	CTR STK VNR LHS	HY53045J11BC CTR STK VNR LHS Carbon, 2x2 Twill, Satin	-	1	Enquire
89	KY53044L80AAW	CTR STK VNR RHS ASY	KY53044L80AAW CTR STK VNR RHS ASY Leather Wrapped	-	1	Enquire
90	HY53045J10AC	CTR STK VNR RHS	HY53045J10AC CTR STK VNR RHS Piano Black	-	1	Enquire
91	HY53045J10CC	CTR STK VNR RHS	HY53045J10CC CTR STK VNR RHS -> 19MY, Cuprum Carbon,Satin	-	1	Enquire
95	HY53045J10BC	CTR STK VNR RHS	HY53045J10BC CTR STK VNR RHS Carbon, 2x2 Twill, Satin	-	1	Enquire
100	HY53V513K01AC	CTR CNSL SUPT MLDG	HY53V513K01AC CTR CNSL SUPT MLDG Includes items 110	-	1	Enquire
110	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	12	Enquire
120	HY5311N653ACW	CTR STK PRND CAR ASY	HY5311N653ACW CTR STK PRND CAR ASY Caithness Leather	-	1	Enquire
121	HY5311N653ECW	CTR STK PRND CAR ASY	HY5311N653ECW CTR STK PRND CAR ASY Balmoral Leather	-	1	Enquire
122	HY5311N653TCW	CTR STK PRND CAR ASY	HY5311N653TCW CTR STK PRND CAR ASY Strathmore Leather	-	1	Enquire
130	HY5314853AA	CTR STK FIN SAT CHRM	HY5314853AA CTR STK FIN SAT CHRM Satin Chrome	-	1	Enquire
131	HY5314853BA	CTR STK FIN DRK CHRM	HY5314853BA CTR STK FIN DRK CHRM Dark Chrome	-	1	Enquire
132	HY5314853CA	CTR STK FIN WARM	HY5314853CA CTR STK FIN WARM Champagne	-	1	Enquire
140	HY5304487AA	CTR STK LWR SPPRT M	HY5304487AA CTR STK LWR SPPRT M	-	1	Enquire
150	HY537T429AB	HEAD UNIT RETAINER	HY537T429AB HEAD UNIT RETAINER	-	2	Enquire
160	HY53044H94ACW	SAT NAV SCRN SURRD F	HY53044H94ACW SAT NAV SCRN SURRD F Caithness Leather	-	1	Enquire
161	HY53044H94ECW	SAT NAV SCRN SURRD F	HY53044H94ECW SAT NAV SCRN SURRD F Balmoral Leather	-	1	Enquire
162	HY53044H94TCW	SAT NAV SCRN SURR FR	HY53044H94TCW SAT NAV SCRN SURR FR Strathmore Leather	-	1	Enquire
170	HY5370459AAW	SAT NAV SCRN REC ASS	HY5370459AAW SAT NAV SCRN REC ASS Caithness Leather	-	1	Enquire
171	HY5370459EAW	SAT NAV SCRN REC ASS	HY5370459EAW SAT NAV SCRN REC ASS Balmoral Leather	-	1	Enquire
172	HY5370459TAW	SAT NAV SCRN REC ASS	HY5370459TAW SAT NAV SCRN REC ASS Strathmore Leather	-	1	Enquire
180	HY5370458AAW	SAT NAV SCRN RECESS	HY5370458AAW SAT NAV SCRN RECESS Caithness Leather	-	1	Enquire
181	HY5370458EAW	SAT NAV SCRN RECESS	HY5370458EAW SAT NAV SCRN RECESS Balmoral Leather	-	1	Enquire
182	HY5370458TAW	SAT NAV SCRN RECESS	HY5370458TAW SAT NAV SCRN RECESS Strathmore Leather	-	1	Enquire
190	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	16	Enquire
200	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	2	Enquire
210	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	16	Enquire
220	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	6	Enquire
230	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	-	2	Enquire
240	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	4	Enquire
250	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	2	Enquire
260	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	-	4	Enquire
270	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	4	Enquire
280	HY5310E927AC	SAT NAV SCRN SURR RR	HY5310E927AC SAT NAV SCRN SURR RR	-	1	Enquire
290	AD43N807148AA	Screw, M2 x 8, Torx	AD43N807148AA Screw, M2 x 8, Torx	-	6	Enquire
300	HY5360220ABW	CNTRL C SRND TRM ASY	HY5360220ABW CNTRL C SRND TRM ASY Caithness Leather	-	1	Enquire
301	HY5360220EBW	CNTRL C SRND TRM ASY	HY5360220EBW CNTRL C SRND TRM ASY Balmoral Leather	-	1	Enquire
302	HY5360220TBW	CNTRL C SRND TRM ASY	HY5360220TBW CNTRL C SRND TRM ASY Strathmore Leather	-	1	Enquire
310	HY5310A916ADW	CNTROL C SRRND CAP	HY5310A916ADW CNTROL C SRRND CAP Caithness Leather	-	1	Enquire
311	HY5310A916EDW	CNTRL C SRRND CAP	HY5310A916EDW CNTRL C SRRND CAP Balmoral Leather	-	1	Enquire
312	SY8316F152AA	RADAR BRACKET	SY8316F152AA RADAR BRACKET Strathmore Leather	-	1	Enquire
320	HY5345864AA	TOUCH PAD CLOS PNL	HY5345864AA TOUCH PAD CLOS PNL	-	1	Enquire
330	AD43N807148AA	Screw, M2 x 8, Torx	AD43N807148AA Screw, M2 x 8, Torx	-	6	Enquire
340	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	2	Enquire
350	HY5304559AC	CTR CNSL SUPT BRKT	HY5304559AC CTR CNSL SUPT BRKT	-	1	Enquire
360	HY5304558AC	CTR CNSL SUPT BRKT	HY5304558AC CTR CNSL SUPT BRKT	-	1	Enquire
370	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	6	Enquire
380	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	4	Enquire
390	HY5311585AB	EIS RETAINER MOULDIN	HY5311585AB EIS RETAINER MOULDIN	-	1	Enquire
400	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	-	5	Enquire
410	HY53045K06ACW	LID ASSY CONSOLE	HY53045K06ACW LID ASSY CONSOLE	-	1	Enquire
420	HY53045C74BK	CNSL STWG ASSY	HY53045C74BK CNSL STWG ASSY Includes items 430-520	-	1	Enquire
430	HY5311710AE	TCK ASY STWG CMPTLID	HY5311710AE TCK ASY STWG CMPTLID	-	1	Enquire
435	HY53046B50AB	FRONT ELBOW PAD ASSY	HY53046B50AB FRONT ELBOW PAD ASSY	-	1	Enquire
436	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	-	A/R	Enquire
440	702629	SCREW-M6x19 PAN HEAD TORX PILOT	702629 SCREW-M6x19 PAN HEAD TORX PILOT	-	2	Enquire
450	HY53E826A80AA	M8 FLEXITOL	HY53E826A80AA M8 FLEXITOL	-	2	Enquire
460	SY9Y9K729BC	MONOCOQUE ASSY LHD	SY9Y9K729BC MONOCOQUE ASSY LHD	-	2	Enquire
470	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	2	Enquire
480	HY53045L50AA	MLDG EM IGM SW CP	HY53045L50AA MLDG EM IGM SW CP	-	1	Enquire
490	HY53045A88ACW	MOULDING ASSY CONS R	HY53045A88ACW MOULDING ASSY CONS R	-	1	Enquire
500	HY53045M880AA	CNSL STWG MATT	HY53045M880AA CNSL STWG MATT	-	1	Enquire
510	HY53047B40BA	CN HLDR DIV BAR RR	HY53047B40BA CN HLDR DIV BAR RR	-	1	Enquire
530	HY53046C48AB	SUPT CNSL ARMRST EIS	HY53046C48AB SUPT CNSL ARMRST EIS	-	1	Enquire
540	HY53046B94AB	INSRT CUP HLDR CNSL	HY53046B94AB INSRT CUP HLDR CNSL	-	1	Enquire
550	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	4	Enquire
560	HY53045C31ACW	MLDG ASY CNSL PNL LH	HY53045C31ACW MLDG ASY CNSL PNL LH	-	1	Enquire
570	HY53045C30ACW	MLDG ASY CNSL PNL RH	HY53045C30ACW MLDG ASY CNSL PNL RH	-	1	Enquire
580	HY5355006AAW	MID IP CENTRE ST STR	HY5355006AAW MID IP CENTRE ST STR Caithness Leather	-	1	Enquire
581	HY5355006EAW	MID IP CENTRE ST STR	HY5355006EAW MID IP CENTRE ST STR Balmoral Leather	-	1	Enquire
582	HY5355006TAW	MID IP CENTRE ST STR	HY5355006TAW MID IP CENTRE ST STR Strathmore Leather	-	1	Enquire
590	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	2	Enquire
600	HY53237A13AB	TRINKET TRAY MLDNG	HY53237A13AB TRINKET TRAY MLDNG Less eCall/SOS	-	1	Enquire
601	HY53237W12AB	TRINKET TRAY E-CALL	HY53237W12AB TRINKET TRAY E-CALL With eCall/SOS	-	1	Enquire
610	HY53519E68AA	ECALL SURROUND ASSY	HY53519E68AA ECALL SURROUND ASSY	-	1	Enquire
620	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	-	2	Enquire
630	HY535943ABW	WRIST REST TOP PAD	HY535943ABW WRIST REST TOP PAD Caithness Leather	-	1	Enquire
631	HY535943EBW	WRIST RST TOP PAD	HY535943EBW WRIST RST TOP PAD Balmoral Leather	-	1	Enquire
632	HY535943TBW	WRIST REST TOP PAD	HY535943TBW WRIST REST TOP PAD Strathmore Leather	-	1	Enquire
640	HY53E865224AA	TRIM FASTENER 15X5.4	HY53E865224AA TRIM FASTENER 15X5.4	-	3	Enquire
650	HY533N440AB	CARRIER WRIST RST LW	HY533N440AB CARRIER WRIST RST LW	-	1	Enquire
660	701171	SCREW M4x16 THREAD FORMING	701171 SCREW M4x16 THREAD FORMING	-	2	Enquire
670	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	-	1	Enquire
680	4G4303836AB	Bumpon, Reflective Black	4G4303836AB Bumpon, Reflective Black	-	2	Enquire
700	HY53045E24AEW	ASY CNSL UPR RR	HY53045E24AEW ASY CNSL UPR RR -> 18.5MY, Coupe.Includes items 710-760	-	1	Enquire
701	HY53045E24AFW	ASY CNSL UPR RR	HY53045E24AFW ASY CNSL UPR RR 18.5MY->, Coupe. Includesitems 710-760	-	1	Enquire
705	KY53045E24ADW	ASY CNSL UPR RR	KY53045E24ADW ASY CNSL UPR RR Volante. Includes items710-760	-	1	Enquire
710	HY5367482ACW	SBWFR SPKR GR ASY	HY5367482ACW SBWFR SPKR GR ASY B&O	-	1	Enquire
711	HY53047A44CA	SUBWFR SPKR ASSY	HY53047A44CA SUBWFR SPKR ASSY Except B&O, Silver	-	1	Enquire
712	709592PK	S/R PLT-DB12 S-G/CHN	709592PK S/R PLT-DB12 S-G/CHN Except B&O, Black	-	1	Enquire
713	HY53047A44DC	SUBWFR SPKR ASSY	HY53047A44DC SUBWFR SPKR ASSY Except B&O, Dark Chrome	-	1	Enquire
720	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	4	Enquire
730	701577	NUT ST 1.75-2.75 U	701577 NUT ST 1.75-2.75 U	-	4	Enquire
740	HY53611B90FA	RR SBLT BEZEL RH	HY53611B90FA RR SBLT BEZEL RH Satin Chrome	-	2	Enquire
741	HY53611B90BA	RR SBLT BEZEL	HY53611B90BA RR SBLT BEZEL Dark Chrome	-	2	Enquire
742	HY53611B90CA	RR SBLT BEZEL	HY53611B90CA RR SBLT BEZEL Champagne	-	2	Enquire
750	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk	-	4	Enquire
760	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	4	Enquire
770	709591PK	S/R PLT-DB12 S-G/CHN	709591PK S/R PLT-DB12 S-G/CHN	-	1	Enquire
780	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	2	Enquire
790	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	6	Enquire
