Interior Trim - Upper - Volante of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Interior Trim - Upper - Volante

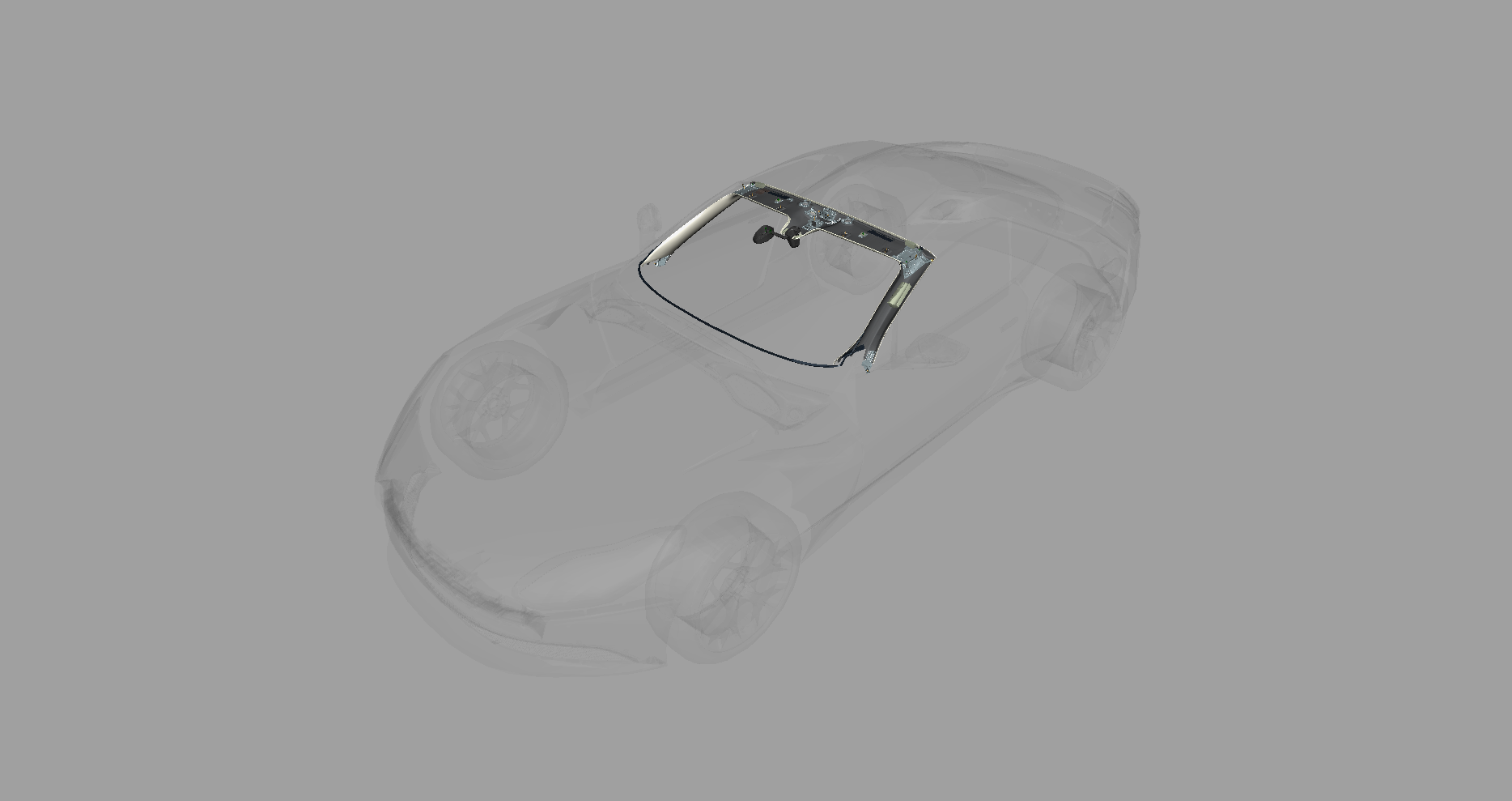

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	LY73L025B39ACW	A PLR TRIM ASSY COMP	LY73L025B39ACW A PLR TRIM ASSY COMP -> 22MY	-	1	Enquire
21	NY73L025B39AAW	A PLR TRIM ASSY COMP	NY73L025B39AAW A PLR TRIM ASSY COMP 22MY->	-	1	Enquire
30	LY73L025B38ACW	A PLR TRIM ASSY COMP	LY73L025B38ACW A PLR TRIM ASSY COMP -> 22MY	-	1	Enquire
31	NY73L025B38AAW	A PLR TRIM ASSY COMP	NY73L025B38AAW A PLR TRIM ASSY COMP 22MY->	-	1	Enquire
40	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM DO NOT RE-USE	-	4	Enquire
50	HY53103500AA	GASKET	HY53103500AA GASKET	-	4	Enquire
60	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	4	Enquire
70	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
80	HY5323020AA	NITTO FOAM STRIP	HY5323020AA NITTO FOAM STRIP	-	1	Enquire
100	KY53L03408AIW	HDR ASSY COMP	KY53L03408AIW HDR ASSY COMP Includes items 110-210	-	1	Enquire
110	KY5319H503AB	MIC BEZEL	KY5319H503AB MIC BEZEL	-	1	Enquire
120	KY5319G379AA	MIC BEZEL	KY5319G379AA MIC BEZEL	-	1	Enquire
140	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM DO NOT RE-USE	-	2	Enquire
150	7784981	FOAM STRIP ANTI RATT	7784981 FOAM STRIP ANTI RATT	-	1	Enquire
160	HG3319G379AA	MICROPHONE BEZEL	HG3319G379AA MICROPHONE BEZEL	-	2	Enquire
170	HY53103500AA	GASKET	HY53103500AA GASKET	-	2	Enquire
180	707158	Screw & Washer, M3.5 x 13, Flange Pan Head	707158 Screw & Washer, M3.5 x 13, Flange Pan Head	-	2	Enquire
190	702138	SCREW M6x16 PAN INT	702138 SCREW M6x16 PAN INT	-	1	Enquire
200	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE	-	2	Enquire
210	7G43C2437AA	A/S TAPE VELOUR	7G43C2437AA A/S TAPE VELOUR	-	A/R	Enquire
220	702138	SCREW M6x16 PAN INT	702138 SCREW M6x16 PAN INT	-	2	Enquire
230	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
299	13A5840CP	COVER - LUGGAGE BIN TOE	13A5840CP COVER - LUGGAGE BIN TOE	-	-	Enquire
300	KY5369321DEW	SUNVISOR ASSY LH	KY5369321DEW SUNVISOR ASSY LH -> 21MY, Alcantara	-	1	Enquire
301	KY5369321AEW	SUNVISOR ASSY LH	KY5369321AEW SUNVISOR ASSY LH -> 21MY, Leather	-	1	Enquire
302	MY6369321DCW	SUNVISOR ASSY LH	MY6369321DCW SUNVISOR ASSY LH 21MY->, Alcantara	-	1	Enquire
303	MY6369321ABW	SUNVISOR ASSY LH	MY6369321ABW SUNVISOR ASSY LH 21MY, Leather	-	1	Enquire
304	NY6369321EBW	SUNVISOR ASSY LH	NY6369321EBW SUNVISOR ASSY LH 22MY->, Leather	-	1	Enquire
310	KY5369320DEW	SUNVISOR ASSY RH	KY5369320DEW SUNVISOR ASSY RH -> 21MY, Alcantara	-	1	Enquire
311	KY5369320AEW	SUNVISOR ASSY RH	KY5369320AEW SUNVISOR ASSY RH -> 21MY, Leather	-	1	Enquire
312	MY6369320DCW	SUNVISOR ASSY RH	MY6369320DCW SUNVISOR ASSY RH 21MY->, Alcantara	-	1	Enquire
313	MY6369320ABW	SUNVISOR ASSY RH	MY6369320ABW SUNVISOR ASSY RH 21MY, Leather	-	1	Enquire
314	NY6369320EBW	SUNVISOR ASSY RH	NY6369320EBW SUNVISOR ASSY RH 22MY->, Leather	-	1	Enquire
320	HY53E805403AB	M5X25 STAINLESS PIL	HY53E805403AB M5X25 STAINLESS PIL	-	4	Enquire
330	HY5317E745AA	MIRROR FOOT COVER LH	HY5317E745AA MIRROR FOOT COVER LH	-	1	Enquire
340	HY5317E744AA	MIRROR FOOT COVER RH	HY5317E744AA MIRROR FOOT COVER RH	-	1	Enquire
350	HY53519A60AB	RAIN SENSOR COVER	HY53519A60AB RAIN SENSOR COVER LHD	-	1	Enquire
351	HY53519A60BB	RAIN SENSOR COVER	HY53519A60BB RAIN SENSOR COVER RHD	-	1	Enquire
360	KY5313E714AA	BZL LMP ASY AMBNT	KY5313E714AA BZL LMP ASY AMBNT	-	1	Enquire
