Aston Martin GT DB11 (2017-2023) - Body Structure - Volante

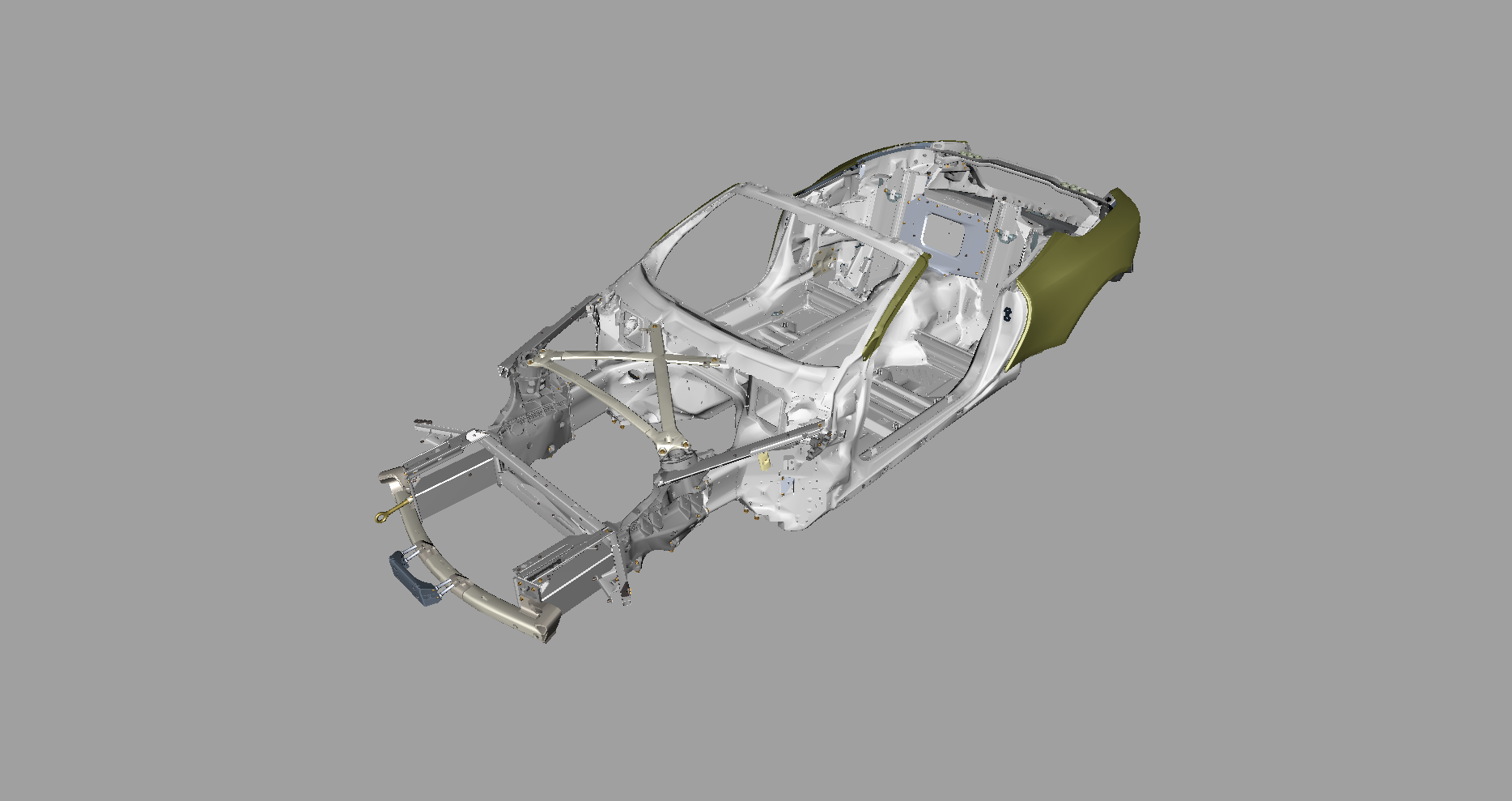

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
1	JY536310167	B/SHELL-DB11 VOL-V8	JY536310167 B/SHELL-DB11 VOL-V8 Cat A. Less Bonnet,Doors, Decklid, CrashStructure & Front Wings	-	1	Enquire
2	708823	P/SMPL-CINNABAR ORG	708823 P/SMPL-CINNABAR ORG Cat A. Includes Bonnet,Doors, Decklid, CrashStructure & Front Wings	-	1	Enquire
20	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	10	Enquire
30	HY53N103218AB	M12X45 W/PILOT	HY53N103218AB M12X45 W/PILOT Grade 10.9	-	6	Enquire
40	LY73L101A70AA	CR MBR FRT UPR CONV	LY73L101A70AA CR MBR FRT UPR CONV Cat A	-	1	Enquire
50	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	8	Enquire
60	HY53V17N801AE	FRT CRSH CAN LH	HY53V17N801AE FRT CRSH CAN LH	-	1	Enquire
70	HY53V17N800AE	FRT CRUSH CAN RH	HY53V17N800AE FRT CRUSH CAN RH	-	1	Enquire
80	704440	Screw, M10 x 35	704440 Screw, M10 x 35	-	8	Enquire
90	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	4	Enquire
100	HY5316B859AA	BRKT HD HGE MNTG LW	HY5316B859AA BRKT HD HGE MNTG LW Lower	-	1	Enquire
110	HY5316B858AA	BRKT HD HGE MNTG LW	HY5316B858AA BRKT HD HGE MNTG LW Lower	-	1	Enquire
120	HY5316A734AB	NUTPLT HD HNG MNT BD	HY5316A734AB NUTPLT HD HNG MNT BD	-	2	Enquire
130	HY536367912AB	NTPLT FRT CRSH CAN	HY536367912AB NTPLT FRT CRSH CAN	-	2	Enquire
140	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
150	HY5316A682AB	BRKT HD HINGE MNT LH	HY5316A682AB BRKT HD HINGE MNT LH Upper	-	1	Enquire
160	HY5316A681AG	BRKT HD HINGE MNT RH	HY5316A681AG BRKT HD HINGE MNT RH Upper	-	1	Enquire
170	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
180	HY53100A05AE	HSNG FRT SUS MNTG LH	HY53100A05AE HSNG FRT SUS MNTG LH Cat A	-	1	Enquire
190	HY53100A04AD	HSNG FRT SUS MNTG RH	HY53100A04AD HSNG FRT SUS MNTG RH Cat A	-	1	Enquire
200	HY53045J72AA	NITTO FOAM GASKET FR	HY53045J72AA NITTO FOAM GASKET FR	-	2	Enquire
210	HY53E802299AA	M12 SHOULDER BOLT	HY53E802299AA M12 SHOULDER BOLT	-	6	Enquire
220	HY5313B060AA	HEADLAMP ADJ BRKT	HY5313B060AA HEADLAMP ADJ BRKT Cat A	-	1	Enquire
230	HY5313B059AA	HEADLAMP ADJ BRKT	HY5313B059AA HEADLAMP ADJ BRKT Cat A	-	1	Enquire
240	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
300	KY53L27847AB	PANEL BODYSIDE LH	KY53L27847AB PANEL BODYSIDE LH Cat A	-	1	Enquire
310	KY53L27846AB	PNL BDYSIDE RH	KY53L27846AB PNL BDYSIDE RH Cat A	-	1	Enquire
330	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5) Pack of 5	-	2	Enquire
340	KY53L02623AC	PNL CTRL CR LH CONV	KY53L02623AC PNL CTRL CR LH CONV Cat A	-	1	Enquire
350	KY53L02622AC	PNL CTRL CR RH CONV	KY53L02622AC PNL CTRL CR RH CONV Cat A	-	1	Enquire
400	HY53108A75AF	ASY BRA ENG CMPT	HY53108A75AF ASY BRA ENG CMPT Silver , -> VIN L04848*	-	1	Enquire
401	HY53108A75BA	ASY BRA ENG CMPT	HY53108A75BA ASY BRA ENG CMPT Black, VIN L04849->	-	1	Enquire
402	13A5840CP	COVER - LUGGAGE BIN TOE	13A5840CP COVER - LUGGAGE BIN TOE	-	1	Enquire
410	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Silver, Pack of 10.ALWAYS REPLACE. NEVERREUSE	-	8	Enquire
411	707497PK	BOLT-M10 x1.5x30(10	707497PK BOLT-M10 x1.5x30(10 Black, Pack of 10. ALWAYSREPLACE. NEVER REUSE	-	8	Enquire
420	JY539G856AA	REINF PRG LINE	JY539G856AA REINF PRG LINE	-	1	Enquire
430	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	1	Enquire
440	KY539F930AC	BRKT O/F HSE MTG	KY539F930AC BRKT O/F HSE MTG	-	1	Enquire
450	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
460	KY53611B34AA	SPACER ST BLT PRT	KY53611B34AA SPACER ST BLT PRT	-	2	Enquire
470	HY53111C60AD	PANEL TOE BOARD RH	HY53111C60AD PANEL TOE BOARD RH	-	1	Enquire
480	HY53111C61AD	PANEL TOE BOARD LH	HY53111C61AD PANEL TOE BOARD LH	-	1	Enquire
490	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	16	Enquire
500	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	-	2	Enquire
510	KY53L111D38AB	RR BLKHD CLR PNL	KY53L111D38AB RR BLKHD CLR PNL	-	1	Enquire
520	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	10	Enquire
530	HY5316184AG	BR ENG COMPST SD RH	HY5316184AG BR ENG COMPST SD RH	-	1	Enquire
540	HY5316185AG	BR ENG COMPST SD LH	HY5316185AG BR ENG COMPST SD LH	-	1	Enquire
550	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	10	Enquire
560	HY53110023AC	BRACE TUNNEL CENTRE	HY53110023AC BRACE TUNNEL CENTRE	-	1	Enquire
570	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	16	Enquire
580	HY535341AD	BRKT HD LTCH MNTG LH	HY535341AD BRKT HD LTCH MNTG LH Cat A	-	1	Enquire
590	HY535340AD	BRKT HD LTCH MNTG RH	HY535340AD BRKT HD LTCH MNTG RH Cat A	-	1	Enquire
600	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	6	Enquire
610	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	12	Enquire
620	KY53L114B10AC	REINF ISO TTHR MNTG	KY53L114B10AC REINF ISO TTHR MNTG	-	2	Enquire
630	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	10	Enquire
640	KY53L28143AB	PNL B PLR CVR LH	KY53L28143AB PNL B PLR CVR LH Cat A	-	1	Enquire
650	KY53L28142AB	PNL B PLR CVR RH	KY53L28142AB PNL B PLR CVR RH Cat A	-	1	Enquire
660	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	16	Enquire
670	HY538741AB	CLSR SERV CHNL	HY538741AB CLSR SERV CHNL	-	2	Enquire
680	HY53F16346AA	DOOR STRIKER SHIM	HY53F16346AA DOOR STRIKER SHIM	-	2	Enquire
690	705355	Bolt, M10 x 25	705355 Bolt, M10 x 25	-	2	Enquire
700	KY53L41037AC	PNL RR QTR INFLL LH	KY53L41037AC PNL RR QTR INFLL LH Cat A	-	1	Enquire
710	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	6	Enquire
720	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5	-	6	Enquire
730	RY63C043C90LC	IP UPR BRW PASS CRBN	RY63C043C90LC IP UPR BRW PASS CRBN	-	1	Enquire
740	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	20	Enquire
750	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
760	KY53L41036AC	PNL RR QTR INFLL RH	KY53L41036AC PNL RR QTR INFLL RH Cat A	-	1	Enquire
770	KY53L279A55AC	PNL QTR WHLHS CLR LH	KY53L279A55AC PNL QTR WHLHS CLR LH	-	1	Enquire
780	KY53L279A54AC	PNL QTR WHLHS CLR RH	KY53L279A54AC PNL QTR WHLHS CLR RH	-	1	Enquire
790	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD	-	6	Enquire
800	KY53L21763AB	BRKT ROOF MECH SUPTL	KY53L21763AB BRKT ROOF MECH SUPTL	-	1	Enquire
810	KY53L21762AB	BRKT ROOF MECH SUPTR	KY53L21762AB BRKT ROOF MECH SUPTR	-	1	Enquire
820	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
830	KY53L501A33AA	TONN BSTP BRKT OTR	KY53L501A33AA TONN BSTP BRKT OTR	-	2	Enquire
840	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	8	Enquire
850	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top	-	4	Enquire
860	KY53L501A32AA	TONN BSTP BRKT INR	KY53L501A32AA TONN BSTP BRKT INR	-	1	Enquire
870	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
880	KY53L21760AA	CFLP BSTP BRKT CONV	KY53L21760AA CFLP BSTP BRKT CONV	-	1	Enquire
890	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
900	KY53L5A367AA	CLSR RR SBFRM MNT LH	KY53L5A367AA CLSR RR SBFRM MNT LH	-	1	Enquire
910	KY53L5A366AA	CLSR RR SBFRM MNT RH	KY53L5A366AA CLSR RR SBFRM MNT RH	-	1	Enquire
920	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -> June 2019	-	8	Enquire
921	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) June 2019->. Pack of 10	-	8	Enquire
930	HY5310126AA	ASSY BRKT SILL APPLQ	HY5310126AA ASSY BRKT SILL APPLQ	-	8	Enquire
940	707167	RIVET-4.65 x9.8 BLND	707167 RIVET-4.65 x9.8 BLND	-	16	Enquire
1000	HY5347124AF	PANEL TRUNK FLOOR	HY5347124AF PANEL TRUNK FLOOR -> 21MY, Cat A	-	1	Enquire
1001	HY5347124AG	PANEL TRUNK FLOOR	HY5347124AG PANEL TRUNK FLOOR 22MY->, Cat A	-	1	Enquire
1010	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	4	Enquire
1020	HY5313263CA	RR LMP SPRT OTR LH	HY5313263CA RR LMP SPRT OTR LH	-	1	Enquire
1021	HY5313262CA	RR LMP SPRT OTR RH	HY5313262CA RR LMP SPRT OTR RH	-	1	Enquire
1030	KY53L10515AE	PNL TRUNK CLSR LH	KY53L10515AE PNL TRUNK CLSR LH Cat A	-	1	Enquire
1031	KY53L10514AE	PNL TRUNK CLSR RH	KY53L10514AE PNL TRUNK CLSR RH Cat A	-	1	Enquire
1040	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	6	Enquire
1050	KY53L41039AD	PNL RR QTR INR LH	KY53L41039AD PNL RR QTR INR LH Cat A	-	1	Enquire
1060	KY53L41038AD	PNL RR QTR INR RH	KY53L41038AD PNL RR QTR INR RH Cat A	-	1	Enquire
1070	SY9Y14025BB	FRT DR TR LINK RHS P	SY9Y14025BB FRT DR TR LINK RHS P -> VIN L11705. Due to achange in the drain hose,the later drain plug maybe required.	-	1	Enquire
1071	MY63205196AA	TLS DRAIN PLUG	MY63205196AA TLS DRAIN PLUG VIN L11706->	-	1	Enquire
1080	KY53L45108AH	ASSY TRUNK LID SURRD	KY53L45108AH ASSY TRUNK LID SURRD Cat A	-	1	Enquire
1090	KY5342853AA	HINGE SPACER	KY5342853AA HINGE SPACER	-	6	Enquire
1091	KY5342853BA	HINGE SPACER	KY5342853BA HINGE SPACER	-	6	Enquire
1092	KY5342853CA	HINGE SPACER	KY5342853CA HINGE SPACER	-	6	Enquire
1100	707004	BOLT & WSHR M6x16 HX	707004 BOLT & WSHR M6x16 HX	-	10	Enquire
1110	KY53247B63AA	REINF DCKLID GAS STR	KY53247B63AA REINF DCKLID GAS STR 21MY->	-	1	Enquire
1120	KY53247B62AA	REINF DCKLID GAS STR	KY53247B62AA REINF DCKLID GAS STR 21MY->	-	1	Enquire
1130	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) 21MY->, Pack of 10	-	4	Enquire
1140	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	2	Enquire
1150	CD3343422BA	M8X21 BLK WASHER	CD3343422BA M8X21 BLK WASHER	-	2	Enquire
1160	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	4	Enquire
1170	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
1180	HY5313266BA	EXT RR LMP INFILL SP	HY5313266BA EXT RR LMP INFILL SP	-	2	Enquire
1190	HY5313268BA	CLAMP PLATFORM	HY5313268BA CLAMP PLATFORM Aluminium	-	4	Enquire
1191	HY5313268CA	CLAMP PLATFORM	HY5313268CA CLAMP PLATFORM Nylon	-	4	Enquire
1200	HY5313267BA	ROTATION PLATFORM	HY5313267BA ROTATION PLATFORM	-	2	Enquire
1210	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	2	Enquire
1220	HY5317F035AF	ASSY CRSH/CAN RR LH	HY5317F035AF ASSY CRSH/CAN RR LH	-	1	Enquire
1230	HY5317F034AF	ASY CRSH/CN RR RH	HY5317F034AF ASY CRSH/CN RR RH	-	1	Enquire
1240	HY535F046AB	NTPLT M8 CRSHCN INR	HY535F046AB NTPLT M8 CRSHCN INR	-	2	Enquire
1250	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
1260	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	8	Enquire
1270	KY539348AA	SEALING FOAM RG WSHR	KY539348AA SEALING FOAM RG WSHR	-	6	Enquire
1300	HY5317F033AH	ARM FRT BUMPER	HY5317F033AH ARM FRT BUMPER RoW	-	1	Enquire
1310	HY5317F033CJ	ARM FRONT BMPR	HY5317F033CJ ARM FRONT BMPR China, GCC, South Korea	-	1	Enquire
1320	HY5317F033BJ	ARM FRONT BUMPER FED	HY5317F033BJ ARM FRONT BUMPER FED Federal	-	1	Enquire
1330	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE	-	6	Enquire
1340	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	2	Enquire
1350	HY5316E146CA	BOLSTER STUD FED	HY5316E146CA BOLSTER STUD FED Federal	-	4	Enquire
1360	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
1370	HY5316E170BC	STRT FRNT END BLSTR	HY5316E170BC STRT FRNT END BLSTR Structural	-	1	Enquire
1390	HY5317B804BA	RECOVERY EYE	HY5317B804BA RECOVERY EYE	-	1	Enquire
1500	HY5317758AG	ARM RR BUMPER ROW	HY5317758AG ARM RR BUMPER ROW RoW	-	1	Enquire
1510	HY5317758CE	ARM REAR BUMPR CHINA	HY5317758CE ARM REAR BUMPR CHINA China, GCC, South Korea	-	1	Enquire
1520	KY7317758BD	ARM RR BUMPER FED	KY7317758BD ARM RR BUMPER FED Federal	-	1	Enquire
1530	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	6	Enquire
1540	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	2	Enquire
