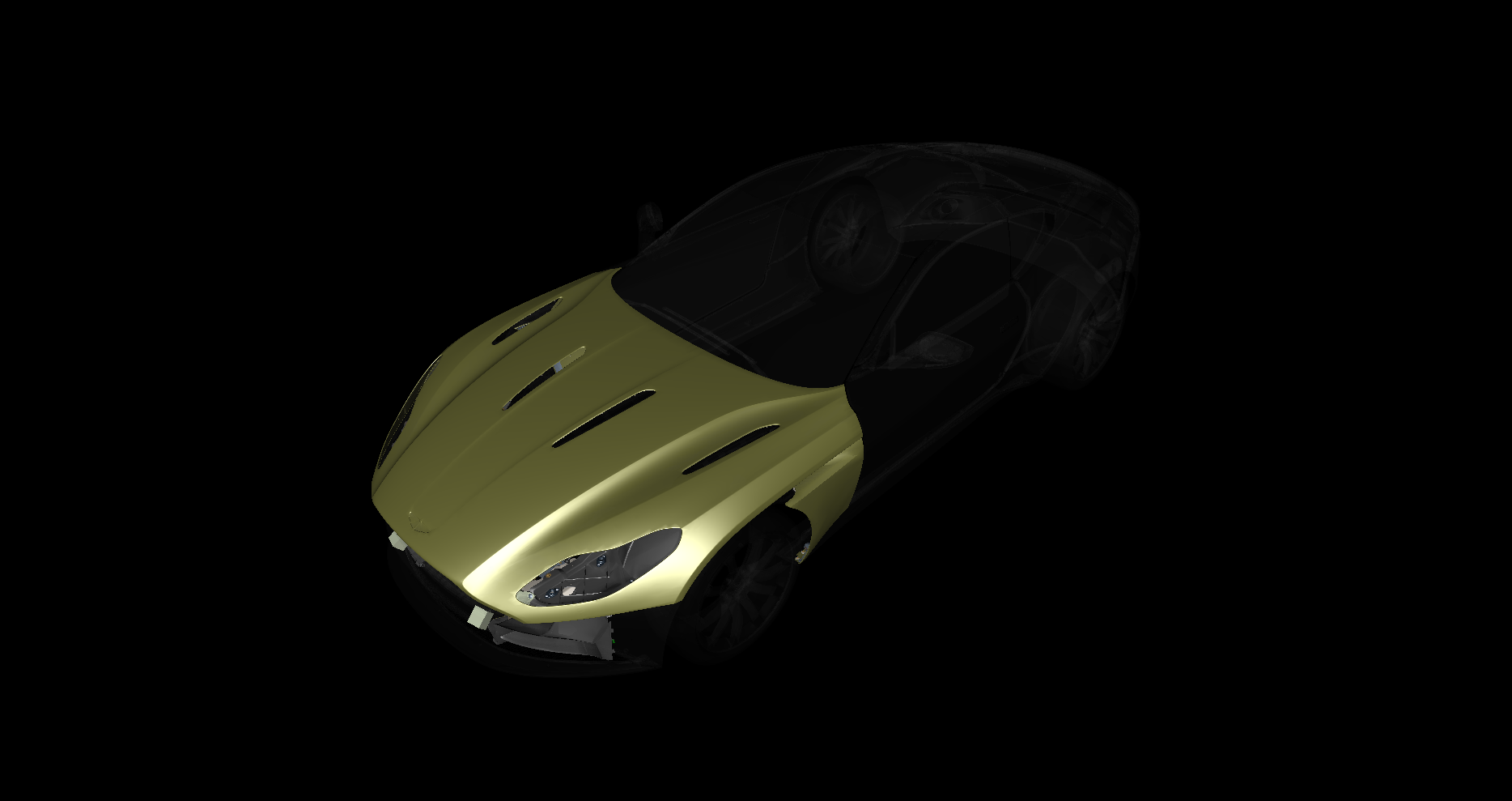

Front End of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Front End

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET Please refer to ServiceAction SA-30-1571	-	-	Enquire
20	HY5313069AE	PNL H/LAMP MNT LH	HY5313069AE PNL H/LAMP MNT LH Cat A	-	1	Enquire
30	KY7313068AA	PNL H/LMP MNT RH	KY7313068AA PNL H/LMP MNT RH Cat A	-	1	Enquire
40	HY538052AF	RAD SUPT LWR	HY538052AF RAD SUPT LWR Cat A	-	1	Enquire
50	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
60	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	6	Enquire
70	HY532943751AB	RAD SPT BEAM LOWER	HY532943751AB RAD SPT BEAM LOWER	-	1	Enquire
80	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
90	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	10	Enquire
110	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	6	Enquire
120	AG4332692BA	M8X25 STEEL WASHER	AG4332692BA M8X25 STEEL WASHER	-	2	Enquire
130	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	6	Enquire
140	HY538C252AC	ASSY RAD SUPPORT	HY538C252AC ASSY RAD SUPPORT	-	2	Enquire
150	HY538243AD	PANEL RAD GRILLE LH	HY538243AD PANEL RAD GRILLE LH	-	1	Enquire
160	HY538242AD	PANEL RAD GRILLE RH	HY538242AD PANEL RAD GRILLE RH	-	1	Enquire
170	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	8	Enquire
180	HY53F01991AB	PNL VEN AIR LH	HY53F01991AB PNL VEN AIR LH -> 19MY. Less CoolantPipe cut-out	-	1	Enquire
181	HY53F01991AC	PNL VEN AIR LH	HY53F01991AC PNL VEN AIR LH 19MY->. With Coolant Pipecut-out	-	1	Enquire
190	JY53F01990AC	PNL VEN AIR RH	JY53F01990AC PNL VEN AIR RH	-	1	Enquire
200	HY538211AF	PNL RAD GRL CTR	HY538211AF PNL RAD GRL CTR	-	1	Enquire
210	HY5313181BA	BRKT HD/LP NUT PLT	HY5313181BA BRKT HD/LP NUT PLT	-	6	Enquire
220	HY538662AA	INTAKE FOAM LOWER	HY538662AA INTAKE FOAM LOWER	-	2	Enquire
230	HY538A145AB	INTKE FM LH OTBRD	HY538A145AB INTKE FM LH OTBRD	-	1	Enquire
240	HY538A144AB	INTKE FM RH OTBRD	HY538A144AB INTKE FM RH OTBRD	-	1	Enquire
250	HY538672AB	INTAKE FOAM CENTRE	HY538672AB INTAKE FOAM CENTRE V12	-	1	Enquire
251	JY538672AB	INTAKE FOAM CENTRE	JY538672AB INTAKE FOAM CENTRE V8	-	1	Enquire
260	HY538661AB	INTAKE FOAM LH UPPER	HY538661AB INTAKE FOAM LH UPPER	-	1	Enquire
270	HY538660AB	INTAKE FOAM RH UPPER	HY538660AB INTAKE FOAM RH UPPER	-	1	Enquire
280	HY537081AA	GRILLE FOAM OUT LH	HY537081AA GRILLE FOAM OUT LH	-	1	Enquire
290	HY537080AA	GRILLE FOAM OUT RH	HY537080AA GRILLE FOAM OUT RH	-	1	Enquire
300	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	2	Enquire
310	HY5317E671AA	FRT BMPR FOAM UPR LH	HY5317E671AA FRT BMPR FOAM UPR LH	-	1	Enquire
320	HY5317E670AA	FRT BMPR FOAM UPR RH	HY5317E670AA FRT BMPR FOAM UPR RH	-	1	Enquire
330	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	8	Enquire
340	HY538B413AC	GOP SIDE LOWER LH	HY538B413AC GOP SIDE LOWER LH	-	1	Enquire
350	HY538B412AC	GOP SIDE LOWER RH	HY538B412AC GOP SIDE LOWER RH	-	1	Enquire
360	HY538C465AB	AUX RAD DUCT RR LH	HY538C465AB AUX RAD DUCT RR LH	-	1	Enquire
370	HY538C464AB	AUX RAD DUCT RR RH	HY538C464AB AUX RAD DUCT RR RH	-	1	Enquire
380	HY538B411AC	GOP SIDE UPPER LH	HY538B411AC GOP SIDE UPPER LH	-	1	Enquire
390	HY538B410AC	GOP SIDE UPPER RH	HY538B410AC GOP SIDE UPPER RH	-	1	Enquire
400	703266	Screw M6 x 10 Pan Head Torx	703266 Screw M6 x 10 Pan Head Torx	-	2	Enquire
410	HY5316E669AB	COND SIDE AIR PNL LH	HY5316E669AB COND SIDE AIR PNL LH	-	1	Enquire
420	HY5316E668AB	COND SIDE AIR PNL RH	HY5316E668AB COND SIDE AIR PNL RH	-	1	Enquire
430	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	6	Enquire
440	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) Pack of 10	-	4	Enquire
450	HY5356143AA	POP RIVET DOME HEAD	HY5356143AA POP RIVET DOME HEAD VIN L01707->	-	12	Enquire
500	HY5316006AD	PNL ASY FRT FNDR LH	HY5316006AD PNL ASY FRT FNDR LH	-	1	Enquire
510	HY5316005AD	PNL ASY FRT FNDR RH	HY5316005AD PNL ASY FRT FNDR RH	-	1	Enquire
520	HY5316A006AD	BT FRT FND PLR MNT L	HY5316A006AD BT FRT FND PLR MNT L -> VIN L07406, Handed, LH	-	2	Enquire
530	HY5316A005AD	BRKT FRT FND PLR MNT	HY5316A005AD BRKT FRT FND PLR MNT -> VIN L07406, Handed, RH	-	2	Enquire
531	HY5316A005AE	BRKT FRT FND PLR MNT	HY5316A005AE BRKT FRT FND PLR MNT VIN L07407->, Universal	-	4	Enquire
540	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	8	Enquire
550	706890	BOLT & WSHR M6 x 24	706890 BOLT & WSHR M6 x 24	-	8	Enquire
560	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
570	CG43106258AA	Washer 6.0 I/D 24 O/D X 2.5 THK	CG43106258AA Washer 6.0 I/D 24 O/D X 2.5 THK	-	4	Enquire
580	HY53P2469AB	SPACER FRONT FENDER	HY53P2469AB SPACER FRONT FENDER	-	4	Enquire
590	4G4346662AA	WASHER SPACING 2MM	4G4346662AA WASHER SPACING 2MM 2mm, Nylon	-	4	Enquire
600	HY5319G465AA	BRKT WSH BOT RET	HY5319G465AA BRKT WSH BOT RET Aluminium	-	1	Enquire
601	HY5319G465BA	BRKT WSH BOT RET	HY5319G465BA BRKT WSH BOT RET Plastic	-	1	Enquire
610	703746	SCREW-M6x16 PAN TORX	703746 SCREW-M6x16 PAN TORX	-	1	Enquire
700	HY5316612BA	HOOD ASSEMBLY	HY5316612BA HOOD ASSEMBLY V12, 4 Vents	-	1	Enquire
701	JY5316612BA	HOOD ASSEMBLY	JY5316612BA HOOD ASSEMBLY V8, 2 Vents	-	1	Enquire
710	HY5316801AE	HINGE ASSY HOOD LH	HY5316801AE HINGE ASSY HOOD LH	-	1	Enquire
720	HY5316800AE	HINGE ASSY HOOD RH	HY5316800AE HINGE ASSY HOOD RH	-	1	Enquire
730	HY5316C826AB	GAS STRUT HOOD	HY5316C826AB GAS STRUT HOOD	-	2	Enquire
740	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
750	707136	BLT&WSH-M8 x 25 HEX	707136 BLT&WSH-M8 x 25 HEX	-	8	Enquire
760	HY53286E04AA	GAS STRUT BALL STUD	HY53286E04AA GAS STRUT BALL STUD	-	2	Enquire
770	707148	NUT-M20 HEX THIN	707148 NUT-M20 HEX THIN	-	2	Enquire
780	HY538K038AB	ADJUSTABLE STOP	HY538K038AB ADJUSTABLE STOP	-	2	Enquire
790	703131	WASHER PLAIN FORM A M8 CHROME FREE	703131 WASHER PLAIN FORM A M8 CHROME FREE	-	4	Enquire
800	HY5316K808AA	SUPT HOOD BMPR TO CO	HY5316K808AA SUPT HOOD BMPR TO CO	-	2	Enquire
810	HY53F5238AC	HOOD BUMPSTOP SPACER	HY53F5238AC HOOD BUMPSTOP SPACER	-	2	Enquire
820	AD43106046AA	M6 WASHER	AD43106046AA M6 WASHER	-	2	Enquire
830	HY53E804159BA	M6 DUAL THREAD STUD	HY53E804159BA M6 DUAL THREAD STUD	-	2	Enquire
840	HY53403F64AA	NITTO FOAM	HY53403F64AA NITTO FOAM Refer to Service ActionSA-30-1571	-	2	Enquire
