Body Closures - Coupe

Aston Martin GT DB11 (2017-2023)

Find Your Part

Aston Martin GT DB11 (2017-2023) - Body Closures - Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

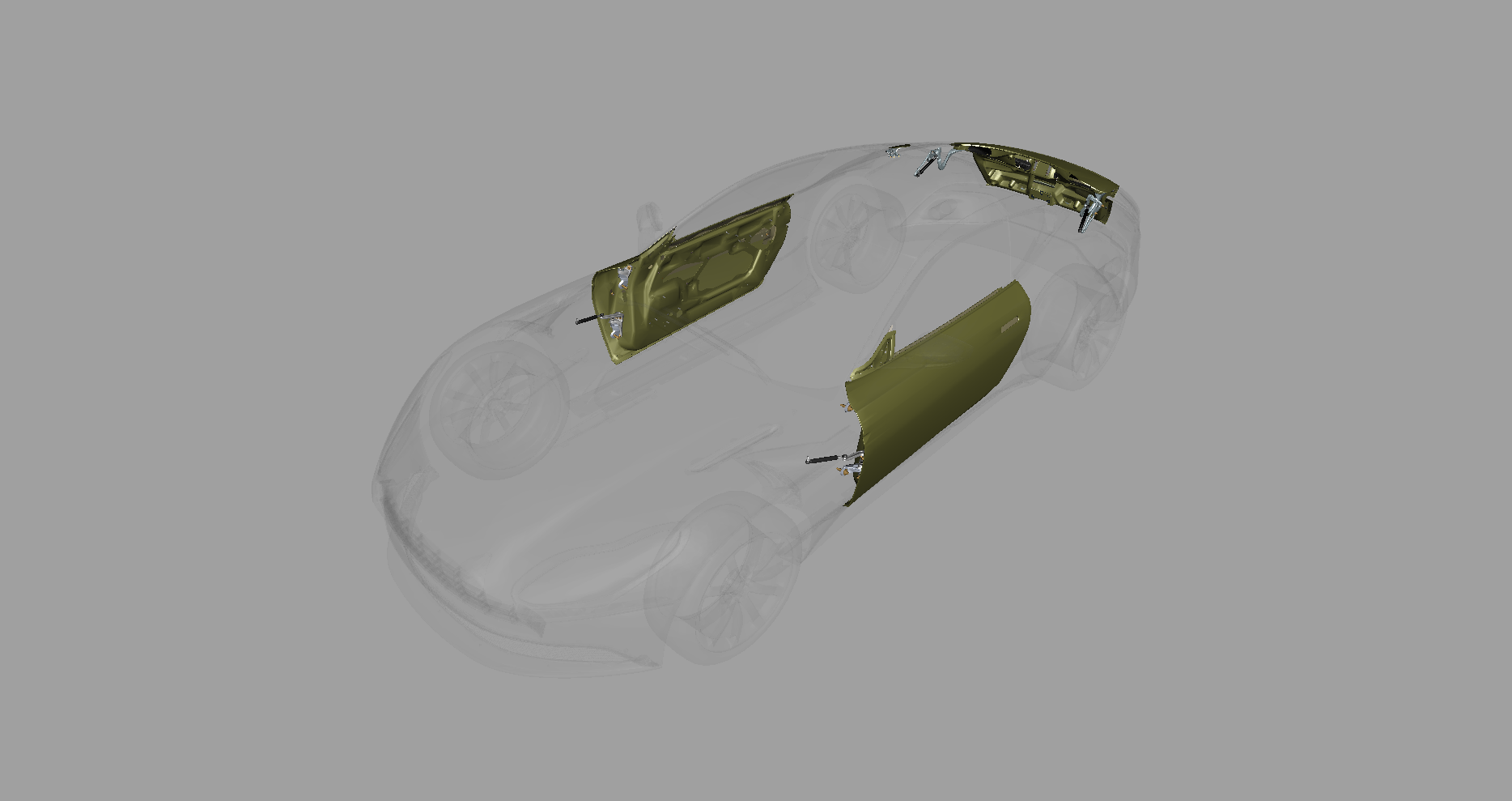

Body Closures - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
10 HY5320123BA
DOOR ASSY LH 		- 1 Enquire
20 HY5320122BA
DOOR ASSY RH 		- 1 Enquire
30 6485690
BALL STUD-GAS STRUT 		- 2 Enquire
40 HY53F23504AD
GAS STRUT DOOR
IN STOCK 		- 2 Enquire
50 HY53483686AB
BOLT & WASHER M12 		- 4 Enquire
60 707166
BOLT & WSHR-M8 x 30 		- 8 Enquire
70 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		- 2 Enquire
80 HY5322801AC
HGE ASY DR UPR LH 		- 1 Enquire
90 HY5322800AC
HGE ASY DR UPR RH 		- 1 Enquire
100 HY5322811AD
HGE ASY DR LWR LH 		- 1 Enquire
110 HY5322810AD
HGE ASY DR LWR RH 		- 1 Enquire
120 703202
Screw,  M8  x 12, Flange Hd
-> 18.5MY, Silver 		- 4 Enquire
121 707368
SCREW-M8 x 12 FLG-BL
18.5MY->, Black 		- 4 Enquire
200 HY536710140
BOOTLID ASSY-BONDED 		- 1 Enquire
210 HY536710141
BOOTLID OUTER-LOWER 		- 1 Enquire
220 HY533K663AA
S CLIP DECKLID OUTER 		- 7 Enquire
230 707142
SCREW M5 X 12
IN STOCK 		- 6 Enquire
240 HY53N623361AA
EDGE CLIP 		- 6 Enquire
250 CD3343422AA
Washer, 81 x 21 x 1.6
-> VIN L08420 		- 4 Enquire
251 HY53N800888AA
WASHER-6IDx18ODx1.6
VIN L08421-> 		- 4 Enquire
260 4G43E826280BAPK
Nut M6- Flexax Tolerance (Pack of 5)
Pack of 5
IN STOCK 		- 4 Enquire
270 HY53MJA4212AB
INNER DECKLID FOAM 		- 1 Enquire
280 HY53C406A10AC
GAS STRUT
IN STOCK 		- 2 Enquire
290 HY53C42701AE
HINGE ASSY LH 		- 1 Enquire
300 HY53C42700AE
HINGE ASSY RH 		- 1 Enquire
310 707136
BLT&WSH-M8 x 25 HEX 		- 8 Enquire
320 708058
BOLT-M6 x 40 BLACK 		- 4 Enquire
400 HY53C405A02AA
PNL FU/FILL FLAP 		- 1 Enquire
410 HY53C405B96AD
ASY HNGE FU/FL FLAP 		- 1 Enquire
420 701553
Screw, M6 x 16, Pan Head
-> 18.5MY, Silver
IN STOCK 		- 3 Enquire
421 707411
SCREW-M6 x 16 PAN
18.5MY->, Black 		- 3 Enquire
430 699733
WASHER M6 ST STL 		- 3 Enquire
