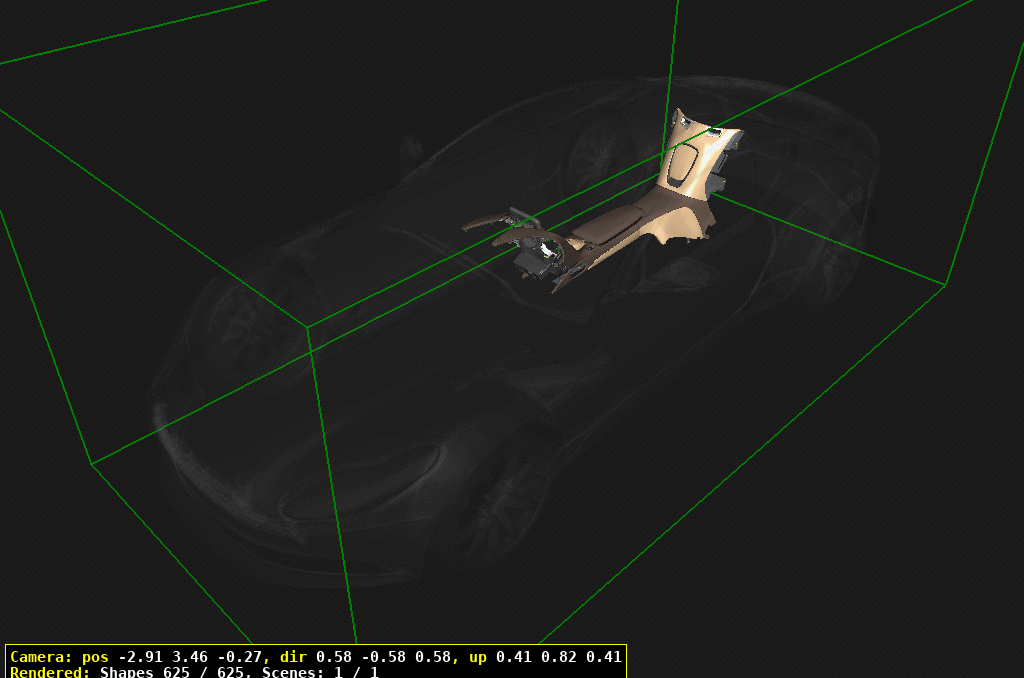

Centre Console - 22MY on of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Centre Console - 22MY on

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	NY5324407AAW	MID IP CTR STK SWTCH	NY5324407AAW MID IP CTR STK SWTCH Haircell Leather	-	1	Enquire
21	NY5324407EAW	MID IP CTR STK SWTCH	NY5324407EAW MID IP CTR STK SWTCH Semi Aniline Leather	-	1	Enquire
22	709589PK	S/R PLT-DB12 S-EURO	709589PK S/R PLT-DB12 S-EURO Haircell Leather	-	1	Enquire
23	NY5324405EAW	MID IP CENTRE STACK	NY5324405EAW MID IP CENTRE STACK Semi Aniline Leather	-	1	Enquire
30	NY5324406AAW	MID IP CENT STACK RH	NY5324406AAW MID IP CENT STACK RH Haircell Leather	-	1	Enquire
31	NY5324406EAW	MID IP CENT STACK RH	NY5324406EAW MID IP CENT STACK RH Semi Aniline Leather	-	1	Enquire
33	709588PK	S/R PLT-DB12 S-A/PAC	709588PK S/R PLT-DB12 S-A/PAC Haircell Leather	-	1	Enquire
34	NY5324404EAW	MID IP CENTRE STACK	NY5324404EAW MID IP CENTRE STACK Semi Aniline Leather	-	1	Enquire
40	707165	TRIM FASTENER	707165 TRIM FASTENER	-	12	Enquire
50	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	8	Enquire
60	HY538710034	PAIR CTR STK VNR	HY538710034 PAIR CTR STK VNR Satin Chopped Carbon	-	1	Enquire
62	HY53044J51EA	IP VNR KIT TAMO ASH	HY53044J51EA IP VNR KIT TAMO ASH Tamo Ash, Matched Pair	-	1	Enquire
65	HY53044J51JA	IP VNR KIT LIGHT ASH	HY53044J51JA IP VNR KIT LIGHT ASH Light Ash Burl, MatchedPair	-	1	Enquire
69	KY53044L81AAW	CTR STK VNR LHS ASY	KY53044L81AAW CTR STK VNR LHS ASY Leather Wrapped	-	1	Enquire
70	HY53045J11AC	CTR STK VNR LHS	HY53045J11AC CTR STK VNR LHS Piano Black	-	1	Enquire
75	HY53045J11BC	CTR STK VNR LHS	HY53045J11BC CTR STK VNR LHS Carbon, 2x2 Twill, Satin	-	1	Enquire
89	KY53044L80AAW	CTR STK VNR RHS ASY	KY53044L80AAW CTR STK VNR RHS ASY Leather Wrapped	-	1	Enquire
90	HY53045J10AC	CTR STK VNR RHS	HY53045J10AC CTR STK VNR RHS Piano Black	-	1	Enquire
95	HY53045J10BC	CTR STK VNR RHS	HY53045J10BC CTR STK VNR RHS Carbon, 2x2 Twill, Satin	-	1	Enquire
100	HY53V513K01AC	CTR CNSL SUPT MLDG	HY53V513K01AC CTR CNSL SUPT MLDG Includes items 110	-	1	Enquire
110	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	12	Enquire
120	709587PK	S/R PLT-DB12 S-A/PAC	709587PK S/R PLT-DB12 S-A/PAC Haircell	-	1	Enquire
121	709586PK	S/R PLT-DB12 S-A/PAC	709586PK S/R PLT-DB12 S-A/PAC Semi Aniline	-	1	Enquire
122	709585PK	S/R PLT-DB12 S-A/PAC	709585PK S/R PLT-DB12 S-A/PAC Nappa PVC	-	1	Enquire
130	HY5314853AA	CTR STK FIN SAT CHRM	HY5314853AA CTR STK FIN SAT CHRM Satin Chrome	-	1	Enquire
131	HY5314853BA	CTR STK FIN DRK CHRM	HY5314853BA CTR STK FIN DRK CHRM Dark Chrome	-	1	Enquire
140	HY5304487AA	CTR STK LWR SPPRT M	HY5304487AA CTR STK LWR SPPRT M	-	1	Enquire
150	HY537T429AB	HEAD UNIT RETAINER	HY537T429AB HEAD UNIT RETAINER	-	2	Enquire
160	NY53044H94AAW	SAT NAV SCRN SURRD F	NY53044H94AAW SAT NAV SCRN SURRD F Haircell	-	1	Enquire
161	NY53044H94EAW	SAT NAV SCRN SURRD F	NY53044H94EAW SAT NAV SCRN SURRD F Semi Aniline	-	1	Enquire
162	709584PK	S/R PLT-DB12 S-A/PAC	709584PK S/R PLT-DB12 S-A/PAC Nappa PVC	-	1	Enquire
170	709583PK	S/R PLT-DB12 S-A/PAC	709583PK S/R PLT-DB12 S-A/PAC Haircell	-	1	Enquire
171	709582PK	S/R PLT-DB12 S-A/PAC	709582PK S/R PLT-DB12 S-A/PAC Semi Aniline	-	1	Enquire
172	709581PK	S/R PLT-DB12 S-A/PAC	709581PK S/R PLT-DB12 S-A/PAC Nappa PVC	-	1	Enquire
180	SY8304653AC	RR UP SPKR GRL HALO	SY8304653AC RR UP SPKR GRL HALO Haircell	-	1	Enquire
181	SY8304652AC	RR UP SPKR GRL HALO	SY8304652AC RR UP SPKR GRL HALO Semi Aniline	-	1	Enquire
182	RY6Y5N201BA	BRKT EXH MNTG RH	RY6Y5N201BA BRKT EXH MNTG RH Nappa PVC	-	1	Enquire
190	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	16	Enquire
200	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	2	Enquire
210	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	16	Enquire
220	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	6	Enquire
230	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	-	2	Enquire
240	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	4	Enquire
250	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	2	Enquire
260	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	-	4	Enquire
270	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	4	Enquire
280	HY5310E927AC	SAT NAV SCRN SURR RR	HY5310E927AC SAT NAV SCRN SURR RR	-	1	Enquire
290	AD43N807148AA	Screw, M2 x 8, Torx	AD43N807148AA Screw, M2 x 8, Torx	-	6	Enquire
300	MY6360220GAW	CNTRL C SRND TRM ASY	MY6360220GAW CNTRL C SRND TRM ASY Haircell	-	1	Enquire
310	MY6310A916GAW	CNTROL C SRRND CAP	MY6310A916GAW CNTROL C SRRND CAP Haircell	-	1	Enquire
320	HY5345864AA	TOUCH PAD CLOS PNL	HY5345864AA TOUCH PAD CLOS PNL	-	1	Enquire
330	AD43N807148AA	Screw, M2 x 8, Torx	AD43N807148AA Screw, M2 x 8, Torx	-	6	Enquire
340	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	2	Enquire
350	HY5304559AC	CTR CNSL SUPT BRKT	HY5304559AC CTR CNSL SUPT BRKT	-	1	Enquire
360	HY5304558AC	CTR CNSL SUPT BRKT	HY5304558AC CTR CNSL SUPT BRKT	-	1	Enquire
370	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	6	Enquire
380	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head	-	4	Enquire
390	HY5311585AB	EIS RETAINER MOULDIN	HY5311585AB EIS RETAINER MOULDIN	-	1	Enquire
400	703068	4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP	-	5	Enquire
410	NY53045K06AAW	LID ASSY CONSOLE	NY53045K06AAW LID ASSY CONSOLE	-	1	Enquire
420	NY53045C74AAW	CNSL STWG ASSY	NY53045C74AAW CNSL STWG ASSY Haircell, Includes items430-520	-	1	Enquire
421	RY53SE8592AA	PIPE-COOLER FEED LH	RY53SE8592AA PIPE-COOLER FEED LH Semi Aniline, Includesitems 430-520	-	1	Enquire
430	HY5311710AE	TCK ASY STWG CMPTLID	HY5311710AE TCK ASY STWG CMPTLID	-	1	Enquire
440	702629	SCREW-M6x19 PAN HEAD TORX PILOT	702629 SCREW-M6x19 PAN HEAD TORX PILOT	-	2	Enquire
450	HY53E826A80AA	M8 FLEXITOL	HY53E826A80AA M8 FLEXITOL	-	2	Enquire
460	SY9Y9K729BC	MONOCOQUE ASSY LHD	SY9Y9K729BC MONOCOQUE ASSY LHD	-	2	Enquire
470	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	2	Enquire
480	HY53045L50AA	MLDG EM IGM SW CP	HY53045L50AA MLDG EM IGM SW CP	-	1	Enquire
500	HY53045M880AA	CNSL STWG MATT	HY53045M880AA CNSL STWG MATT	-	1	Enquire
510	HY53047B40BA	CN HLDR DIV BAR RR	HY53047B40BA CN HLDR DIV BAR RR	-	1	Enquire
560	NY53045C31AAW	MLD ASY CNSL PNL LH	NY53045C31AAW MLD ASY CNSL PNL LH Haircell	-	1	Enquire
561	SY9Y25325AB	FRT DR LWR MAR LH	SY9Y25325AB FRT DR LWR MAR LH Haircell/Alcantara	-	1	Enquire
562	NY53045C31EAW	MLDG ASY CNSL PNL LH	NY53045C31EAW MLDG ASY CNSL PNL LH Semi Aniline	-	1	Enquire
570	NY53045C30AAW	MLDG ASY CNSL PNL RH	NY53045C30AAW MLDG ASY CNSL PNL RH Haircell	-	1	Enquire
571	SY9Y23943UBW	DOOR ASSY TRIM LH	SY9Y23943UBW DOOR ASSY TRIM LH Haircell/Alcantara	-	1	Enquire
572	NY53045C30EAW	MLDG ASY CNSL PNL RH	NY53045C30EAW MLDG ASY CNSL PNL RH Semi Aniline	-	1	Enquire
580	SY53120609CB	DB12 DUP OWN GER	SY53120609CB DB12 DUP OWN GER Haircell	-	1	Enquire
581	KY9Y19C101AD	BOX - ICU	KY9Y19C101AD BOX - ICU Semi Aniline	-	1	Enquire
590	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	2	Enquire
600	HY53237A13AB	TRINKET TRAY MLDNG	HY53237A13AB TRINKET TRAY MLDNG Less eCall/SOS	-	1	Enquire
601	HY53237W12AB	TRINKET TRAY E-CALL	HY53237W12AB TRINKET TRAY E-CALL With eCall/SOS	-	1	Enquire
610	HY53519E68AA	ECALL SURROUND ASSY	HY53519E68AA ECALL SURROUND ASSY	-	1	Enquire
620	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	-	2	Enquire
680	4G4303836AB	Bumpon, Reflective Black	4G4303836AB Bumpon, Reflective Black	-	2	Enquire
690	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	-	1	Enquire
700	HY53E865224AA	TRIM FASTENER 15X5.4	HY53E865224AA TRIM FASTENER 15X5.4	-	3	Enquire
710	HY533N440AB	CARRIER WRIST RST LW	HY533N440AB CARRIER WRIST RST LW	-	1	Enquire
720	MY635943GAW	WRIST REST TOP PAD	MY635943GAW WRIST REST TOP PAD	-	1	Enquire
730	701171	SCREW M4x16 THREAD FORMING	701171 SCREW M4x16 THREAD FORMING	-	2	Enquire
800	SY6Y5230CA	MUFFLER QUAD EXIT BL	SY6Y5230CA MUFFLER QUAD EXIT BL Coupe, Haircell. BaseAudio. Includes items810-860	-	1	Enquire
801	4329005	SP TL-BATRY LIFT PLT	4329005 SP TL-BATRY LIFT PLT Coupe, Semi Aniline. BaseAudio. Includes items810-860	-	1	Enquire
802	KY9Y2C563AA	BLEED SCREW KIT	KY9Y2C563AA BLEED SCREW KIT Coupe, Haircell. B&OAudio. Includes items810-860	-	1	Enquire
803	709595PK	S/R PLT-DB12 S-UK	709595PK S/R PLT-DB12 S-UK Coupe, Semi Aniline. B&OAudio. Includes items810-860	-	1	Enquire
804	SY8318C985BF	HU NAR	SY8318C985BF HU NAR Volante, Haircell. BaseAudio. Includes items810-860	-	1	Enquire
805	SY6Y14C267BA	CENTRE CONSOLE LINK	SY6Y14C267BA CENTRE CONSOLE LINK Volante, Semi Aniline.Base Audio. Includesitems 810-860	-	1	Enquire
806	NY53L674A32ACW	ASY CNSL UPR RR VOL	NY53L674A32ACW ASY CNSL UPR RR VOL Volante, Haircell. B&OAudio. Includes items810-860	-	1	Enquire
807	LY732450BB	AUTO BRK & BRKT LHD	LY732450BB AUTO BRK & BRKT LHD Volante, Semi Aniline.B&O Audio. Includes items810-860	-	1	Enquire
810	NY5367482ABW	SBWFR SPKR GR ASY	NY5367482ABW SBWFR SPKR GR ASY B&O, Haircell	-	1	Enquire
811	NY5367482EBW	SBWFR SPKR GR ASY	NY5367482EBW SBWFR SPKR GR ASY B&O, Semi Aniline	-	1	Enquire
812	HY53047A44CC	SUBWFR SPKR ASSY	HY53047A44CC SUBWFR SPKR ASSY Base Audio, Silver	-	1	Enquire
813	HY53047A44DC	SUBWFR SPKR ASSY	HY53047A44DC SUBWFR SPKR ASSY Base Audio, Dark Chrome	-	1	Enquire
820	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw	-	4	Enquire
830	701577	NUT ST 1.75-2.75 U	701577 NUT ST 1.75-2.75 U	-	4	Enquire
840	HY53611B90FA	RR SBLT BEZEL RH	HY53611B90FA RR SBLT BEZEL RH Satin Chrome	-	2	Enquire
841	HY53611B90BA	RR SBLT BEZEL	HY53611B90BA RR SBLT BEZEL Dark Chrome	-	2	Enquire
850	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk	-	4	Enquire
860	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING	-	4	Enquire
870	RY53202D12AC	DR VNR LIGHT ALU RH	RY53202D12AC DR VNR LIGHT ALU RH Haircell	-	1	Enquire
871	NY53045A12EBW	ASSY RR CONSOLE LWR	NY53045A12EBW ASSY RR CONSOLE LWR Semi Aniline	-	1	Enquire
880	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	2	Enquire
890	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	6	Enquire
