Interior Trim - Upper - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Interior Trim - Upper - Coupe

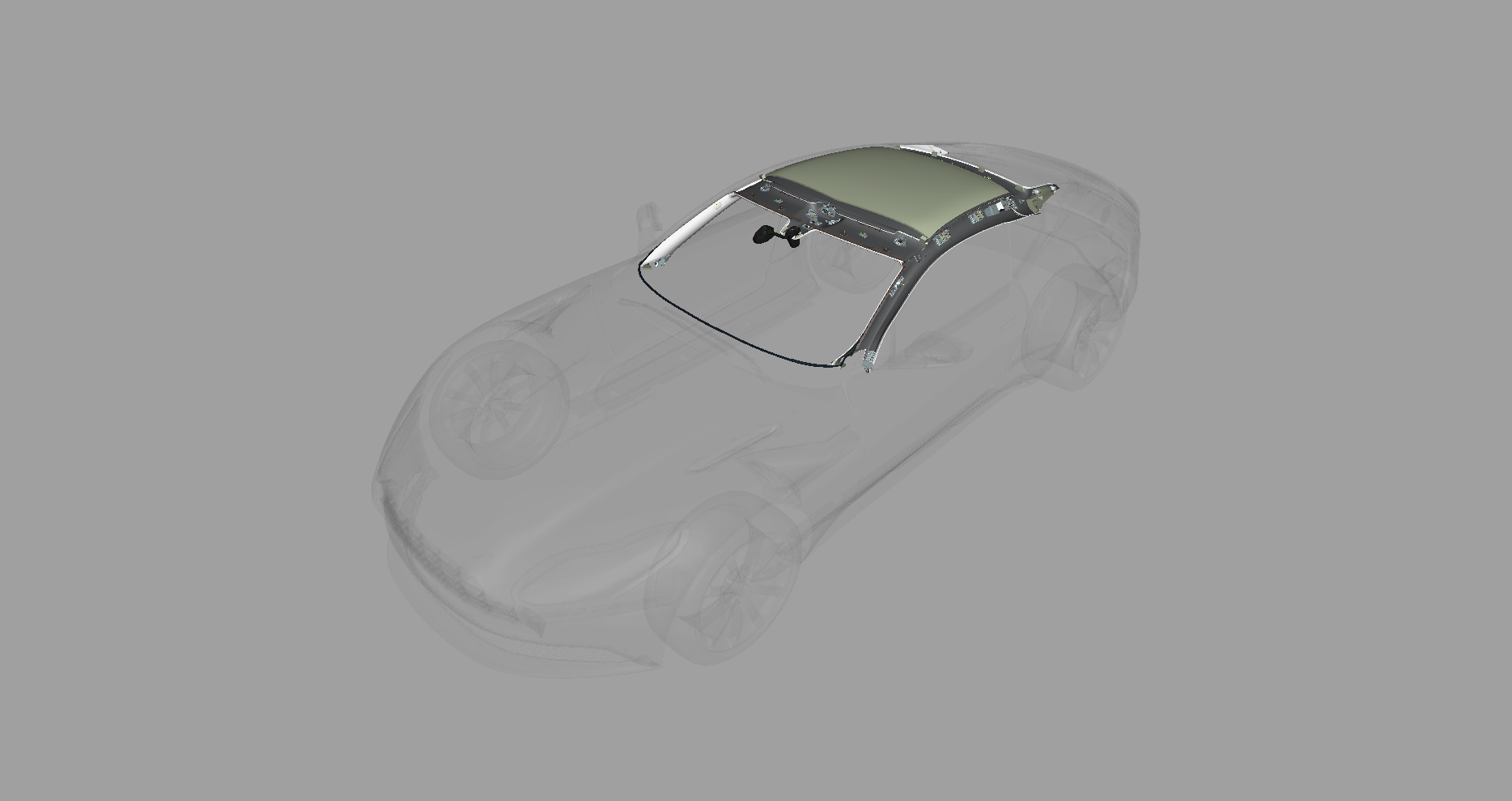

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	HY53C025B39AGW	A PLR CANT ASSY COMP	HY53C025B39AGW A PLR CANT ASSY COMP -> 22MY	-	1	Enquire
21	NY53C025B39AAW	A PLR CANT ASSY COMP	NY53C025B39AAW A PLR CANT ASSY COMP 22MY->	-	1	Enquire
30	HY53C025B38AGW	A PLR CANT ASSY COMP	HY53C025B38AGW A PLR CANT ASSY COMP -> 22MY	-	1	Enquire
31	NY53C025B38AAW	A PLR CANT ASSY COMP	NY53C025B38AAW A PLR CANT ASSY COMP 22MY->	-	1	Enquire
40	HY5313407AA	FOAM BLOCK - ROOF	HY5313407AA FOAM BLOCK - ROOF	-	2	Enquire
50	HY5368271ACW	C PST CAN ASY COM LH	HY5368271ACW C PST CAN ASY COM LH -> 22MY	-	1	Enquire
51	NY5368271AAW	C POST CANT ASSY COM	NY5368271AAW C POST CANT ASSY COM 22MY->	-	1	Enquire
60	HY5368270ACW	C POST CANT ASSY COM	HY5368270ACW C POST CANT ASSY COM -> 22MY	-	1	Enquire
61	NY5368270AAW	C POST CANT ASSY COM	NY5368270AAW C POST CANT ASSY COM 22MY->	-	1	Enquire
70	702629	SCREW-M6x19 PAN HEAD TORX PILOT	702629 SCREW-M6x19 PAN HEAD TORX PILOT	-	10	Enquire
80	HY5323747ABW	AIRBAG LOGO SRS INSE	HY5323747ABW AIRBAG LOGO SRS INSE -> 22MY	-	4	Enquire
81	NY5323747AAW	AIRBAG LOGO SRS INSE	NY5323747AAW AIRBAG LOGO SRS INSE 22MY->	-	4	Enquire
90	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
100	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	2	Enquire
110	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM DO NOT RE-USE	-	12	Enquire
120	HY53103500AA	GASKET	HY53103500AA GASKET	-	12	Enquire
130	HY5352070AA	TPE ANTI-SQ	HY5352070AA TPE ANTI-SQ	-	1	Enquire
140	HY5323020AA	NITTO FOAM STRIP	HY5323020AA NITTO FOAM STRIP	-	1	Enquire
200	HY53C03408ADW	HDR ASSY COMP	HY53C03408ADW HDR ASSY COMP -> VIN L02930, RoW	-	1	Enquire
201	708865	P/SMPL-SELENE BRONZE	708865 P/SMPL-SELENE BRONZE -> VIN L02930, Russia	-	1	Enquire
202	KY53C03408AFW	HDR ASSY COMP	KY53C03408AFW HDR ASSY COMP VIN L02931->, All Markets	-	1	Enquire
203	708862	P/SMPL-SABIRO BLUE	708862 P/SMPL-SABIRO BLUE 22MY->, All Markets	-	1	Enquire
211	KY5319H503AB	MIC BEZEL	KY5319H503AB MIC BEZEL VIN L02931->, Two rows ofholes	-	1	Enquire
220	HY5317E745AA	MIRROR FOOT COVER LH	HY5317E745AA MIRROR FOOT COVER LH	-	1	Enquire
230	HY5317E744AA	MIRROR FOOT COVER RH	HY5317E744AA MIRROR FOOT COVER RH	-	1	Enquire
240	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) Pack of 5	-	2	Enquire
250	HY53B43686AB	RF DMPG PNL	HY53B43686AB RF DMPG PNL	-	1	Enquire
255	13A5840CP	COVER - LUGGAGE BIN TOE	13A5840CP COVER - LUGGAGE BIN TOE	-	-	Enquire
260	KY5369321AEW	SUNVISOR ASSY LH	KY5369321AEW SUNVISOR ASSY LH -> 21MY, Leather	-	1	Enquire
261	KY5369321DEW	SUNVISOR ASSY LH	KY5369321DEW SUNVISOR ASSY LH -> 21MY, Alcantara	-	1	Enquire
265	MY6369321ABW	SUNVISOR ASSY LH	MY6369321ABW SUNVISOR ASSY LH 21MY, Leather	-	1	Enquire
266	MY6369321DCW	SUNVISOR ASSY LH	MY6369321DCW SUNVISOR ASSY LH 21MY->, Alcantara	-	1	Enquire
267	NY6369321EBW	SUNVISOR ASSY LH	NY6369321EBW SUNVISOR ASSY LH 22MY->, Leather	-	1	Enquire
270	KY5369320AEW	SUNVISOR ASSY RH	KY5369320AEW SUNVISOR ASSY RH -> 21MY, Leather	-	1	Enquire
271	KY5369320DEW	SUNVISOR ASSY RH	KY5369320DEW SUNVISOR ASSY RH -> 21MY, Alcantara	-	1	Enquire
275	MY6369320ABW	SUNVISOR ASSY RH	MY6369320ABW SUNVISOR ASSY RH 21MY, Leather	-	1	Enquire
276	MY6369320DCW	SUNVISOR ASSY RH	MY6369320DCW SUNVISOR ASSY RH 21MY->, Alcantara	-	1	Enquire
277	NY6369320EBW	SUNVISOR ASSY RH	NY6369320EBW SUNVISOR ASSY RH 22MY->, Leather	-	1	Enquire
280	HY53E805403AB	M5X25 STAINLESS PIL	HY53E805403AB M5X25 STAINLESS PIL -> VIN L01022	-	4	Enquire
281	HY53E805403AC	M5X20 STAINLESS PIL	HY53E805403AC M5X20 STAINLESS PIL VIN L01023->	-	4	Enquire
290	HY53519A60AB	RAIN SENSOR COVER	HY53519A60AB RAIN SENSOR COVER LHD	-	1	Enquire
291	HY53519A60BB	RAIN SENSOR COVER	HY53519A60BB RAIN SENSOR COVER RHD	-	1	Enquire
300	HY53N31010AFW	RR HDR ASY CMP	HY53N31010AFW RR HDR ASY CMP -> 22MY	-	1	Enquire
301	708860	P/SMPL-PEARL BLONDE	708860 P/SMPL-PEARL BLONDE 22MY->	-	1	Enquire
310	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM DO NOT RE-USE	-	6	Enquire
320	FG43M4D4515AA	FOAM BLOCK SMALL	FG43M4D4515AA FOAM BLOCK SMALL	-	6	Enquire
340	HG3319G379AA	MICROPHONE BEZEL	HG3319G379AA MICROPHONE BEZEL	-	2	Enquire
350	HY53103500AA	GASKET	HY53103500AA GASKET	-	6	Enquire
360	707158	Screw & Washer, M3.5 x 13, Flange Pan Head	707158 Screw & Washer, M3.5 x 13, Flange Pan Head	-	2	Enquire
370	702138	SCREW M6x16 PAN INT	702138 SCREW M6x16 PAN INT	-	1	Enquire
380	HY5351916ACW	HDLNG ASSY FEATURE	HY5351916ACW HDLNG ASSY FEATURE -> 22MY, Leather	-	1	Enquire
381	HY5351916BCW	HDLNG ASSY FEATURE	HY5351916BCW HDLNG ASSY FEATURE -> 22MY, Brogue	-	1	Enquire
382	HY5351916DCW	HDLING ASSY COMP ALC	HY5351916DCW HDLING ASSY COMP ALC -> 22MY, Alcantara	-	1	Enquire
383	708857	P/SMPL-NUMINOUS PRL	708857 P/SMPL-NUMINOUS PRL 22MY->, Leather	-	1	Enquire
390	8D3319H474AA	ANTI RATTLE HOLDER TRANSMISSION VEHICLE	8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE	-	2	Enquire
410	KY5313E714AA	BZL LMP ASY AMBNT	KY5313E714AA BZL LMP ASY AMBNT	-	1	Enquire
