Exterior Trim - Coupe

Aston Martin GT DB11 (2017-2023)

Find Your Part

Aston Martin GT DB11 (2017-2023) - Exterior Trim - Coupe

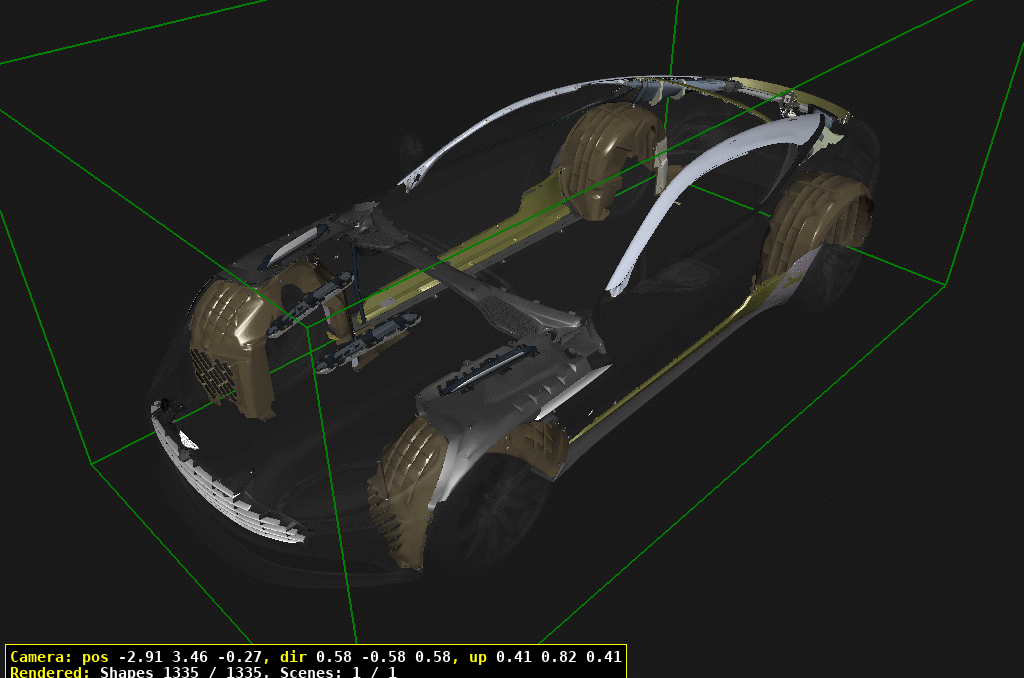

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All
Exterior Trim - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- 1 Enquire
20 HY538A100AB
RAD GRILLE BRIGHT
V12, Bright
IN STOCK 		- 1 Enquire
21 HY538A100BB
RAD GRILLE DARK
V12, Dark 		- 1 Enquire
22 JY538A100AA
RADIATOR GRILLE BRIGHT CHROME
V8, Bright
IN STOCK 		- 1 Enquire
23 JY538A100BA
RAD GRILLE DARK
V8, Dark 		- 1 Enquire
30 707163
SCREW-4.8 x 25 		- 10 Enquire
40 DG43219005AA
Screw, 4.2 x 16 		- 6 Enquire
50 703104
Screw 4.8x1.59x19 04.8 Chrome Free Self Taping 		- 12 Enquire
60 HY5315A861AA
IN-GRL PDC HOLDER LH 		- 1 Enquire
70 HY5315A864AA
IN-GRL PDC HOLDER RH 		- 1 Enquire
80 HY5317794AA
BUMPER FINISHER
Bright
IN STOCK 		- 1 Enquire
81 HY5317794BA
BUMPER FINISHER-DARK
Dark 		- 1 Enquire
90 HY53MA046AAA
CAMERA BEZEL - FRONT 		- 1 Enquire
100 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		- 12 Enquire
110 HY5316C695AB
HD VENT OUTB BLD LH
Black, used less Blade 		- 1 Enquire
111 HY5316C695BB
HD VENT OUTB LH TITA
Titanium, used less Blade 		- 1 Enquire
120 HY5316C694AB
HD VENT OUTB BLD RH
Black, used less Blade 		- 1 Enquire
121 HY5316C694BB
HD VENT OUTB RH TITA
Titanium, used less Blade 		- 1 Enquire
140 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		- 12 Enquire
150 HY5316C691AB
HD VENT OUTB LH BLK
Black, used with Blade 		- 1 Enquire
160 HY5316C690AB
HD VENT OUTB RH BLK
Black, used with Blade 		- 1 Enquire
170 HY5316A857AB
HD VENT BLADE LH
Bright 		- 1 Enquire
171 HY5316A857BB
HD VENT BLADE LH
Black 		- 1 Enquire
172 HY5316A857CA
HD VENT BLADE LH CBN
Carbon 		- 1 Enquire
180 HY5316A856AB
HD VENT BLADE BRIGHT
Bright 		- 1 Enquire
181 HY5316A856BB
HD VENT BLADE BLCK
Black 		- 1 Enquire
182 MY8316A856DC
HD VENT BLADE CARB
Carbon 		- 1 Enquire
190 HY5316A759AB
HD VENT INB LH
Black 		- 1 Enquire
200 HY5316A758AB
HD VENT INB RH
Black 		- 1 Enquire
210 HY53106010AA
M6 DURALOCK FLNG NUT
IN STOCK 		- 12 Enquire
220 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 18 Enquire
230 HY5302419AA
HOOD VENT SDR LH 		- 1 Enquire
240 HY5302418AA
HOOD VENT SDR RH 		- 1 Enquire
280 HY53280B84AB
S/STRKE MESH LH 		- 1 Enquire
290 HY53280B83AB
S/STRKE MESH RH 		- 1 Enquire
300 HY53280B63AA
SIDE STRAKE LH
Bright 		- 1 Enquire
301 HY53280B63BA
SIDE STRAKE LH
Dark 		- 1 Enquire
302 HY53280B63CA
SIDE STRAKE LH
Carbon 		- 1 Enquire
310 HY53280B62AA
SIDE STRAKE RH
Bright 		- 1 Enquire
311 HY53280B62BA
SIDE STRAKE RH
Dark 		- 1 Enquire
312 HY53280B62CB
SIDE STRAKE RH
Carbon 		- 1 Enquire
320 707147
NUT-M5 HEX FLG GRD 8 		- 2 Enquire
330 707515
SCREW M5 X 16 PAN HEAD BLACK
Black 		- 4 Enquire
340 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
IN STOCK 		- 4 Enquire
350 703743
SCREW &WASHER M6x18 		- 6 Enquire
360 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		- 2 Enquire
370 HY53F20563BA
DR WST FINSHR LH 		- 1 Enquire
380 HY53F20562BA
DR WST FINSHR RH 		- 1 Enquire
390 HY53519A37KA
CANTRAIL FINISHER LH
Primed 		- 1 Enquire
391 KY73519A37AC
CANTRAIL FINISHER LH
Carbon Gloss 		- 1 Enquire
400 HY53205A29AA
CNTRL WTHR STRIP LH 		- 1 Enquire
410 HY53519A36KA
CANTRAIL FINISHER RH
Primed 		- 1 Enquire
411 KY73519A36AC
CANTRAIL FINISHER RH
Carbon Gloss 		- 1 Enquire
420 HY53205A28AA
CNTRL WTHR STRIP RH 		- 1 Enquire
430 AD43C519A40AA
SCREW-M5x13 PN HD
IN STOCK 		- 20 Enquire
440 703143
BUTTON TORX WASHER CHROME FREE 		- 2 Enquire
450 HY53519E47AA
CHMSL COVER LH 		- 1 Enquire
460 HY53519E46AA
CHMSL COVER RH 		- 1 Enquire
470 703085
Screw M6x12 PC TI8
IN STOCK 		- 4 Enquire
480 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)
Pack of 20
IN STOCK 		- 10 Enquire
490 HY53519E45AB
REAR ROOF CHMSL CVR
Primed 		- 1 Enquire
491 HY53519E45BB
REAR ROOF CHMSL CVR
Black 		- 1 Enquire
492 KY73519E45AA
REAR ROOF CHMSL CVR
Carbon Gloss 		- 1 Enquire
500 HY5310609AC
SILL APPLQ LH 		- 1 Enquire
510 HY5310608AB
SILL APPLQ RH
-> VIN L00118 		- 1 Enquire
511 HY5310608AC
SILL APPLQ RH
VIN L00119 -> 		- 1 Enquire
520 707623
Screw and Washer, M4 x 16, Pan Head
IN STOCK 		- 8 Enquire
530 8G336078574AA
Flat Washer, Nylon, 22.2 x 12.9 x 1.5 		- 8 Enquire
540 6G33AC608054AA
SCR&WSHR M4X16 PN HD 		- 2 Enquire
550 HY53200B15AC
SILL APLQ BRKT LH 		- 1 Enquire
560 HY53200B14BA
SILL APLQ BRKT RH 		- 1 Enquire
570 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		- 4 Enquire
580 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20
IN STOCK 		- 4 Enquire
590 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
IN STOCK 		- 4 Enquire
600 HY5310611AC
SILL BLADE LH BLACK
Black 		- 1 Enquire
601 HY5310611BB
SILL BLADE LH GRAPH
Graphite. -> VIN L07132 		- 1 Enquire
602 HY5310611BC
SILL BLADE LH GRAPH
Graphite. VIN L07133-> 		- 1 Enquire
603 HY5310611CA
SILL BLADE LH CARBON
Carbon 		- 1 Enquire
610 HY5310610AC
SILL BLADE RH BLACK
Black 		- 1 Enquire
611 HY5310610BC
SILL BLADE RH GRAPHI
Graphite 		- 1 Enquire
612 HY5310610CA
SILL BLADE RH CARBON
Carbon 		- 1 Enquire
630 FD43E830667AAPK
Washer 25mm x 6.4mm (Pack of 10)
Pack of 10 		- 2 Enquire
640 6G430516BBA
Screw, M6 x 16, Self Tapping
IN STOCK 		- 8 Enquire
650 8G435144AA
Spacer, Sill Applique
Not used with Carbon SillBlades (items 602 & 612)
IN STOCK 		- 8 Enquire
660 9G33334177AA
Nut Plate 		- 4 Enquire
670 HY5310626AA
FRONT FENDER PPF RH
RH, Gloss 		- 1 Enquire
671 HY5310626BA
FRONT FENDER PPF RH
RH, Matt 		- 1 Enquire
680 HY5310627AA
FRONT FENDER PPF LH
LH, Gloss 		- 1 Enquire
681 HY5310627BA
FRONT FENDER PPF LH
LH, Matt 		- 1 Enquire
690 HY5310630AA
REAR QTR PPF RH
RH, Upper, Gloss 		- 1 Enquire
691 HY5310630BA
REAR QTR PPF RH
RH, Upper, Matt 		- 1 Enquire
700 HY5310631AA
REAR QTR PPF LH
LH, Upper, Gloss 		- 1 Enquire
701 HY5310631BA
REAR QTR PPF LH
LH, Upper, Matt 		- 1 Enquire
710 HY5310624AA
REAR SILL APP PPF RH
RH, Lower, Gloss
IN STOCK 		- 1 Enquire
711 HY5310624BA
REAR SILL APP PPF RH
RH, Lower, Matt 		- 1 Enquire
720 HY5310625AA
REAR SILL APP PPF LH
LH, Lower, Gloss
IN STOCK 		- 1 Enquire
721 HY5310625BA
REAR SILL APP PPF LH
LH, Lower, Matt 		- 1 Enquire
730 HY5310638AA
RR SL BLD APP PPF RH
RH, Sill Blade, Gloss 		- 1 Enquire
731 HY5310638BA
RR SL BLD APP PPF RH
RH, Sill Blade, Matt 		- 1 Enquire
740 HY5310639AA
RR SL BLD APP PPF LH
LH, Sill Blade, Gloss 		- 1 Enquire
741 HY5310639BA
RR SL BLD APP PPF LH
LH, Sill Blade, Matt 		- 1 Enquire
800 HY53292670AE
LF SCRN MAIN BDY ASY 		- 1 Enquire
810 HY533811AA
LEAF SCREEN DRN TUBE 		- 2 Enquire
820 HY53020E47AC
LF SCRN END ASY LHS 		- 1 Enquire
830 HY53020E46AC
LF SCRN END ASY RHS 		- 1 Enquire
840 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
Pack of 100
IN STOCK 		- 2 Enquire
850 HY5302298BB
LF SCR INLT BLNK LHD
LHD, -> VIN L09712 		- 1 Enquire
851 HY5302298DA
LF SCR INLET BLNK LH
LHD, VIN L09713-> 		- 1 Enquire
852 HY5302298AB
LF SCR INLT BLNK RHD
RHD, -> VIN L09767 		- 1 Enquire
853 HY5302298CA
LF SCR INLET BLNK RH
RHD, VIN L09768-> 		- 1 Enquire
860 HY53018B86BA
UPR HVAC DCT LHD
LHD 		- 1 Enquire
861 HY53018B86AA
UPR HVAC DCT RHD
RHD 		- 1 Enquire
870 HY53E865015AA
FIR TREE SHLDR CLIP 		- 4 Enquire
880 JY53AFU1900AA
FIR TREE CABLE TIE
V8 only 		- 1 Enquire
900 HY53404E00AC
MECH MOTOR ASSY 		- 1 Enquire
910 701553
Screw, M6 x 16, Pan Head
IN STOCK 		- 4 Enquire
920 702944
Nut, M6, Hex Flanged Head
IN STOCK 		- 2 Enquire
930 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		- 8 Enquire
940 702944
Nut, M6, Hex Flanged Head
IN STOCK 		- 4 Enquire
950 702946
Bolt, M6 x 35, Hex Head
IN STOCK 		- 2 Enquire
960 HY5344298AD
SPOILER GUIDE ASSY 		- 2 Enquire
970 701447
Screw, M4 x 12, Pan Head, Torx Screw
IN STOCK 		- 10 Enquire
980 HY53442A85AD
DEPLY MECH DCT LH
Includes item 990 		- 1 Enquire
990 HY5344229AD
DUCT GASKET LH 		- 1 Enquire
1000 HY53442A84AD
DEPLY MECH DCT RH
Includes item 1010 		- 1 Enquire
1010 HY5344228AD
DUCT GASKET RH 		- 1 Enquire
1020 HY5344226AC
GRL ASY ACT AERO 		- 1 Enquire
1030 HY5314F266AE
DEPLOY MECH ASSY 		- 1 Enquire
1040 HY53442A92AC
SPOILER BLADE 		- 1 Enquire
1100 HY53014A37AE
BDY/SD WST FNSHR LH
Includes item 1120 		- 1 Enquire
1110 HY53014A36AE
BDY/SD WST FNSHR RH
Includes item 1120 		- 1 Enquire
1120 AD4360009CAB
CLIP-TRIM 12 x 16
3 per finisher 		- 6 Enquire
1130 HY5301928AB
CDCT INLET SL 		- 2 Enquire
1140 HY53278D68BA
DUCT BODYSIDE RH 		- 1 Enquire
1150 HY53278D69AC
DUCT BODYSIDE LH 		- 1 Enquire
1160 HY5327943AD
UPR C DCT FNSHR LH 		- 1 Enquire
1170 HY5327942AD
UPR C DCT FNSHR RH 		- 1 Enquire
1180 3781850
Grommet, battery vent tube
IN STOCK 		- 2 Enquire
1190 HY53E620012AA
M6 COUPLING NUT 		- 2 Enquire
1200 HY53019A31AB
SPRT BDYSDE VNT SEAL 		- 1 Enquire
1210 HY53019A30AB
SPRT BDYSDE VNT SEAL 		- 1 Enquire
1220 HY5388276AC
WST FINISHER BSH 		- 10 Enquire
1230 HY530605AA
M5X16 HEX 		- 12 Enquire
1240 8G435144AA
Spacer, Sill Applique
IN STOCK 		- 2 Enquire
1250 HY5300810AA
WASHER M5X20X1.0 THK 		- 2 Enquire
1260 702212
Snapsac, 6.8mm, Push-on, Plastic 		- 6 Enquire
1270 HY5301999AA
SL INLT DCKLD DCT LH 		- 1 Enquire
1280 HY5301998AA
SL INLET DKLD DCT RH 		- 1 Enquire
1290 SY9Y454B62AB
SIDE PDC ACES PNL RH 		- 4 Enquire
1300 HY53018A49AC
DUCT BDYSDE EXIT LH 		- 1 Enquire
1310 HY53018A48AC
DUCT BDYSDE EXIT RH 		- 1 Enquire
1400 HY53407A74AA
WINGS BADGE
White/Green
IN STOCK 		- 2 Enquire
1401 HY53407A74BA
WINGS BADGE
Carbon 		- 2 Enquire
1402 HY53407A74CA
WINGS BADGE
Black Chrome 		- 2 Enquire
1420 6G439710417
FINAL INSPECTION PLT (NAME AS REQUIRED)
'Hand Built in England' 		- 1 Enquire
1421 708691
L/SMPL-ARTIC BLUE-SA
'AMR' 		- 1 Enquire
1430 55027313
SUITE HOLDER BDGE F167
Gold. Use HY53-001B46-AB 		- 1 Enquire
1431 HY53001B46AB
WING BADGE
Chrome/Enamel 		- 1 Enquire
1440 JY53001B40AA
REAR SCRIPT BADGE
Chrome (Illustrated)
IN STOCK 		- 1 Enquire
1441 JY53001B40BA
RR SCRIPT BADGE CARB
Carbon 		- 1 Enquire
1442 JY53001B40CA
REAR SCRIPT BADGE
Black Chrome 		- 1 Enquire
1444 KY73001B40AA
SCRIPT BADGE
Chrome, -> VIN M11711 		- 1 Enquire
1445 KY73001B40DA
SCRIPT BADGE-AM
Chrome, VIN M11712-> 		- 1 Enquire
1446 KY73001B40EA
SCRIPT BADGE-AM
Black Chrome
IN STOCK 		- 1 Enquire
1500 HY53166565AB
FRT W/ARC LNR MID LH 		- 1 Enquire
1510 HY53166564AB
FRT W/ARC LNR MID RH 		- 1 Enquire
1520 703742
Fastener, Push In, 6.5 x 6.0
IN STOCK 		- 16 Enquire
1530 HY53166563AC
FRT W/ARC LNR FRT LH
RoW 		- 1 Enquire
1531 HY53166563AD
FRT W/ARC LNR FRT LH
Federal
IN STOCK 		- 1 Enquire
1540 HY53166562AC
FRT W/ARC LNR FRT RH
RoW 		- 1 Enquire
1541 HY53166562AD
FRONT WHEEL ARCH LINER FRONT RH
Federal
IN STOCK 		- 1 Enquire
1550 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20
IN STOCK 		- 32 Enquire
1560 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
IN STOCK 		- 8 Enquire
1570 HY53282A09AA
WHEELARCH LNR REINF 		- 1 Enquire
1580 HY53282A08AA
WHEELARCH LNR REINF 		- 1 Enquire
1590 HY53166567AD
FRT W/ARC LNR RR LH 		- 1 Enquire
1600 HY53166566AD
FRT W/ARC LNR RR RH 		- 1 Enquire
1650 HY5354279D23AC
RR W/ARCH LINER LH 		- 1 Enquire
1660 HY5354279D22AC
RR W/ARCH LINER RH
-> VIN L11075 		- 1 Enquire
1661 HY5354279D22AD
RR W/ARCH LINER RH
VIN L11076-> 		- 1 Enquire
1670 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20
IN STOCK 		- 24 Enquire
1680 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
IN STOCK 		- 8 Enquire
1690 702514
SCREW M6 x 14 PAN HEAD
IN STOCK 		- 4 Enquire
1700 ED33FA0115AA
SCREW M6x20 TORX HD 		- 4 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
