Sealing - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Sealing - Coupe

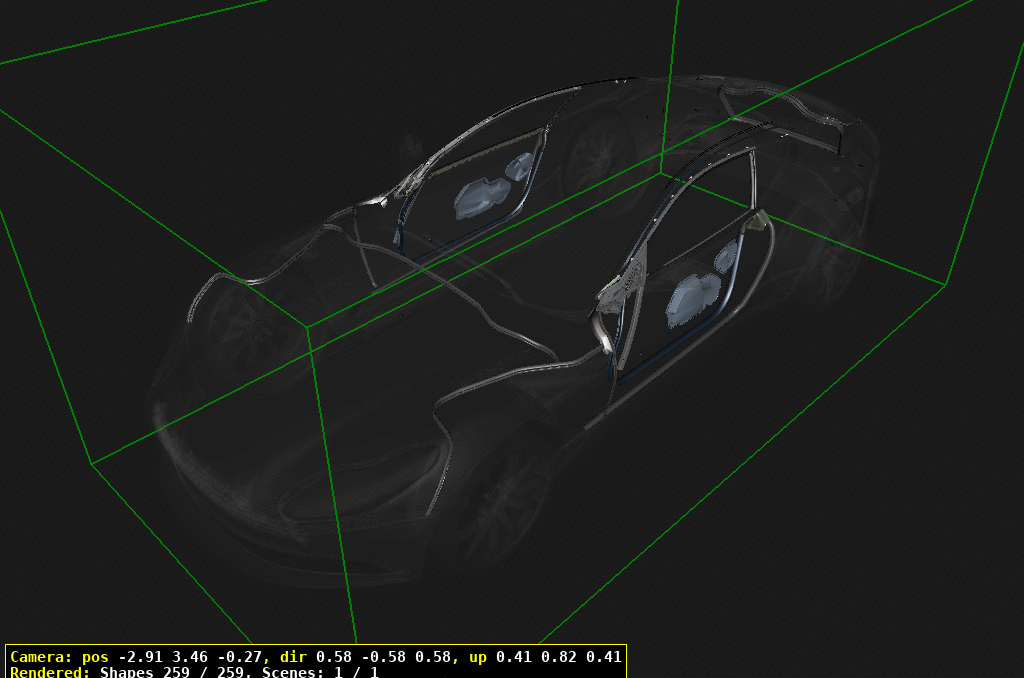

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	HY53C20708AC	WSTR DR PR FRT UP RH	HY53C20708AC WSTR DR PR FRT UP RH	-	1	Enquire
30	HY53C25324AC	WSTR DR MAR LWR RR R	HY53C25324AC WSTR DR MAR LWR RR R	-	1	Enquire
40	HY53C20556AB	W/STRP MRGN FRT DR	HY53C20556AB W/STRP MRGN FRT DR	-	2	Enquire
50	HY53C25325AC	WSTR DR MAR LWR RR L	HY53C25325AC WSTR DR MAR LWR RR L	-	1	Enquire
60	4G43L25324BA	Clip, Weather Strip Retention	4G43L25324BA Clip, Weather Strip Retention	-	2	Enquire
70	HY53C215K45AA	SL DR WDW OTR LH	HY53C215K45AA SL DR WDW OTR LH	-	1	Enquire
80	HY53C20708BD	W/STP DR PRM FRT LWR	HY53C20708BD W/STP DR PRM FRT LWR -> VIN L11687	-	2	Enquire
81	HY53C20708BE	W/STP DR PRM FRT LWR	HY53C20708BE W/STP DR PRM FRT LWR VIN L11688->	-	2	Enquire
90	HY53C215K44AA	SL DR WDW OTR RH	HY53C215K44AA SL DR WDW OTR RH	-	1	Enquire
100	HY53C20709AC	WSTR DR PR FRT UP LH	HY53C20709AC WSTR DR PR FRT UP LH	-	1	Enquire
110	HY5316770AA	WSTR MR RF CTRL FSH	HY5316770AA WSTR MR RF CTRL FSH	-	2	Enquire
120	HY53C20570AC	WSTR DR INR WST RH	HY53C20570AC WSTR DR INR WST RH	-	1	Enquire
130	HY53C20571AC	WSTR DR INR WST LH	HY53C20571AC WSTR DR INR WST LH	-	1	Enquire
140	HY53C20563BA	W/STRIP DR OTR WST L	HY53C20563BA W/STRIP DR OTR WST L	-	1	Enquire
150	HY53C20562BA	W/STRIP DR OTR WST R	HY53C20562BA W/STRIP DR OTR WST R	-	1	Enquire
160	6G33451B04AA	LOADSPACE LHS HOLE PLUG 26MM DIA	6G33451B04AA LOADSPACE LHS HOLE PLUG 26MM DIA	-	2	Enquire
170	HY5316770BA	W/STRIP MRGN CHMSL	HY5316770BA W/STRIP MRGN CHMSL	-	2	Enquire
180	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	1	Enquire
190	HY53C20290AD	MLDG ASY FR DR TR RH	HY53C20290AD MLDG ASY FR DR TR RH	-	1	Enquire
200	HY53C20291AD	MLDG ASY FR DR TR LH	HY53C20291AD MLDG ASY FR DR TR LH	-	1	Enquire
210	4G432273AA	BLACK TPR BODY PLUG 25mm	4G432273AA BLACK TPR BODY PLUG 25mm	-	2	Enquire
220	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE	-	1	Enquire
230	HY53C237A04AB	DR WTR SHEDDER RH LR	HY53C237A04AB DR WTR SHEDDER RH LR	-	1	Enquire
240	HY53C237A05BC	DR WTR SHEDDER LH SM	HY53C237A05BC DR WTR SHEDDER LH SM	-	1	Enquire
250	HY53C237A05AC	DR WTR SHEDDER LH LR	HY53C237A05AC DR WTR SHEDDER LH LR	-	1	Enquire
260	HY53C237A04BC	DR WTR SHEDDER RH SM	HY53C237A04BC DR WTR SHEDDER RH SM	-	1	Enquire
270	HY53C43720AE	W/STRIP LUGG COMPT	HY53C43720AE W/STRIP LUGG COMPT	-	1	Enquire
280	HY5303828AD	WSTRIP BD SD-DLID RH	HY5303828AD WSTRIP BD SD-DLID RH Includes item 430	-	1	Enquire
290	HY5303829AD	WSTRIP BD SD-DLID LH	HY5303829AD WSTRIP BD SD-DLID LH Includes item 430	-	1	Enquire
300	HY5316K816AA	WSTR EXT HD RR	HY5316K816AA WSTR EXT HD RR	-	1	Enquire
310	HY5316A014AA	WSTR ASY HOOD SD	HY5316A014AA WSTR ASY HOOD SD	-	2	Enquire
320	HY5323712AA	FIN PNL DR APT RH	HY5323712AA FIN PNL DR APT RH	-	1	Enquire
330	HY5323713AA	FIN PNL DR APT LH	HY5323713AA FIN PNL DR APT LH	-	1	Enquire
340	6G43F78410AA	Sealing Pad, Al Butyl, 35 x 35	6G43F78410AA Sealing Pad, Al Butyl, 35 x 35	-	A/R	Enquire
350	HY53C47775AA	FOAM STRIP	HY53C47775AA FOAM STRIP	-	4	Enquire
360	HY53010D25AB	W/STRIP MLDG LH	HY53010D25AB W/STRIP MLDG LH	-	1	Enquire
370	HY53010D24AB	W/STRIP MLDG RH	HY53010D24AB W/STRIP MLDG RH	-	1	Enquire
390	HY5323020AA	NITTO FOAM STRIP	HY5323020AA NITTO FOAM STRIP	-	2	Enquire
400	HY5321899AA	NITTO FOAM WASHER	HY5321899AA NITTO FOAM WASHER	-	22	Enquire
430	6G33L02564BA	FIR TREE FIX 4.0 X 0.76 - 5.94	6G33L02564BA FIR TREE FIX 4.0 X 0.76 - 5.94	-	6	Enquire
