External Rear View Mirrors

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - External Rear View Mirrors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

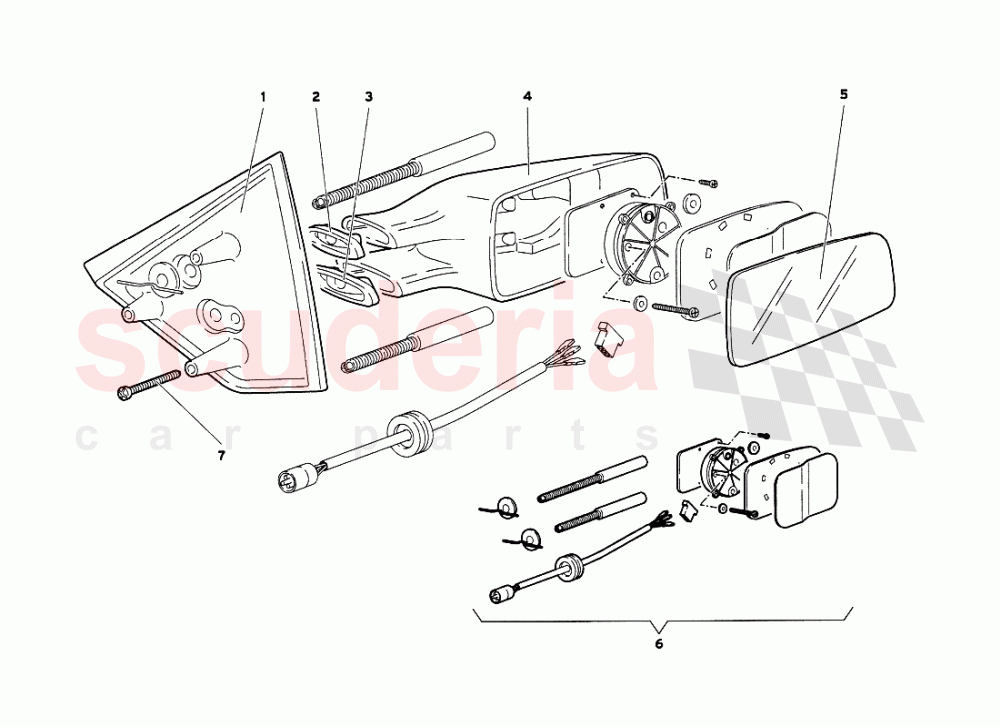

External Rear View Mirrors of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9490475AVS
RH REAR VIEW MIRROR BASE
(Valid for GB - March 2001) 		- 1 Enquire
001 9490461AVS
RH REAR VIEW MIRROR BASE 		- 1 Enquire
001 9490476AVS
LH REAR VIEW MIRROR BASE
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
001 9490475AVS
RH REAR VIEW MIRROR BASE
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
001 9490462AVS
LH REAR VIEW MIRROR BASE 		- 1 Enquire
001 9490476AVS
LH REAR VIEW MIRROR BASE
(Valid for GB - March 2001) 		- 1 Enquire
002 9490428
LEFT UPPER GASKET 		- 1 Enquire
002 9490426
RIGHT UPPER GASKET 		- 1 Enquire
003 9490427
R. LOWER GASKET 		- 1 Enquire
003 9490429
L. LOWER GASKET 		- 1 Enquire
004 9490474AVS
LH MIRROR BODY
(Valid for GB - March 2001) 		- 1 Enquire
004 9490474AVS
LH MIRROR BODY
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
004 9490471AVS
RH MIRROR BODY 		- 1 Enquire
004 9490473AVS
RH MIRROR BODY
(Valid for GB - March 2001) 		- 1 Enquire
004 9490473AVS
RH MIRROR BODY
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
004 9490472AVS
LH MIRROR BODY 		- 1 Enquire
005 9490411
LEFT MIRROR
(Valid for CANADA - March 2001) 		- 1 Enquire
005 9490410
RIGHT MIRROR
(Valid for CANADA - March 2001) 		- 1 Enquire
005 9490410
RIGHT MIRROR
(Valid for USA - March 2001) 		- 1 Enquire
005 9490413
LEFT MIRROR 		- 1 Enquire
005 9490411
LEFT MIRROR
(Valid for USA - March 2001) 		- 1 Enquire
005 9490412
RIGHT MIRROR 		- 1 Enquire
006 600940139
LH REAR VIEW MIRROR KIT
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
006 600940140
RH REAR VIEW MIRROR KIT
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
006 600940139
LH REAR VIEW MIRROR KIT
(Valid for GB - March 2001) 		- 1 Enquire
006 600940140
RH REAR VIEW MIRROR KIT
(Valid for GB - March 2001) 		- 1 Enquire
006 600949006
RIGHT R.VIEW MIR. KIT 		- 1 Enquire
006 600949005
L. VIEW MIRRORKIT 		- 1 Enquire
007 8700329
SCREW 		- 6 Enquire
