Lamborghini Diablo VT 6.0 (2000-2001) - Lights

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

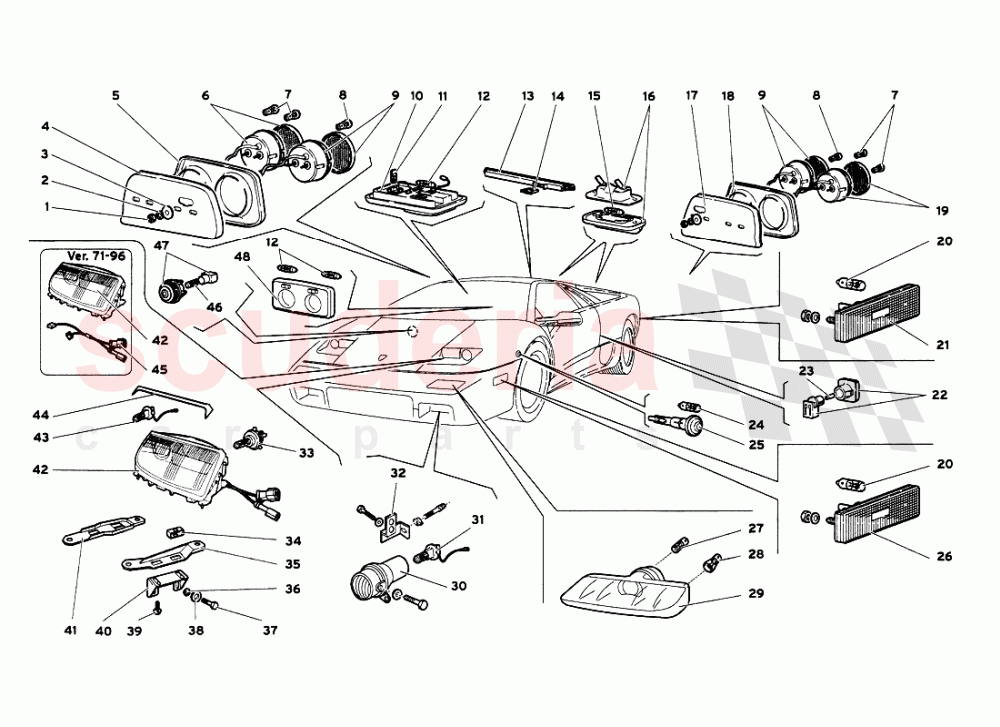

Lights of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N01100632
NUT M6 		- 8 Enquire
002 8410611
WASHER 		- 8 Enquire
003 WHT002961
WASHER 		- 8 Enquire
004 76007971
RH PANEL 		- 1 Enquire
005 76005463
RH FRAME 		- 1 Enquire
006 63004503
TAIL LAMP/BRAKE L.
(Valid for JAPAN - 2000) 		- 1 Enquire
006 63004504
TAIL LAMP/BRAKE L.
(Valid for JAPAN - March 2001) 		- 1 Enquire
006 63004503
TAIL LAMP/BRAKE L.
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
006 63004504
TAIL LAMP/BRAKE L.
(Valid for CANADA - March 2001) 		- 1 Enquire
006 63004504
TAIL LAMP/BRAKE L.
(Valid for USA - March 2001) 		- 1 Enquire
006 63004504
TAIL LAMP/BRAKE L.
(Valid for EUROPE - March 2001) 		- 1 Enquire
006 63004503
TAIL LAMP/BRAKE L.
(Valid for GB - March 2001) 		- 1 Enquire
007 6617094
LAMP BA 15S 21W 		- 4 Enquire
008 6617091
LAMP 15D 32220 5/21W 		- 2 Enquire
009 63007551
TAIL LAMP / BRAKE LAMP
(Valid for USA - March 2001) 		- 2 Enquire
009 63007551
TAIL LAMP / BRAKE LAMP
(Valid for CANADA - March 2001) 		- 2 Enquire
009 63004502
TAIL LAMP/BRAKE L 		- 2 Enquire
010 6334454
CEILING LAMP 		- 1 Enquire
011 N0177522
LAMP 12V/3W 		- 1 Enquire
012 6617095
LAMP SV8,5-8 5W 		- 3 Enquire
013 410945249A
High Mount Brake Light 		- 1 Enquire
013 410945249A
High Mount Brake Light
use part number: 0R1470010 		- 1 Enquire
014 6132280
CONNECTOR 		- 1 Enquire
015 6617095
LAMP SV8,5-8 5W 		- 2 Enquire
016 6328344
LICENCE PLATE LAMP 		- 2 Enquire
016 6331461
LICENCE PLATE LAMP
(Valid for CANADA - March 2001) 		- 2 Enquire
016 6331461
LICENCE PLATE LAMP
(Valid for USA - March 2001) 		- 2 Enquire
017 76007970
LH PANEL 		- 1 Enquire
018 76005464
LH FRAME 		- 1 Enquire
019 63004504
TAIL LAMP/BRAKE L.
(Valid for GB - March 2001) 		- 1 Enquire
019 63004504
TAIL LAMP/BRAKE L.
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
019 63004504
TAIL LAMP/BRAKE L.
(Valid for JAPAN - March 2001) 		- 1 Enquire
019 63007557
REAR LAMP
(Valid for CANADA - March 2001) 		- 1 Enquire
019 63004504
TAIL LAMP/BRAKE L.
(Valid for USA - March 2001) 		- 1 Enquire
019 63004503
TAIL LAMP/BRAKE L. 		- 1 Enquire
020 N0177522
LAMP 12V/3W
(Valid for USA - March 2001) 		- 4 Enquire
020 N0177522
LAMP 12V/3W
(Valid for CANADA - March 2001) 		- 4 Enquire
021 6331782
SIDE MARKER IN RED
(Valid for USA - March 2001) 		- 2 Enquire
021 6331782
SIDE MARKER IN RED
(Valid for CANADA - March 2001) 		- 2 Enquire
022 410947413
DOOR LAMP 		- 2 Enquire
023 6338123
BULB 		- 2 Enquire
024 6329897
BULB 		- 2 Enquire
025 R1050004
KIT 2 DIRECTION INDICATORS
use (0R1050004 - sets of 2 pieces) 		- 2 Enquire
026 6331781
F. SIDEMAR. (ORANGE)
(Valid for USA - March 2001) 		- 2 Enquire
026 6331781
F. SIDEMAR. (ORANGE)
(Valid for CANADA - March 2001) 		- 2 Enquire
027 63005578
BULB 		- 2 Enquire
028 63005579
BULB 		- 2 Enquire
029 63005341
RH FRONT LAMP 		- 1 Enquire
029 63005342
LH FRONT LAMP 		- 1 Enquire
030 63006395
FOG LAMP 		- 2 Enquire
031 6329695
BULB 		- 2 Enquire
032 93007384
RH SUPPORT 		- 1 Enquire
032 93007385
LH SUPPORT 		- 1 Enquire
033 6329450
BULB 		- 2 Enquire
034 8220606
FASTENING CLIP
not as spare part - use part number: WHT 003673 		- 8 Enquire
034 WHT003673
CLIP
replaces: 008220606 		- 8 Enquire
035 41003906
RH BRACKET 		- 1 Enquire
035 41003905
LH BRACKET 		- 1 Enquire
036 N90840802
WASHER 		- 8 Enquire
037 8100830
SCREW 		- 8 Enquire
038 WHT000771
WASHER 		- 8 Enquire
039 N10718801
HEX COLLARED BOLT 		- 8 Enquire
040 41003904
BRACKET 		- 4 Enquire
041 41003907
BRACKET 		- 2 Enquire
042 63002160
HEADLAMP
(Valid for CANADA - March 2001) 		- 1 Enquire
042 63004650
RH HEADLAMP
(Valid for JAPAN - March 2001) 		- 1 Enquire
042 63004651
LH HEADLAMP
(Valid for GB - March 2001) 		- 1 Enquire
042 63004651
LH HEADLAMP
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
042 63004650
RH HEADLAMP
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
042 63004651
LH HEADLAMP
(Valid for JAPAN - March 2001) 		- 1 Enquire
042 63004645
HEADLAMP 		- 1 Enquire
042 63004644
HEADLAMP 		- 1 Enquire
042 63004650
RH HEADLAMP
(Valid for GB - March 2001) 		- 1 Enquire
042 63002160
HEADLAMP
(Valid for USA - March 2001) 		- 1 Enquire
042 63002162
HEADLAMP
(Valid for CANADA - March 2001) 		- 1 Enquire
042 63002162
HEADLAMP
(Valid for USA - March 2001) 		- 1 Enquire
043 6329695
BULB 		- 2 Enquire
044 63007413
LH CARBON GUARD
(Valid for CANADA - March 2001) 		- 1 Enquire
044 63006883
LH CARBON GUARD 		- 1 Enquire
044 63007413
LH CARBON GUARD
(Valid for USA - March 2001) 		- 1 Enquire
044 63006881
RH CARBON GUARD 		- 1 Enquire
044 63007411
RH CARBON GUARD
(Valid for USA - March 2001) 		- 1 Enquire
044 63007411
RH CARBON GUARD
(Valid for CANADA - March 2001) 		- 1 Enquire
045 61008779
RH/LH HEADLAMP WIRING
(Valid for USA - March 2001) 		- 2 Enquire
045 61008779
RH/LH HEADLAMP WIRING
(Valid for CANADA - March 2001) 		- 2 Enquire
046 6329698
BULB 		- 1 Enquire
047 6337066
LAMP 		- 1 Enquire
048 6329698
BULB 		- 1 Enquire
