Doors 3 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

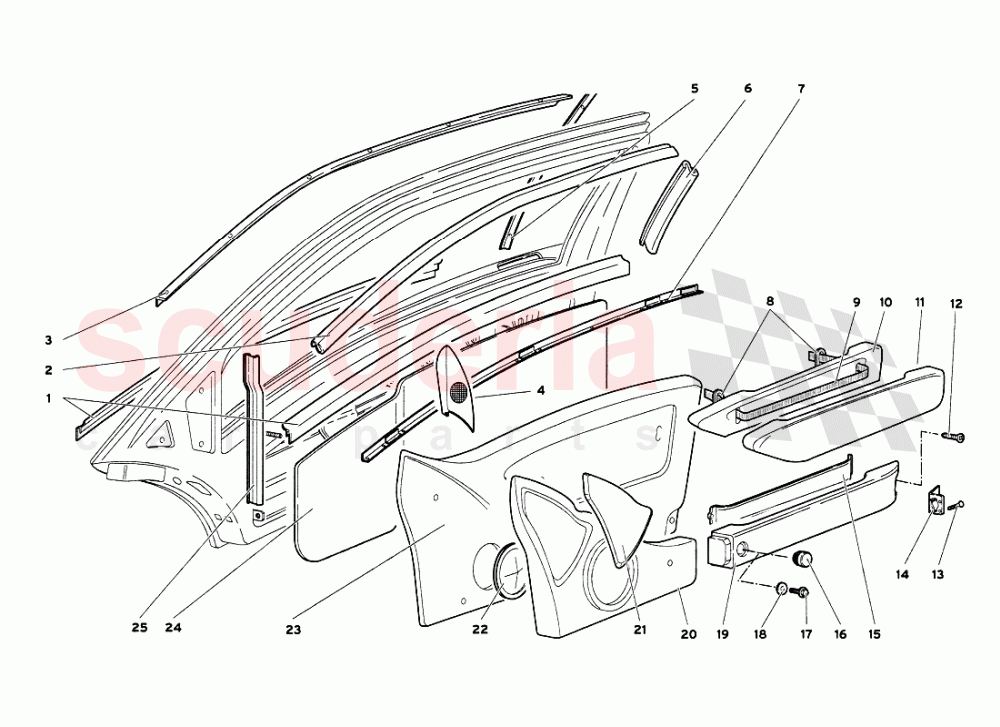

Lamborghini Diablo VT 6.0 (2000-2001) - Doors 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421700	GASKET	9421700 GASKET	$1,143.53	4
002	9421714	GASKET	9421714 GASKET	$422.66	2
003	9421402	RIGHT CHANNEL	9421402 RIGHT CHANNEL	$552.95	1
003	9421403	LEFT CHANNEL	9421403 LEFT CHANNEL	$552.95	1
004	72007247	LH TWEETER PANEL	72007247 LH TWEETER PANEL	$94.31 MSRP: ~~98.50~~ (4.3% off)	1
004	72007246	RH TWEETER PANEL	72007246 RH TWEETER PANEL	$94.31 MSRP: ~~98.50~~ (4.3% off)	1
005	9421405	LEFT CHANNEL	9421405 LEFT CHANNEL	$215.88	1
005	9421404	RIGHT CHANNEL	9421404 RIGHT CHANNEL	$449.12	1
006	9421715	GASKET	9421715 GASKET	$194.69	2
007	9421711	LEFT CHANNEL	9421711 LEFT CHANNEL	$155.71 MSRP: ~~158.00~~ (1.4% off)	1
007	9421710	RIGHT CHANNEL	9421710 RIGHT CHANNEL	$155.71 MSRP: ~~158.00~~ (1.4% off)	1
008	72007648	FINISHER (RING)	72007648 FINISHER (RING)	$5.90 MSRP: ~~6.10~~ (3.3% off)	4
009	72007643	FLEXIBLE STRIP	72007643 FLEXIBLE STRIP	-	2	Enquire
010	72007640	RH POCKET INNER FRAME	72007640 RH POCKET INNER FRAME	$103.73 MSRP: ~~105.00~~ (1.2% off)	1
010	72007645	LH POCKET INNER FRAME	72007645 LH POCKET INNER FRAME	$103.73 MSRP: ~~105.00~~ (1.2% off)	1
011	72005247	RH DOOR POCKET	72005247 RH DOOR POCKET	$87.35	1
011	72005248	LH DOOR POCKET	72005248 LH DOOR POCKET	$87.35	1
012	8700632	SCREW	8700632 SCREW	$0.16 MSRP: ~~7.36~~ (97.8% off)	4
013	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	$1.32 MSRP: ~~7.18~~ (81.6% off)	5
013	8700335	WHITE SCREW	8700335 WHITE SCREW	$0.49 MSRP: ~~7.30~~ (93.3% off)	5
014	9921623	RIGHT SUPPORT	9921623 RIGHT SUPPORT	$23.91 MSRP: ~~24.95~~ (4.2% off)	1
014	9921624	LEFT SUPPORT	9921624 LEFT SUPPORT	$23.91 MSRP: ~~24.95~~ (4.2% off)	1
015	9921619	RIGHT PLATE	9921619 RIGHT PLATE	$39.21	1
015	9921620	LEFT PLATE	9921620 LEFT PLATE	$39.21	1
016	9921616	PLUG	9921616 PLUG	$1.22 MSRP: ~~7.15~~ (82.9% off)	2
017	8700623	SCREW	8700623 SCREW	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
018	WHT002961	WASHER	WHT002961 WASHER	$0.42	2
019	9921603	LEFT HANDLE	9921603 LEFT HANDLE	$128.41	1
019	9921602	RIGHT HANDLE	9921602 RIGHT HANDLE	$128.41	1
020	72005249	PANEL - RH CASE	72005249 PANEL - RH CASE	$1,577.77	1
020	72005250	PANEL - LH CASE	72005250 PANEL - LH CASE	$1,577.77	1
021	72005253	RH PANEL	72005253 RH PANEL	$34.01	1
021	72005254	LH PANEL	72005254 LH PANEL	$34.01	1
022	9411418	GASKET	9411418 GASKET	$34.02	2
023	72005245	RH PANEL	72005245 RH PANEL	$1,577.77	1
023	72005246	LH PANEL	72005246 LH PANEL	$1,068.23 MSRP: ~~1,080.00~~ (1.1% off)	1
024	9421535	SHIELD	9421535 SHIELD	$44.02	2
025	9421716	GASKET	9421716 GASKET	$23.91	2
