Front Bonnet of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Front Bonnet

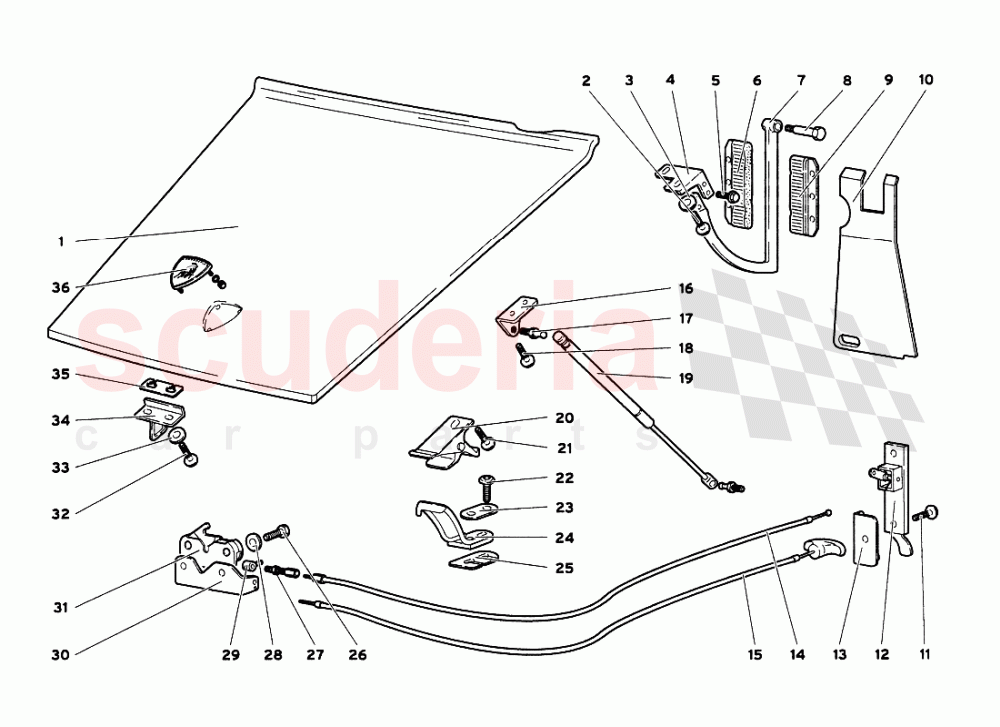

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	79005568	FRONT BONNET	79005568 FRONT BONNET	$18,636.22	1
002	8740685	SCREW IN STOCK	8740685 SCREW IN STOCK	$21.42	4
003	8400627	WASHER	8400627 WASHER	$21.97 MSRP: ~~22.95~~ (4.3% off)	4
004	9459321	RIGHT SUPPORT	9459321 RIGHT SUPPORT	$50.57 MSRP: ~~53.00~~ (4.6% off)	1
004	9459322	LEFT SUPPORT	9459322 LEFT SUPPORT	$50.57 MSRP: ~~53.00~~ (4.6% off)	1
005	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$1.89	4
006	79001335	BRUSH	79001335 BRUSH	$42.14	2
007	79001733	LEFT HINGE	79001733 LEFT HINGE	$274.21 MSRP: ~~287.00~~ (4.5% off)	1
007	79001734	RIGHT HINGE	79001734 RIGHT HINGE	$319.89	1
008	9459323	PIN	9459323 PIN	$54.44	2
009	79001336	BRUSH	79001336 BRUSH	$42.14	2
010	79001337	RIGHT PLATE	79001337 RIGHT PLATE	$53.49	1
010	79001338	LEFT PLATE	79001338 LEFT PLATE	$53.49	1
011	8700544	SCREW	8700544 SCREW	$1.68	2
012	9459200	HANDLE	9459200 HANDLE	$518.63	1
013	9459223	PLATE	9459223 PLATE	$14.16 MSRP: ~~14.75~~ (4% off)	1
014	9459001	CABLE	9459001 CABLE	$22.75	1
015	9459003	CABLE	9459003 CABLE	-	1	Enquire
016	9459309	BRACKET	9459309 BRACKET	$38.21 MSRP: ~~40.00~~ (4.5% off)	2
017	9459305	BALL PIN IN STOCK	9459305 BALL PIN IN STOCK	$2.84	4
018	8740685	SCREW IN STOCK	8740685 SCREW IN STOCK	$21.42	4
019	79004387	SHOCK ABSORBER	79004387 SHOCK ABSORBER	$139.99	2
020	9459208	HOOK	9459208 HOOK	$115.04	1
021	8740685	SCREW IN STOCK	8740685 SCREW IN STOCK	$21.42	1
022	8740685	SCREW IN STOCK	8740685 SCREW IN STOCK	$21.42	2
023	9459226	PLATE	9459226 PLATE	$30.21	1
024	9459224	LOCK STRIKER	9459224 LOCK STRIKER	$170.80	1
025	9459225	SHIM	9459225 SHIM	$15.88 MSRP: ~~16.50~~ (3.8% off)	1
025	9459235	SHIM	9459235 SHIM	$7.27 MSRP: ~~7.40~~ (1.8% off)	1
026	8100623	SCREW	8100623 SCREW	$0.36	2
027	9460213	ADJ/SCREW	9460213 ADJ/SCREW	-	1	Enquire
028	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	2
029	9459217	CLAMP	9459217 CLAMP	-	1	Enquire
030	9459213	SPACER	9459213 SPACER	$22.27	1
031	79006621	LOCK	79006621 LOCK	$181.14	1
032	8740685	SCREW IN STOCK	8740685 SCREW IN STOCK	$21.42	2
033	8400627	WASHER	8400627 WASHER	$21.97 MSRP: ~~22.95~~ (4.3% off)	2
034	79007548	LOCK STRIKER	79007548 LOCK STRIKER	$80.27	1
035	9459228	SHIM	9459228 SHIM	$17.43	2
036	400853745D	Lamborghini Badge IN STOCK	400853745D Lamborghini Badge IN STOCK	$410.94	1
