Doors 2 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Doors 2

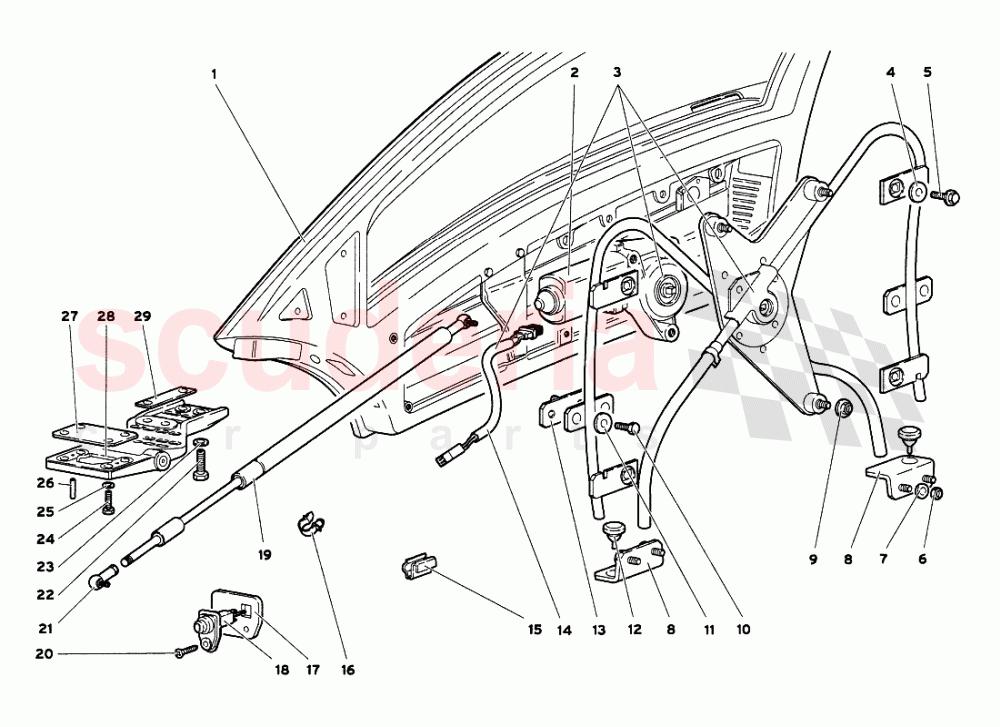

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	72009904	RH DOOR	72009904 RH DOOR	-	1	Enquire
001	72009906	LH DOOR	72009906 LH DOOR	-	1	Enquire
002	9421604	RIGHT ELECT MOTOR	9421604 RIGHT ELECT MOTOR	-	1	Enquire
002	9421605	LEFT ELECT MOTOR	9421605 LEFT ELECT MOTOR	-	1	Enquire
003	9421600	RIGHT KIT WIND. REGUL	9421600 RIGHT KIT WIND. REGUL	-	1	Enquire
003	9421601	LEFT KIT WINDOW REGUL.	9421601 LEFT KIT WINDOW REGUL.	-	1	Enquire
004	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	-	8	Enquire
005	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	-	8	Enquire
006	N0211963	NUT IN STOCK	N0211963 NUT IN STOCK	-	8	Enquire
007	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	8	Enquire
008	9421429	RH DOOR PLATE	9421429 RH DOOR PLATE	-	2	Enquire
008	9421430	LH DOOR PLATE	9421430 LH DOOR PLATE	-	2	Enquire
009	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	-	6	Enquire
010	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 IN STOCK	-	8	Enquire
011	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	8	Enquire
012	9421428	RUBBER PAD	9421428 RUBBER PAD	-	4	Enquire
013	9421607	BRACKET	9421607 BRACKET	-	4	Enquire
014	9421606	ELECT CABLE	9421606 ELECT CABLE	-	2	Enquire
015	8830411	STRAP IN STOCK	8830411 STRAP IN STOCK	-	2	Enquire
016	8830302	CLAMP	8830302 CLAMP	-	10	Enquire
017	5934448	PLATE	5934448 PLATE	-	2	Enquire
018	5934450	SWITCH	5934450 SWITCH	-	2	Enquire
019	429837987	DOOR GAS CYLINDER	429837987 DOOR GAS CYLINDER	-	2	Enquire
020	WHT003304	SCREW IN STOCK	WHT003304 SCREW IN STOCK	-	2	Enquire
021	410837262	JACK HEAD	410837262 JACK HEAD	-	2	Enquire
022	8101008	SCREW	8101008 SCREW	-	8	Enquire
023	8411015	WASHER	8411015 WASHER	-	8	Enquire
024	8100821	SCREW	8100821 SCREW	-	8	Enquire
025	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	-	8	Enquire
026	8900401	PIN IN STOCK	8900401 PIN IN STOCK	-	4	Enquire
027	4132051	SHIM	4132051 SHIM	-	1	Enquire
027	4132052	SHIM	4132052 SHIM	-	1	Enquire
027	4132054	SHIM	4132054 SHIM	-	1	Enquire
027	4132053	SHIM	4132053 SHIM	-	1	Enquire
028	410831402	RH HINGE	410831402 RH HINGE	-	1	Enquire
028	9421030	LH HINGE	9421030 LH HINGE	-	1	Enquire
029	9421380	SHIM	9421380 SHIM	-	1	Enquire
029	9421381	SHIM	9421381 SHIM	-	1	Enquire
