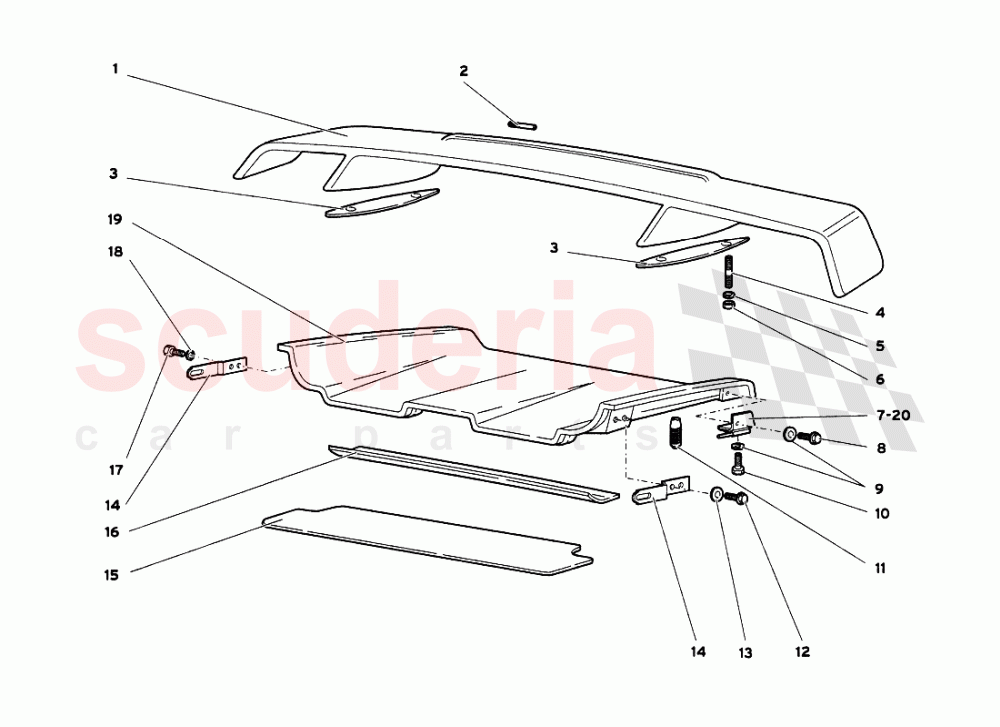

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	97006962	UNTREATED SPOILER	97006962 UNTREATED SPOILER	-	1	Enquire
001	97007404	SHINY FINISH SPOILER	97007404 SHINY FINISH SPOILER (OPTIONAL)	-	1	Enquire
002	97001697	THREADED PIN	97001697 THREADED PIN	-	4	Enquire
003	97001880	GASKET	97001880 GASKET	-	2	Enquire
004	8300602	STUD	8300602 STUD	-	4	Enquire
005	8400606	WASHER	8400606 WASHER	-	4	Enquire
006	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	-	4	Enquire
007	73006748	REAR LID RH REAR BRACKET	73006748 REAR LID RH REAR BRACKET	-	1	Enquire
008	8740654	SCREW	8740654 SCREW	-	2	Enquire
009	WHT000909	WASHER IN STOCK	WHT000909 WASHER IN STOCK	-	4	Enquire
010	WHT003074	SCREW M6X22 IN STOCK	WHT003074 SCREW M6X22 IN STOCK	-	2	Enquire
011	400807333	SUPPORT	400807333 SUPPORT	-	2	Enquire
012	8740654	SCREW	8740654 SCREW	-	4	Enquire
013	WHT000909	WASHER IN STOCK	WHT000909 WASHER IN STOCK	-	4	Enquire
014	73005391	REAR LID FRONT BRACKET	73005391 REAR LID FRONT BRACKET	-	2	Enquire
015	77004735	INSULATION KIT	77004735 INSULATION KIT	-	1	Enquire
016	77006554	CHANNEL	77006554 CHANNEL	-	1	Enquire
017	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	2	Enquire
018	8400606	WASHER	8400606 WASHER	-	2	Enquire
019	73005604	REAR BONNET	73005604 REAR BONNET	-	1	Enquire
020	73006748	REAR LID RH REAR BRACKET	73006748 REAR LID RH REAR BRACKET	-	1	Enquire
