Lifting System of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Lifting System

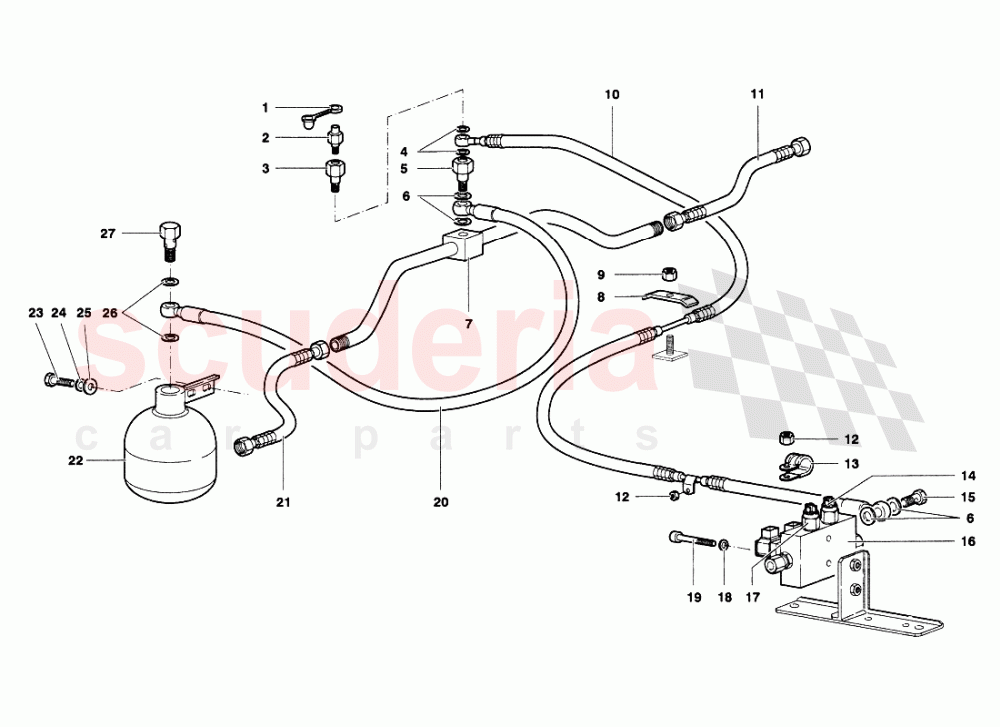

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5136498	PLUG	5136498 PLUG	$44.02	1
002	5136497	BLEEDING SCREW	5136497 BLEEDING SCREW	$35.51 MSRP: ~~37.05~~ (4.2% off)	1
003	5136496	SCREW	5136496 SCREW	$293.42	1
004	3101513	WASHER IN STOCK	3101513 WASHER IN STOCK	$1.44 MSRP: ~~7.32~~ (80.3% off)	2
005	51006838	SCREW WITH HOLE	51006838 SCREW WITH HOLE	$95.67 MSRP: ~~100.50~~ (4.8% off)	1
006	51006839	WASHER	51006839 WASHER	$1.32 MSRP: ~~7.13~~ (81.5% off)	6
007	51007983	PIPE	51007983 PIPE (Valid for GB - March 2001)	$857.32 MSRP: ~~895.00~~ (4.2% off)	1
007	51006832	PIPE	51006832 PIPE	$857.32 MSRP: ~~895.00~~ (4.2% off)	1
008	4033480	PLATE	4033480 PLATE	-	1	Enquire
009	N0211963	NUT IN STOCK	N0211963 NUT IN STOCK	$0.76	1
010	51006848	PIPE	51006848 PIPE	$692.31	1
010	51008087	PIPE	51008087 PIPE (Valid for GB - March 2001)	$545.71	1
011	51006813	RH PIPE	51006813 RH PIPE	$495.05 MSRP: ~~516.00~~ (4.1% off)	1
012	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	2
013	8831515	CLAMP	8831515 CLAMP	$10.01	1
014	R1470156	KIT MIN-MAX LIFT.SYST.SENSORS	R1470156 KIT MIN-MAX LIFT.SYST.SENSORS	$987.91	1
015	5133245	SCREW	5133245 SCREW	$216.50 MSRP: ~~225.50~~ (4% off)	1
016	5134571	ELECTRO-VALVE	5134571 ELECTRO-VALVE	$293.85	1
017	R147156	MINIMUM PRESSURE GAUGE	R147156 MINIMUM PRESSURE GAUGE	-	1	Enquire
018	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	2
019	8700608	SCREW IN STOCK	8700608 SCREW IN STOCK	$0.55 MSRP: ~~7.36~~ (92.5% off)	2
020	51006814	PIPE	51006814 PIPE (Valid for GB - March 2001)	$420.61 MSRP: ~~439.00~~ (4.2% off)	1
020	51007985	PIPE	51007985 PIPE (Valid for GB - March 2001)	$445.42 MSRP: ~~464.00~~ (4% off)	1
021	51006831	LH PIPE	51006831 LH PIPE	$495.05 MSRP: ~~516.00~~ (4.1% off)	1
022	51006837	RESERVOIR	51006837 RESERVOIR	$3,075.90	1
023	8100601	SCREW	8100601 SCREW	$0.27	2
024	8410601	WASHER	8410601 WASHER	$0.04 MSRP: ~~7.40~~ (99.5% off)	2
025	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	2
026	8401425	WASHER	8401425 WASHER	-	2	Enquire
027	5124347	SCREW	5124347 SCREW	-	1	Enquire
