Lamborghini Diablo VT 6.0 (2000-2001) - Engine Bonnet

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

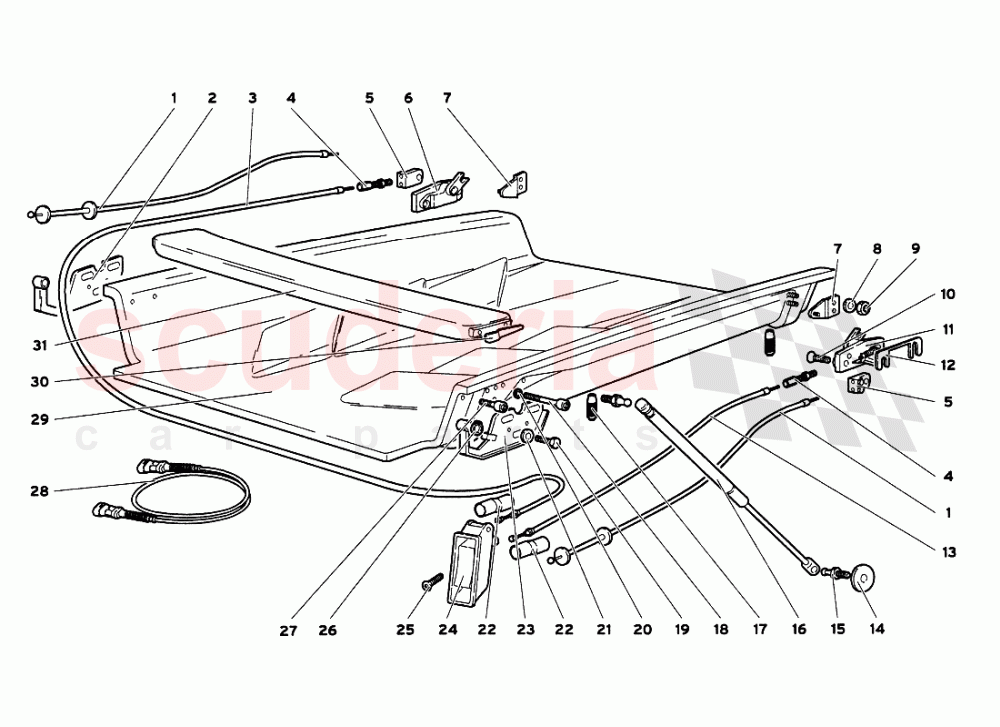

Engine Bonnet of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9460003
CABLE 		$28.90 2
002 9460322
RIGHT HINGE 		$69.73 1
003 9460006
RIGHT CABLE 		$51.69 1
004 9460213
ADJ/SCREW 		- 2 Enquire
005 9460212
DOUBLE CLAMP
use 410814333 		- 2 Enquire
006 9460200
RIGHT LOCK 		$647.65 1
007 9460201
LOCK STRIKER 		$139.70 2
008 8400627
WASHER 		$21.97 (4.3% off) 4
009 N02214812
HEXAGON NUT, SELF-LOCKING 		$1.96 (73.1% off) 4
010 WHT003068
COUNTERSUNK BOLT 		$1.43 (80.1% off) 4
011 9460202
LEFT LOCK 		$389.59 (1.4% off) 1
012 9460215
SPACER 		$3.98 (4.1% off) 1
012 9460216
SPACER 		$5.82 (2.2% off) 1
013 9460007
LEFT CABLE 		$51.69 1
014 WHT001942
WASHER 		$3.30 2
015 9459305
BALL PIN 		$2.84 4
016 92004388
ENGINE COVER STRUT 		$217.75 2
017 400807333
SUPPORT 		$36.22 4
018 8700549
SCREW 		$1.99 2
019 8100662
SCREW 		- 6 Enquire
020 8400510
WASHER 		$0.19 (97.4% off) 2
021 8400632
WASHER 		- 6 Enquire
022 9421385
LINER 		- 2 Enquire
023 9460323
LEFT HINGE 		$129.27 1
024 400827185
HANDLE 		$1,868.29 1
025 8700539
SCREW 		- 1 Enquire
026 8580801
RETAINER RING 		$0.06 (99.2% off) 2
027 8700547
SCREW 		$0.16 (97.8% off) 2
028 61008773
THIRD BRAKE LIGHT WIRING 		$8.17 (3.3% off) 1
029 92006335
ENGINE BONNET 		$18,165.81 1
030 9460100
GASKET 		$240.08 2
031 92006794
SPOILER 		$2,605.45 (4% off) 1
